1.25mm Pitch High-Reliability Connector - Gecko-MT

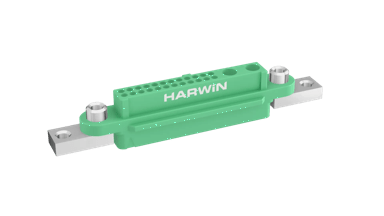

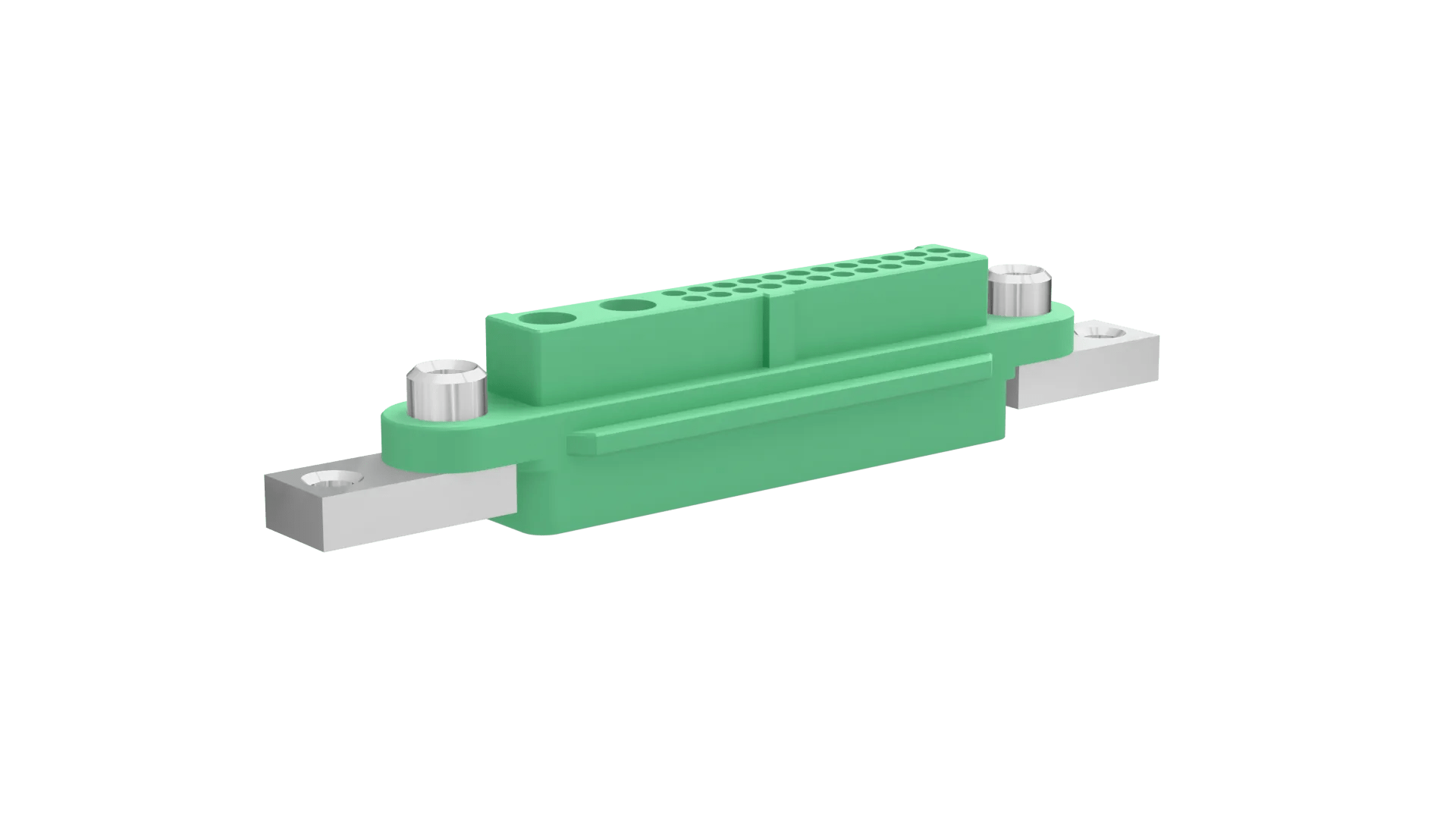

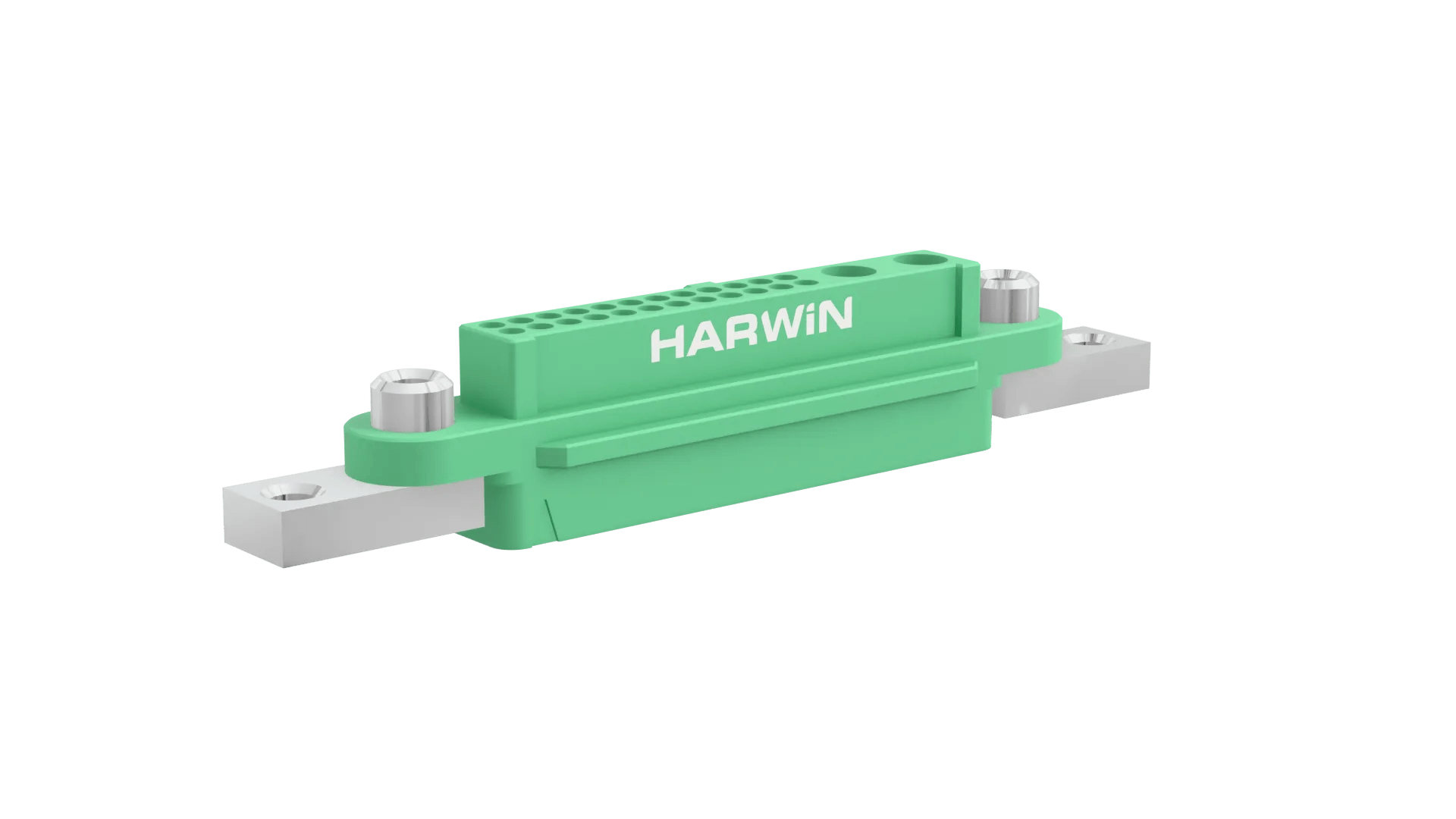

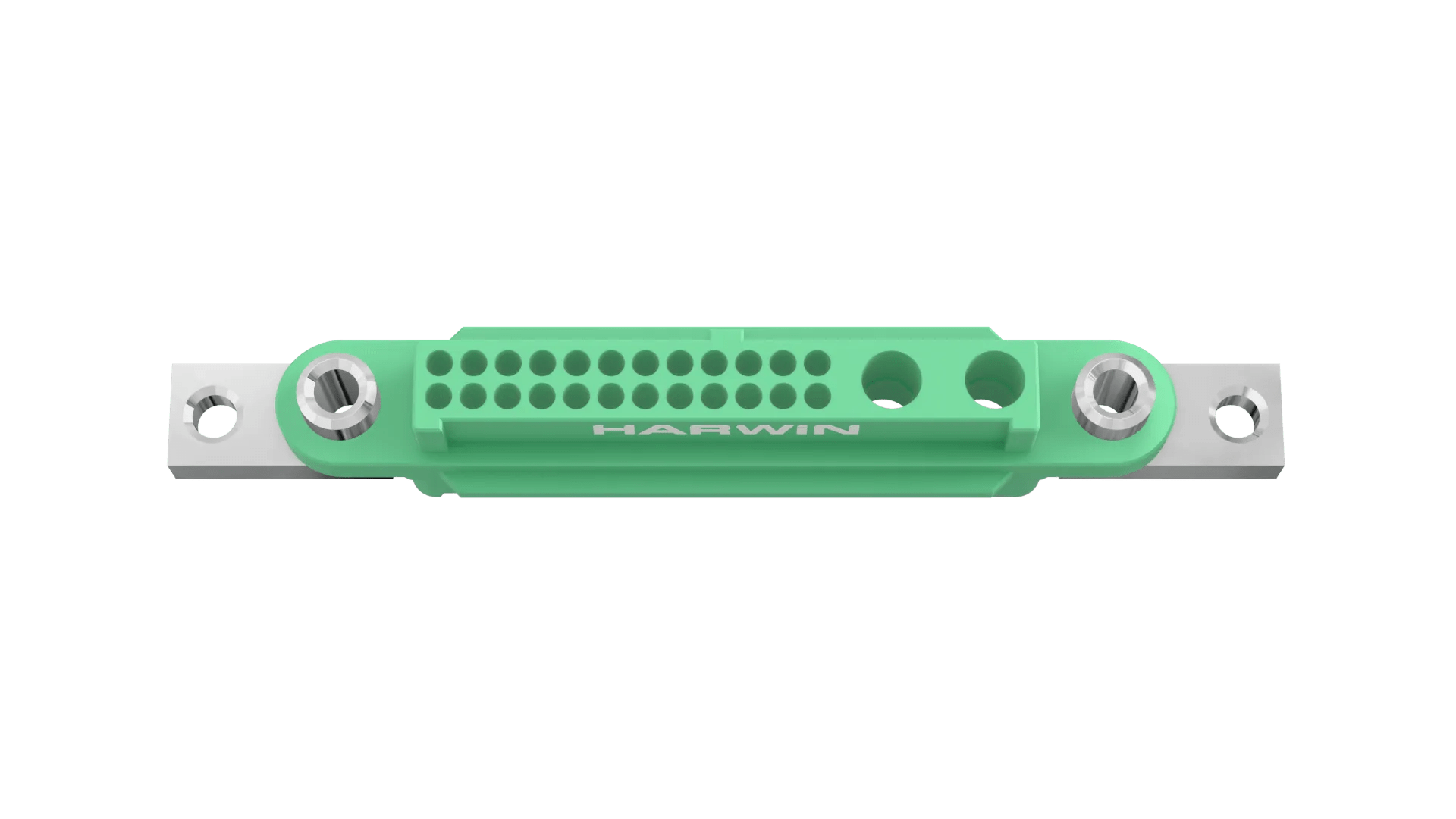

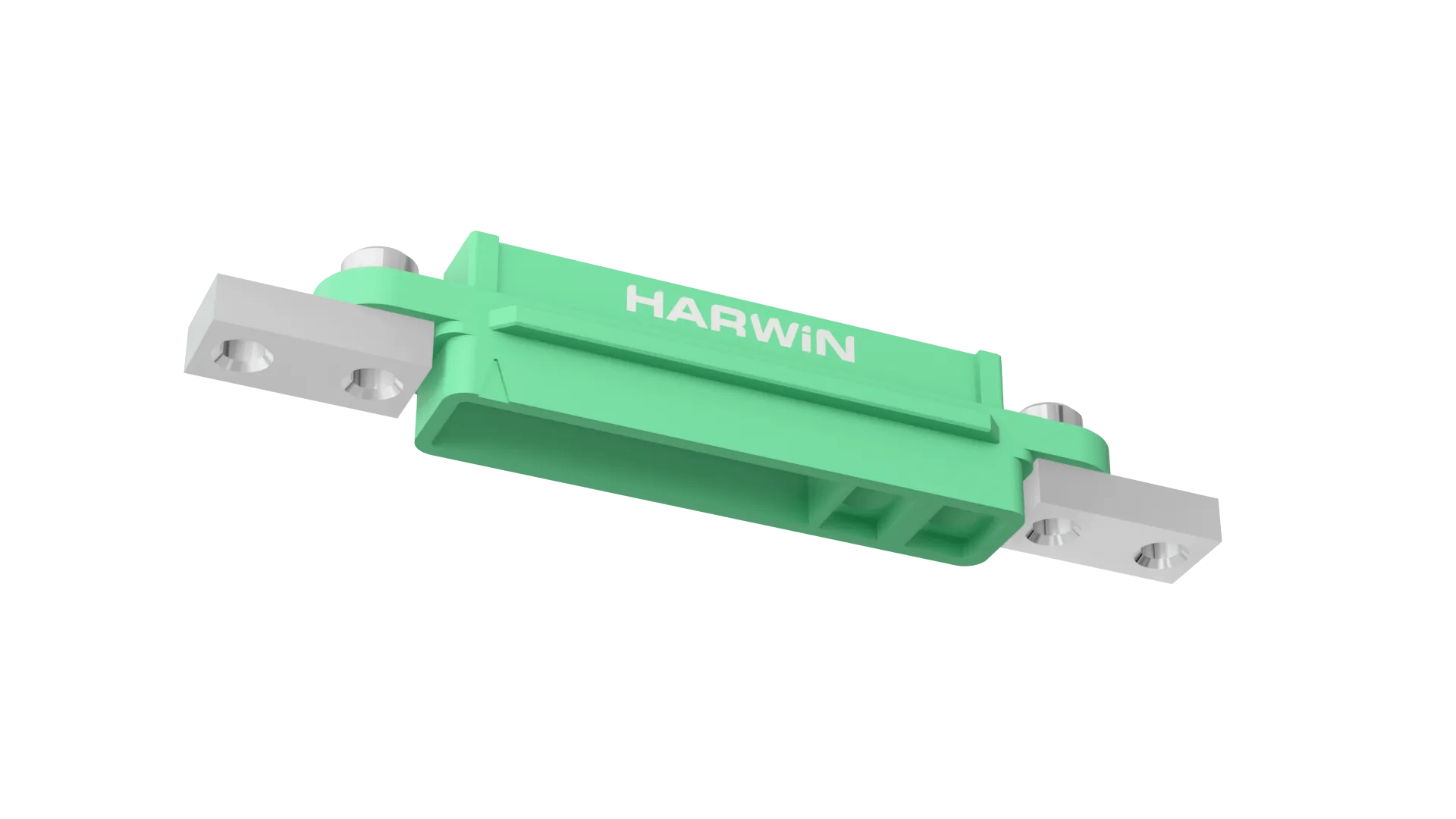

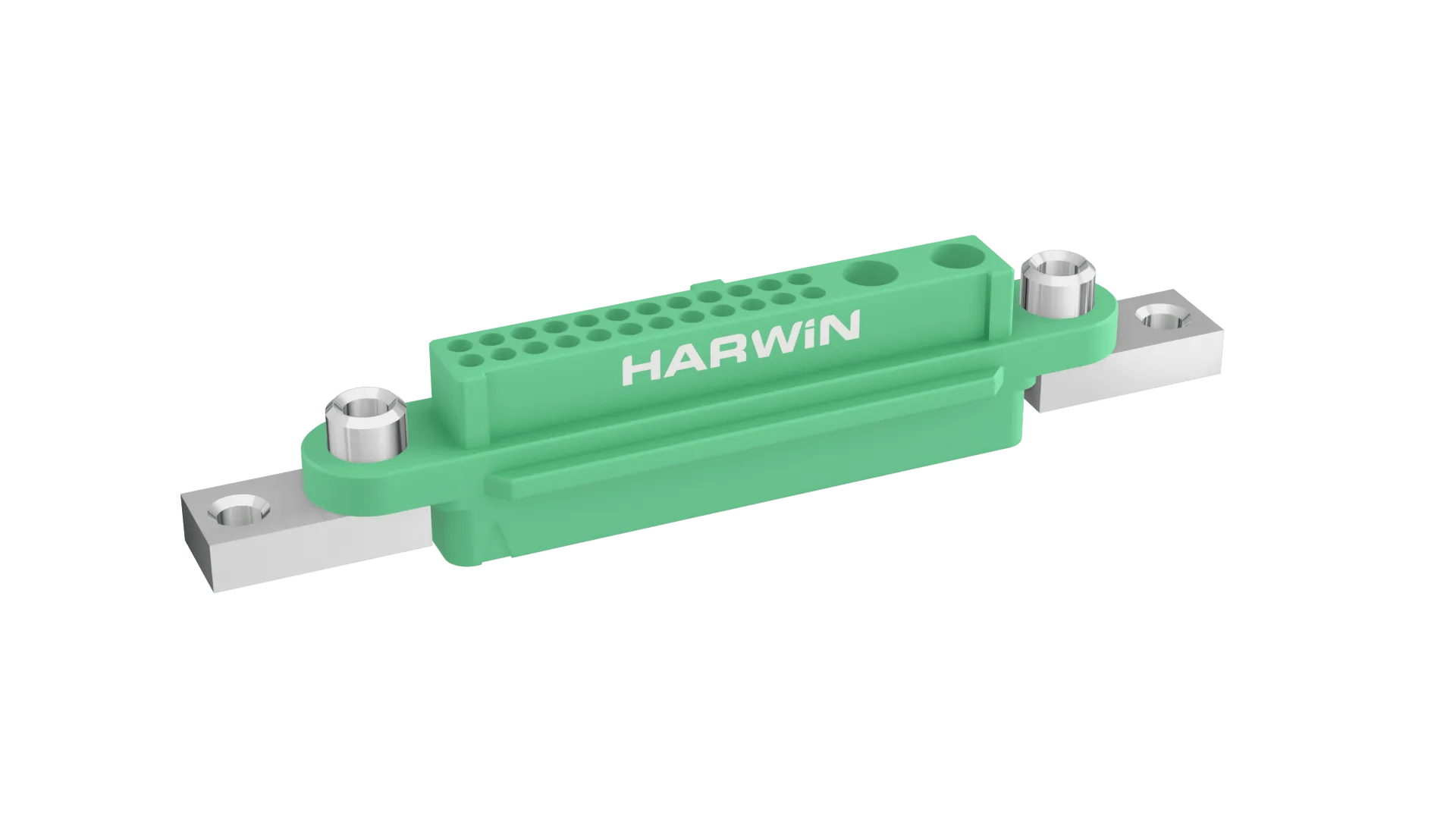

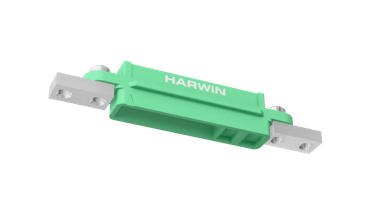

Female Cable Connector Housing - 2 power, 24 signal contact arrangement. Fitted with threaded Screw-Loks (for reverse fixing) with extended lugs for rear panel mount. Use hex socket bolt G125-4520000B for mounting to panels up to 3mm thickness.
Use with signal crimp contacts G125-0010005 (for 26 AWG) or G125-0020005 (for 28-32 AWG), and power crimp contacts G125-0500005 (for 18 AWG). Pre-cabled contacts also available: for signal, see G125-FW; for power, see G125-FP.
For complete pin numbering or pin out information, see Component Specification C125XX.
View Technical Details & Downloads
Checking stock availability...
Check Availability
Related Products
Further Details
Jump To:
Product Characteristics
Materials
Dimensions
Product Information
Technical Documentation
Environmental Compliance
Test Reports
Technical Details
Product Characteristics
End Stackable:
No
Style of Jackscrews:
Internal Thread Screw-Lok with Rear Panel Mount (Reverse Fix)
Mating Pin Size:
Ø0.4mm, Ø1mm
Number of Rows:
Mixed
Connector Orientation:
Straight
Country of Origin:
GB
Side Stackable:
No
Number of Special (Power or Coax) Contacts:
2
Number of Signal Contacts:
24
Operating Temperature:
-65°C to +150°C
RoHS Status:
RoHS Compliant (2015/863/EU) with no Exemption required
Current Rating:
Signal = 2.8A max individual contact, 2A max simultaneous; Power = 10A max simultaneous (25°C)
Polarised:
Yes
Cuttable:
No
Materials
Housing Material:
Polyamide (Nylon) 4T
Flammability Rating:
UL94V-0
Packaging Style:
Bulk/Loose
Housing Colour:
Green
Dimensions
Contact Pitch:
1.25mm (0.049")
Weight:
1.831g
Dimensions:
33.55 x 6.50 x 7.60
Thread Size:
M2
Downloads
IS-47 - Z125-905 Assembly Tool Instruction Sheet
IS-44 - Z125-903 Hand Crimp Tool Instruction Sheet
Catalog page - Gecko-MT Pin Numbering + Mating Profiles
IS-38 - Z125-902 Assembly Tool Instruction Sheet
IS-37 - Z125-900 Hand Crimp Tool Instruction Sheet
Product Datasheet - Gecko-MT range (HRi)
Product Training Module - Overview Guide to the Gecko-MT range + 1.25mm pitch High-Reliability with Power
Distributor part numbers for suitable cables for Datamate + Gecko + M300 & Kona
Product Training Module - Panel Mount with Gecko-SL
Product Training Module - Cable Products from Harwin
Product Training Module - Cable Connectors and Assemblies from Harwin
Technical Drawing / Datasheet - G125-22496F5-XX-XX-00.pdf
C125XX Component Specification - Gecko G125 Series (1.25mm pitch High-Reliability)
Plating thickness on Gecko contacts (signal and power)
C049XX Component Specification - Cable Assembly Specifications for all HRi products
Outgassing data for Harwin products (plastics)
RoHS - G125-22496F5-02-24-00
Material composition for G125-22496FX-XX-XX-00 series
REACH - Harwin statement including all current SVHCs & Annex XIV & XVII
Environmental Legislation Statement - includes all material legislations
Extended Mineral Reporting Template (EMRT) - Company Summary Statement
Conflict Minerals Reporting Template (CMRT) - Company Summary Statement
