Active Product

G125-22496F3-03-08-00

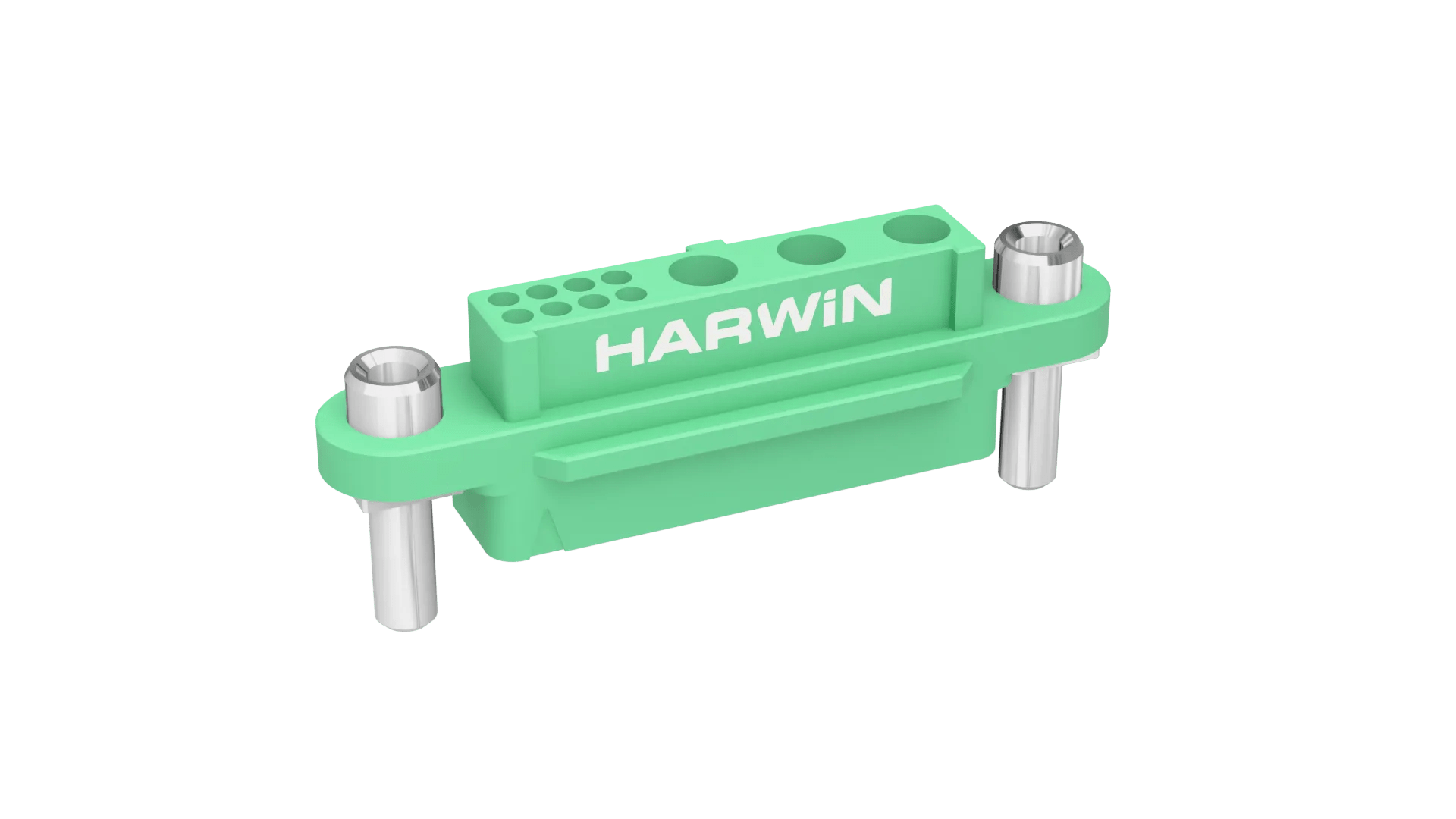

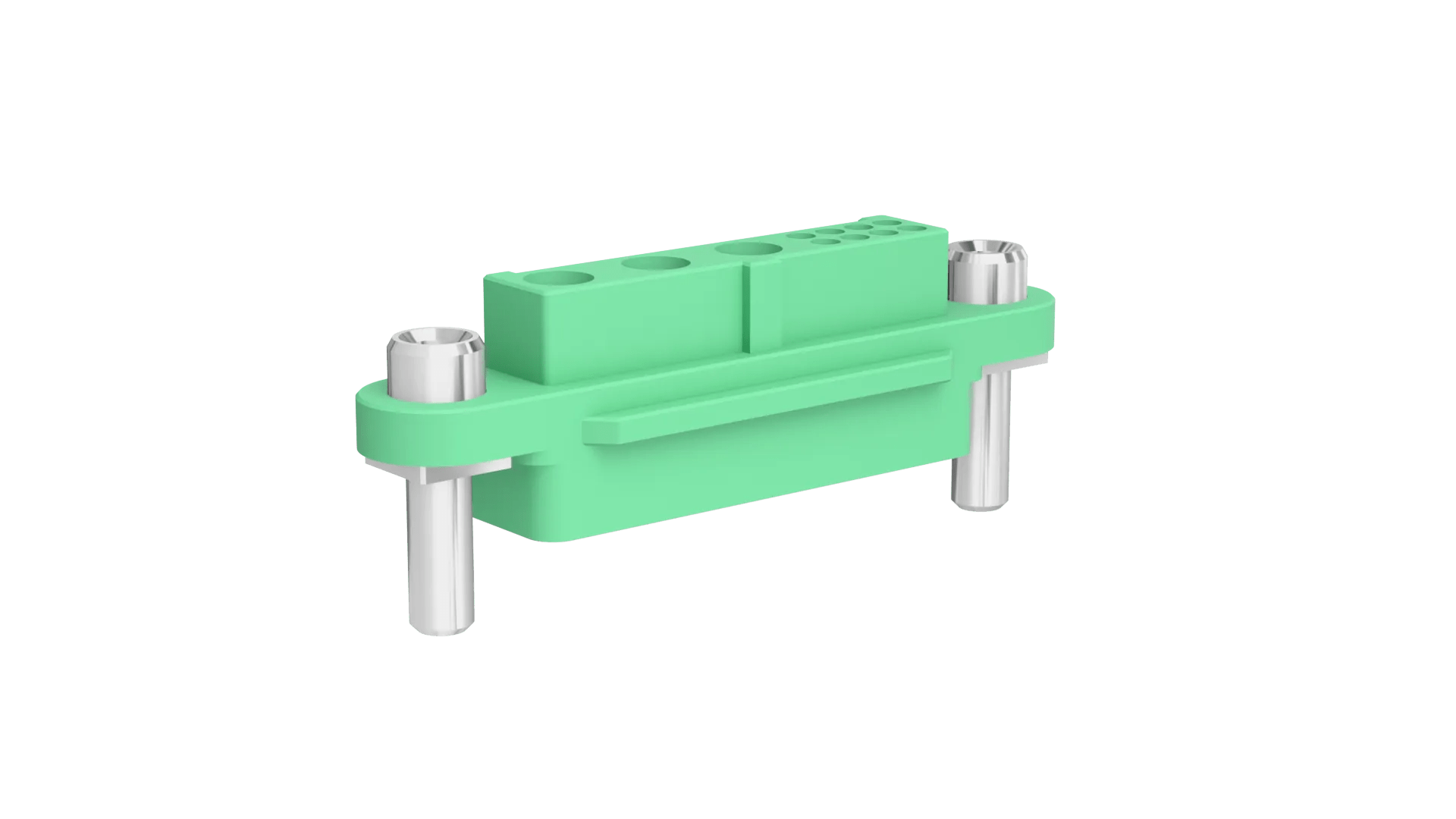

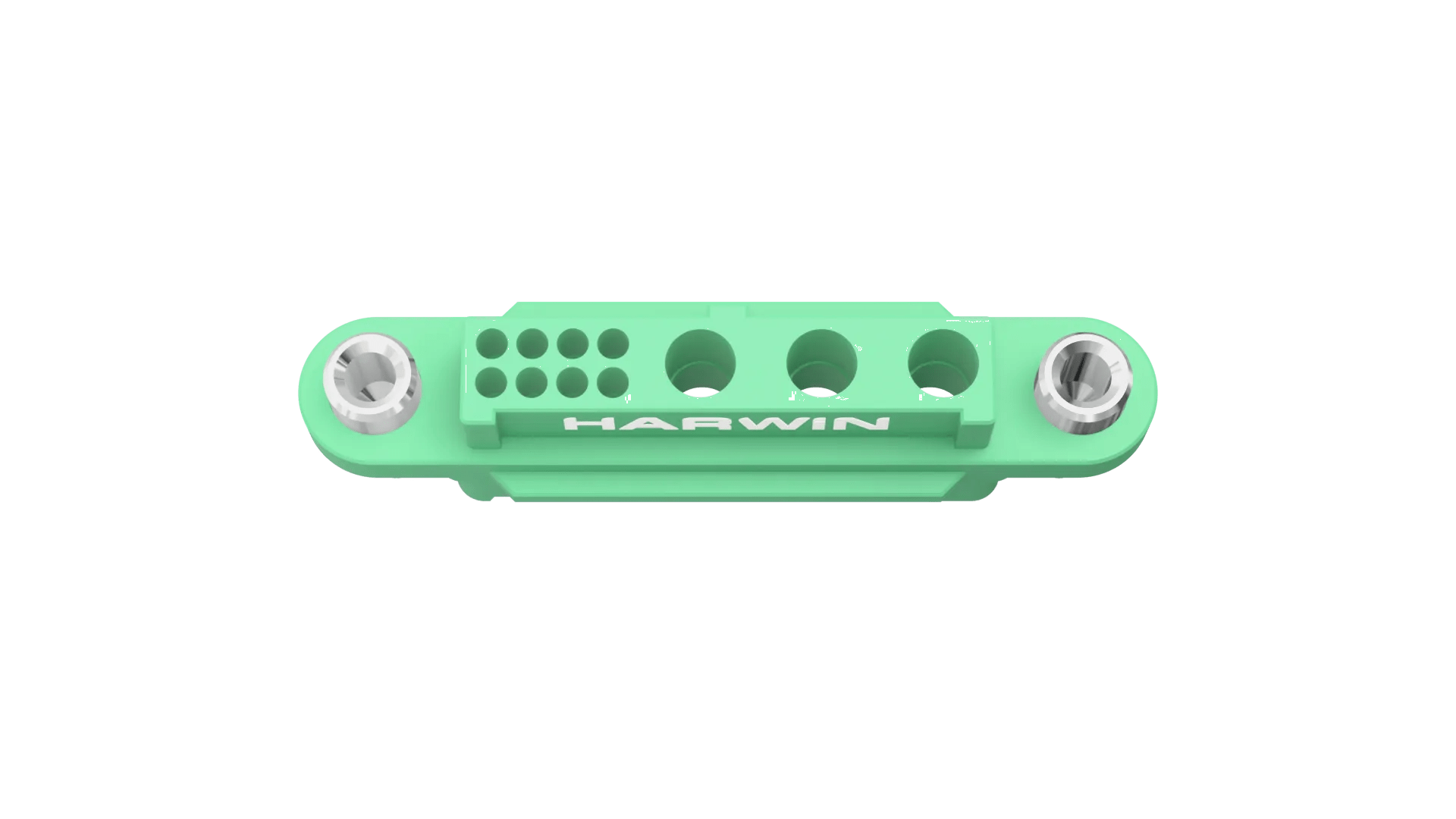

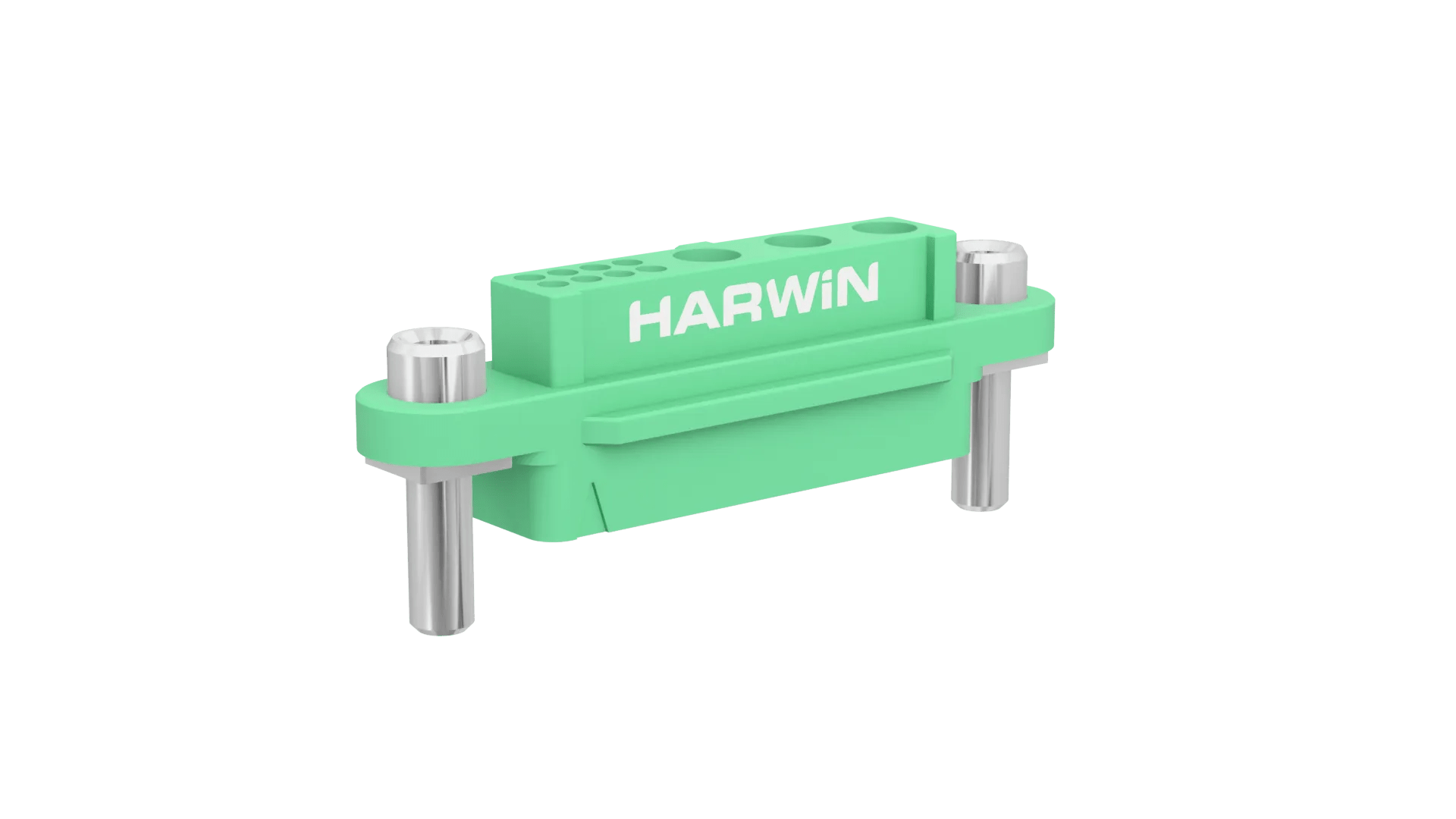

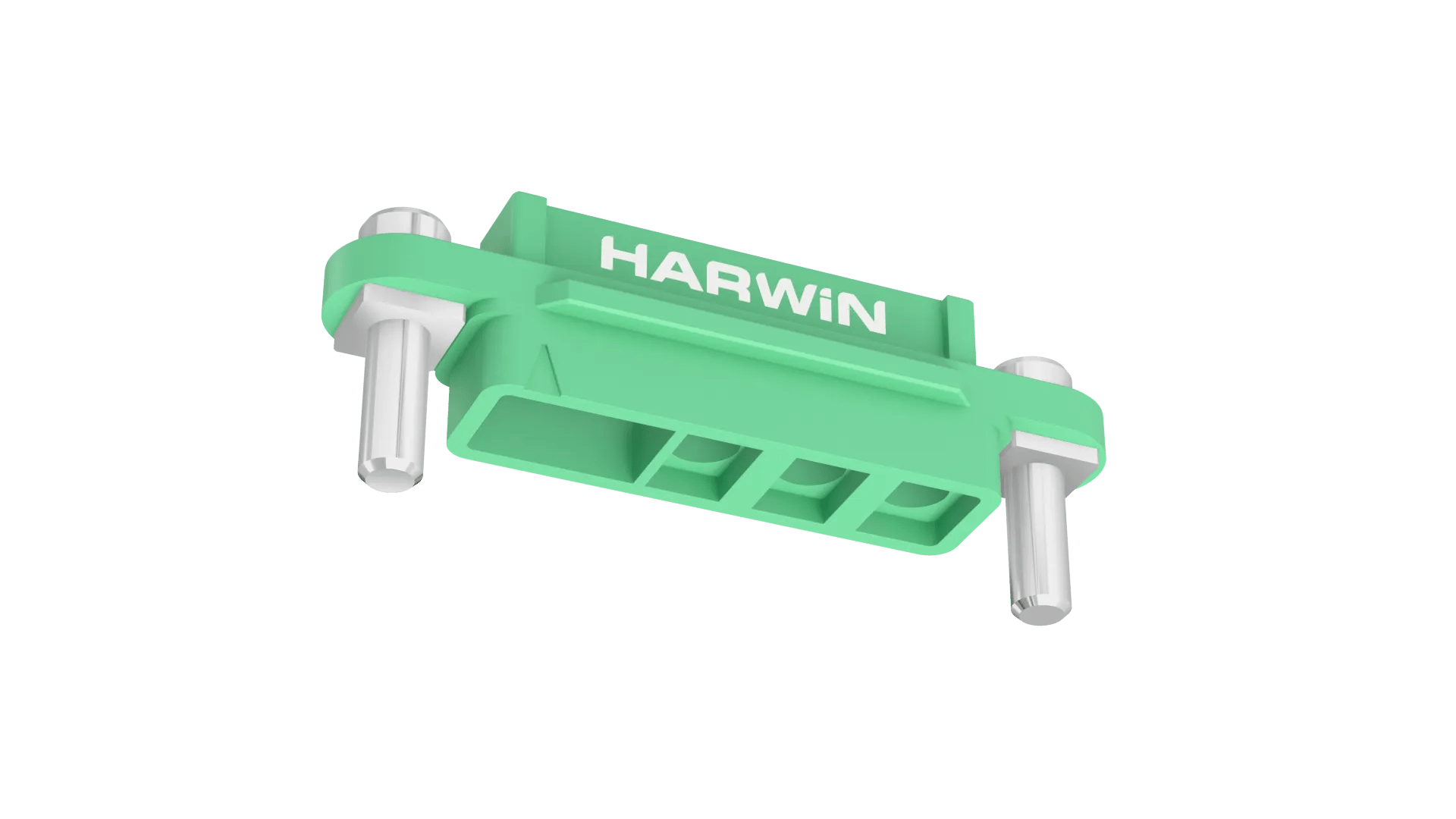

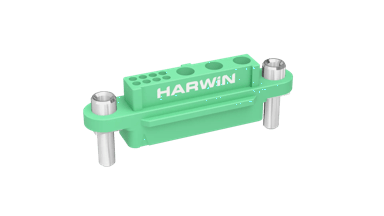

8+3 Pos. Female Cable Housing, Screw-Lok Reverse Fix Panel Mount

1.25mm Pitch High-Reliability Connector - Gecko-MT

Order Sample

Add to Favorites

Loading… Check availability

6 similar products View products

Traceparts account required

Product Description

Female Cable Connector Housing – 3 power, 8 signal contact arrangement. Fitted with threaded Screw-Lok fixings (for reverse fixing) with 5.2mm panel mount studs. Use slotted nut G125-4510000B for front panel mounting.
Use with signal crimp contacts G125-0010005 (for 26 AWG) or G125-0020005 (for 28-32 AWG), and power crimp contacts G125-0500005 (for 18 AWG). Pre-cabled contacts also available: for signal, see G125-FW; for power, see G125-FP.
For complete pin numbering or pin out information, see Component Specification C125XX.

G125-22496F3-03-08-00 - 8+3 Pos. Female Cable Housing, Screw-Lok Reverse Fix Panel Mount

Traceparts account required

Technical Details

EU RoHS Status:

RoHS Compliant (2015/863/EU) with no Exemption required

Contact Pitch:

1.25mm (0.049")

Contact Gender:

Female/Socket/Jack

Connector Orientation:

Straight

Connection Type:

Cable (Crimp)

Mating Pin Size:

Ø0.4mm, Ø1mm

Current Rating:

Signal = 2.8A max individual contact, 2A max simultaneous; Power = 10A max simultaneous (25°C)

Operating Temperature:

-65°C to +150°C

Style of Jackscrews:

Internal Thread Screw-Lok with Front Panel Mount Stud (Reverse Fix)

Polarising Features:

Yes

End Stackable:

No

Side Stackable:

No

Can be cut to another size:

No

Number of Rows:

Mixed

Number of Signal Contacts:

8

Number of Special (Power or Coax) Contacts:

3

Housing Material:

Polyamide (Nylon) 4T

Housing Colour:

Green

Housing Material UL Rating:

UL94V-0

Packaging Style:

Bulk/Loose

Individual Part Weight:

1.196g

Overall Dimensions (L x W x D) in mm:

27.30 x 6.50 x 10.40

Male Stud Length:

5.20mm

Thread Size:

M2

Mating Profiles:

Catalog page - Gecko-MT Pin Numbering, Mating Profiles

Frequently Asked Questions Ask a Question

Yes, you can mate together the two different cable size contacts. Both male contacts and both female contacts have the same front half of the contact for mating compatibility. It is only the bore at the rear of the contact, where the wire is inserted, that is different for the 26 AWG and 28-32 AWG types. So both female contacts G125-0010005 and G125-002005 mate with both male contacts G125-1010005 and G125-1020005.

Was this answer useful?

No, these connectors are not supplied with the board/panel mount nuts – you will need to order them separately. You have a choice of G125-4500000B (hexagonal nut), or G125-4510000B (slotted circular nut).

Was this answer useful?

We currently recommend 3 materials that we have tried – although it’s very likely that many others are entirely suitable. Our primary recommendation, that we use on our complete cable assemblies, is Stycast 2651MM with Catalyst 9. We have also used Robnor Resins PX439XS/BK/250 and Epoxies Innovative Bonding Solutions 50-3122RBK. You can find more information on backpotting our connectors and links to the epoxy suppliers on our blog post What is Backpotting?

Was this answer useful?

The torque value for board or panel mounting and for mating screw-loks is 16-18cmN. Both values are given in the Component Specification C125xx (page 3).

Was this answer useful?

Downloads

RoHS Compliant (2015/863/EU) with no Exemption required

PDF Download
