1.25mm Pitch High-Reliability Connector - Gecko-MT

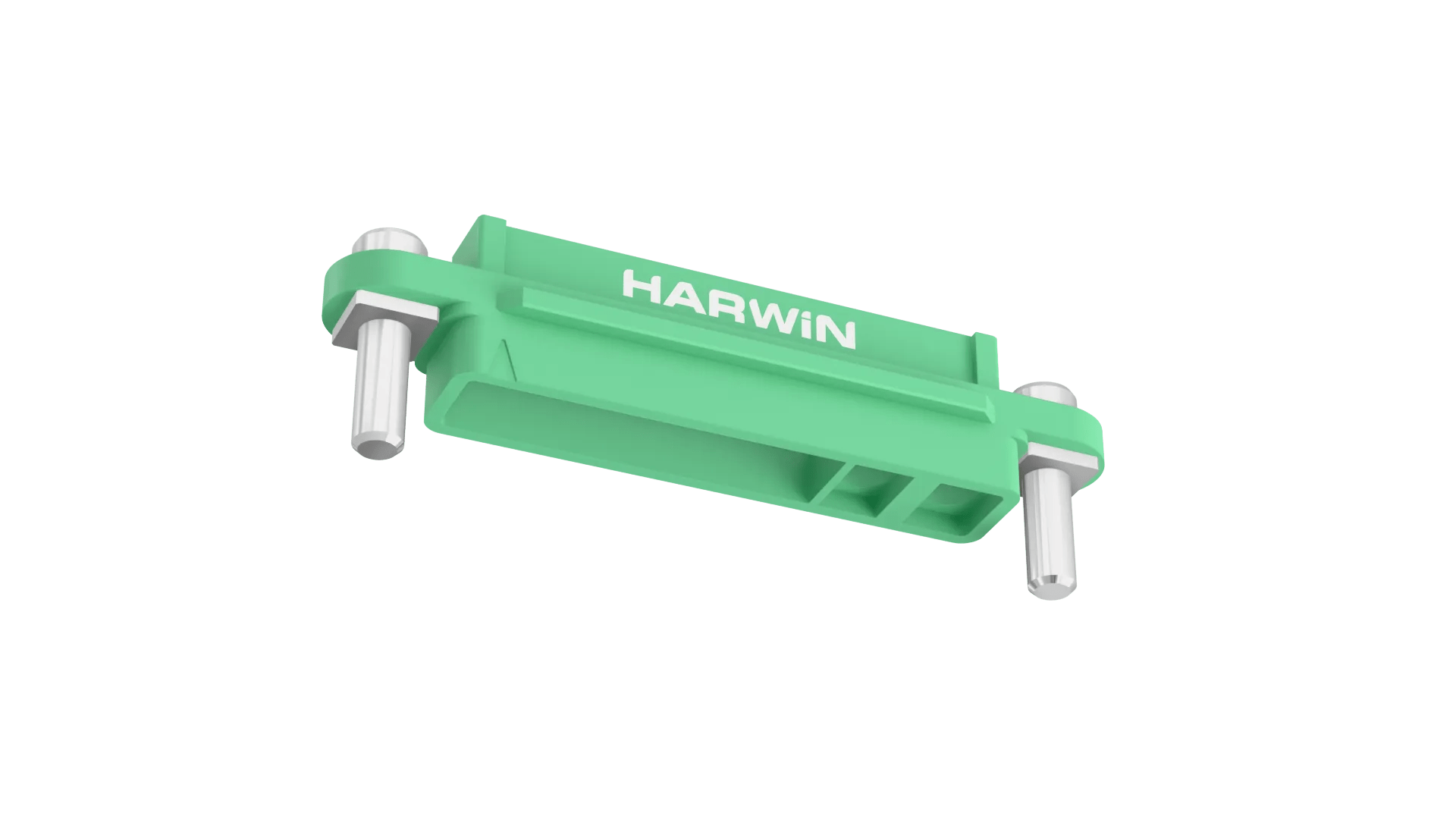

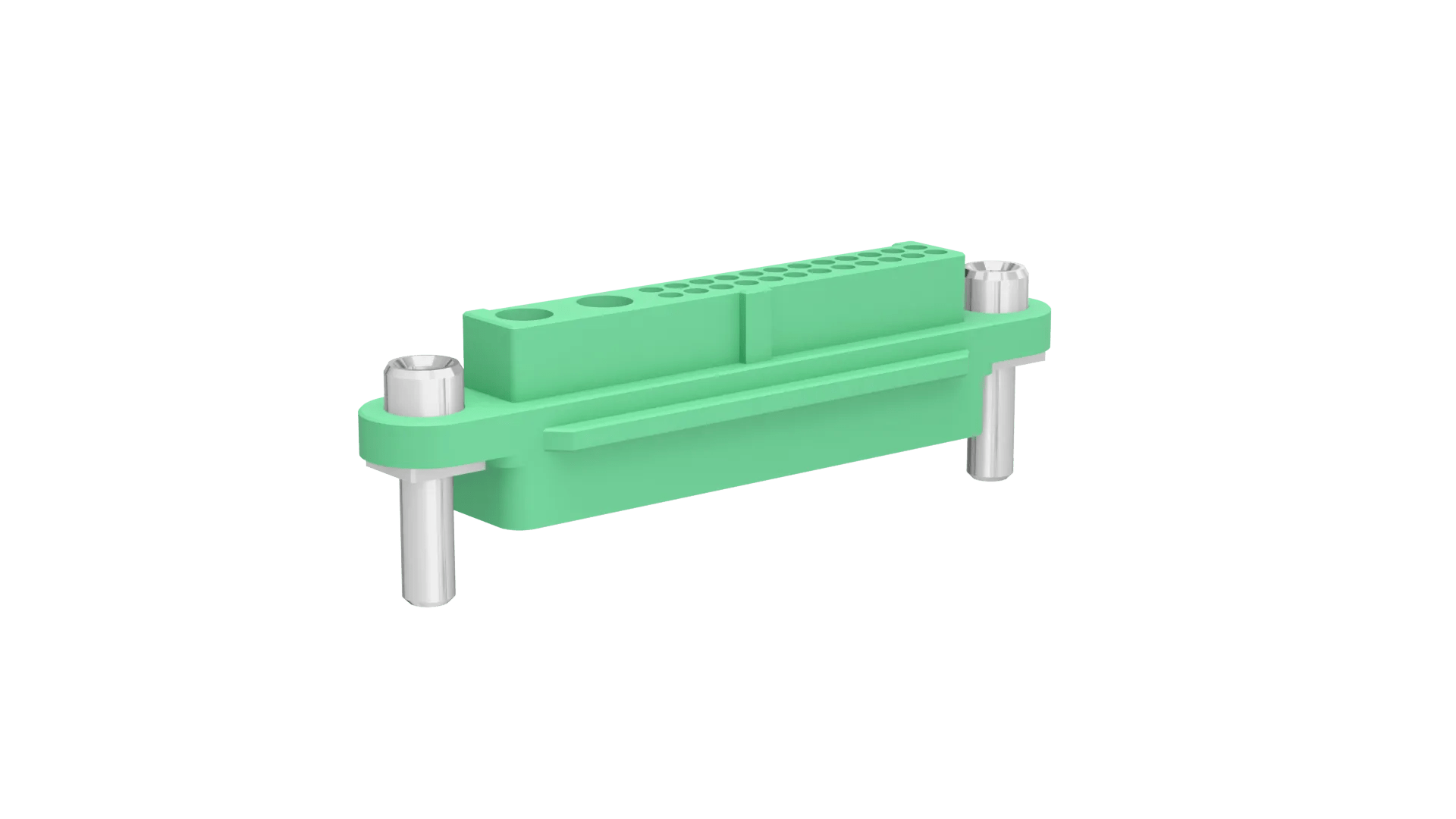

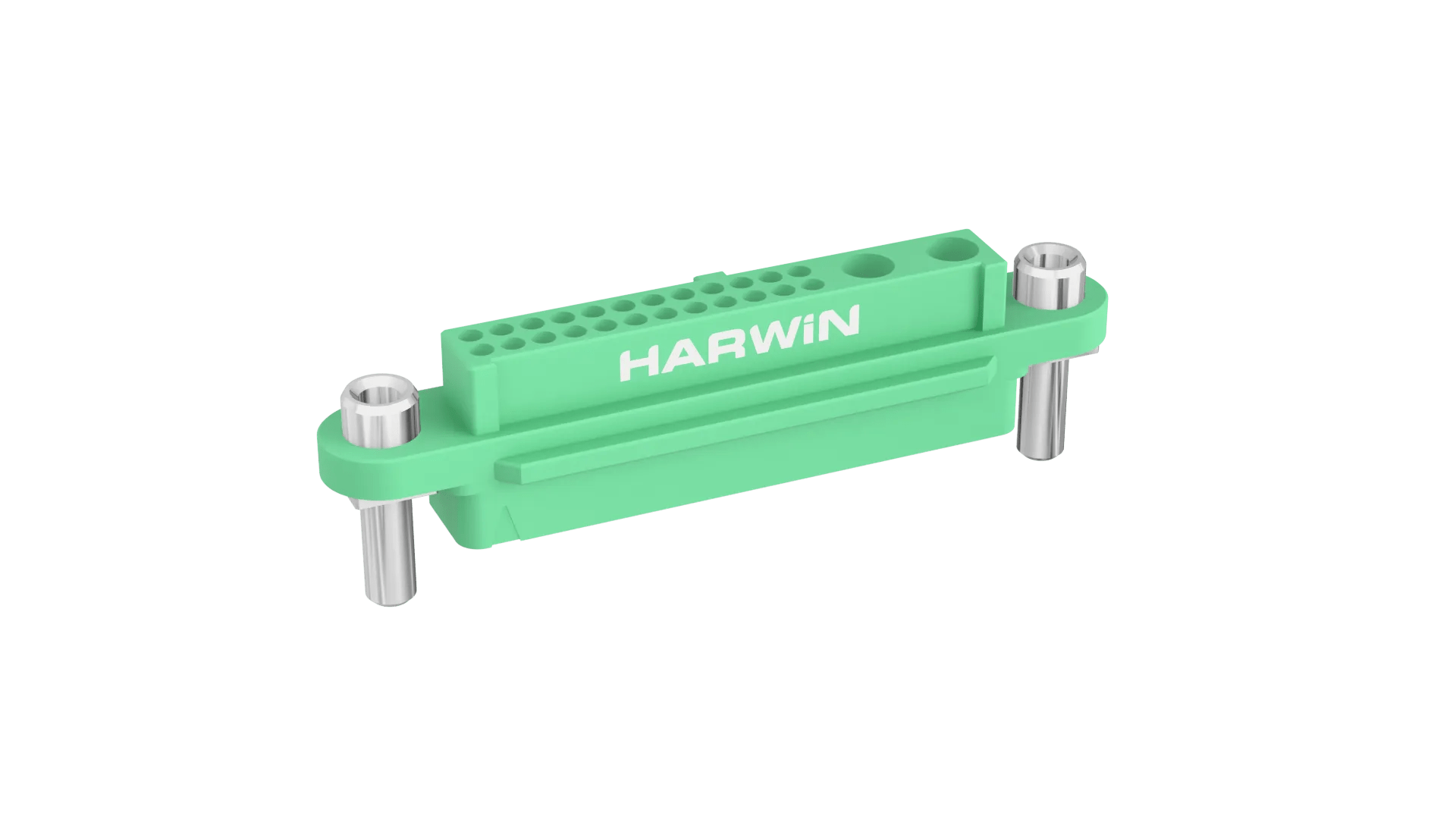

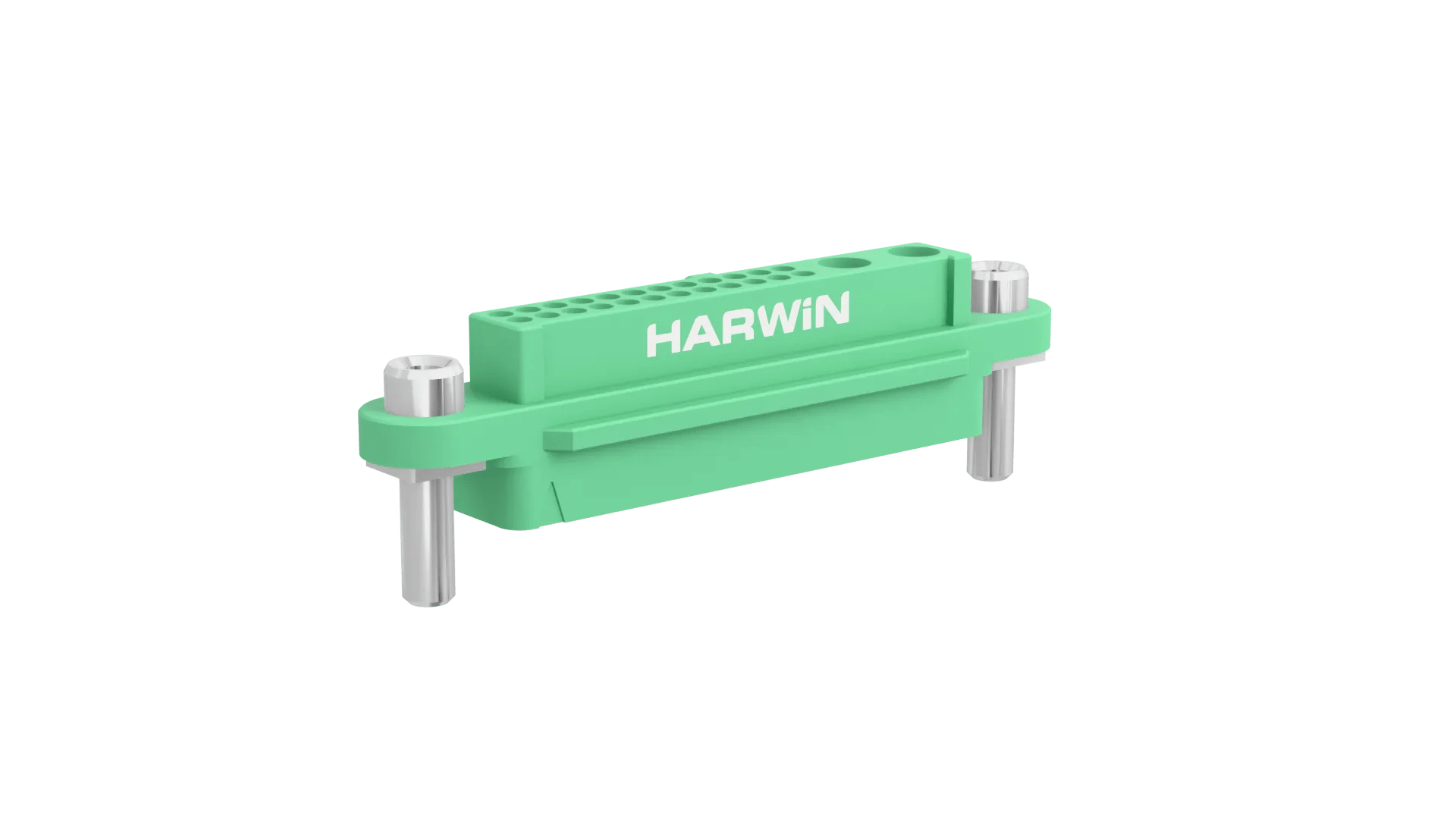

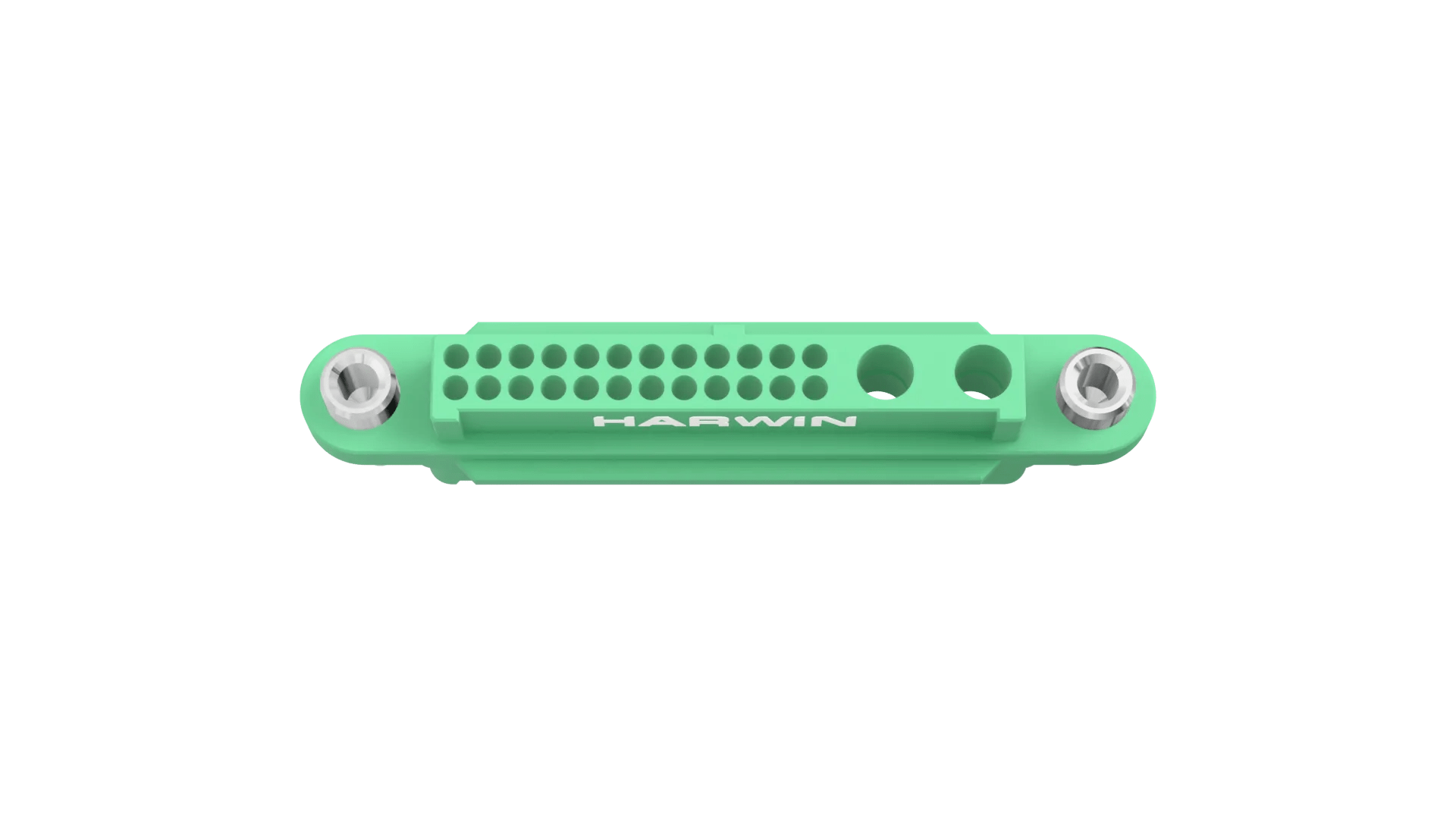

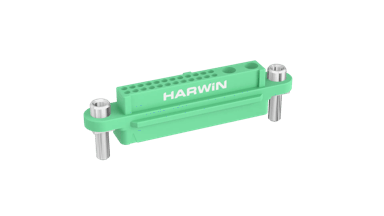

Female Cable Connector Housing - 2 power, 24 signal contact arrangement. Fitted with threaded Screw-Lok fixings (for reverse fixing) with 5.2mm panel mount studs. Use slotted nut G125-4510000B for front panel mounting.
Use with signal crimp contacts G125-0010005 (for 26 AWG) or G125-0020005 (for 28-32 AWG), and power crimp contacts G125-0500005 (for 18 AWG). Pre-cabled contacts also available: for signal, see G125-FW; for power, see G125-FP.
For complete pin numbering or pin out information, see Component Specification C125XX.
View Technical Details & Downloads
Checking stock availability...
Check Availability
Related Products
Further Details
Jump To:
Product Characteristics
Materials
Dimensions
Technical Documentation
Product Information
Test Reports
Environmental Compliance
Technical Details
Product Characteristics
End Stackable:
No
Style of Jackscrews:
Internal Thread Fixing with Board/Front Panel Mount
Mating Pin Size:
Ø0.4mm, Ø1mm
Number of Rows:
Mixed
Connector Orientation:
Straight
Country of Origin:
GB
Side Stackable:
No
Number of Power/Coax Contacts:
2
Number of Signal Contacts:
24
Operating Temperature:
-65°C to +150°C
RoHS Status:
RoHS Compliant (2015/863/EU) with no Exemption required
Current Rating:
Signal = 2.8A max individual contact, 2A max simultaneous; Power = 10A max simultaneous (25°C)
Polarised:
Yes
Cuttable:
No
Materials
Housing Material:
Polyamide (Nylon) 4T
Flammability Rating:
UL94V-0
Packaging Style:
Bulk/Loose
Housing Colour:
Green
Dimensions
Contact Pitch:
1.25mm (0.049")
Weight:
1.326g
Dimensions:
33.55 x 6.50 x 10.40
Stud Length:
5.20mm
Thread Size:
M2
Downloads
Technical Drawing / Datasheet - G125-22496F3-XX-XX-00.pdf
C125XX Component Specification - Gecko G125 Series (1.25mm pitch High-Reliability)
C049XX Component Specification - Cable Assembly Specifications for all HRi products
Outgassing data for Harwin products (plastics)
Plating thickness on Gecko contacts (signal and power)
Catalog page - Gecko-MT Pin Numbering + Mating Profiles
Product Training Module - Overview Guide to the Gecko-MT range + 1.25mm pitch High-Reliability with Power
Product Training Module - Cable Connectors and Assemblies from Harwin
Product Training Module - Cable Products from Harwin
Product Training Module - Panel Mount with Gecko-SL
IS-37 - Z125-900 Hand Crimp Tool Instruction Sheet
IS-38 - Z125-902 Assembly Tool Instruction Sheet
IS-44 - Z125-903 Hand Crimp Tool Instruction Sheet
IS-47 - Z125-905 Assembly Tool Instruction Sheet
Distributor part numbers for suitable cables for Datamate + Gecko + M300 & Kona
Product Datasheet - Gecko-MT range (HRi)
Test Report HT030 - Gecko (G125 Series) - Electrical + Mechanical and Environmental
Test Report HT067 - Gecko-SL (G125 Series) - Mechanical Screw-Lok test
Test Report HT087 - Gecko-MT Phase 2 additions + General (Electrical + Mechanical and Environmental)
REACH - Harwin statement including all current SVHCs & Annex XIV & XVII
Conflict Minerals Reporting Template (CMRT) - Company Summary Statement
Extended Mineral Reporting Template (EMRT) - Company Summary Statement
Environmental Legislation Statement - includes all material legislations
Material composition for G125-22496FX-XX-XX-00 series
RoHS - G125-22496F3-02-24-00
