Active

G125-22496F3-02-08-02

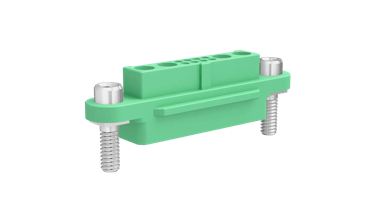

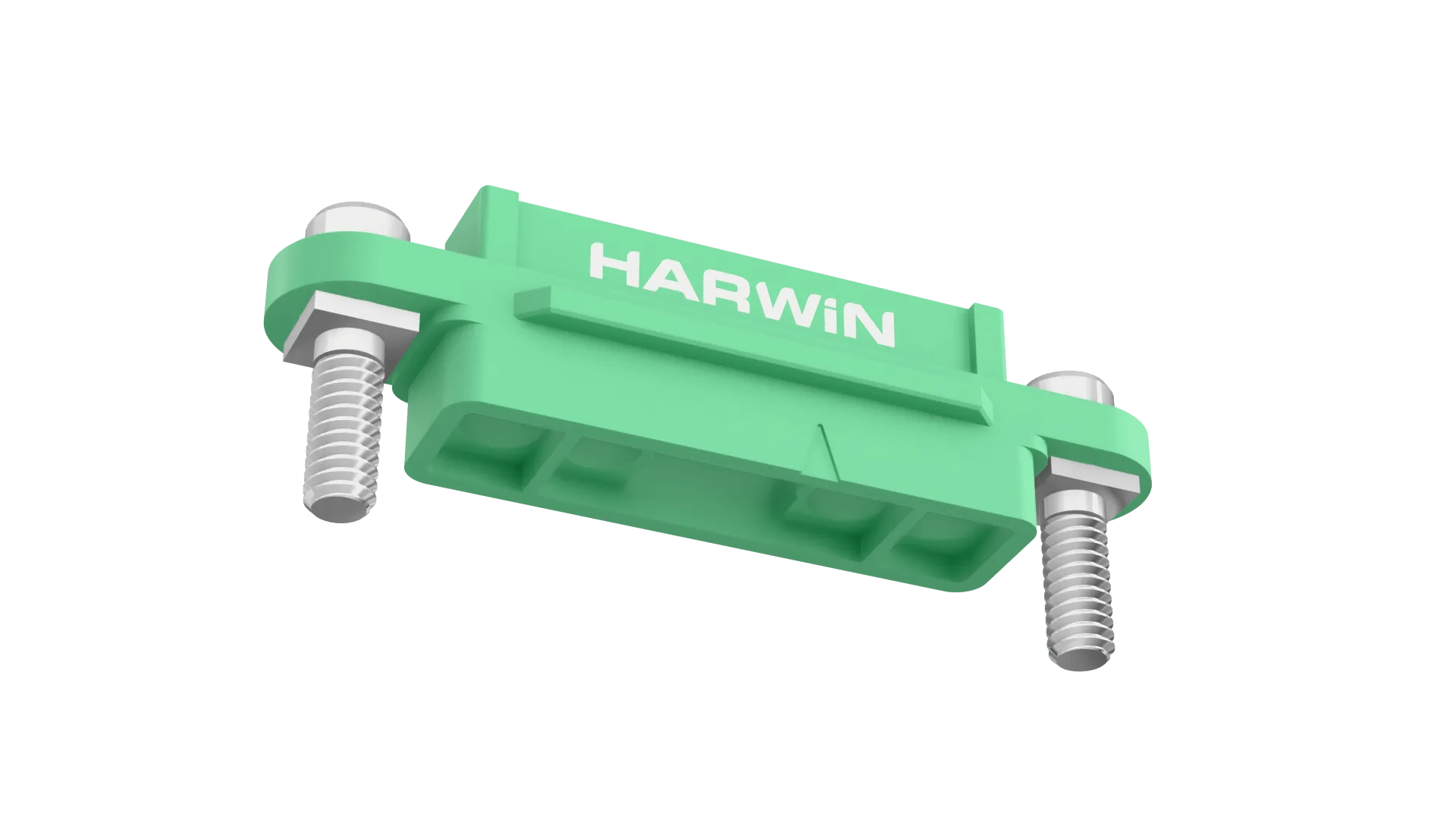

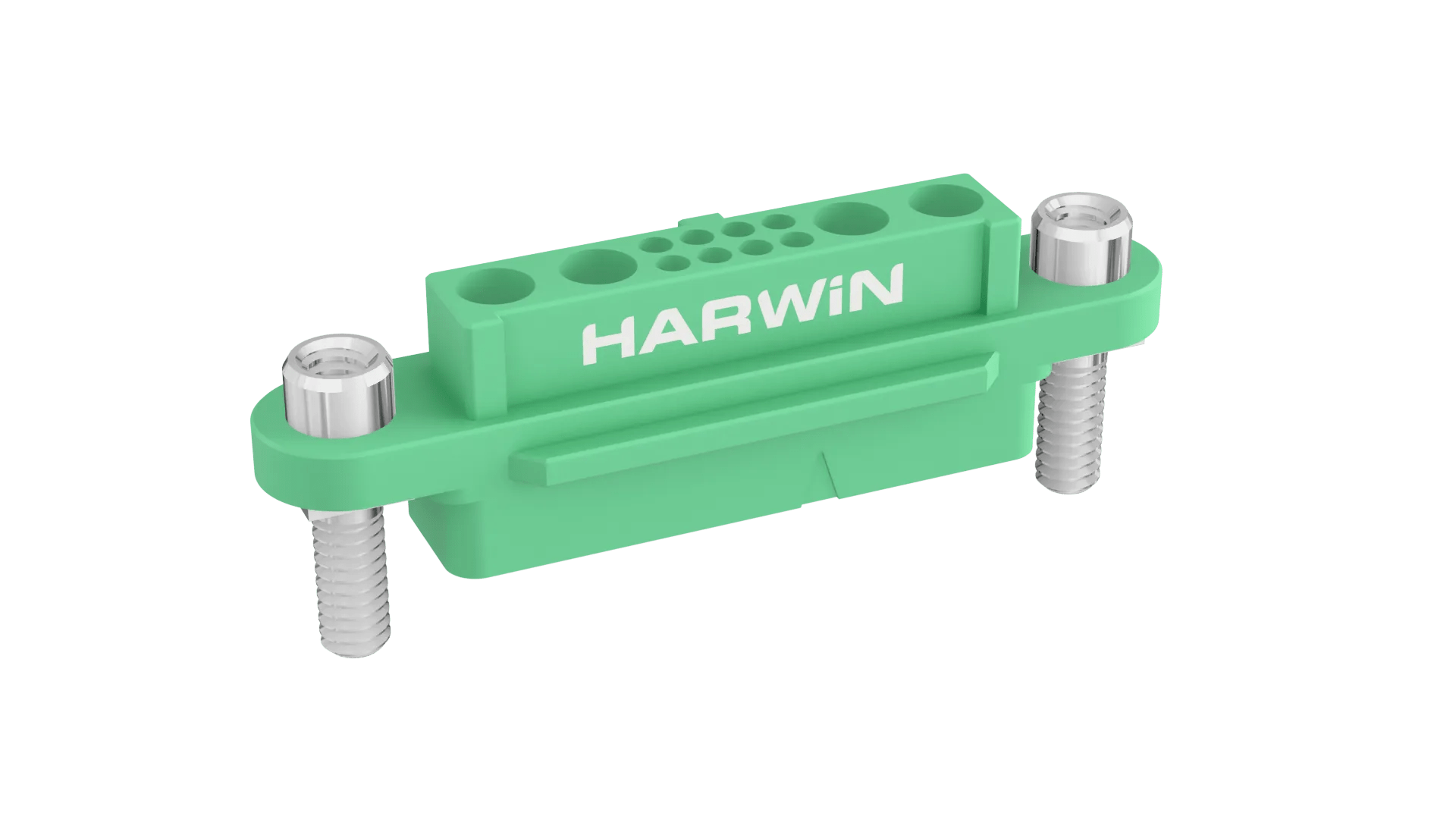

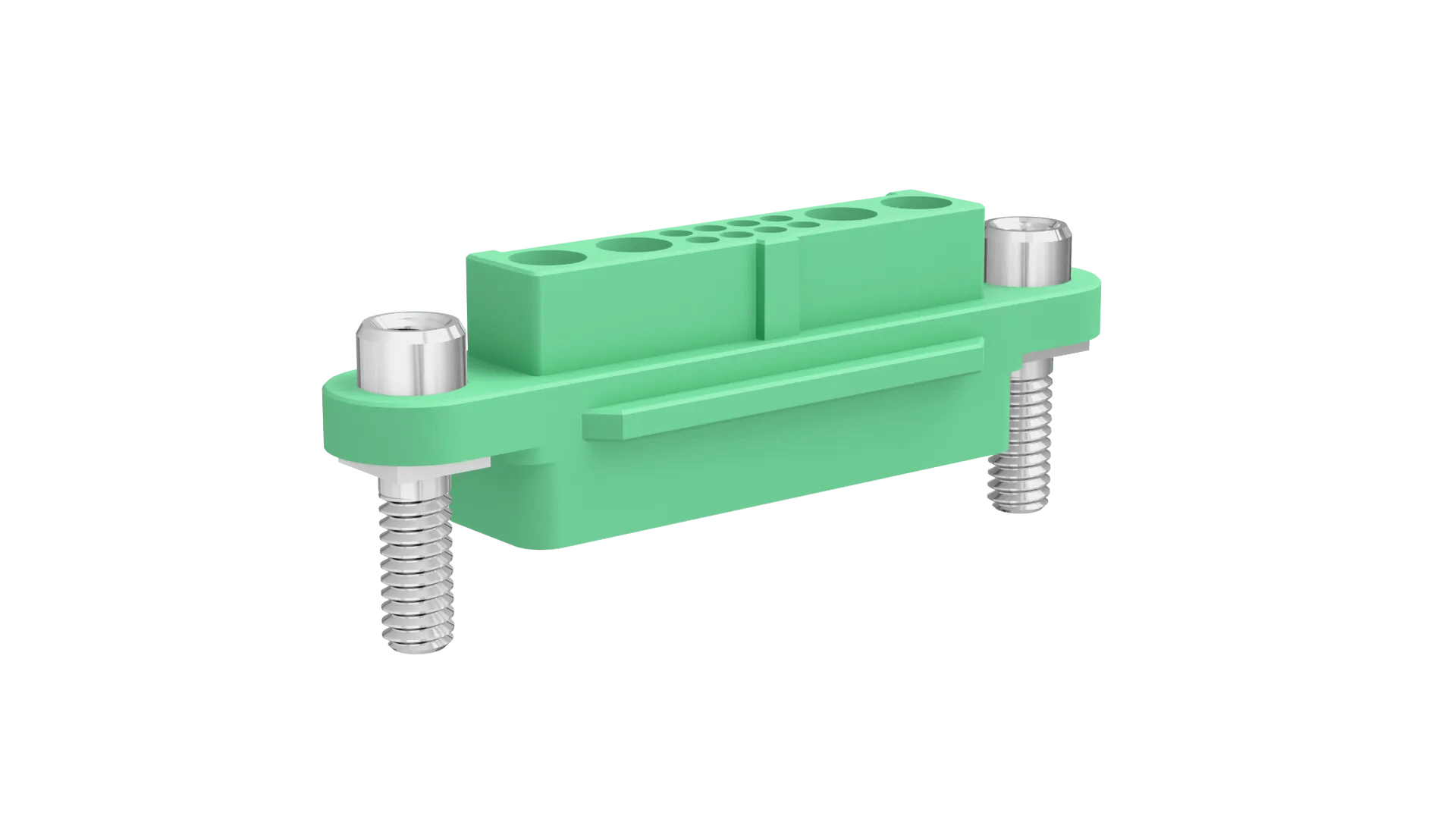

8+4 Pos. Female Cable Housing, Screw-Lok Reverse Fix Panel Mount

1.25mm Pitch High-Reliability Connector - Gecko-MT

Female Crimp Connector Housing – 2 power, 8 signal, 2 power contact arrangement. Fitted with threaded Screw-Lok fixings (for reverse fixing) with 5.2mm panel mount studs. Use slotted nut G125-4510000B for front panel mounting. Compatible with metal backshell for panel mount (G125-9602602).
Use with signal crimp contacts G125-0010005 (for 26 AWG) or G125-0020005 (for 28-32 AWG), and power crimp contacts G125-0500005 (for 18 AWG). Pre-cabled contacts also available: for signal, see G125-FW; for power, see G125-FP.
For complete pin numbering or pin out information, see Component Specification C125XX.

Add to Basket

Availability

G125-22496F3-02-08-02 - 8+4 Pos. Female Cable Housing, Screw-Lok Reverse Fix Panel Mount

Technical Details

EU RoHS Status:

RoHS Compliant (2015/863/EU) with no Exemption required

Contact Pitch:

1.25mm (0.049")

Contact Gender:

Female/Socket/Jack

Connector Orientation:

Straight

Connection Type:

Cable (Crimp)

Mating Pin Size:

Ø0.4mm, Ø1mm

Current Rating:

Signal = 2.8A max individual contact, 2A max simultaneous; Power = 10A max simultaneous (25°C)

Operating Temperature:

-65°C to +150°C

Style of Jackscrews:

Internal Thread Screw-Lok with Front Panel Mount Stud (Reverse Fix)

Polarising Features:

Yes

End Stackable:

Side Stackable:

Can be cut to another size:

Number of Rows:

Mixed

Number of Signal Contacts:

Number of Special (Power or Coax) Contacts:

Housing Material:

Polyamide (Nylon) 4T

Housing Colour:

Green

Housing Material UL Rating:

UL94V-0

Packaging Style:

Bulk/Loose

Individual Part Weight:

1.173g

Overall Dimensions (L x W x D) in mm:

27.70 x 6.50 x 10.40

Male Stud Length:

5.20mm

Thread Size:

Mating Profiles:

Catalog page - Gecko-MT Pin Numbering, Mating Profiles

Availability

Limited availability or made-to-order

Currently made to order*

Where to buy See Alternatives

* Please request minimum quantities, lead times and pricing from an authorized distributor.

Questions & Answers Ask a Question

Are the board/panel mount nuts supplied with this connector, or do I have to order them separately?

No, these connectors are not supplied with the board/panel mount nuts – you will need to order them separately. You have a choice of G125-4500000B (hexagonal nut), or G125-4510000B (slotted circular nut).
