8+2 Pos. Female Cable Housing, Screw-Lok Reverse Fix Panel Mount
1.25mm Pitch High-Reliability Connector - Gecko-MT

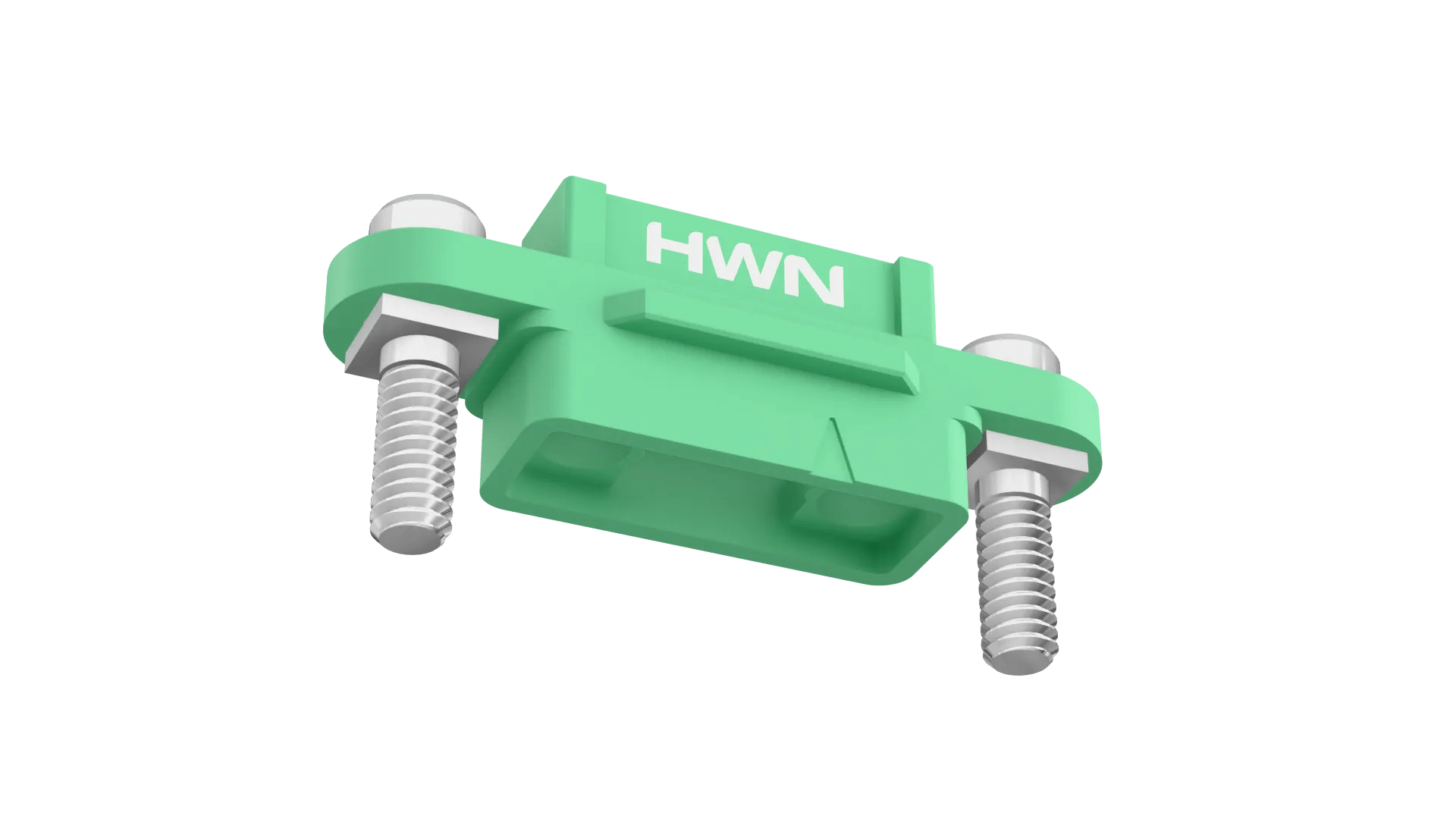

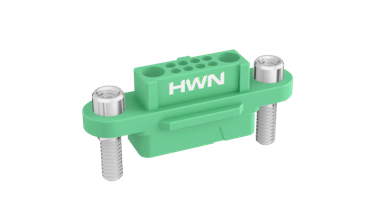

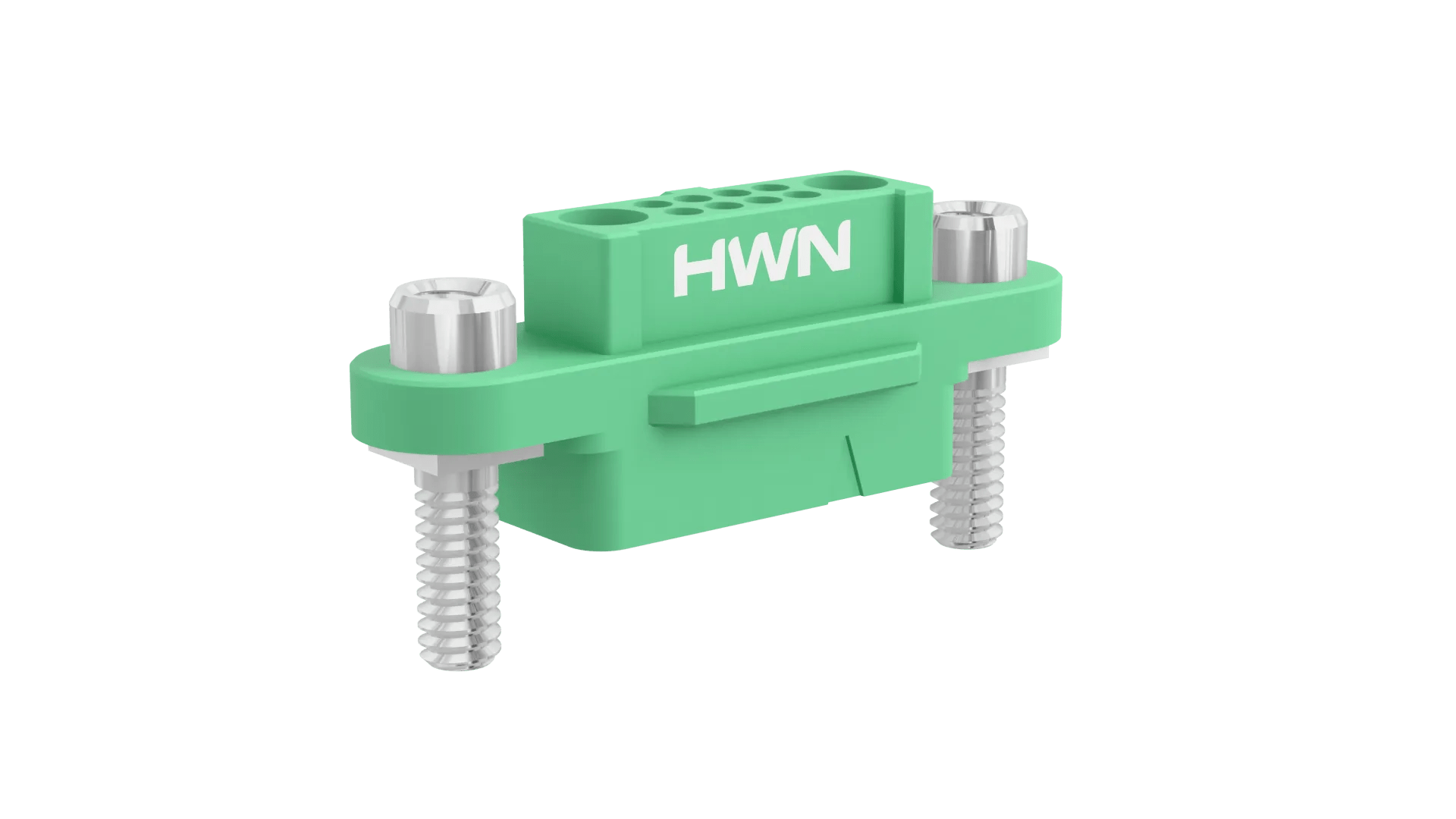

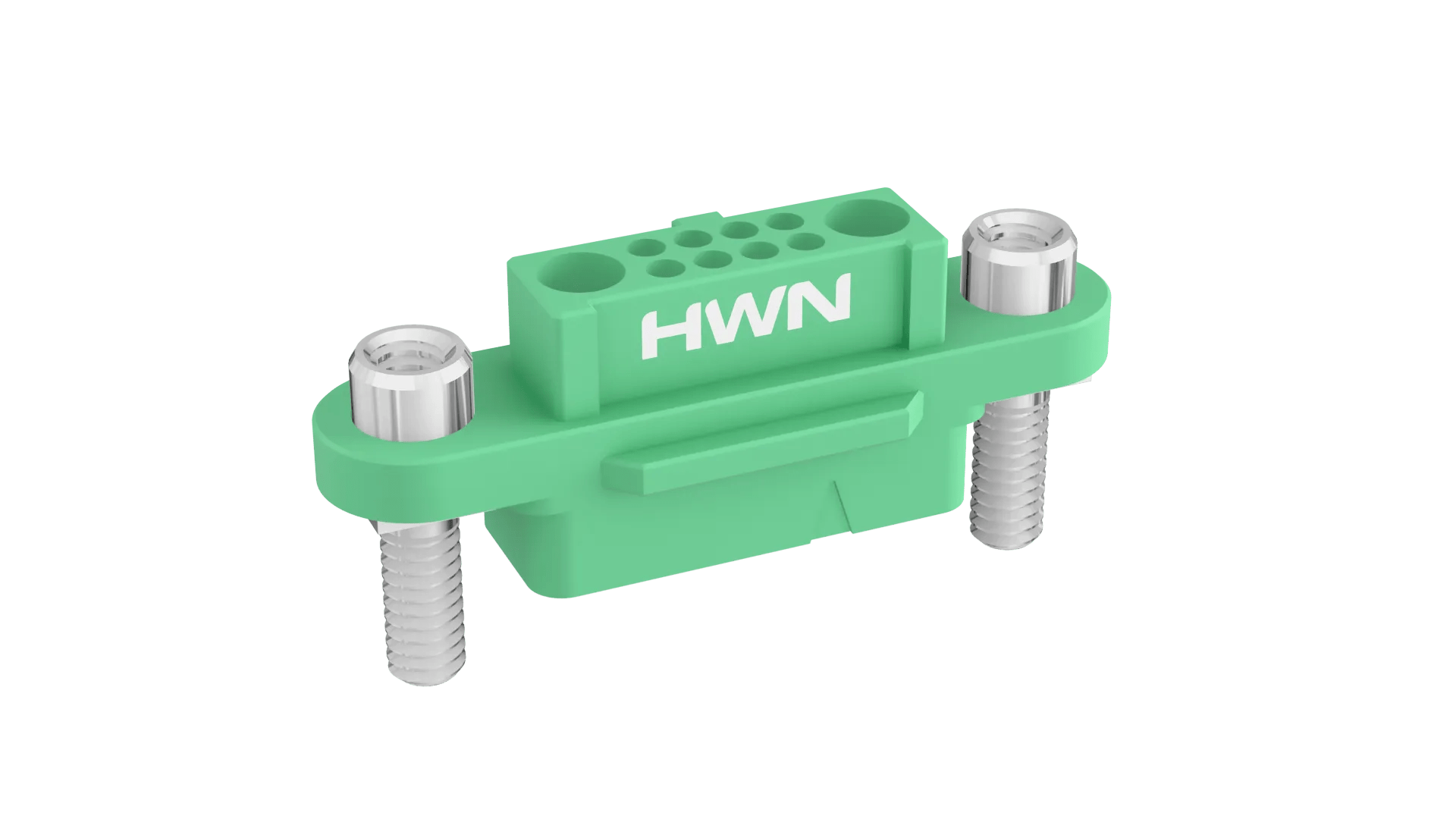

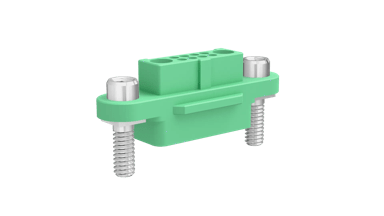

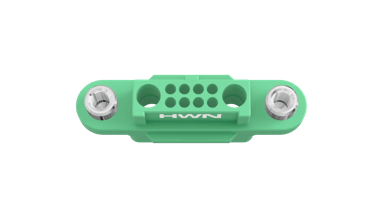

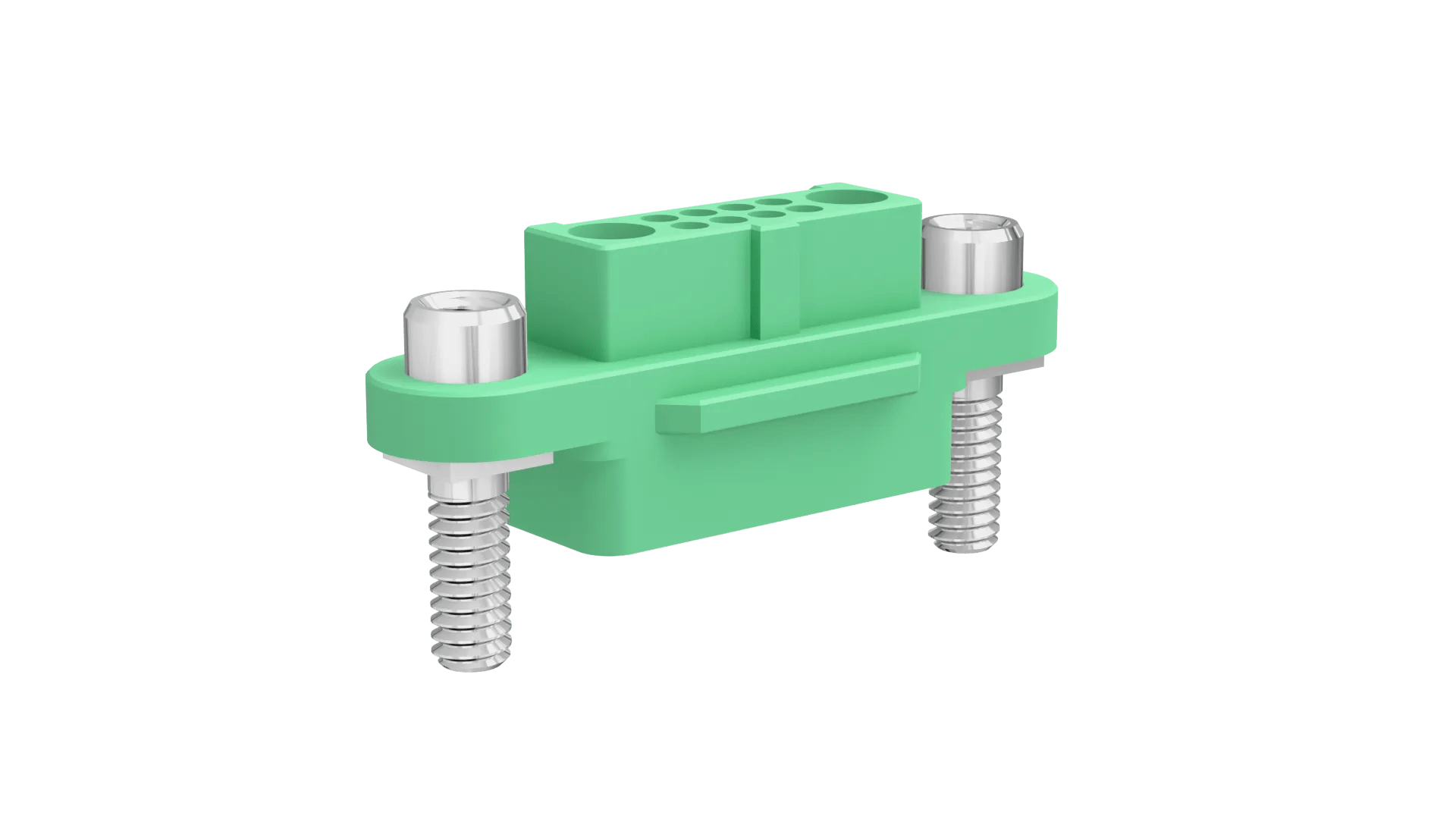

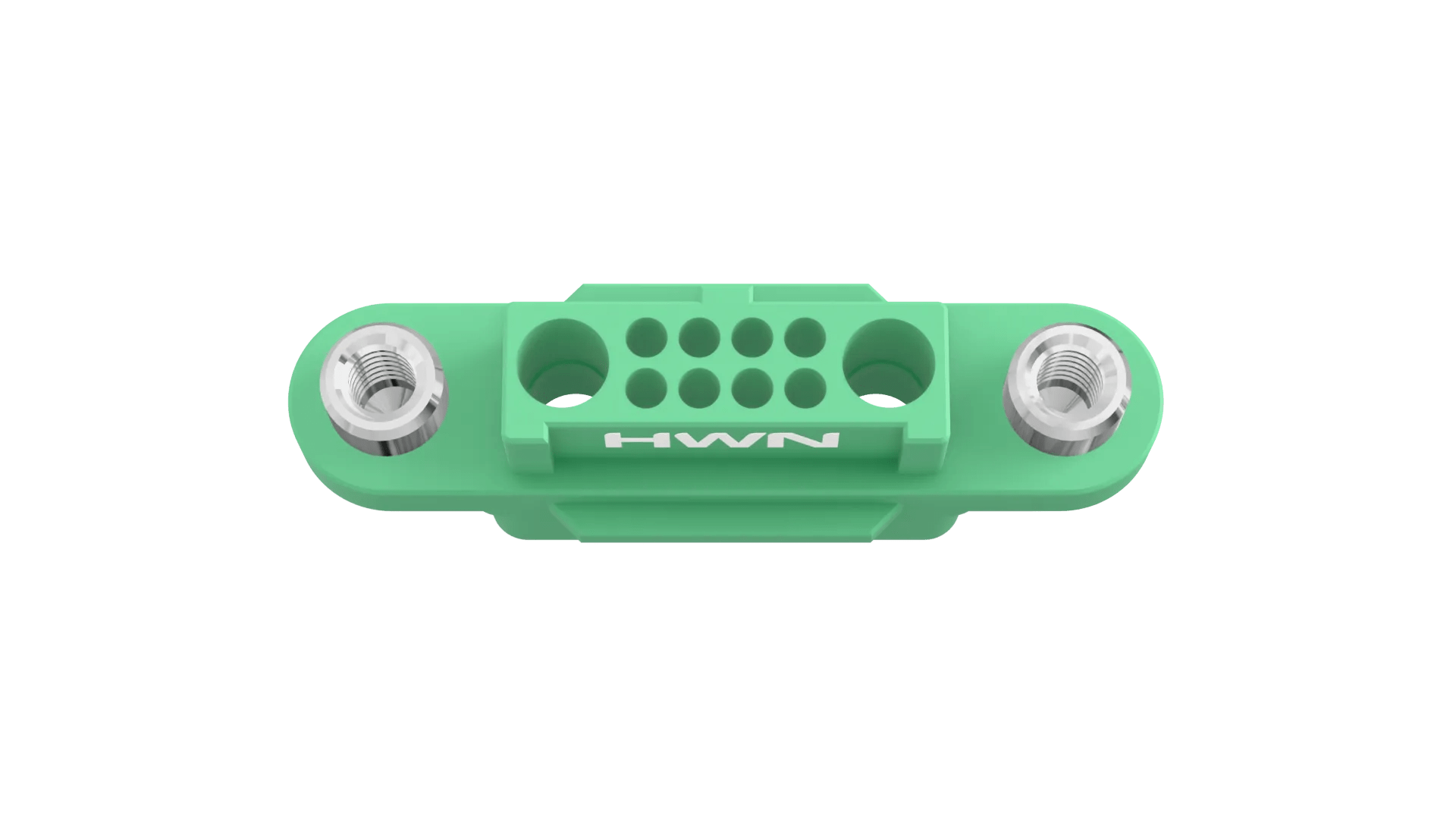

- Female Crimp Connector Housing – 1 power, 8 signal, 1 power contact arrangement. Compatible with metal backshell for panel mount (G125-9601602). Fitted with threaded Screw-Lok fixings (for reverse fixing) with 5.2mm panel mount studs. Use Hex Board Mount nut G125-4500000B or Slotted Board Mount nut G125-4510000B for panel mounting.
- Use with signal crimp contacts G125-0010005 (for 26 AWG) or G125-0020005 (for 28-32 AWG), and power crimp contacts G125-0500005 (for 18 AWG). Pre-cabled contacts also available: for signal, see G125-FW and G125-MW; for power, see G125-FP and G125-MP.
- For complete pin numbering or pin out information, see Component Specification C125XX.
EU RoHS Status:
Mating Pin Size:
Signal = 2.8A max individual contact, 2A max simultaneous; Power = 10A max simultaneous (25°C)
-65°C to +150°C
Style of Jackscrews:
Screw-Lok with Panel Mount
Can be cut to another size:
Number of Rows:
Number of Signal Contacts:
Number of Special (Power or Coax) Contacts:
Polyamide (Nylon) 4T
Housing Material UL Rating:
Individual Part Weight:
Overall Dimensions (L x W x D) in mm:
21.50 x 6.50 x 10.40
Male Stud Length:
30 in stock
Low availability or made to order”: “This product is typically manufactured to order. When out of stock, minimum order quantities may apply.
Stock held by Harwin: contact distributor to purchase.
G125-22496F3-01-08-01 CAD Model (ZIP file containing STP and IGES)Download
Product Training Module - Overview Guide to the Gecko-MT range, 1.25mm pitch High-Reliability with Power
