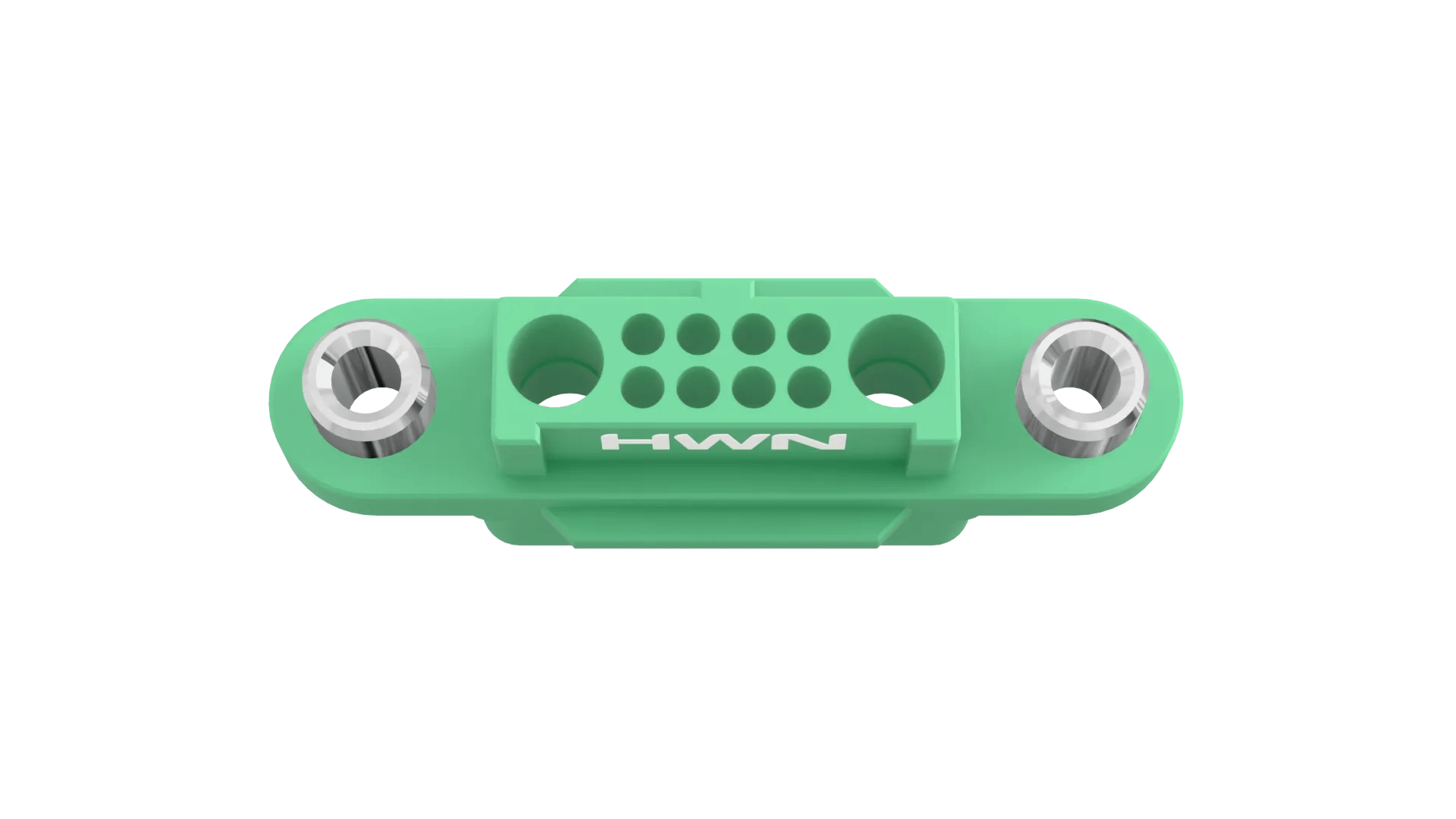

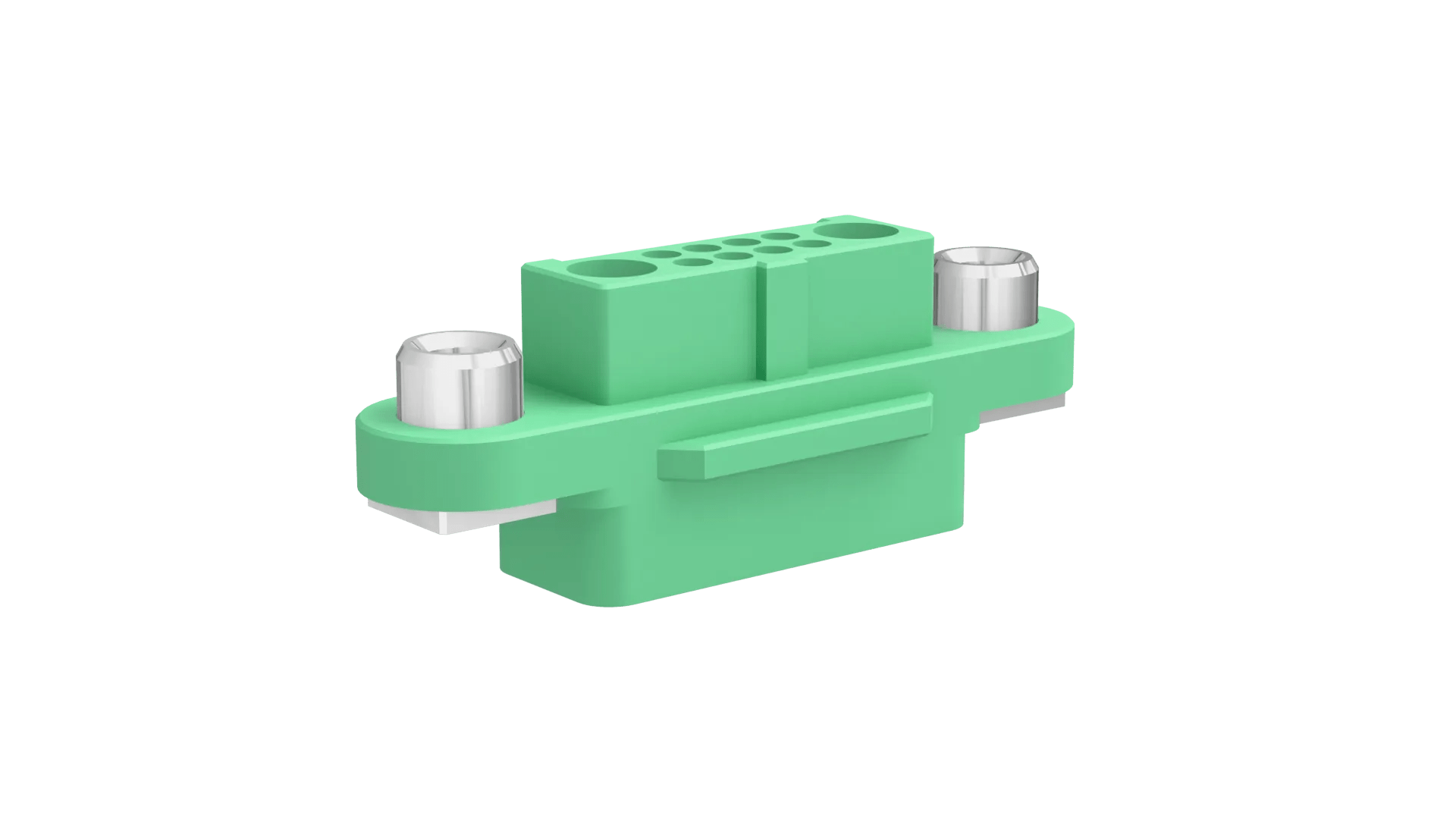

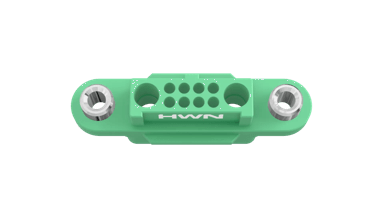

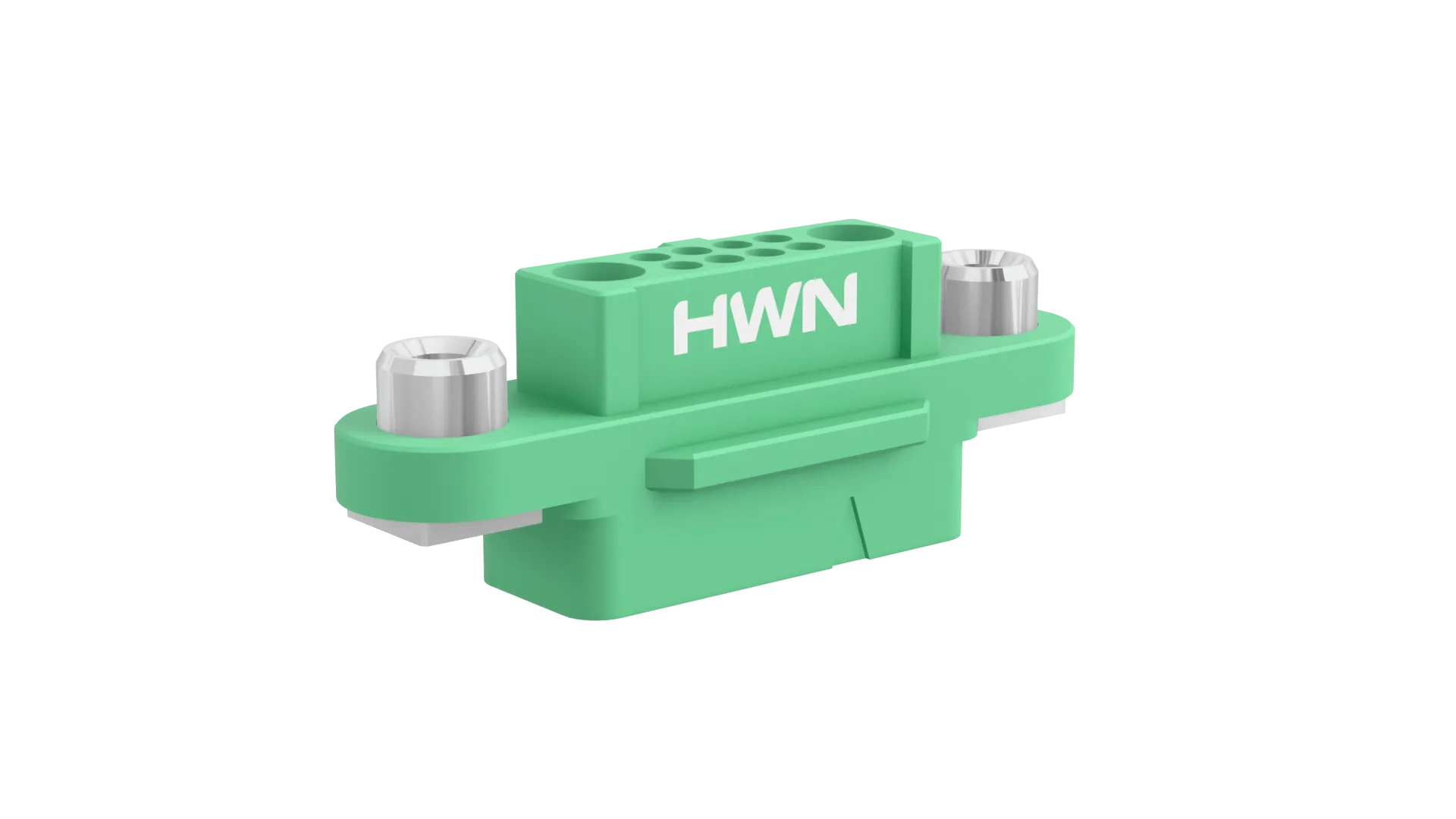

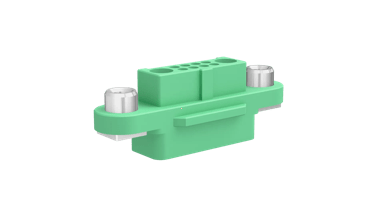

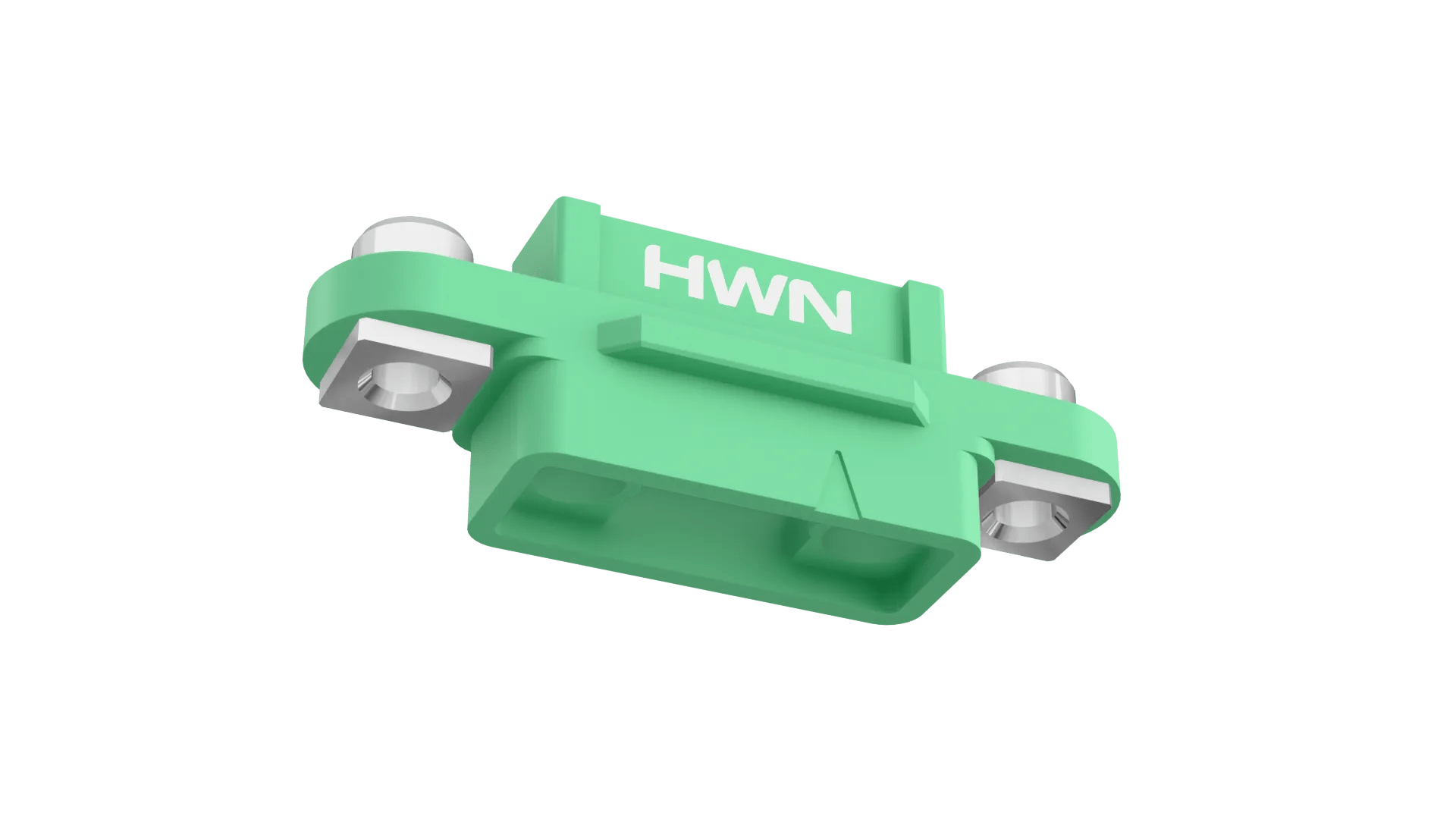

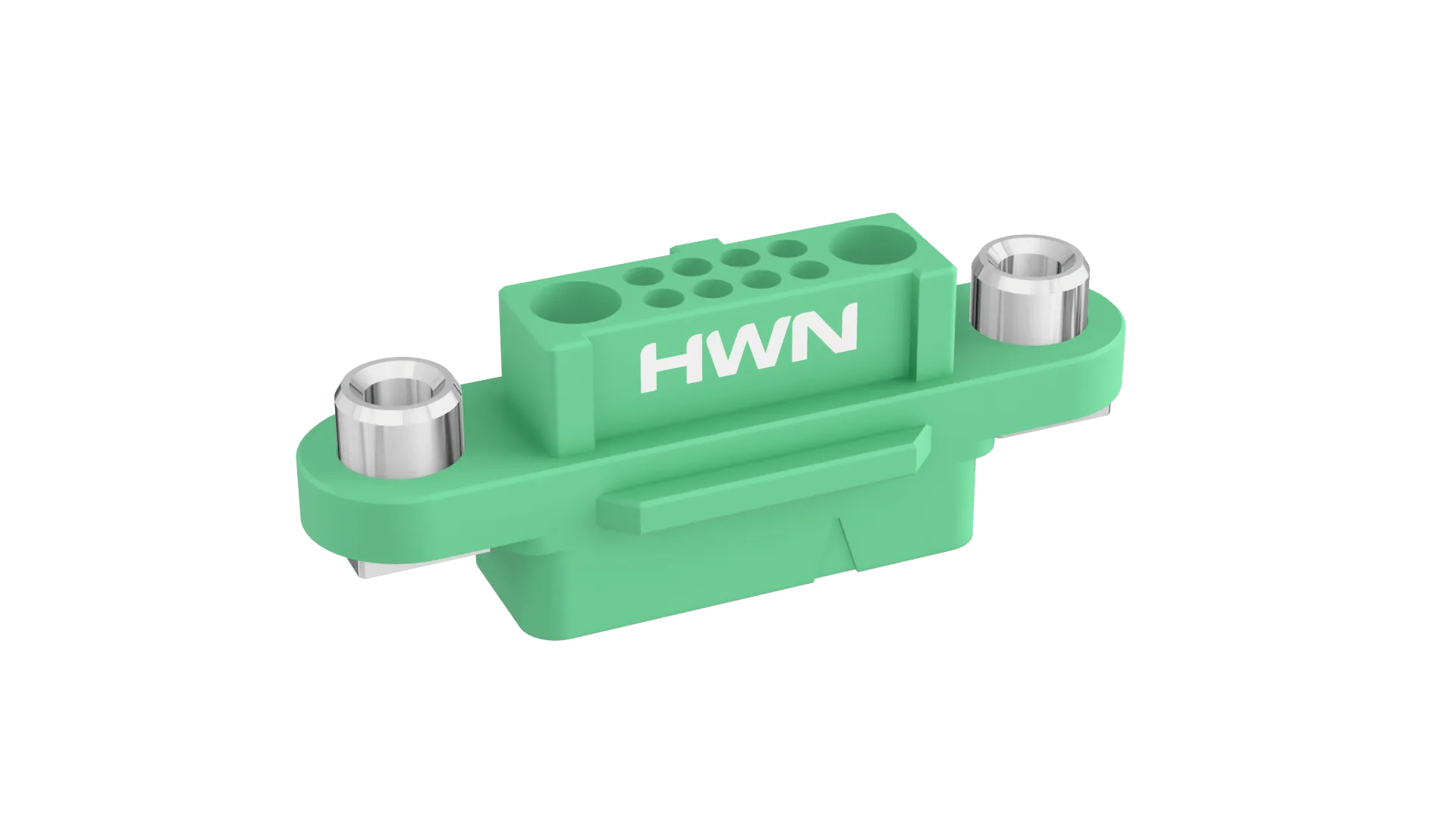

8+2 Pos. Female Cable Housing, Screw-Lok Reverse Fix
1.25mm Pitch High-Reliability Connector - Gecko-MT
- Female Crimp Connector Housing – 1 power, 8 signal, 1 power contact arrangement. Fitted with internally threaded Screw-Lok fixings, for reverse fixing.
- Use with signal crimp contacts G125-0010005 (for 26 AWG) or G125-0020005 (for 28-32 AWG), and power crimp contacts G125-0500005 (for 18 AWG).
- Pre-cabled contacts also available: for signal, see G125-FW and G125-MW; for power, see G125-FP and G125-MP.
EU RoHS Status:
Mating Pin Size:
2A (signal), 10A (power)
-65°C to +150°C
Style of Jackscrews:
Can be cut to another size:
Number of Rows:
Number of Signal Contacts:
Number of Special (Power or Coax) Contacts:
Polyamide (Nylon) 4T
Housing Material UL Rating:
Individual Part Weight:
Overall Dimensions (L x W x D) in mm:
21.50 x 6.50 x 7.60
Questions & Answers Ask a Question
What potting material do you recommend using for backpotting this connector?
We currently recommend 3 materials that we have tried – although it’s very likely that many others are entirely suitable. Our primary recommendation, that we use on our complete cable assemblies, is Stycast 2651MM with Catalyst 9. We have also used Robnor Resins PX439XS/BK/250 and Epoxies Innovative Bonding Solutions 50-3122RBK. You can find more information on backpotting our connectors and links to the epoxy suppliers on our blog post What is Backpotting?
What torque value should be used for these screw-loks?
The torque value for mating screw-loks is 16-18cmN. This value is given in the Component Specification C125xx (page 3).
G125-22496F2-01-08-01 CAD Model (ZIP file containing STP and IGES)Download
Product Training Module - Overview Guide to the Gecko-MT range, 1.25mm pitch High-Reliability with Power
