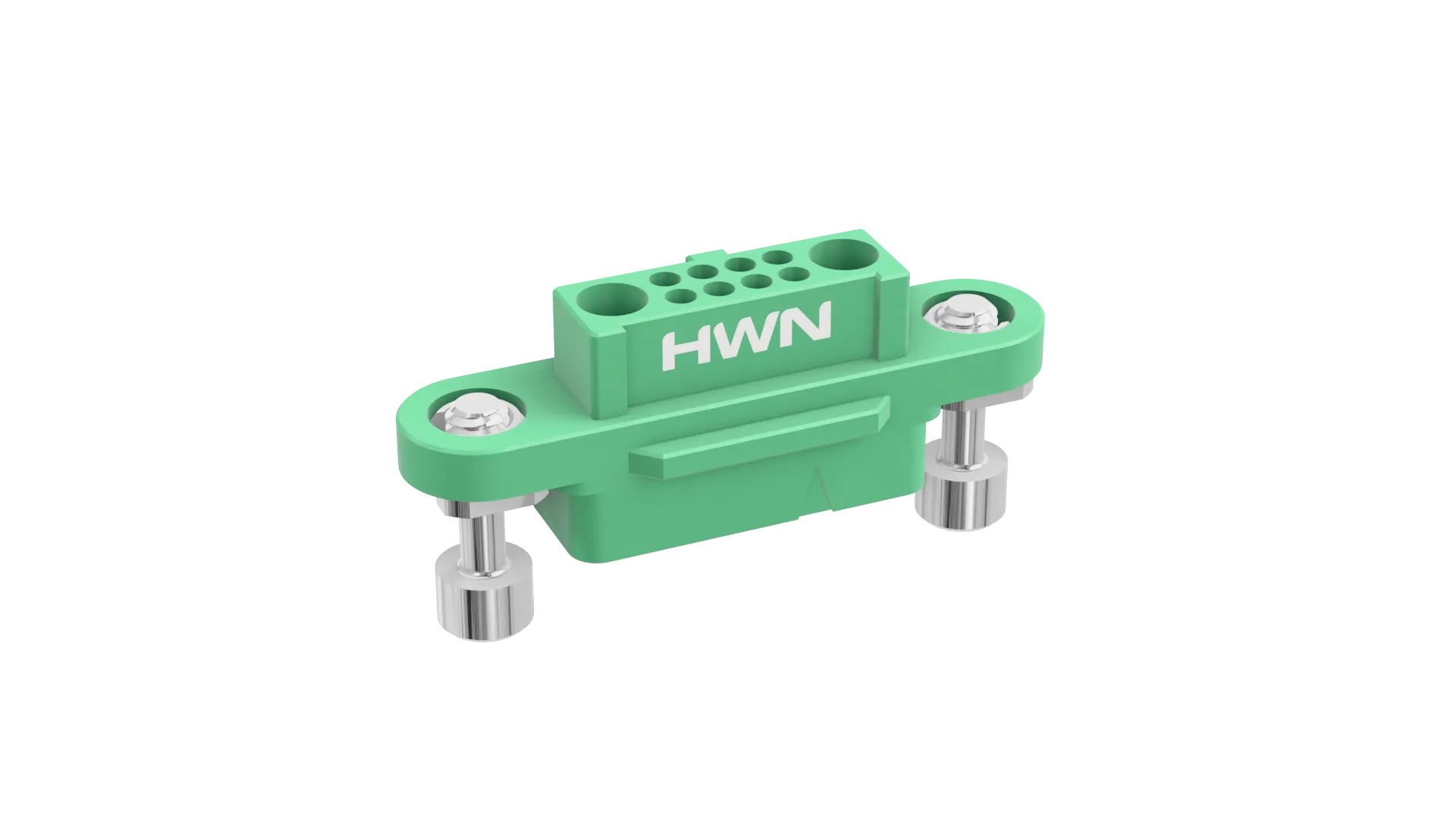

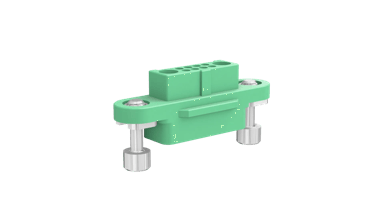

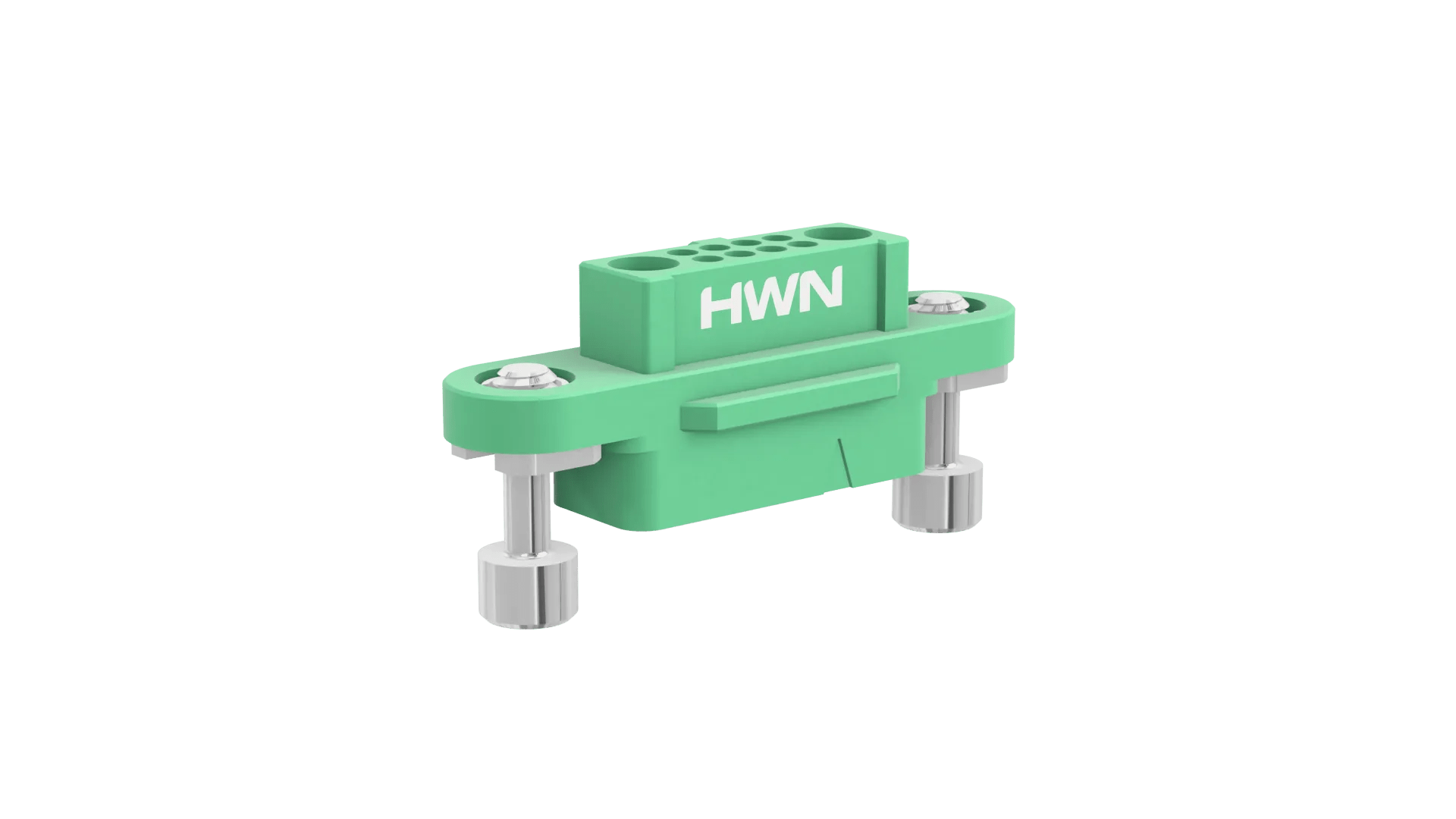

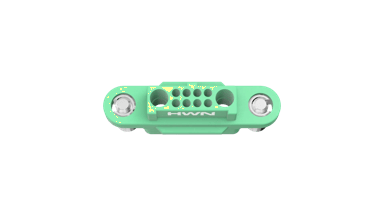

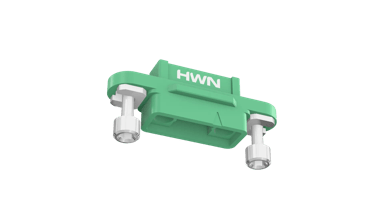

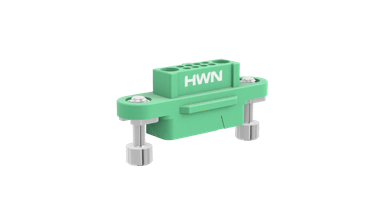

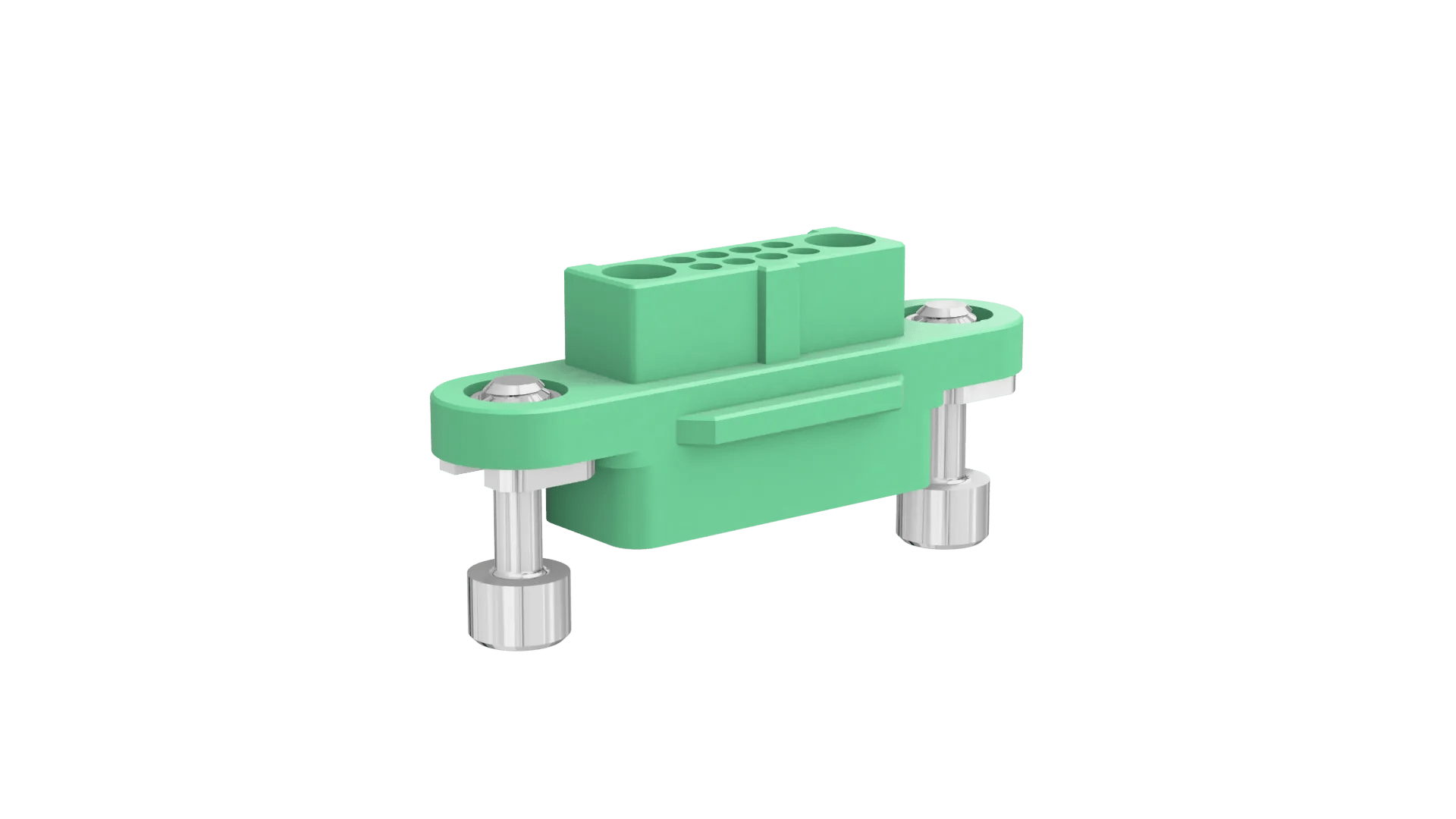

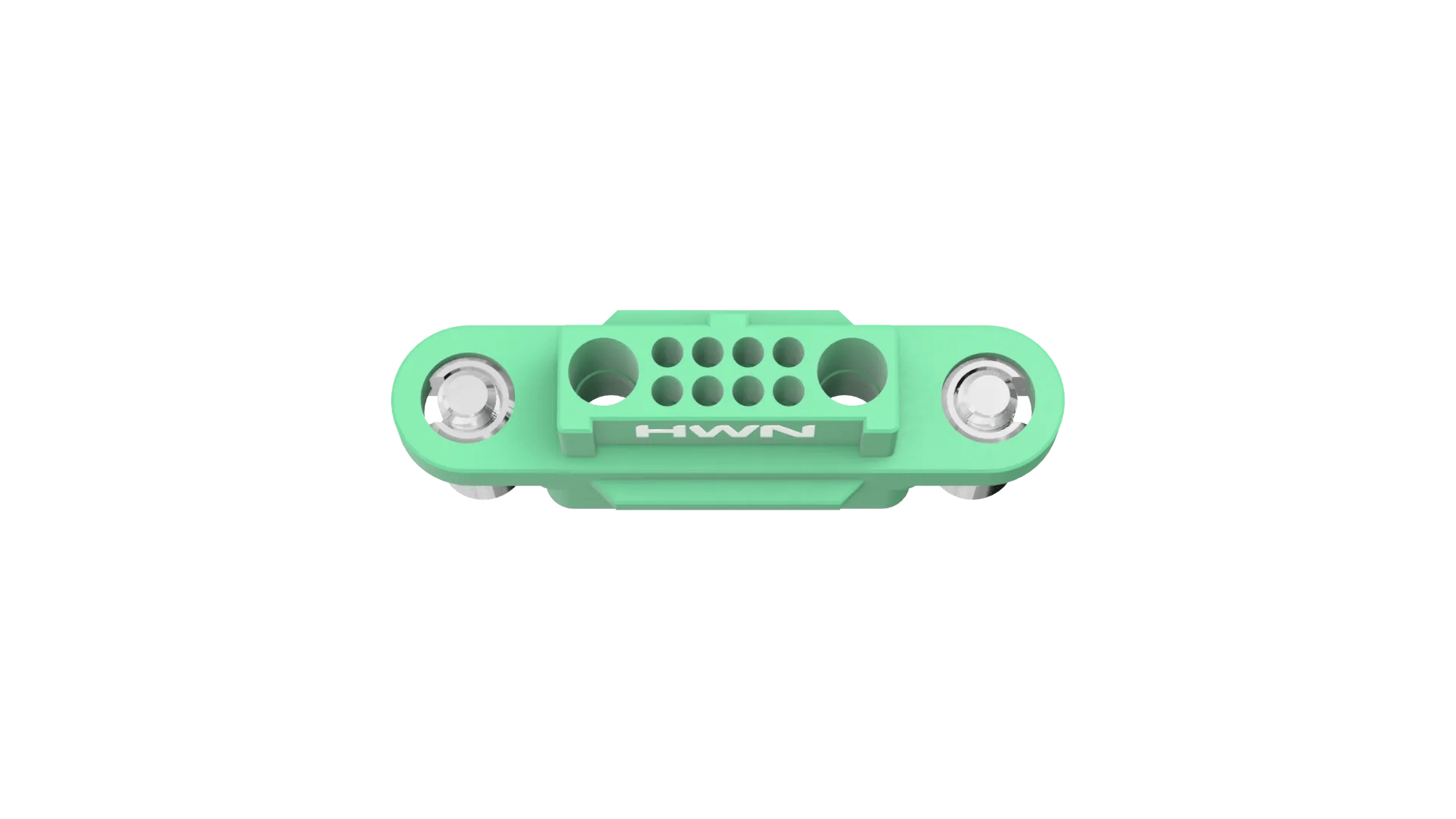

G125-22496F1-01-08-01

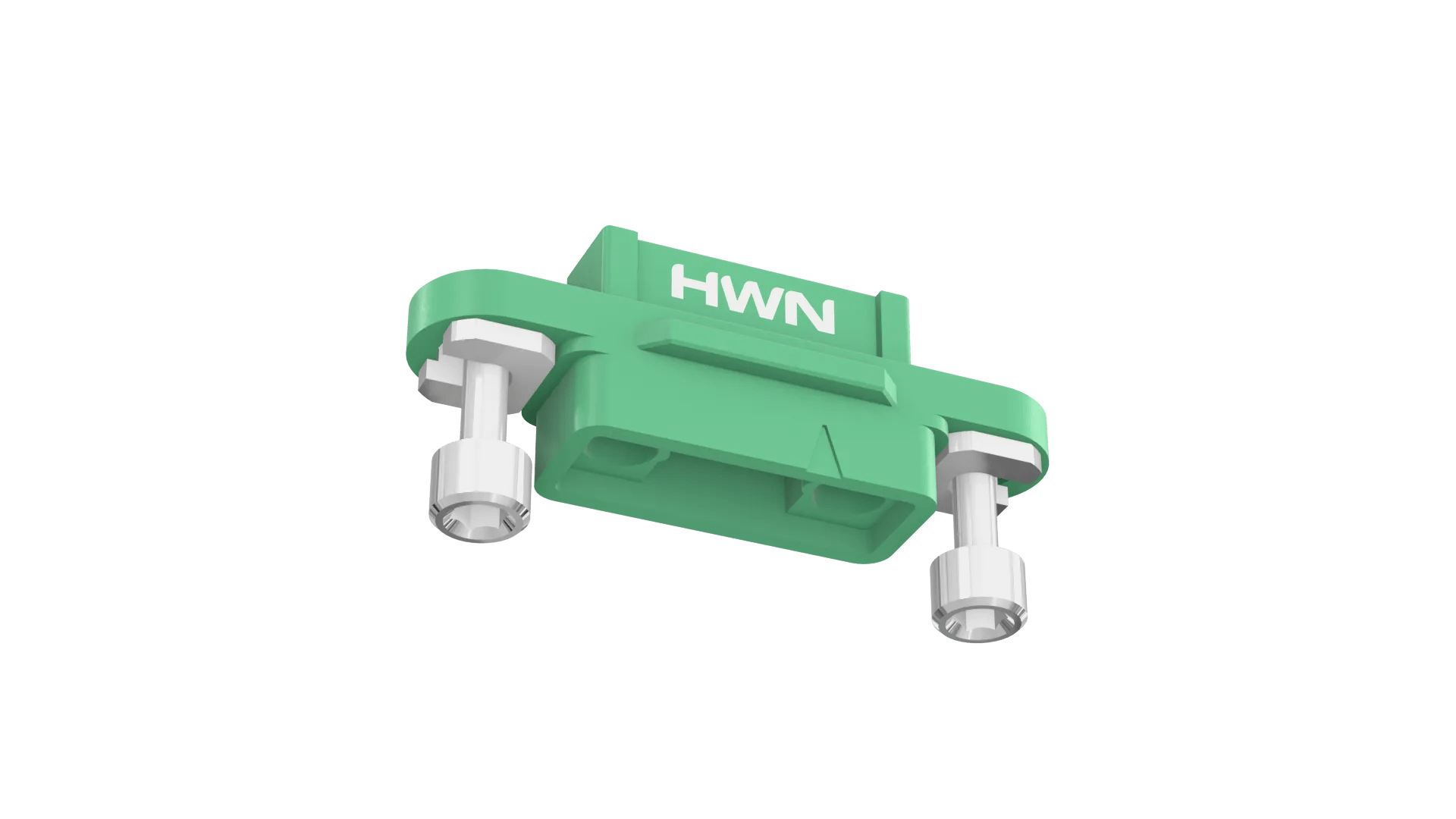

8+2 Pos. Female Cable Housing, Screw-Lok

1.25mm Pitch High-Reliability Connector - Gecko-MT

  • Female Crimp Connector Housing – 1 power, 8 signal, 1 power contact arrangement. Fitted with floating Screw-Lok fixings, Hexagonal socket head, Mate-before-Lock.
  • Use with signal crimp contacts G125-0010005 (for 26 AWG) or G125-0020005 (for 28-32 AWG), and power crimp contacts G125-0500005 (for 18 AWG). Pre-cabled contacts also available: for signal, see G125-FW; for power, see G125-FP.
  • For complete pin numbering or pin out information, see Component Specification C125XX.
Add to Favorites

Technical Details

Specification

Contact Pitch:

1.25mm (0.049")

Contact Gender:

Female/Socket/Jack

Connector Orientation:

Straight

Connection Type:

Cable (Crimp)

Mating Pin Size:

Ø0.4mm, Ø1mm

Current Rating:

Signal = 2.8A max individual contact, 2A max simultaneous; Power = 10A max simultaneous (25°C)

Operating Temperature:

-65°C to +150°C

Style of Jackscrews:

Floating Screw-Lok with Hex Socket Head (Standard Gender)

Polarising Features:

Yes

End Stackable:

No

Side Stackable:

No

Can be cut to another size:

No

Number of Rows:

Mixed

Number of Signal Contacts:

8

Number of Special (Power or Coax) Contacts:

2

Materials

Housing Material:

Polyamide (Nylon) 4T

Housing Colour:

Green

Housing Material UL Rating:

UL94V-0

Packaging Style:

Bulk/Loose

Dimensions

Individual Part Weight:

0.91g

Overall Dimensions (L x W x D) in mm:

21.50 x 6.50 x 7.70

Thread Size:

M2

Availability

99 in stock

Info Circle

Popular products are manufactured regularly, typically in stock and are not subject to minimum quantity requirements.

Popular product
Distributor Location Quantity (Updated Daily)
Distributor TTI Europe
Location Europe
Quantity (Updated Daily) 30
Distributor Digi-Key
Location Global
Quantity (Updated Daily) 26
Distributor Mouser Electronics Inc
Location Global
Quantity (Updated Daily) 19
Distributor Farnell
Location Europe
Quantity (Updated Daily) 14
Distributor Newark
Location USA
Quantity (Updated Daily) 10

Questions & Answers Ask a Question

What potting material do you recommend using for backpotting this connector?

We currently recommend 3 materials that we have tried – although it’s very likely that many others are entirely suitable. Our primary recommendation, that we use on our complete cable assemblies, is Stycast 2651MM with Catalyst 9. We have also used Robnor Resins PX439XS/BK/250 and Epoxies Innovative Bonding Solutions 50-3122RBK. You can find more information on backpotting our connectors and links to the epoxy suppliers on our blog post What is Backpotting?

What torque value should be used for these screw-loks?

The torque value for mating screw-loks is 16-18cmN. This value is given in the Component Specification C125xx (page 3).
