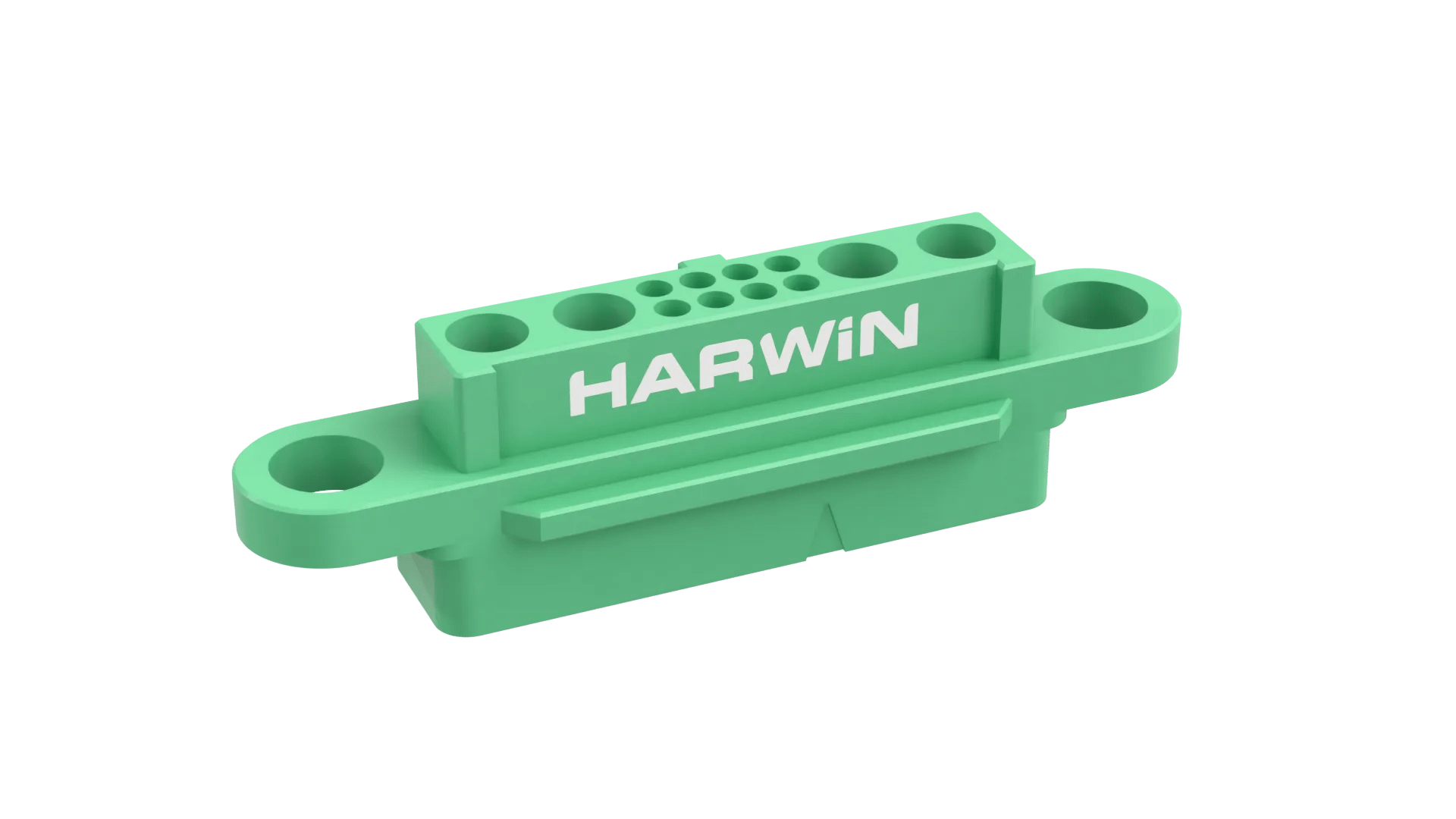

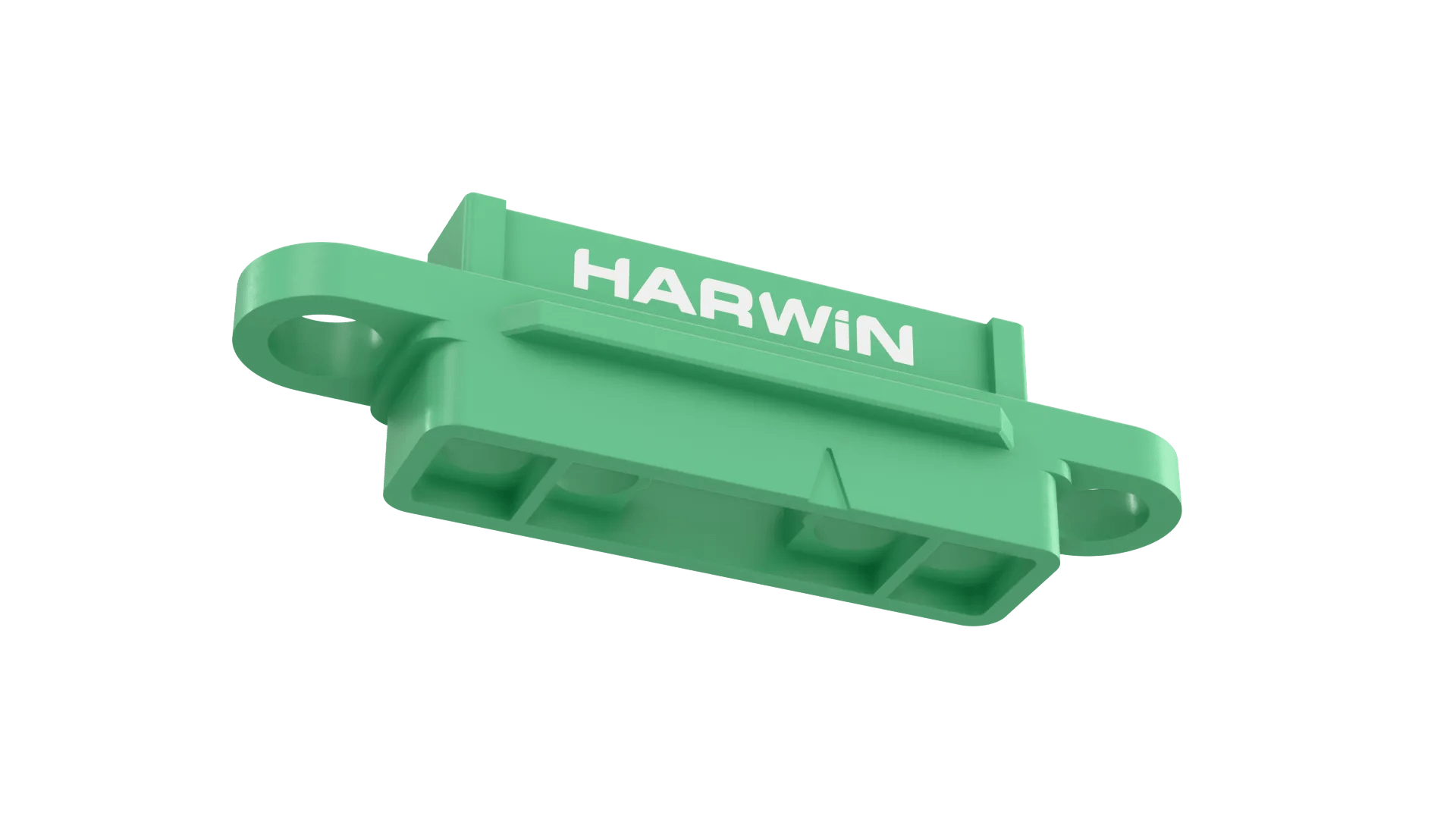

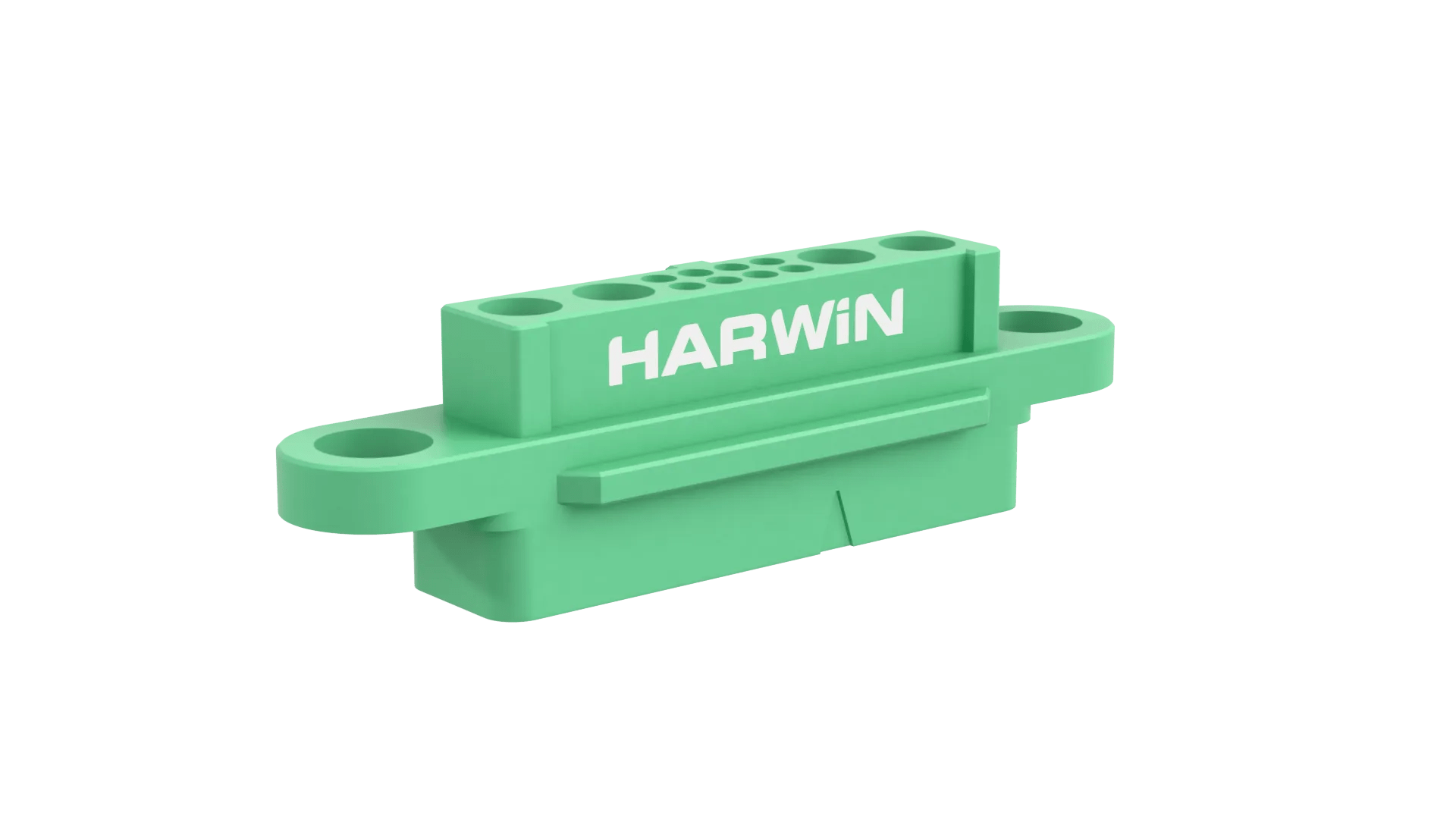

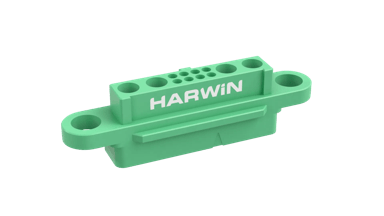

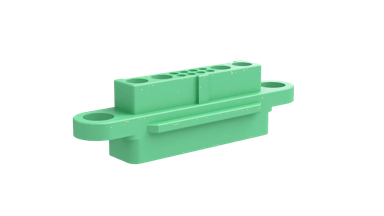

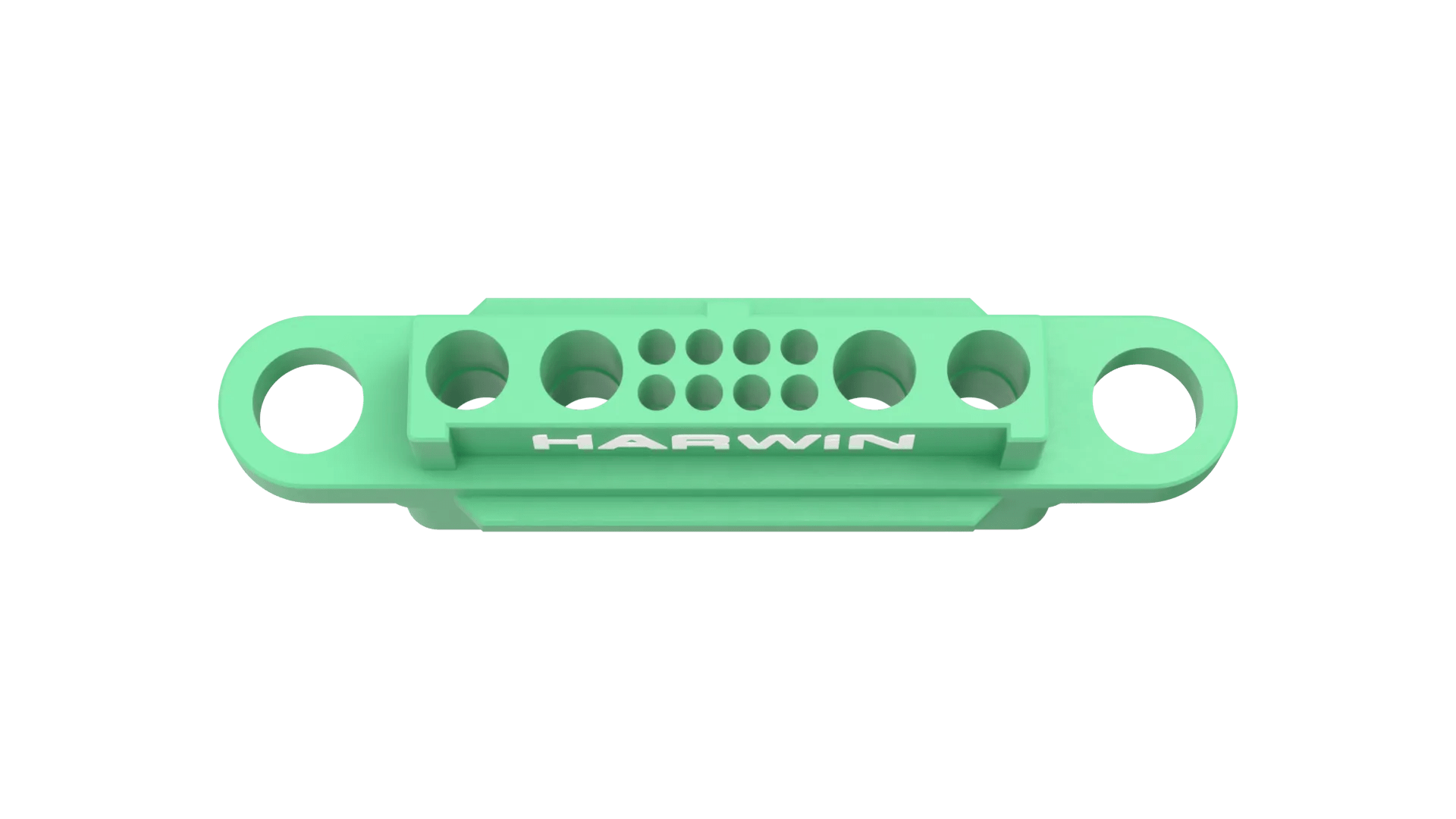

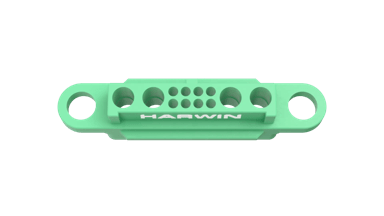

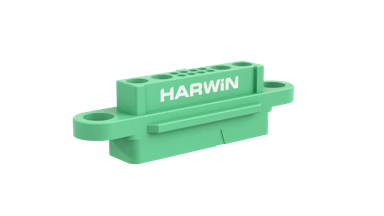

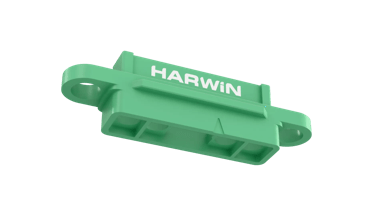

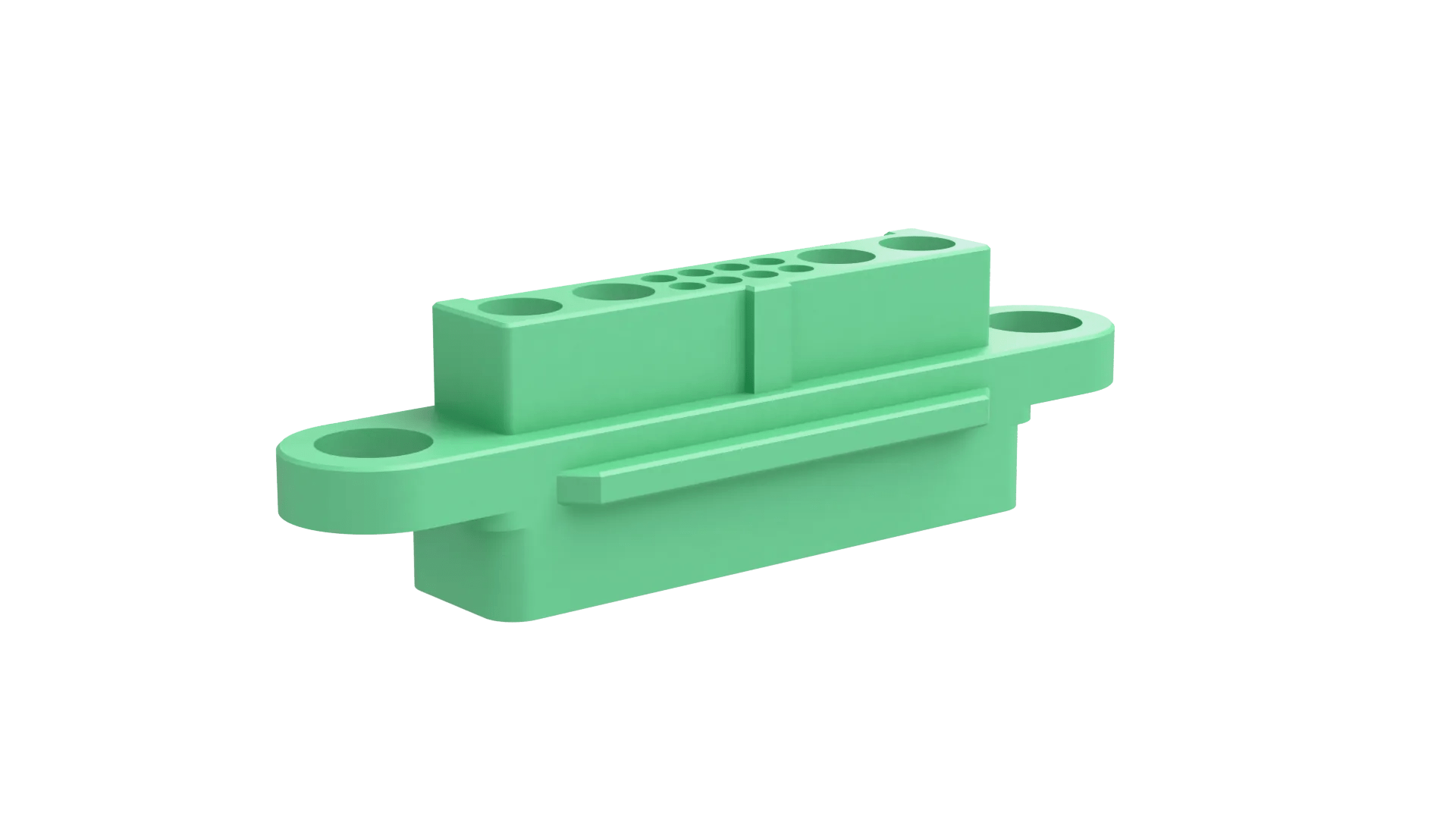

G125-2249600-02-08-02

8+4 Pos. Female Cable Housing, no Screw-Lok


1.25mm Pitch High-Reliability Connector - Gecko-MT

  • Female Cable Connector Housing - 2 power, 8 signal, 2 power contact arrangement. For use with metal backshell kit G125-96426F1. Screw-Lok compatible housing style.

  • Use with signal crimp contacts G125-0010005 (for 26 AWG) or G125-0020005 (for 28-32 AWG), and power crimp contacts G125-0500005 (for 18 AWG). Pre-cabled contacts also available: for signal, see G125-FW; for power, see G125-FP.

  • For complete pin numbering or pin out information, see Component Specification C125XX.

View Technical Details & Downloads


Checking stock availability...

Check Availability

Further Details

Jump To:

Technical Details

Product Characteristics

Materials

Dimensions

Downloads

Product Information

Technical Documentation

Environmental Compliance

Test Reports

Technical Details

Product Characteristics

  • End Stackable:

    No

  • Style of Jackscrews:

    None fitted

  • Mating Pin Size:

    Ø0.4mm, Ø1mm

  • Number of Rows:

    Mixed

  • Connector Orientation:

    Straight

  • Country of Origin:

    GB

  • Side Stackable:

    No

  • Number of Special (Power or Coax) Contacts:

    4

  • Number of Signal Contacts:

    8

  • Operating Temperature:

    -65°C to +150°C

  • RoHS Status:

    RoHS Compliant (2015/863/EU) with no Exemption required

  • Current Rating:

    Signal = 2.8A max individual contact, 2A max simultaneous; Power = 10A max simultaneous (25°C)

  • Polarised:

    Yes

  • Cuttable:

    No

Materials

  • Housing Material:

    Polyamide (Nylon) 4T

  • Flammability Rating:

    UL94V-0

  • Packaging Style:

    Bulk/Loose

  • Housing Colour:

    Green

Dimensions

  • Contact Pitch:

    1.25mm (0.049")

  • Weight:

    0.614g

  • Dimensions:

    27.70 x 6.50 x 7.60

Downloads

    Product Information

  • IS-47 - Z125-905 Assembly Tool Instruction Sheet

  • IS-44 - Z125-903 Hand Crimp Tool Instruction Sheet

  • Catalog page - Gecko-MT Pin Numbering + Mating Profiles

  • IS-38 - Z125-902 Assembly Tool Instruction Sheet

  • IS-37 - Z125-900 Hand Crimp Tool Instruction Sheet

  • Product Datasheet - Gecko-MT range (HRi)

  • Product Training Module - Overview Guide to the Gecko-MT range + 1.25mm pitch High-Reliability with Power

  • Distributor part numbers for suitable cables for Datamate + Gecko + M300 & Kona

  • Product Training Module - Cable Products from Harwin

  • Product Training Module - Cable Connectors and Assemblies from Harwin

  • Technical Documentation

  • Technical Drawing / Datasheet - G125-2249600-02-08-02.pdf

  • C125XX Component Specification - Gecko G125 Series (1.25mm pitch High-Reliability)

  • Plating thickness on Gecko contacts (signal and power)

  • C049XX Component Specification - Cable Assembly Specifications for all HRi products

  • Outgassing data for Harwin products (plastics)

  • Environmental Compliance

  • RoHS - G125-2249600-02-08-02

  • Material composition for G125-2249600-02-08-02 product

  • REACH - Harwin statement including all current SVHCs & Annex XIV & XVII

  • Environmental Legislation Statement - includes all material legislations

  • Extended Mineral Reporting Template (EMRT) - Company Summary Statement

  • Conflict Minerals Reporting Template (CMRT) - Company Summary Statement

  • Test Reports

  • Test Report HT072 - Gecko-MT General (Electrical + Mechanical and Environmental)

  • Test Report HT067 - Gecko-SL (G125 Series) - Mechanical Screw-Lok test
