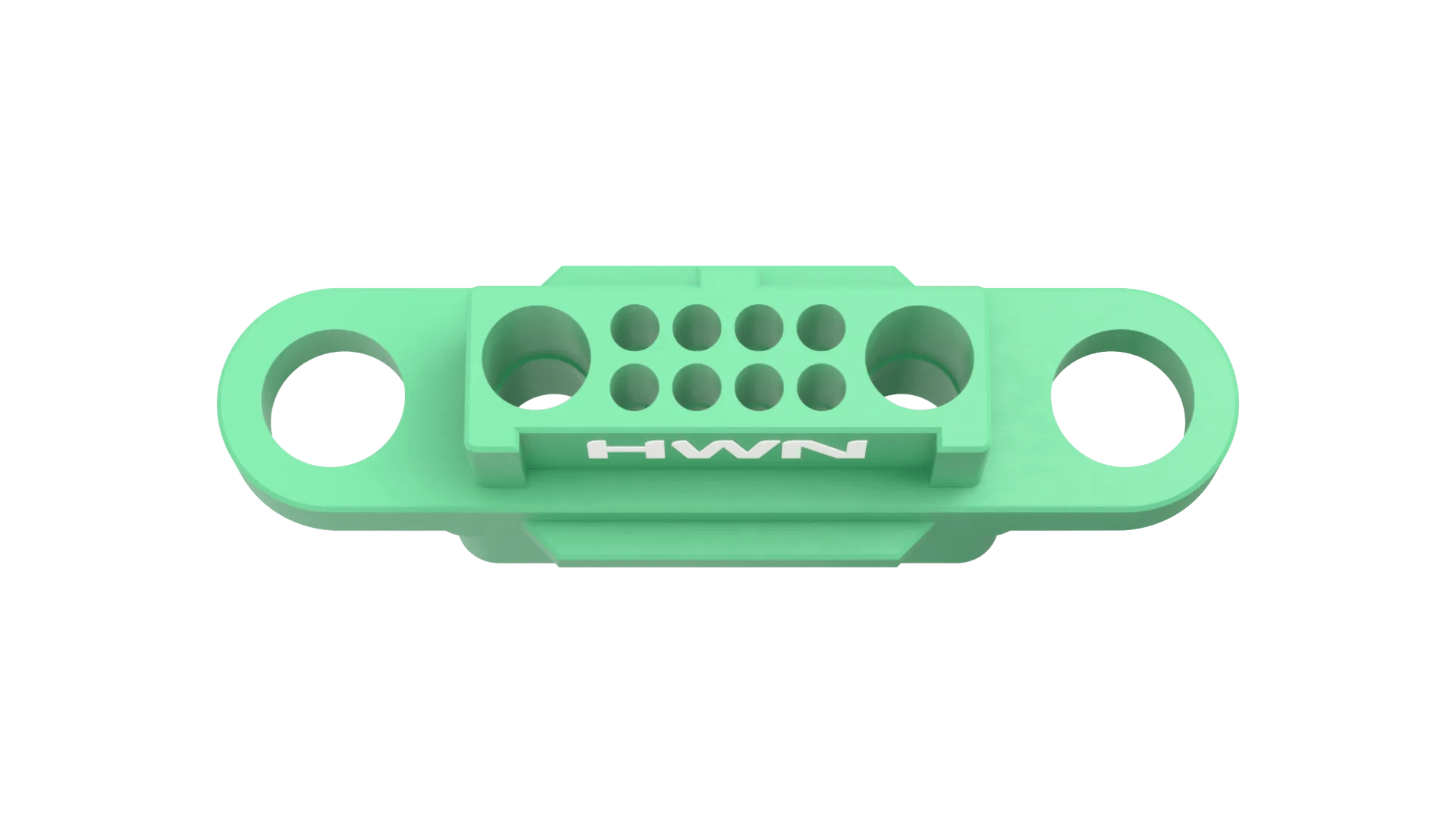

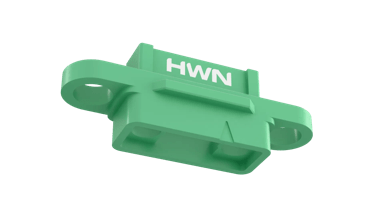

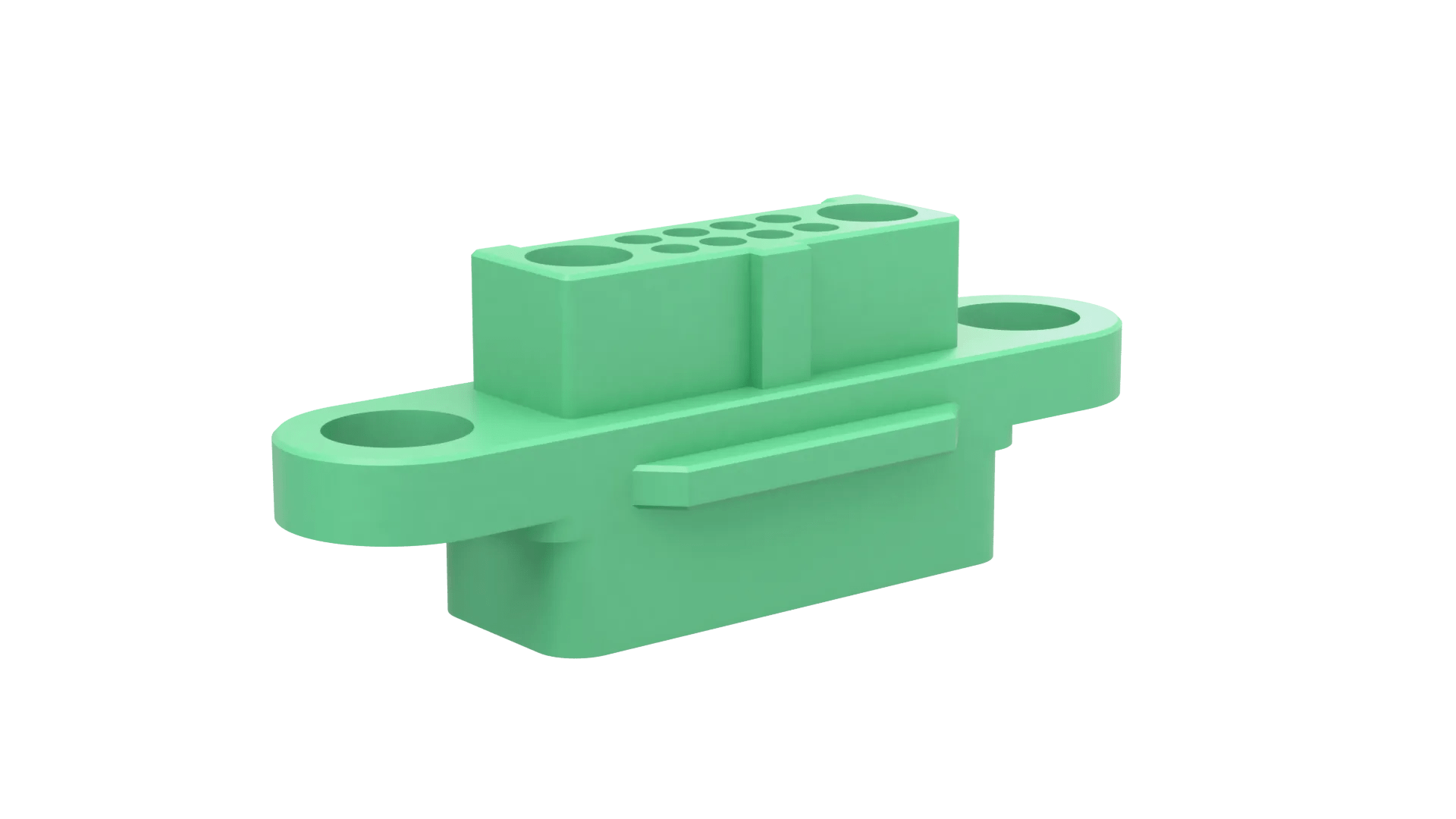

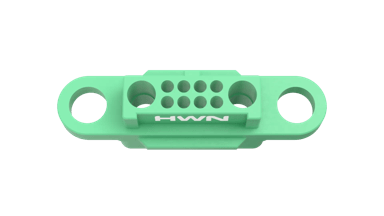

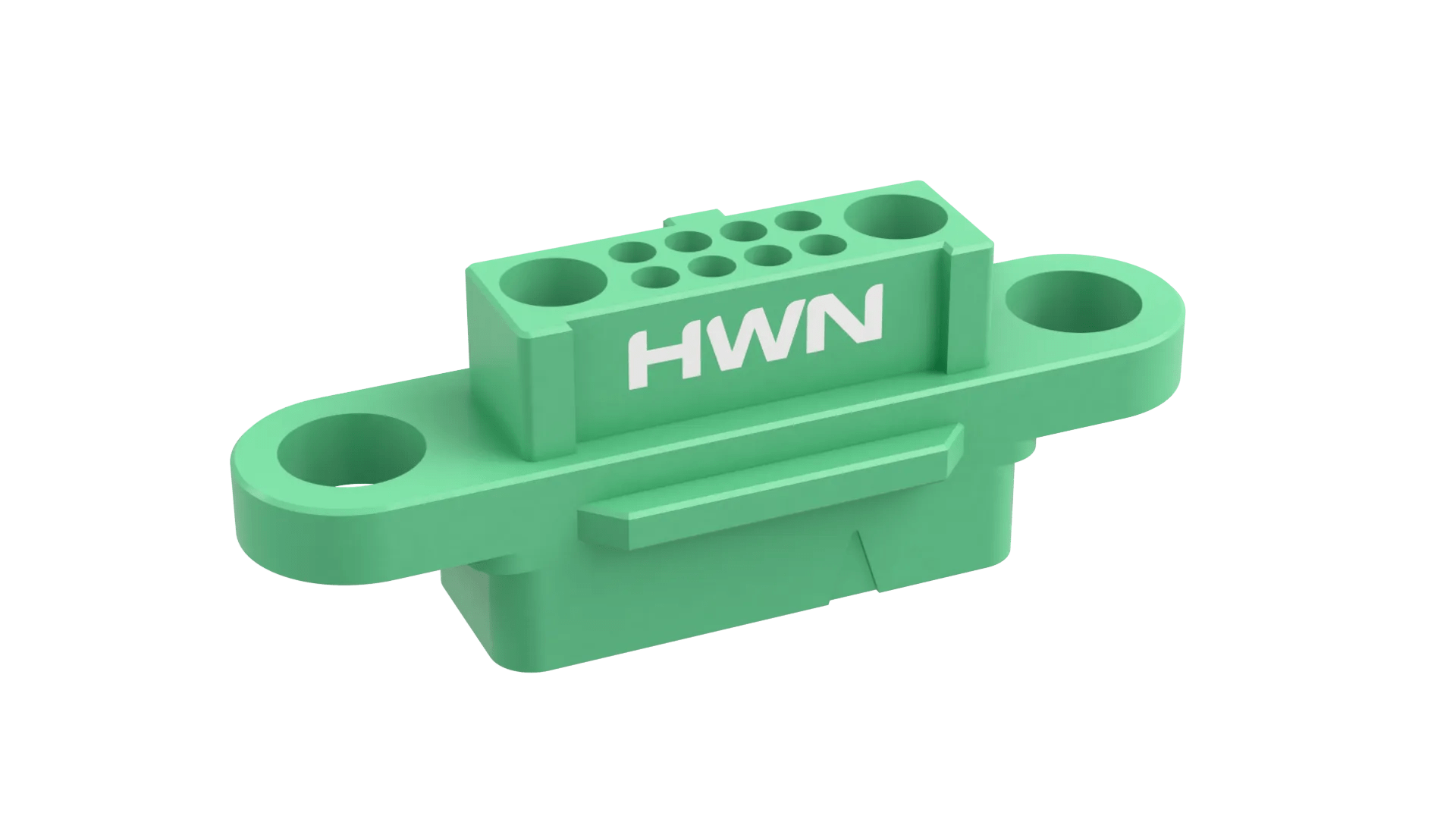

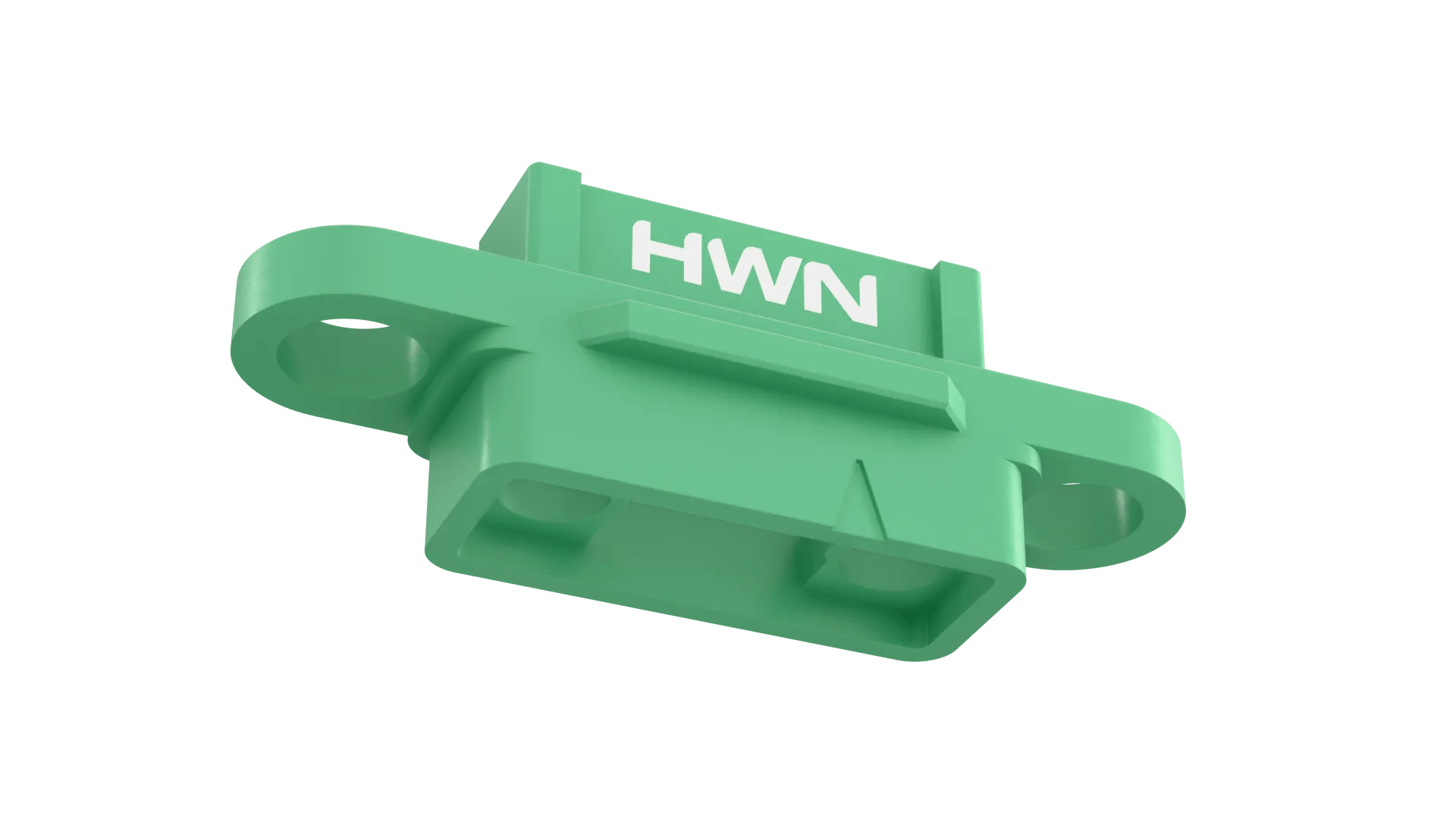

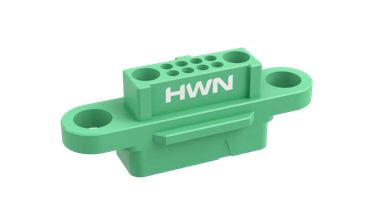

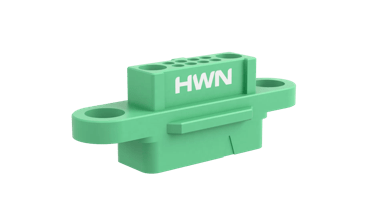

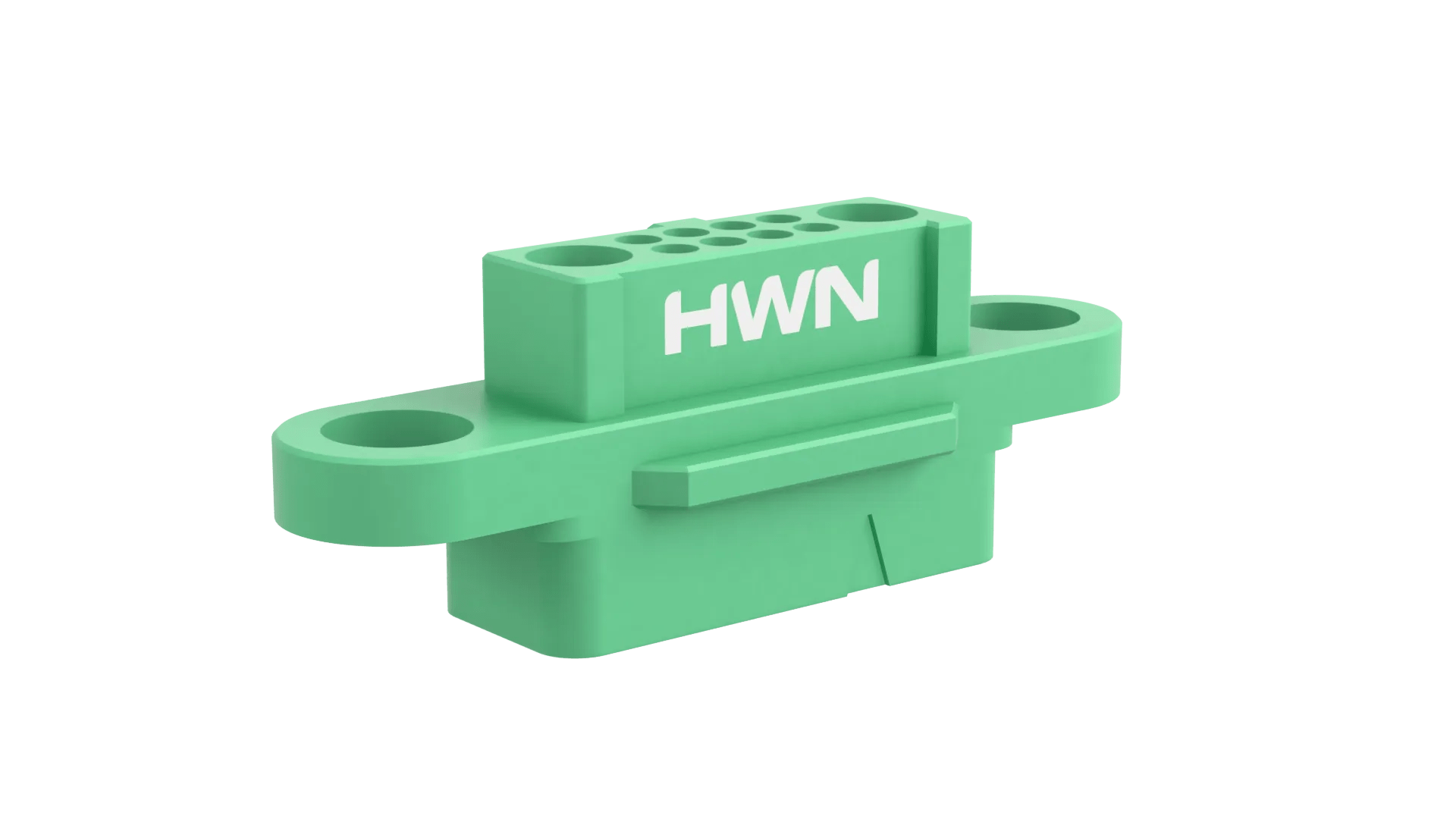

8+2 Pos. Female Cable Housing, no Screw-Lok
1.25mm Pitch High-Reliability Connector - Gecko-MT
- Female Crimp Connector Housing – 1 power, 8 signal, 1 power contact arrangement. For use with metal backshell kit G125-96416F1. Screw-Lok compatible housing style.
- Use with signal crimp contacts G125-0010005 (for 26 AWG) or G125-0020005 (for 28-32 AWG), and power crimp contacts G125-0500005 (for 18 AWG). Pre-cabled contacts also available: for signal, see G125-FW and G125-MW; for power, see G125-FP and G125-MP.
- For complete pin numbering or pin out information, see Component Specification C125XX.
EU RoHS Status:
Mating Pin Size:
Signal = 2.8A max individual contact, 2A max simultaneous; Power = 10A max simultaneous (25°C)
-65°C to +150°C
Style of Jackscrews:
Can be cut to another size:
Number of Rows:
Number of Signal Contacts:
Number of Special (Power or Coax) Contacts:
Polyamide (Nylon) 4T
Housing Material UL Rating:
Individual Part Weight:
Overall Dimensions (L x W x D) in mm:
21.50 x 6.50 x 7.60
288 in stock
Popular products are manufactured regularly, typically in stock and are not subject to minimum quantity requirements.
Stock held by Harwin: contact distributor to purchase.
Questions & Answers Ask a Question
What potting material do you recommend using for backpotting this connector?
We currently recommend 3 materials that we have tried – although it’s very likely that many others are entirely suitable. Our primary recommendation, that we use on our complete cable assemblies, is Stycast 2651MM with Catalyst 9. We have also used Robnor Resins PX439XS/BK/250 and Epoxies Innovative Bonding Solutions 50-3122RBK. You can find more information on backpotting our connectors and links to the epoxy suppliers on our blog post What is Backpotting?
G125-2249600-01-08-01 CAD Model (ZIP file containing STP and IGES)Download
Product Training Module - Overview Guide to the Gecko-MT range, 1.25mm pitch High-Reliability with Power
