Active

G125-2243496F3

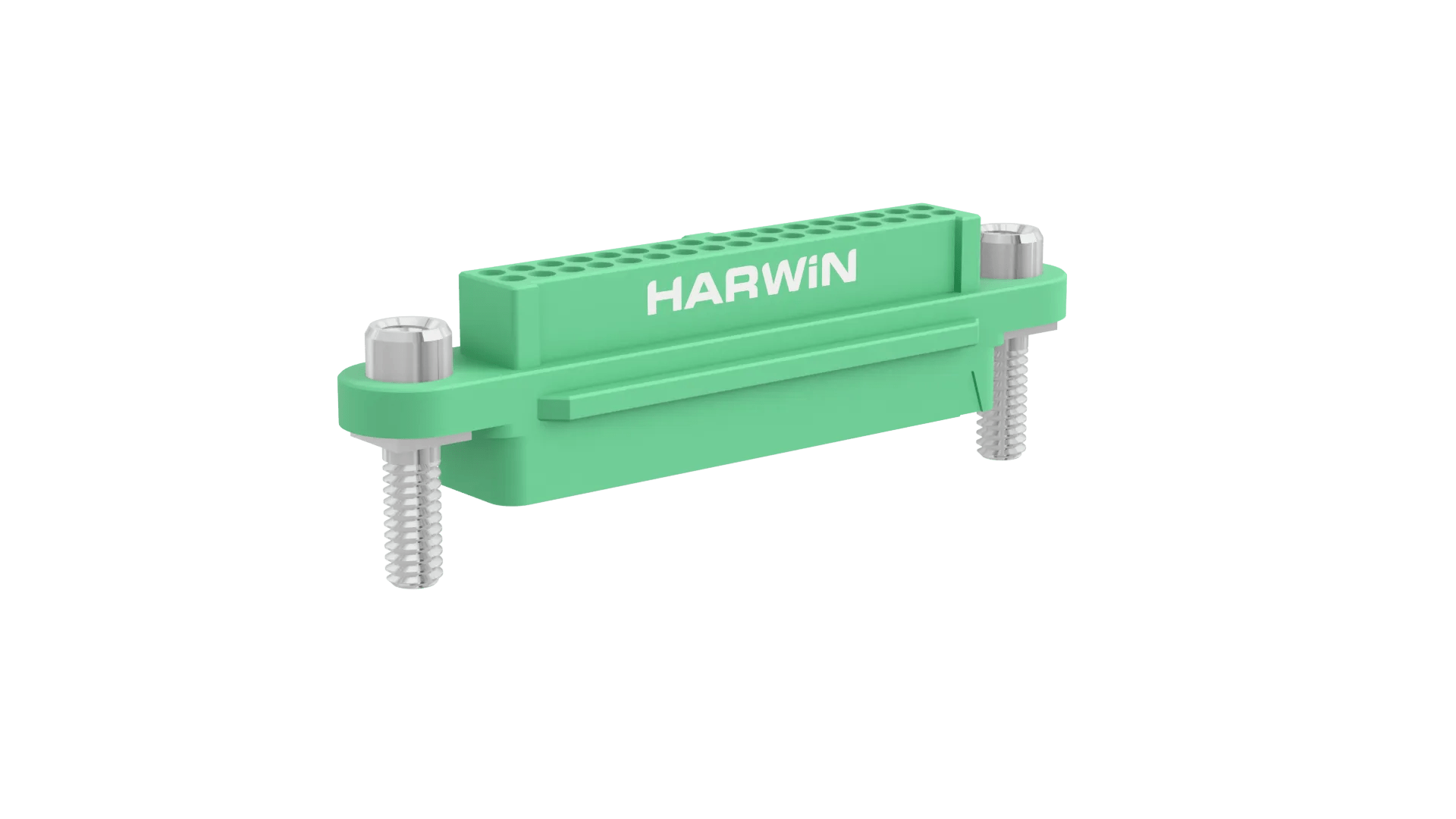

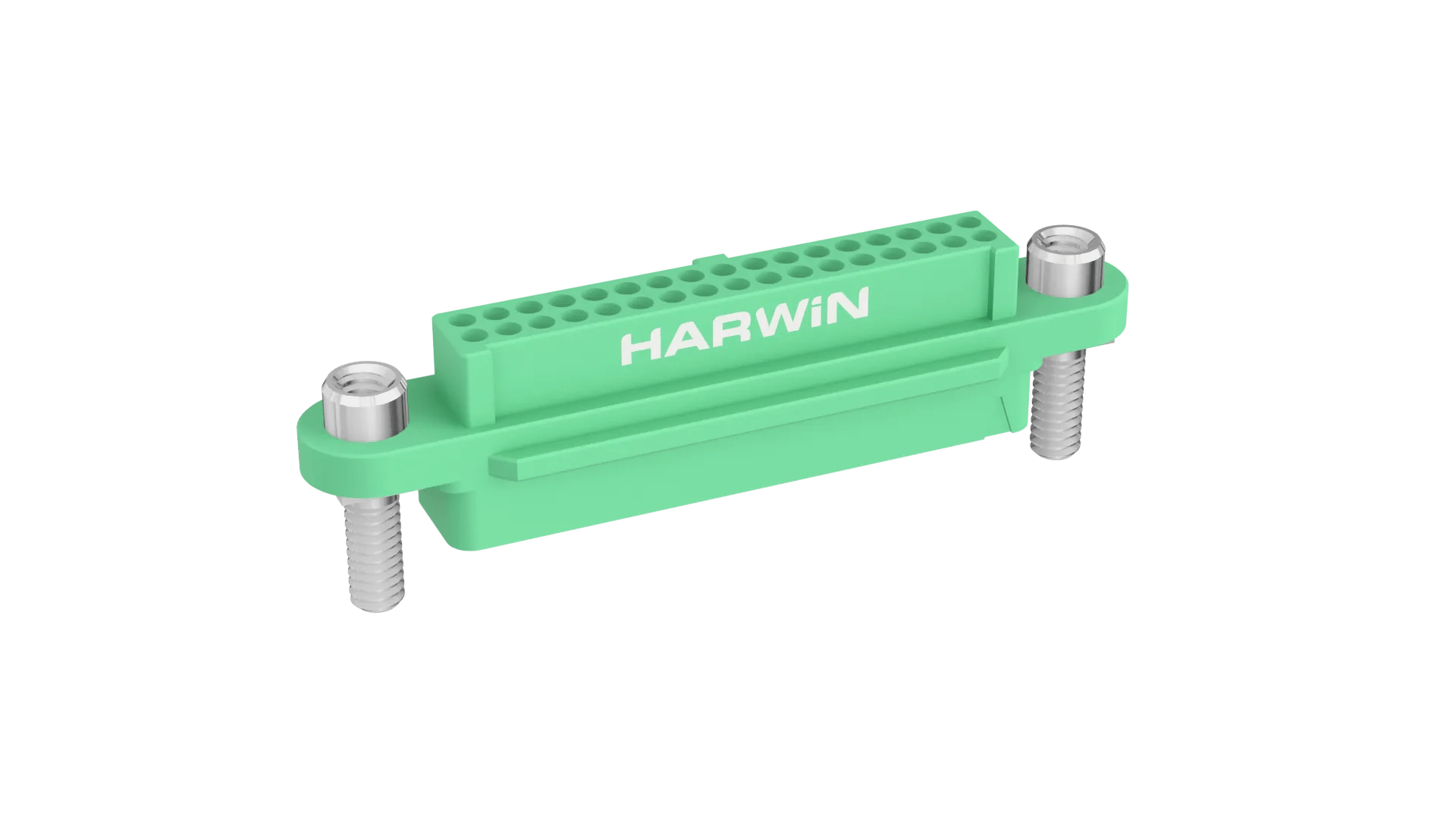

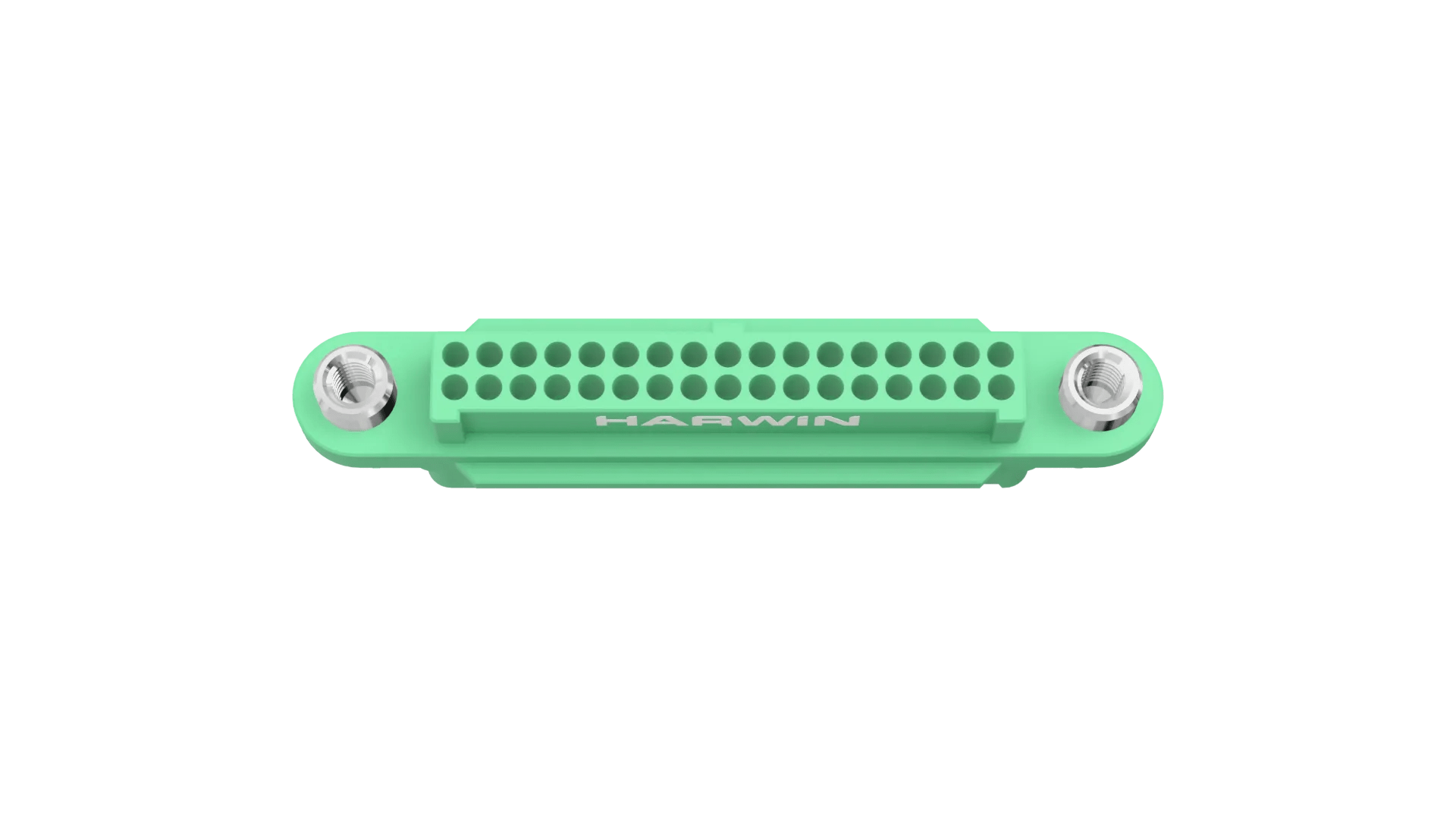

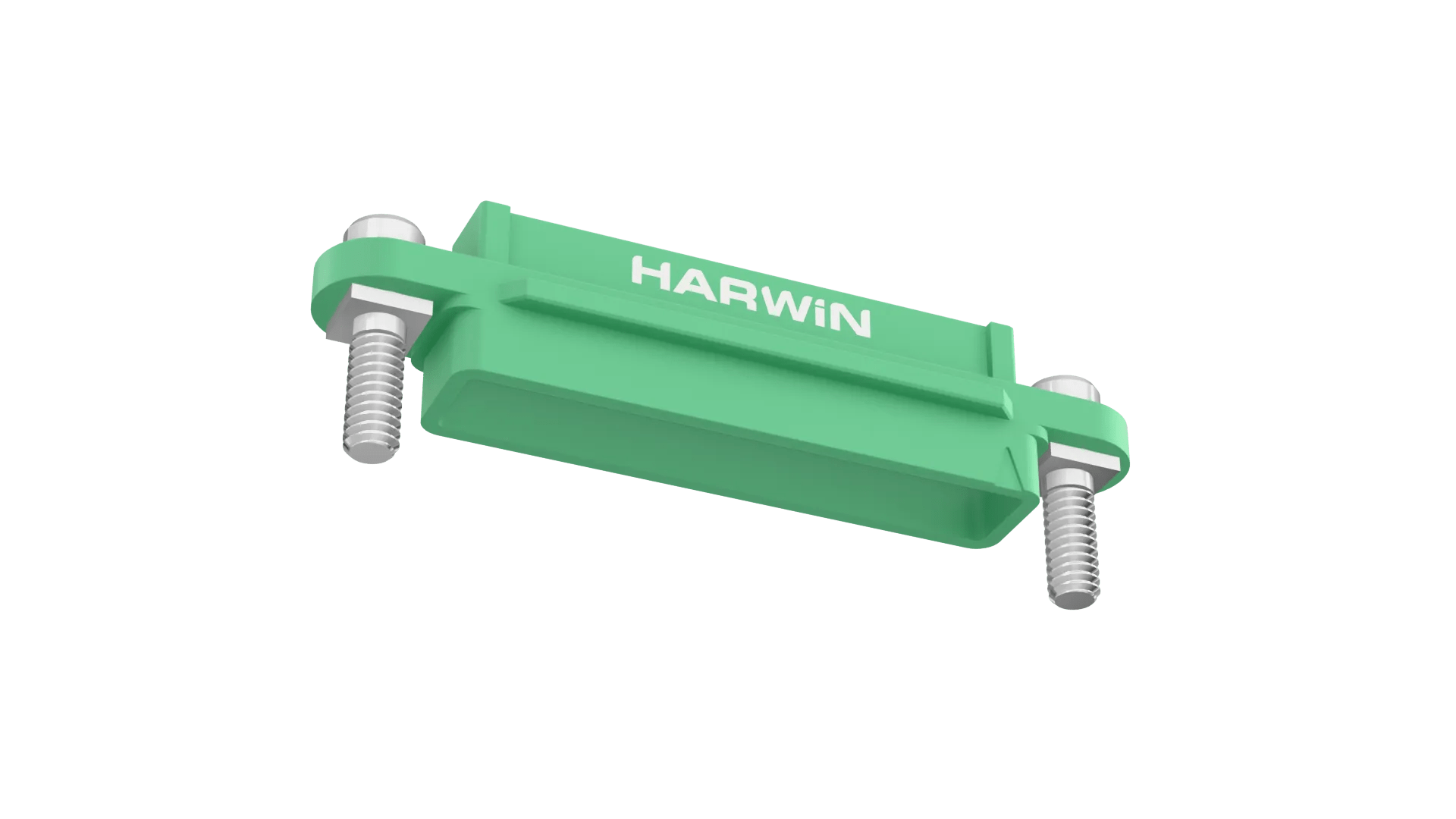

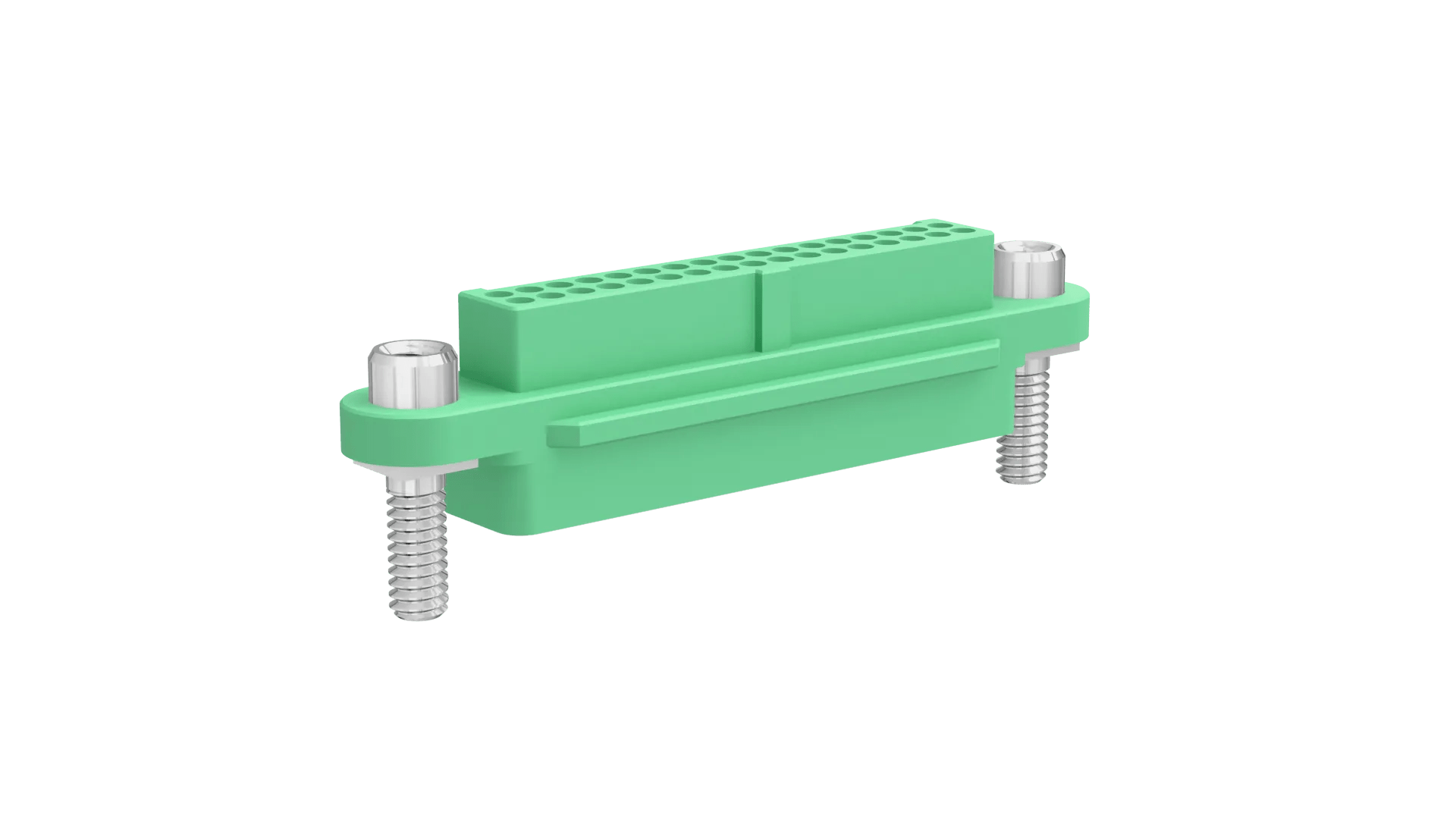

17+17 Pos. Female DIL Cable Housing, Screw-Lok Reverse Fix Panel Mount

1.25mm Pitch High-Reliability Connector - Gecko Screw-Lok

Add to Favorites

Technical Details

Specification

Contact Pitch:

1.25mm (0.049")

Contact Gender:

Female/Socket/Jack

Connector Orientation:

Straight

Connection Type:

Cable Housing

Mating Pin Size:

Ø0.4mm

Current Rating:

2A

Operating Temperature:

-65°C to +150°C

Style of Jackscrews:

Screw-Lok with Panel Mount

Polarising Features:

Yes

End Stackable:

No

Side Stackable:

No

Can be cut to another size:

No

Number of Rows:

2

Number of Signal Contacts:

34

Materials

Housing Material:

Polyamide (Nylon) 4T

Housing Colour:

Green

Housing Material UL Rating:

UL94V-0

Packaging Style:

Bulk/Loose

Dimensions

Individual Part Weight:

1.245g

Overall Dimensions (L x W x D) in mm:

32.70 x 6.50 x 10.40

Male Stud Length:

5.00mm

Thread Size:

M2

Availability

Limited availability or made-to-order
Distributor Location Quantity
Digi-Key
Global
Status38
Farnell
Europe
Status34
Harwin
Europe
Status280
Mouser Electronics Inc
Global
Status48
Newark
USA
Status34

*Stock available: contact distributor to purchase

Questions & Answers Ask a Question

No questions have been asked yet. Click here to ask a question.

Downloads

TECHNICAL DOCUMENTS

PDF

Technical Drawing / Datasheet - G125-224XX96F3.pdf

ZIP

G125-2243496M3 CAD Model (ZIP file containing STP and IGES)

Download
PDF

C125XX Component Specification - Gecko G125 Series (1.25mm pitch High-Reliability)

TEST REPORTS

PDF

Test Report HT030 - Gecko (G125 Series) - Electrical, Mechanical and Environmental

PDF

Test Report HT067 - Gecko-SL (G125 Series) - Mechanical Screw-Lok test

ENVIRONMENTAL COMPLIANCE

PDF

RoHS Compliant (2015/863/EU) with no Exemption required

PDF

REACH Harwin statement (12-Feb-2020) including 205 SVHC (16-Jan-2020), Annex XIV & XVII

XLSX

Conflict Minerals Reporting Template (CMRT 6.01) - Company Summary Statement

PDF

Material composition for Gecko G125-224XX96XX series

INSTRUCTION SHEETS

PDF

Product Training Module - Overview Guide to the Gecko Screw-Lok range, 1.25mm pitch High-Reliability

PDF

Product Training Module - Cable Connectors and Assemblies from Harwin

PDF

IS-37 - Z125-900 Hand Crimp Tool Instruction Sheet

PDF

IS-38 - Z125-902 Assembly Tool Instruction Sheet

OTHER DOWNLOADS

PDF

Catalog page - Gecko Screw-Lok Female Cable Housings Reverse Fix

PDF

Catalog page - Gecko Screw-Lok Specification, Pin Numbering

PDF

Catalog page - Gecko Screw-Lok Mating Profiles

PDF

Catalog page - Gecko Introduction

XLSX

Distributor part numbers for suitable cables for Datamate, Gecko, M300
