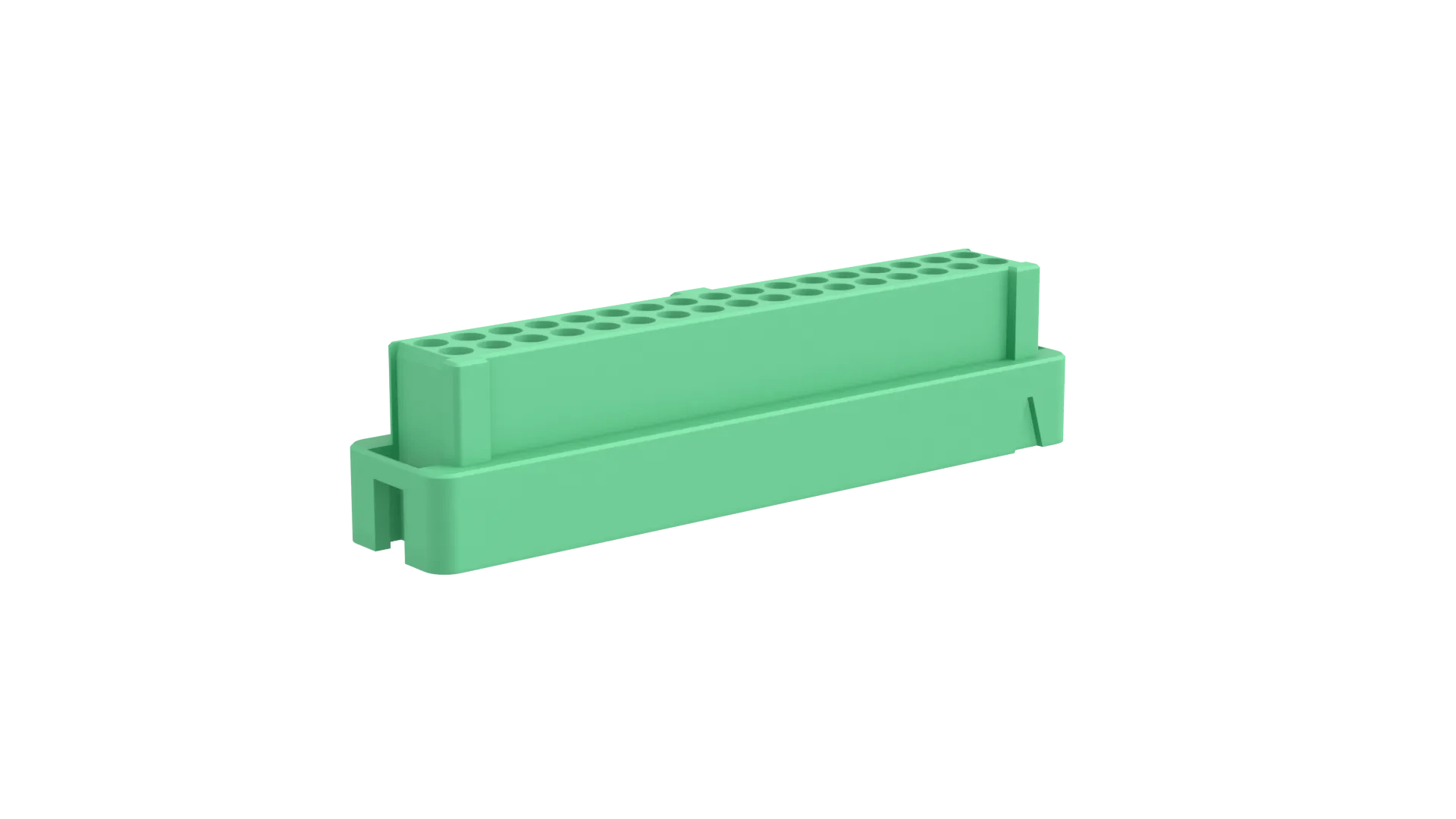

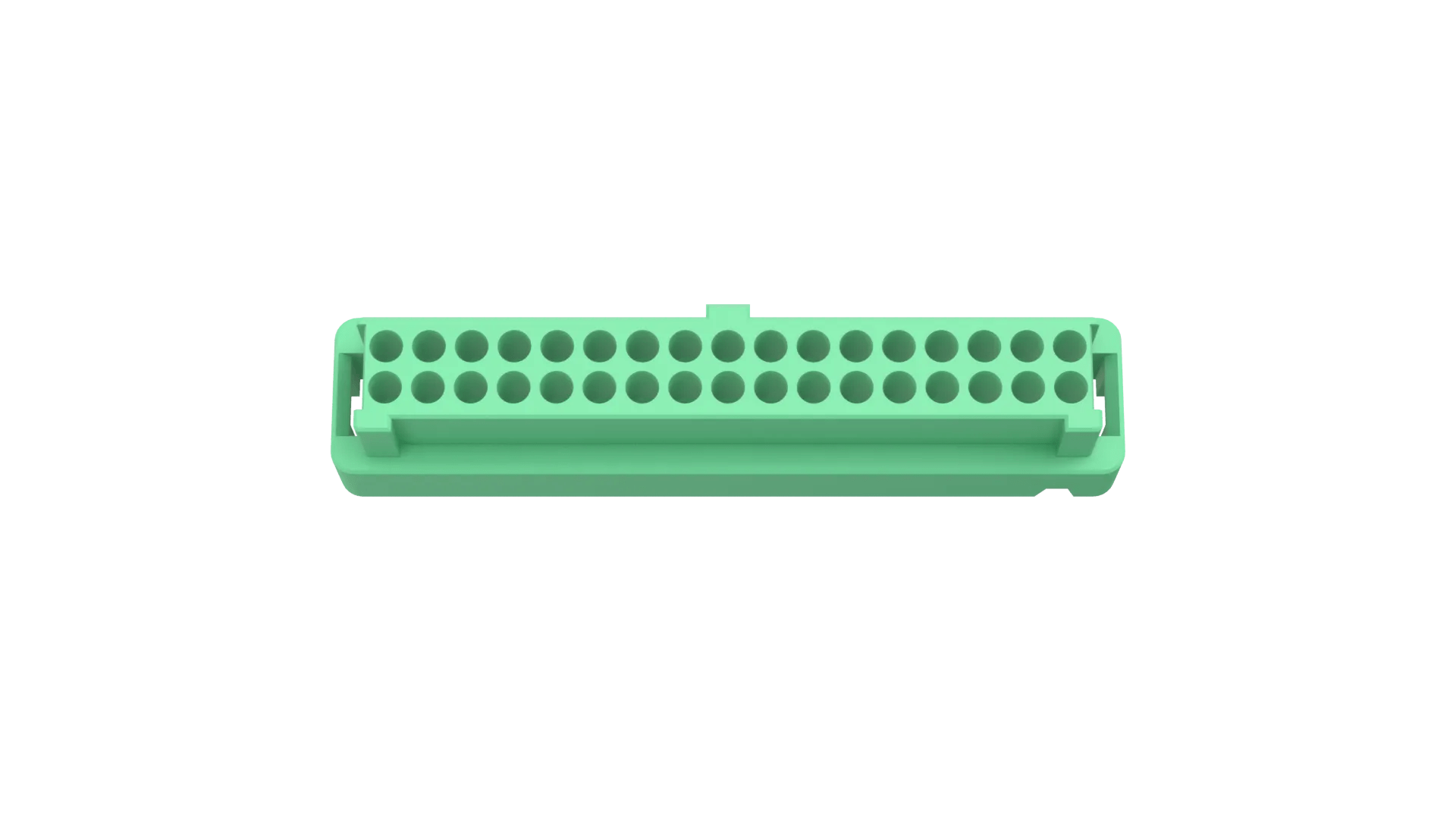

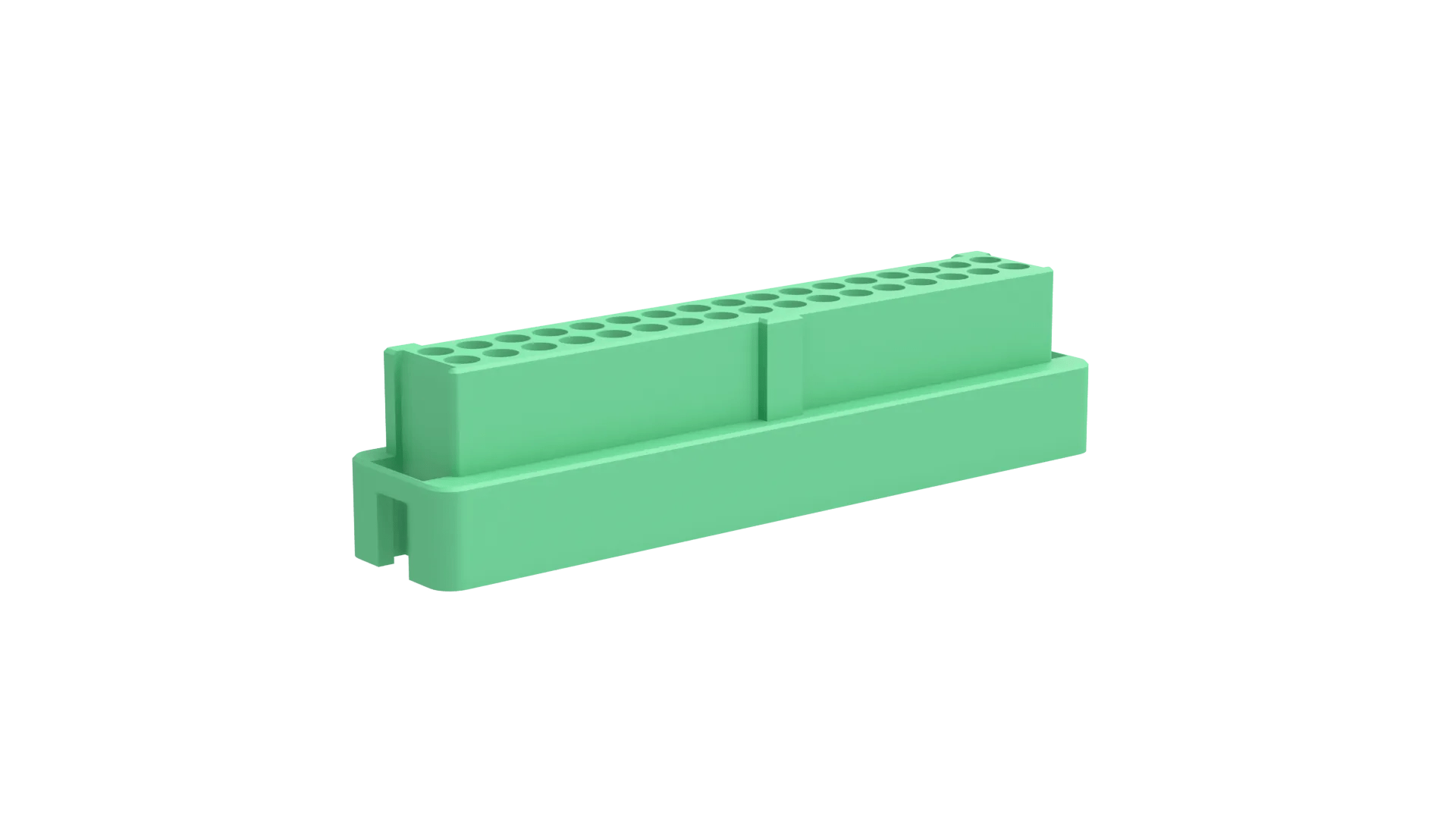

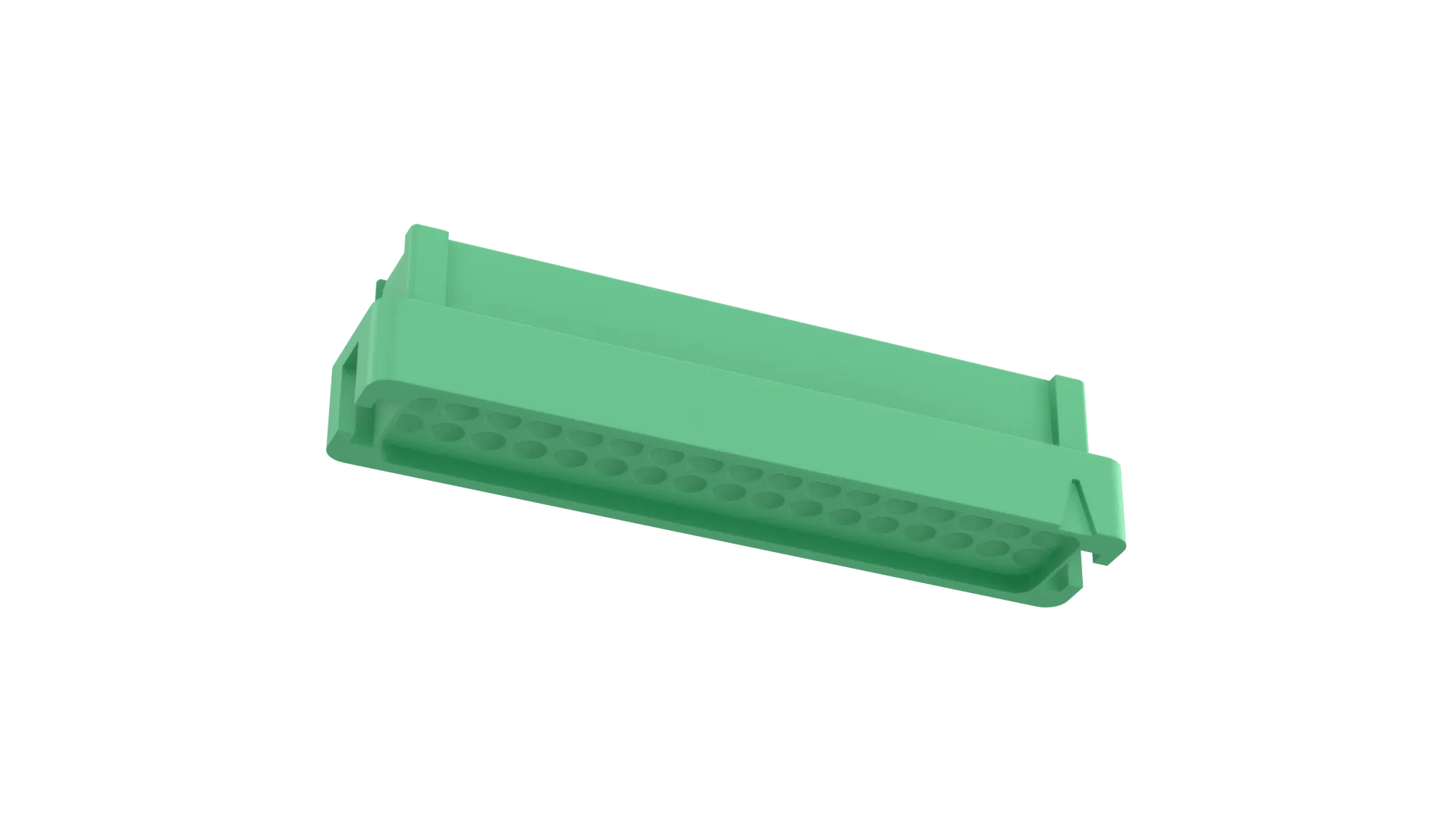

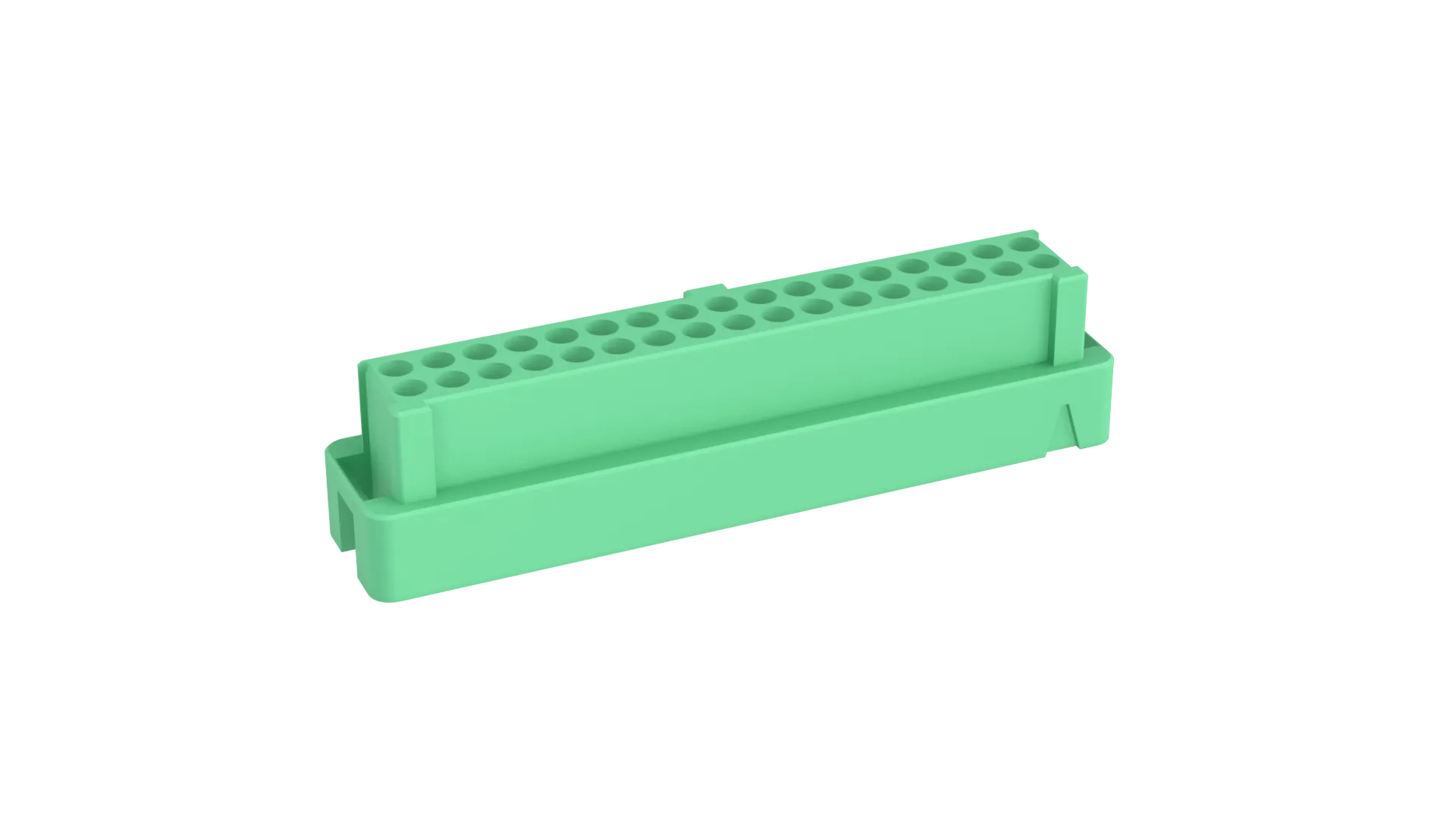

17+17 Pos. Female DIL Cable Housing, for Latches
1.25mm Pitch High-Reliability Connector - Gecko with Latches
- Female Double Row Crimp Connector Housing – 34 (17+17) contacts. Compatible housing style for male connectors with latches.
- Use with crimp contacts G125-0010005 (for 26 AWG), G125-0020005 (for 28-32 AWG), or choose from the pre-wired contacts G125-FW series.
- For complete pin numbering or pin out information, see Component Specification C125XX.
EU RoHS Status:
Mating Pin Size:
-65°C to +150°C
Style of Latches:
Compatible with latches
Can be cut to another size:
Number of Rows:
Number of Signal Contacts:
Polyamide (Nylon) 4T
Housing Material UL Rating:
Individual Part Weight:
Overall Dimensions (L x W x D) in mm:
23.80 x 4.90 x 5.70
Questions & Answers Ask a Question
What do you rate your mate/demate cycles for this housing?
Once you assemble contacts into this housing, the complete connector is rated for 1,000 operations (mating and unmating cycles). This performance is shown in the C125XX Component Specification, also listed further down the page under Downloads.
Do you have a tool to help separate this connector when it is latched to the mating half?
The tool you need is the Z125-9263400 – this will help push in the two latch buttons when the connectors are engaged, so you can then separate the mated connectors. Consult the training video for more information on using this tool. It is also possible to push in the two buttons by hand as well, if you have good access.
G125-2043496L0 CAD Model (ZIP file containing STP and IGES)Download
