G125-2041296L0

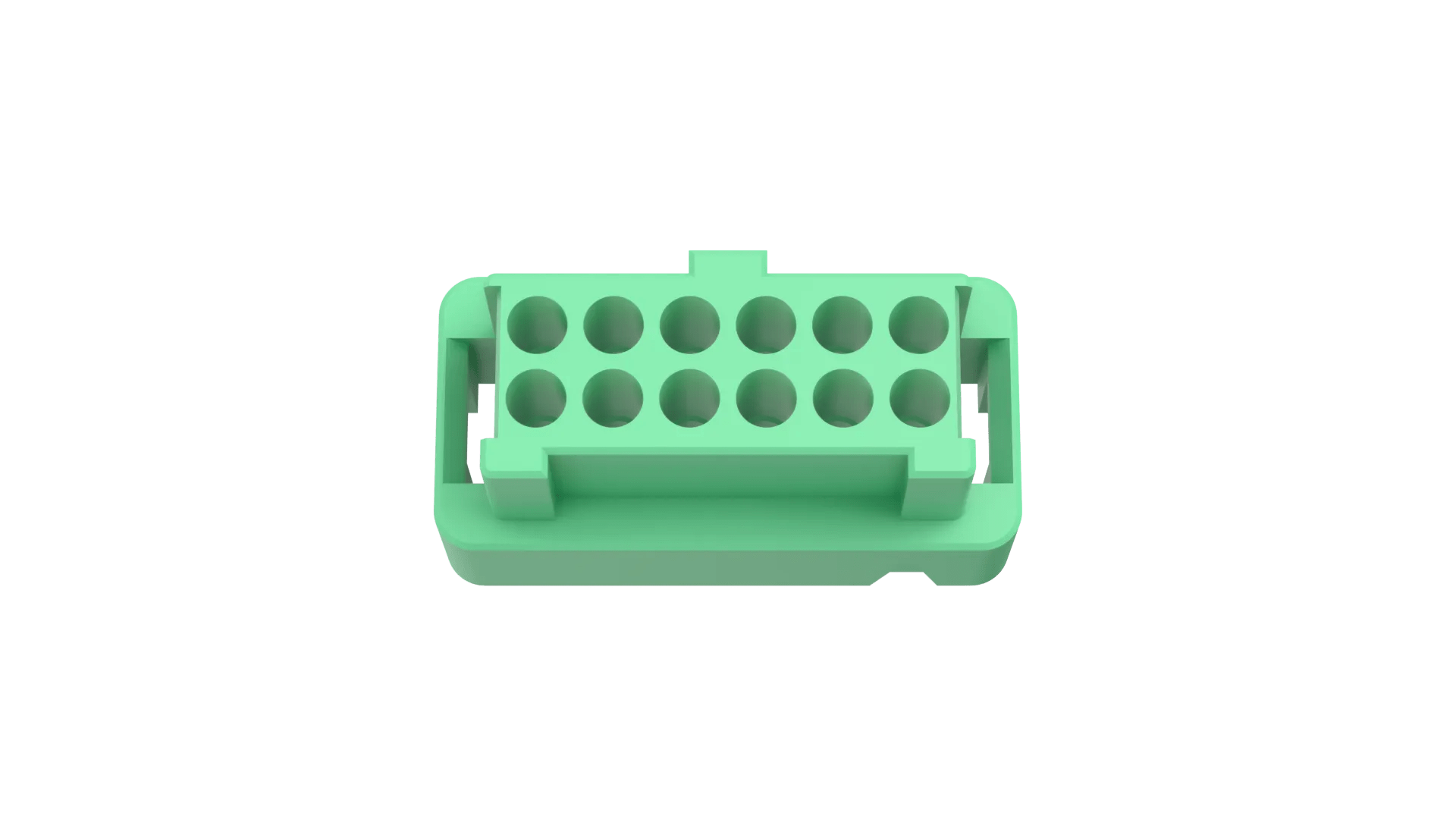

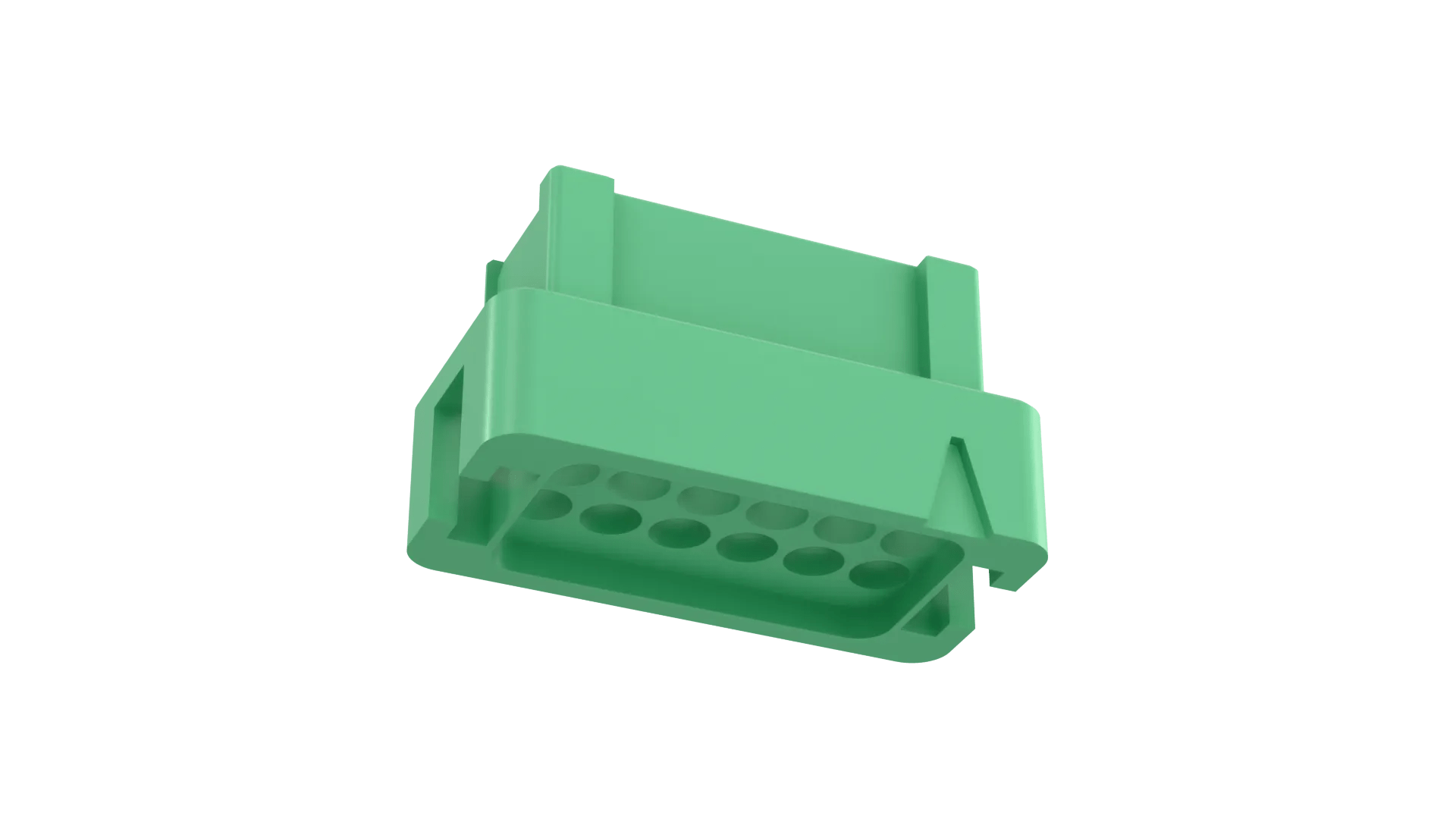

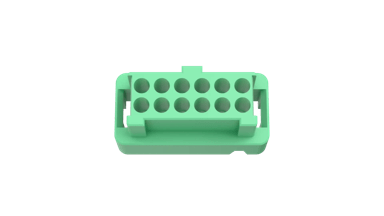

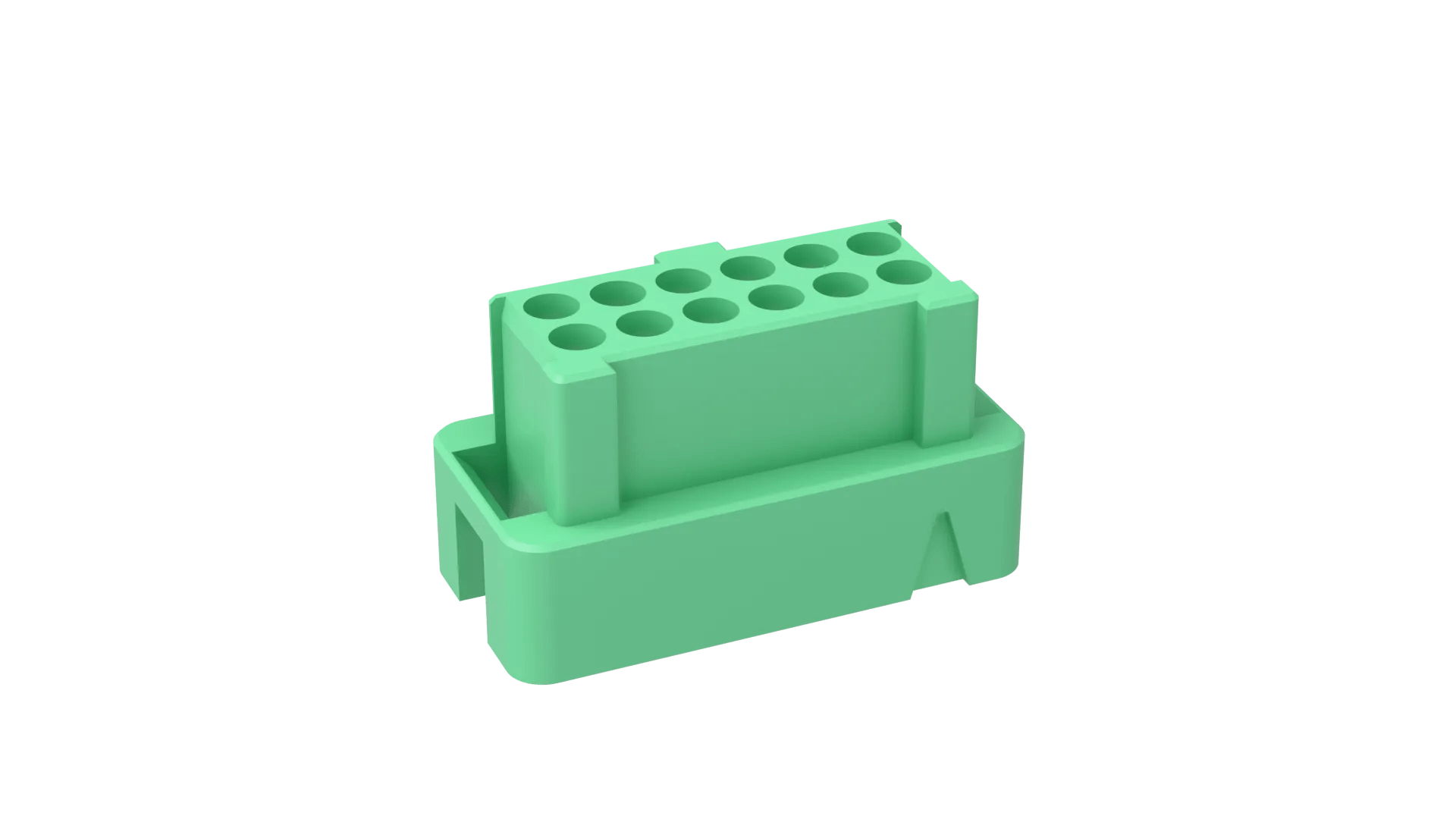

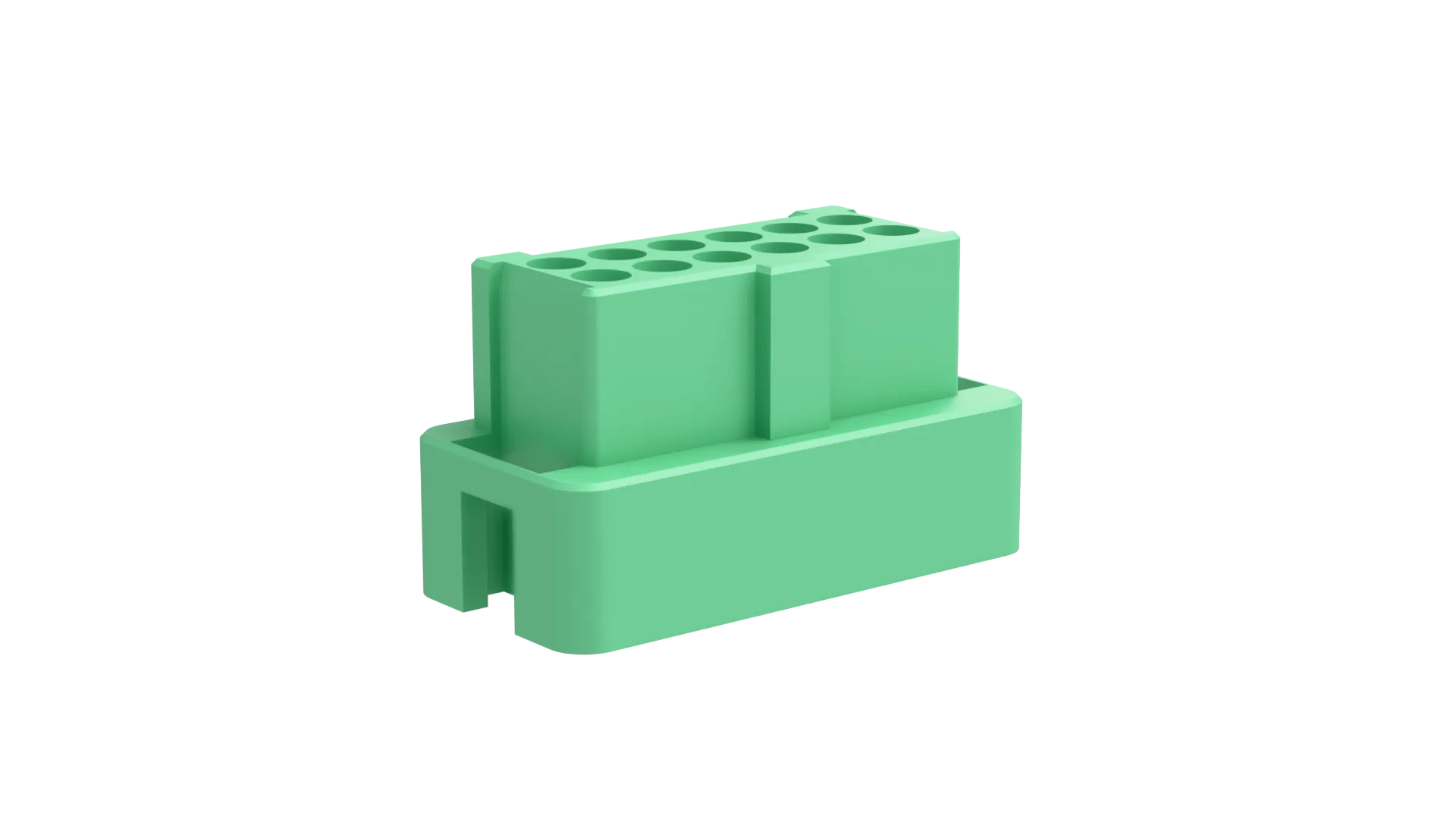

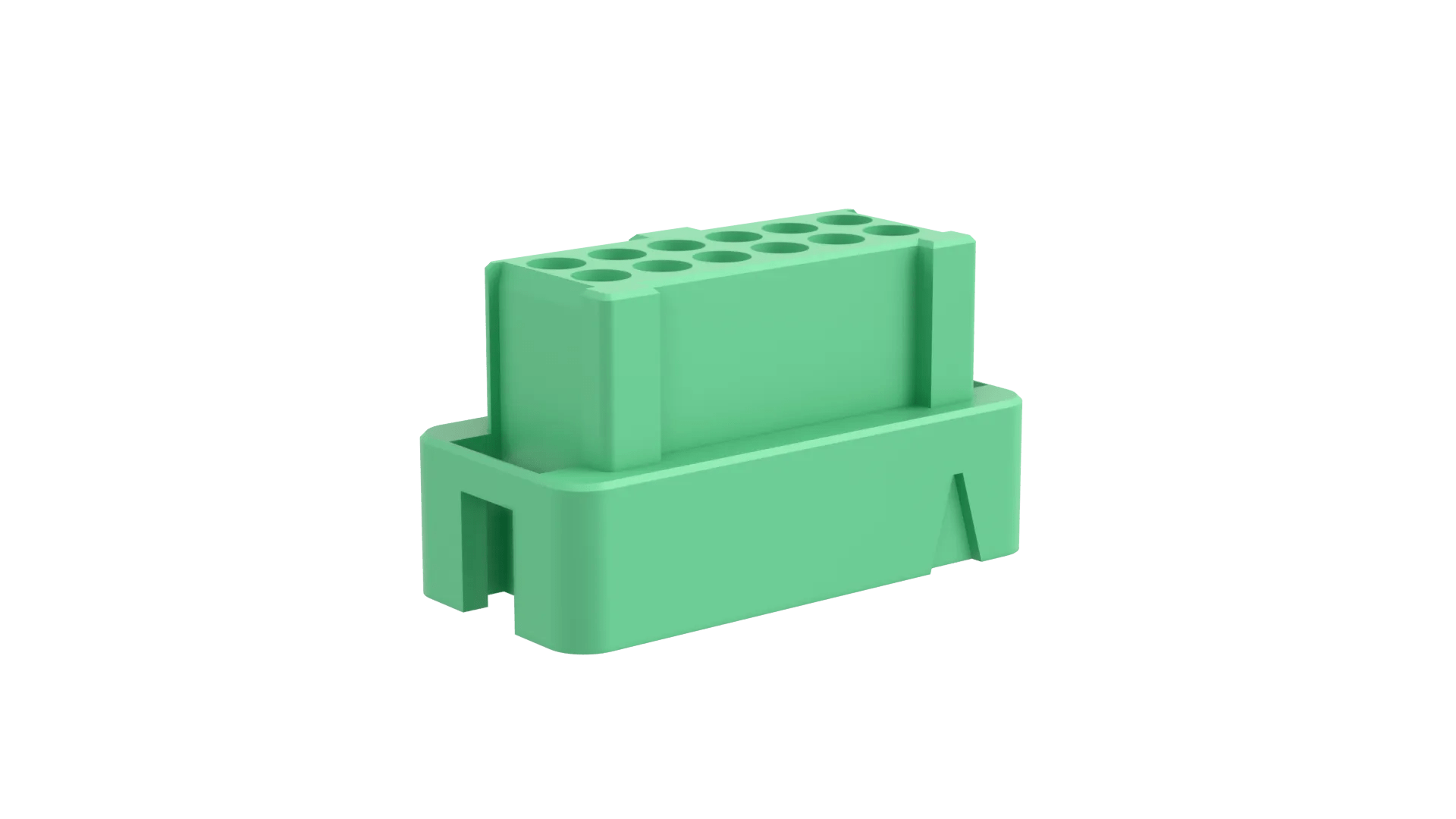

6+6 Pos. Female DIL Cable Housing, for Latches

1.25mm Pitch High-Reliability Connector - Gecko with Latches

  • Female Double Row Crimp Connector Housing – 12 (6+6) contacts. Compatible housing style for male connectors with latches.
  • Use with crimp contacts G125-0010005 (for 26 AWG), G125-0020005 (for 28-32 AWG), or choose from the pre-wired contacts G125-FW series.
  • For complete pin numbering or pin out information, see Component Specification C125XX.
Add to Favorites

Technical Details

Specification

Contact Pitch:

1.25mm (0.049")

Contact Gender:

Female/Socket/Jack

Connector Orientation:

Straight

Connection Type:

Cable (Crimp)

Mating Pin Size:

Ø0.4mm

Current Rating:

2.8A max individual contact, 2A max simultaneous (25°C)

Operating Temperature:

-65°C to +150°C

Style of Latches:

Compatible with latches

Polarising Features:

Yes

End Stackable:

No

Side Stackable:

No

Can be cut to another size:

No

Number of Rows:

2

Number of Signal Contacts:

12

Materials

Housing Material:

Polyamide (Nylon) 4T

Housing Colour:

Green

Housing Material UL Rating:

UL94V-0

Packaging Style:

Bulk/Loose

Dimensions

Individual Part Weight:

0.187g

Overall Dimensions (L x W x D) in mm:

10.05 x 4.90 x 5.70

Availability

7,472 in stock

Info Circle

Popular products are manufactured regularly, typically in stock and are not subject to minimum quantity requirements.

Popular product
Distributor Location Quantity (Updated Daily)
Distributor Digi-Key
Location Global
Quantity (Updated Daily) 2611
Distributor Anglia
Location Europe
Quantity (Updated Daily) 1588
Distributor Newark
Location USA
Quantity (Updated Daily) 1504
Distributor Farnell
Location Europe
Quantity (Updated Daily) 832
Distributor TTI Inc
Location USA
Quantity (Updated Daily) 490
Distributor Powell Electronics
Location Global
Quantity (Updated Daily) 200
Distributor Mouser Electronics Inc
Location Global
Quantity (Updated Daily) 124
Distributor Genalog
Location Europe
Quantity (Updated Daily) 115
Distributor Iconnexion Asia Pte Ltd
Location Asia
Quantity (Updated Daily) 8

Questions & Answers Ask a Question

What potting material do you recommend using for backpotting this connector?

We currently recommend 3 materials that we have tried – although it’s very likely that many others are entirely suitable. Our primary recommendation, that we use on our complete cable assemblies, is Stycast 2651MM with Catalyst 9. We have also used Robnor Resins PX439XS/BK/250 and Epoxies Innovative Bonding Solutions 50-3122RBK. You can find more information on backpotting our connectors and links to the epoxy suppliers on our blog post What is Backpotting?

What do you rate your mate/demate cycles for this housing?

Once you assemble contacts into this housing, the complete connector is rated for 1,000 operations (mating and unmating cycles). This performance is shown in the C125XX Component Specification, also listed further down the page under Downloads.

Do you have a tool to help separate this connector when it is latched to the mating half?

The tool you need is the Z125-9261200 – this will help push in the two latch buttons when the connectors are engaged, so you can then separate the mated connectors. Consult the training video for more information on using this tool. It is also possible to push in the two buttons by hand as well, if you have good access.
