G125-2041096L0

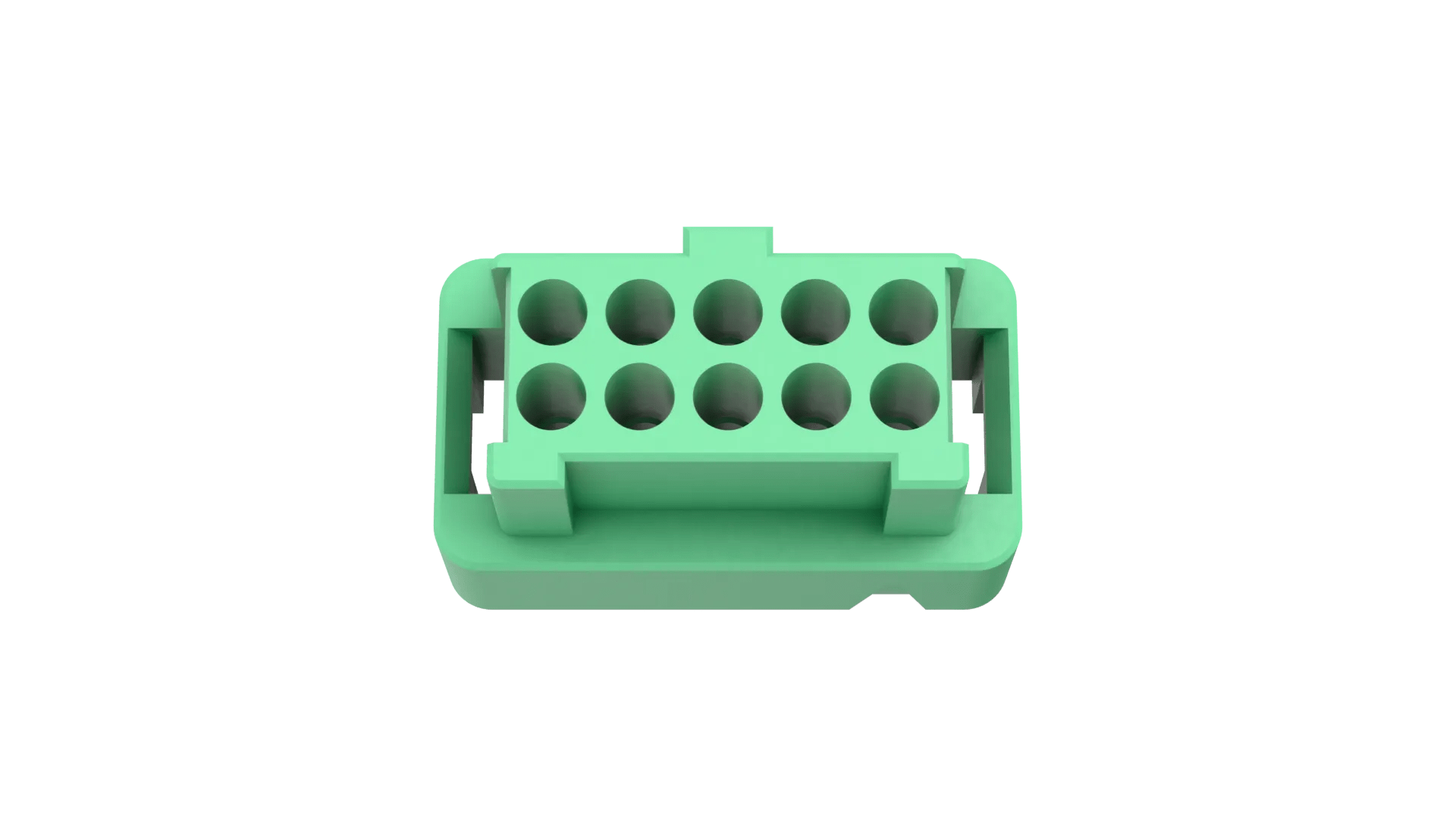

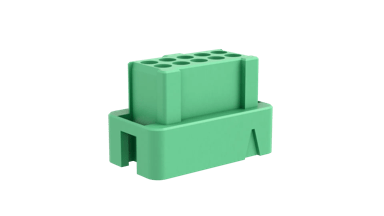

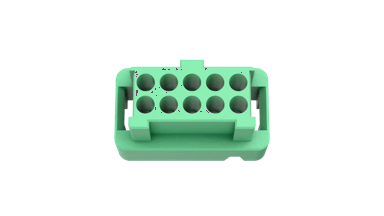

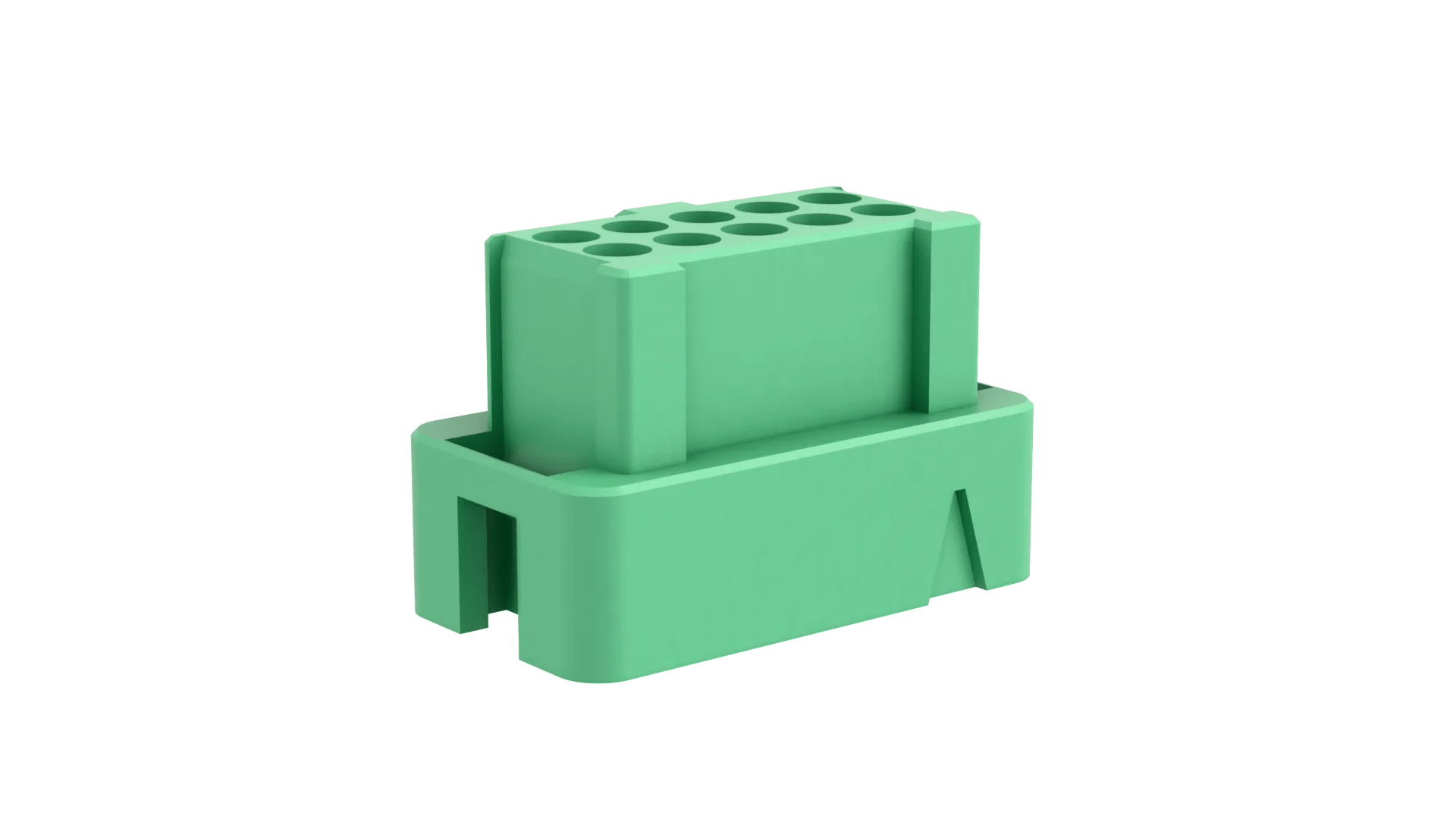

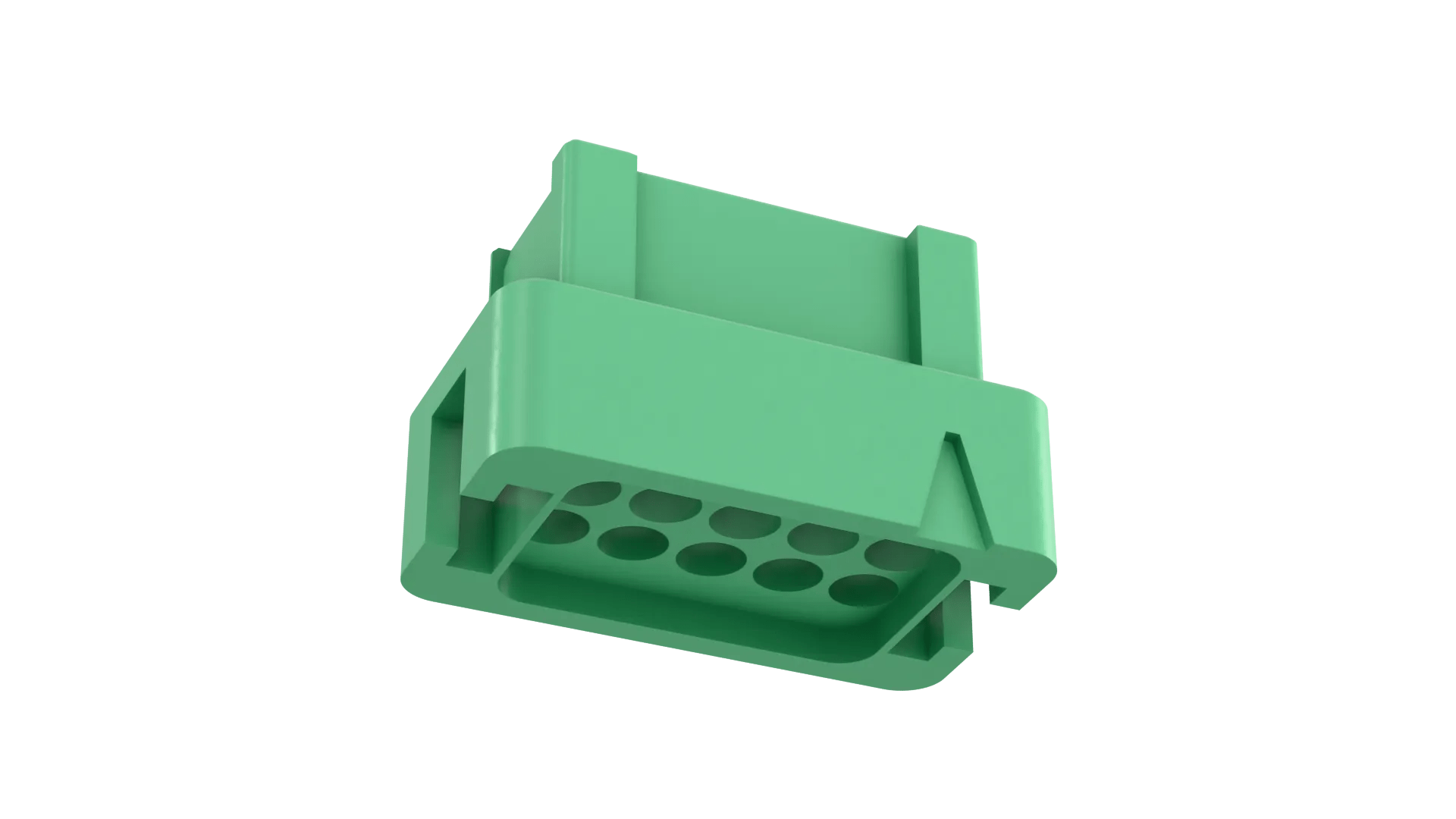

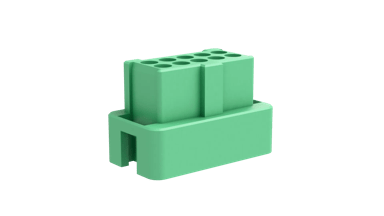

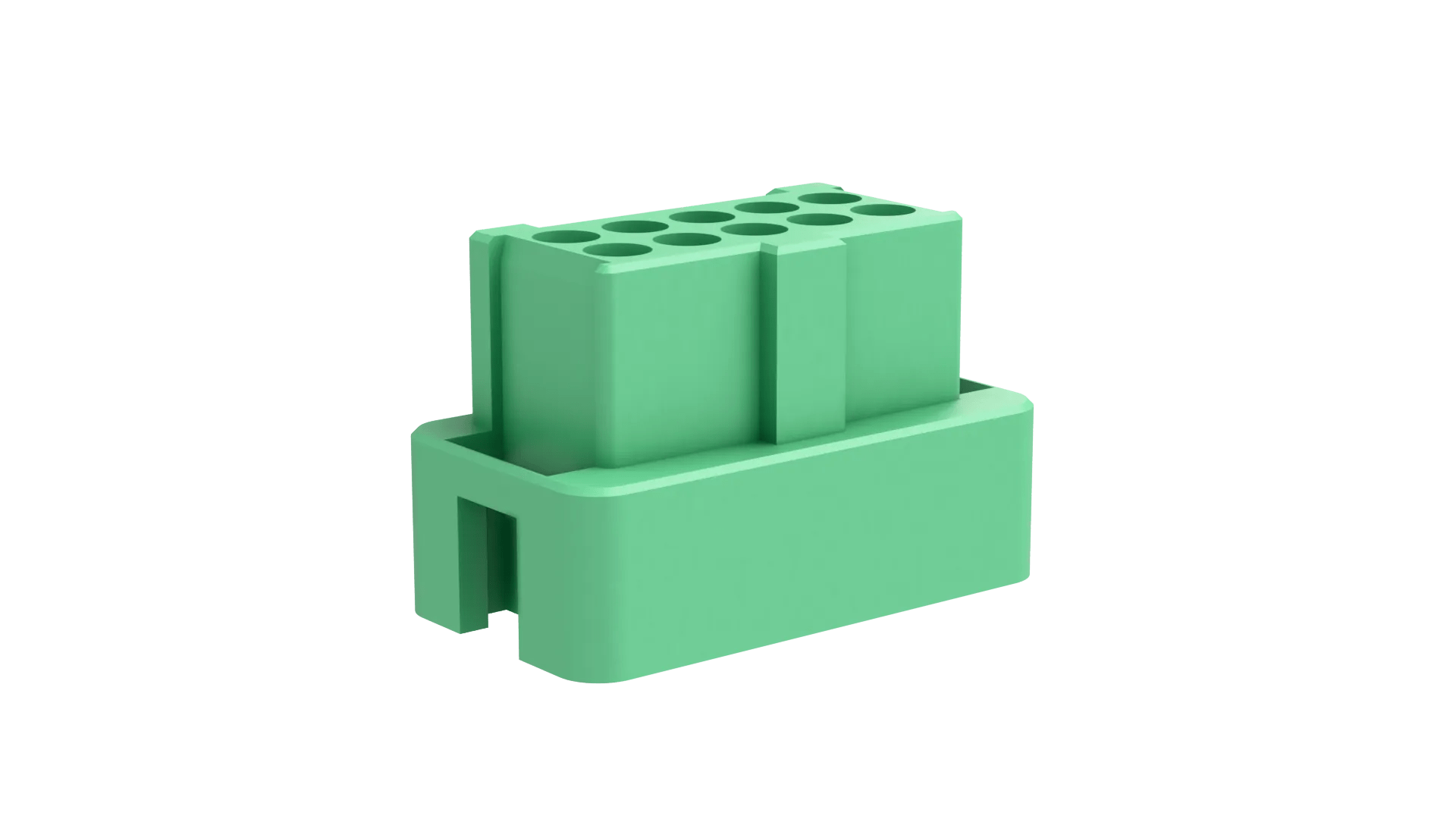

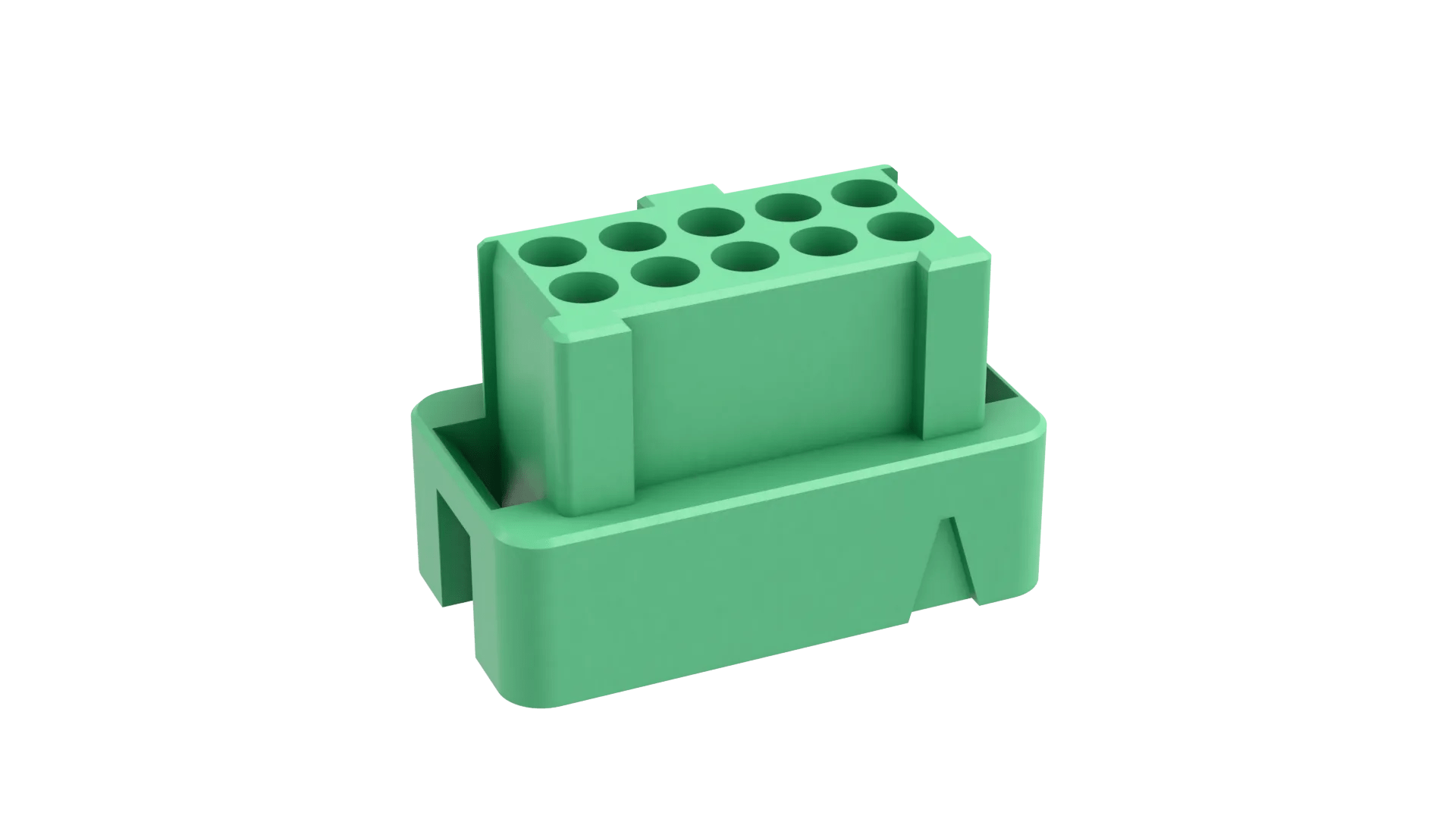

5+5 Pos. Female DIL Cable Housing, for Latches

1.25mm Pitch High-Reliability Connector - Gecko with Latches

  • Female Double Row Crimp Connector Housing – 10 (5+5) contacts. Compatible housing style for male connectors with latches.
  • Use with crimp contacts G125-0010005 (for 26 AWG), G125-0020005 (for 28-32 AWG), or choose from the pre-wired contacts G125-FW series.
  • For complete pin numbering or pin out information, see Component Specification C125XX.
Add to Favorites

Technical Details

Specification

Contact Pitch:

1.25mm (0.049")

Contact Gender:

Female/Socket/Jack

Connector Orientation:

Straight

Connection Type:

Cable Housing

Mating Pin Size:

Ø0.4mm

Current Rating:

2.8A max individual contact, 2A max simultaneous (25°C)

Operating Temperature:

-65°C to +150°C

Style of Latches:

Compatible with latches

Polarising Features:

Yes

End Stackable:

No

Side Stackable:

No

Can be cut to another size:

No

Number of Rows:

2

Number of Signal Contacts:

10

Materials

Housing Material:

Polyamide (Nylon) 4T

Housing Colour:

Green

Housing Material UL Rating:

UL94V-0

Packaging Style:

Bulk/Loose

Dimensions

Individual Part Weight:

0.162g

Overall Dimensions (L x W x D) in mm:

8.80 x 4.90 x 5.70

Availability

Popular product
Distributor Location Quantity
Anglia
Europe
Status135
Digi-Key
Global
Status1832
Farnell
Europe
Status72
Genalog
Europe
Status352
Mouser Electronics Inc
Global
Status858
Newark
USA
Status395
TTI Europe
Europe
Status120
TTI Inc
USA
Status200

*Stock available: contact distributor to purchase

Questions & Answers Ask a Question

What potting material do you recommend using for backpotting this connector?

We currently recommend 3 materials that we have tried – although it’s very likely that many others are entirely suitable. Our primary recommendation, that we use on our complete cable assemblies, is Stycast 2651MM with Catalyst 9. We have also used Robnor Resins PX439XS/BK/250 and Epoxies Innovative Bonding Solutions 50-3122RBK. You can find more information on backpotting our connectors and links to the epoxy suppliers on our blog post What is Backpotting?

What do you rate your mate/demate cycles for this housing?

Once you assemble contacts into this housing, the complete connector is rated for 1,000 operations (mating and unmating cycles). This performance is shown in the C125XX Component Specification, also listed further down the page under Downloads.

Do you have a tool to help separate this connector when it is latched to the mating half?

The tool you need is the Z125-9261000 – this will help push in the two latch buttons when the connectors are engaged, so you can then separate the mated connectors. Consult the training video for more information on using this tool. It is also possible to push in the two buttons by hand as well, if you have good access.

Downloads

TECHNICAL DOCUMENTS

PDF

Technical Drawing / Datasheet - G125-204XX96L0.pdf

ZIP

G125-2041096L0 CAD Model (ZIP file containing STP and IGES)

Download
PDF

C125XX Component Specification - Gecko G125 Series (1.25mm pitch High-Reliability)

TEST REPORTS

PDF

Test Report HT030 - Gecko (G125 Series) - Electrical, Mechanical and Environmental

ENVIRONMENTAL COMPLIANCE

PDF

RoHS Compliant (2015/863/EU) with no Exemption required

PDF

REACH Harwin statement (6-Jul-2020) including 209 SVHC (25-Jun-2020), Annex XIV & XVII

XLSX

Conflict Minerals Reporting Template (CMRT 6.01) - Company Summary Statement

PDF

Material composition for Gecko G125-204 series

INSTRUCTION SHEETS

PDF

Product Training Module - Introduction to the Gecko connectors, 1.25mm pitch High-Reliability

PDF

Product Training Module - Cable Connectors and Assemblies from Harwin

PDF

IS-37 - Z125-900 Hand Crimp Tool Instruction Sheet

PDF

IS-38 - Z125-902 Assembly Tool Instruction Sheet

OTHER DOWNLOADS

PDF

3D PDF file - G125-2041096L0_3D.pdf

PDF

Catalog page - Gecko with Latches Female Cable Housings

PDF

Catalog page - Gecko with Latches Specifications, Pin Numbering

PDF

Catalog page - Gecko with Latches Mating Profiles

PDF

Catalog page - Gecko Introduction

XLSX

Distributor part numbers for suitable cables for Datamate, Gecko, M300
