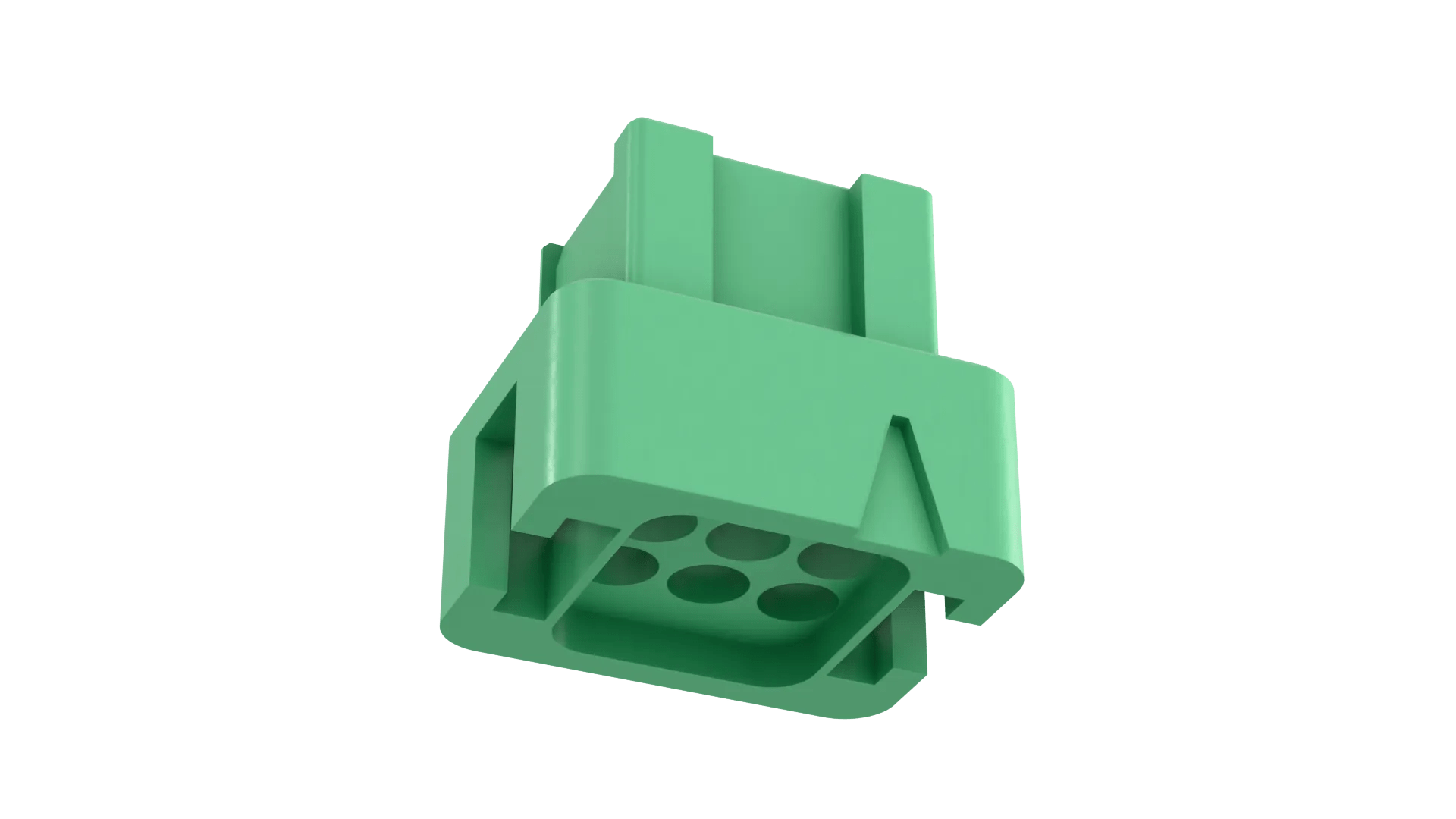

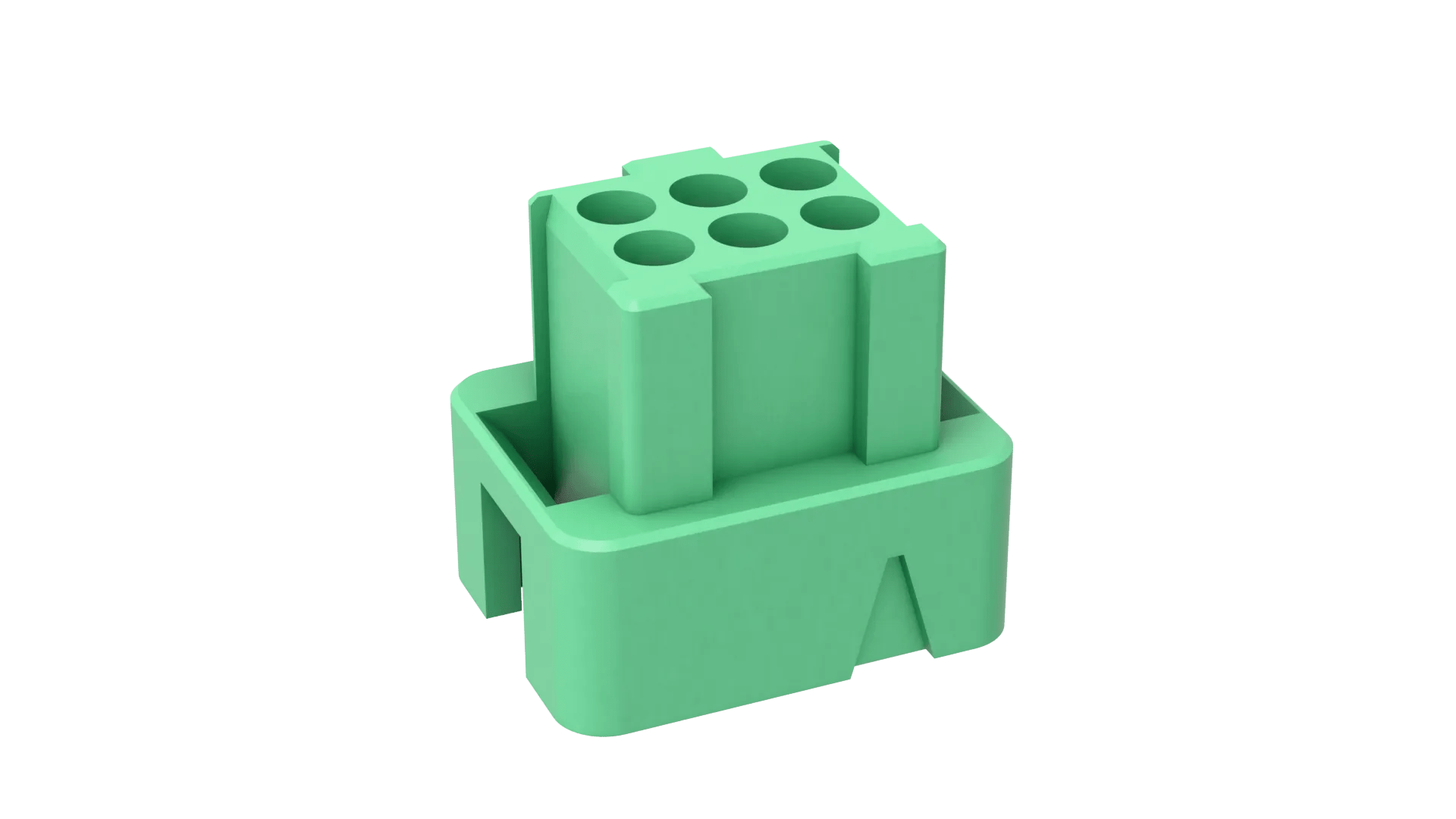

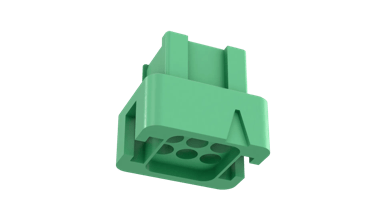

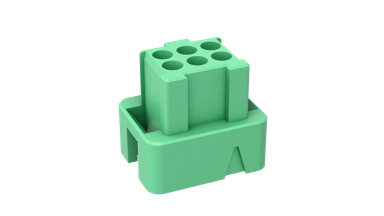

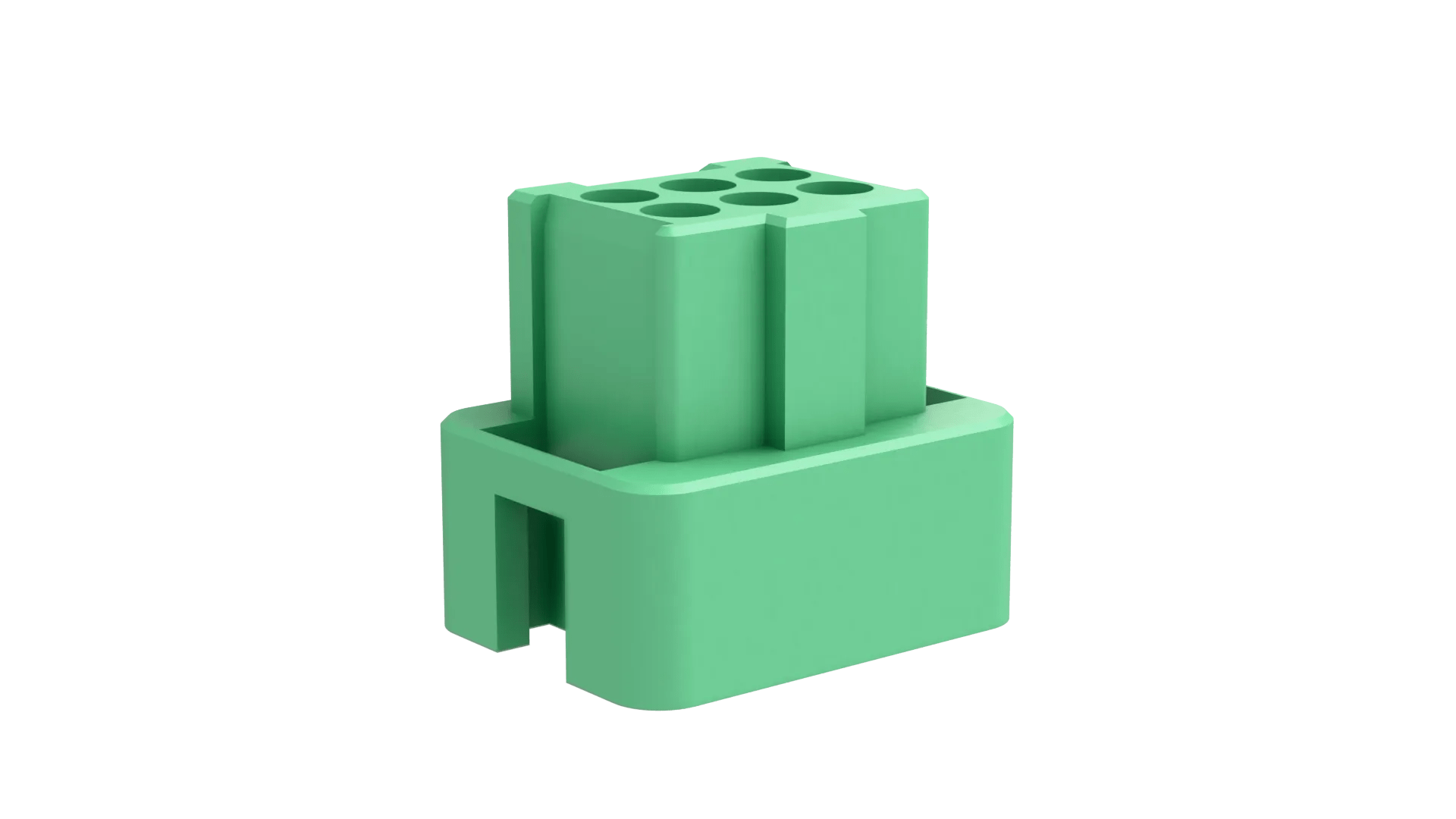

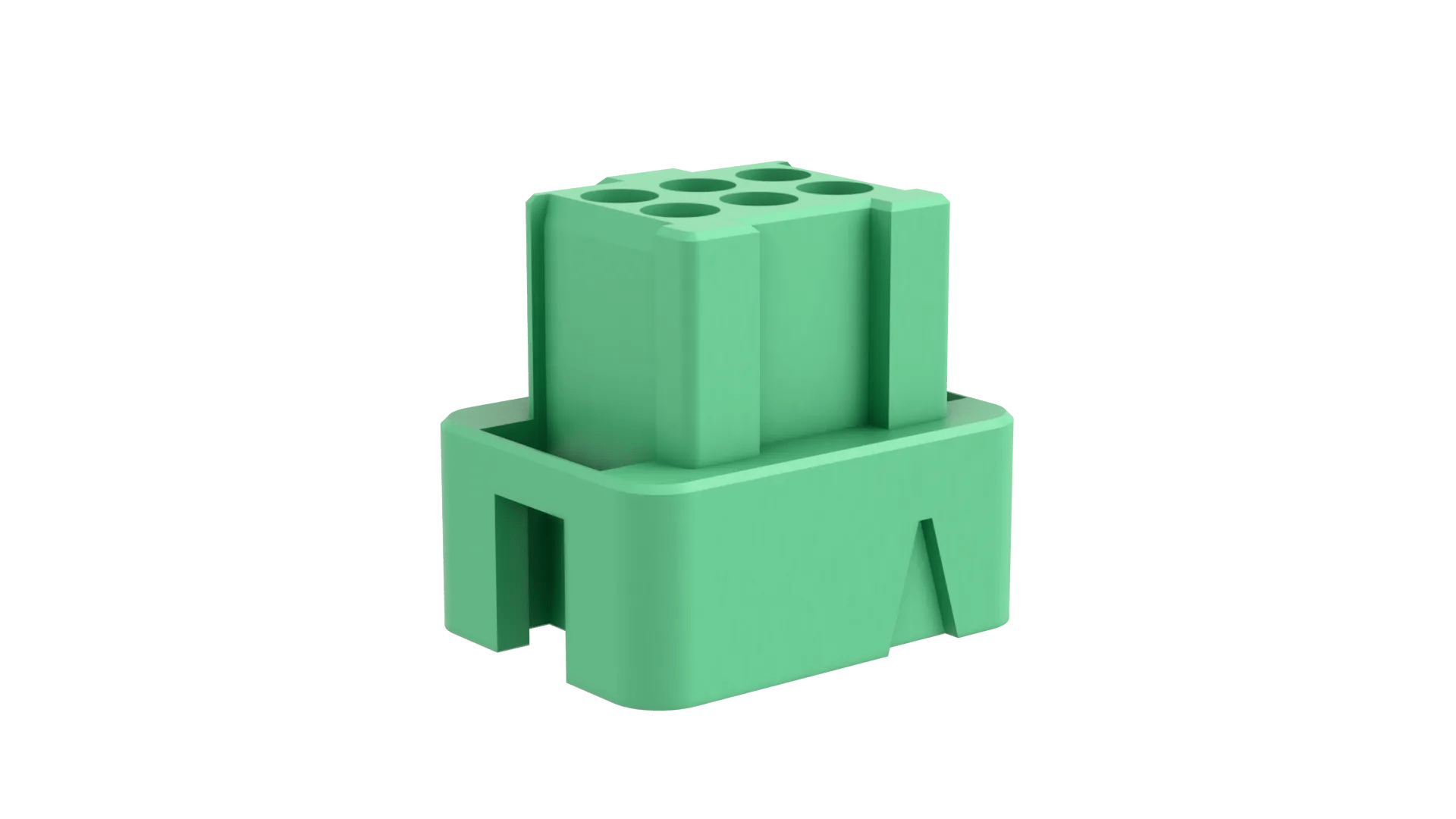

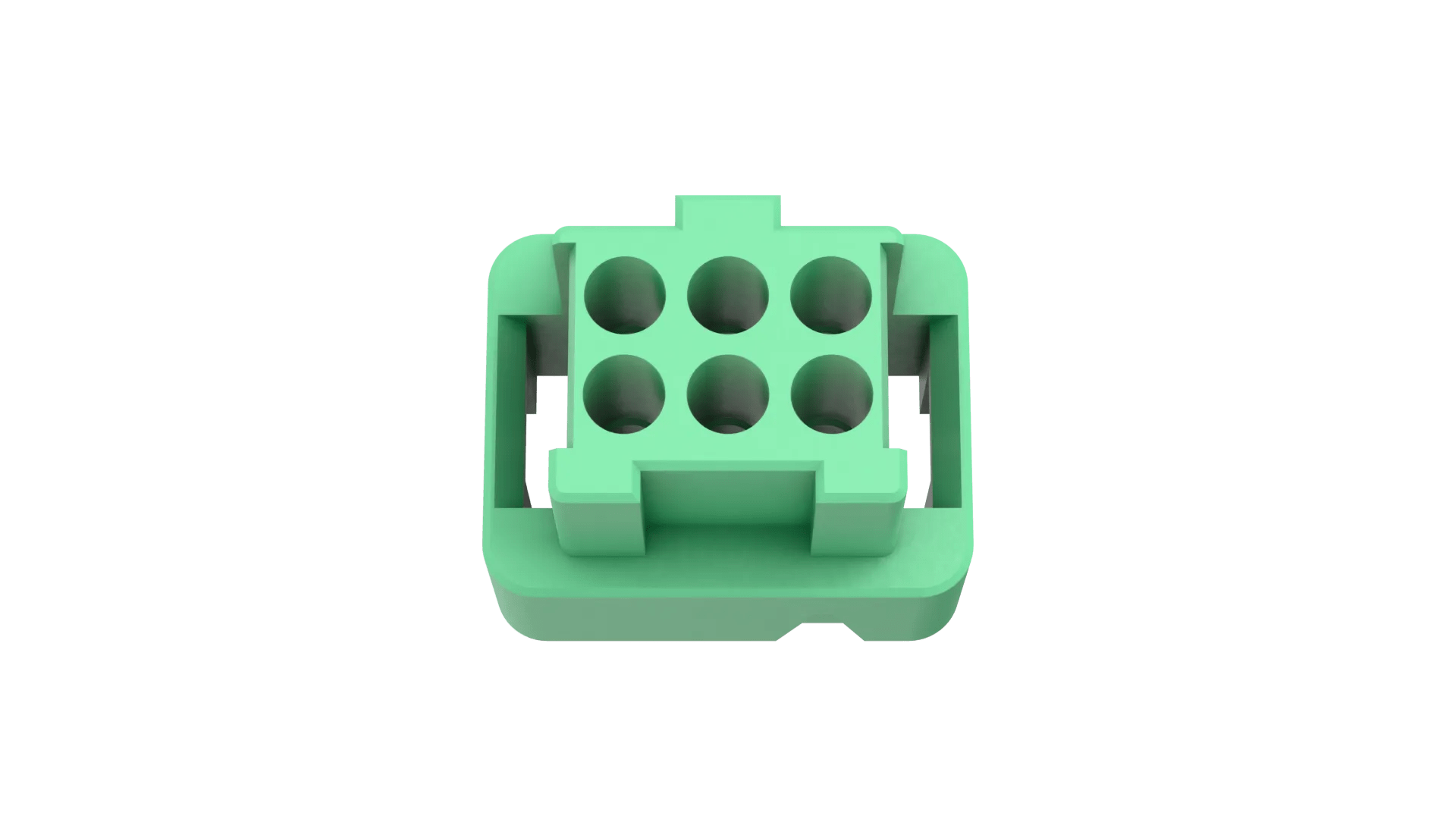

G125-2040696L0

3+3 Pos. Female DIL Cable Housing, for Latches

1.25mm Pitch High-Reliability Connector - Gecko with Latches

  • Female Double Row Crimp Connector Housing – 6 (3+3) contacts.
  • Use with crimp contacts G125-0010005 (for 26 AWG), G125-0020005 (for 28-32 AWG), or choose from the pre-wired contacts G125-FW series.
  • Compatible housing style for male connectors with latches.

Technical Details

Specification

Contact Pitch:

1.25mm (0.049")

Contact Gender:

Female/Socket/Jack

Connector Orientation:

Straight

Connection Type:

Cable Housing

Mating Pin Size:

Ø0.4mm

Current Rating:

2A

Operating Temperature:

-65°C to +150°C

Style of Latches:

Compatible with latches

Polarising Features:

Yes

End Stackable:

No

Side Stackable:

No

Can be cut to another size:

No

Number of Rows:

2

Number of Signal Contacts:

6

Materials

Housing Material:

Polyamide (Nylon) 4T

Housing Colour:

Green

Housing Material UL Rating:

UL94V-0

Packaging Style:

Bulk/Loose

Dimensions

Individual Part Weight:

0.112g

Overall Dimensions (L x W x D) in mm:

6.30 x 4.90 x 5.70

Availability

Distributor Location Quantity
Anglia
Europe
Status2082
Avnet Abacus
Europe
Status310
Digi-Key
Global
Status1024
Farnell
Europe
Status448
Harwin
Europe
Status4640
Mouser Electronics Inc
Global
Status1071
Newark
USA
Status73
TTI Europe
Europe
Status100
TTI Inc
USA
Status1

*Stock available: contact distributor to purchase

Questions & Answers Ask a Question

Do you have a tool to help separate this connector when it is latched to the mating half?

The tool you need is the Z125-9260600 – this will help push in the two latch buttons when the connectors are engaged, so you can then separate the mated connectors. Consult the training video for more information on using this tool. It is also possible to push in the two buttons by hand as well, if you have good access.

Was this helpful?

Downloads

TECHNICAL DOCUMENTS

PDF

Technical Drawing / Datasheet - G125-204XX96L0.pdf

ZIP

G125-2040696L0 CAD Model (ZIP file containing STP and IGES)

PDF

C125XX Component Specification - Gecko G125 Series (1.25mm pitch High-Reliability)

TEST REPORTS

PDF

Test Report HT030 - Gecko (G125 Series) - Electrical, Mechanical and Environmental

ENVIRONMENTAL COMPLIANCE

PDF

RoHS Compliant (2015/863/EU) with no Exemption required

PDF

REACH Harwin statement (12-Feb-2020) including 205 SVHC (16-Jan-2020), Annex XIV & XVII

XLSX

Conflict Minerals Reporting Template (CMRT 5.12) - Company Summary Statement

PDF

Material composition for Gecko G125-204 series

INSTRUCTION SHEETS

PDF

Product Training Module - Introduction to the Gecko connectors, 1.25mm pitch High-Reliability

PDF

IS-37 - Z125-900 Hand Crimp Tool Instruction Sheet

PDF

IS-38 - Z125-902 Assembly Tool Instruction Sheet

OTHER DOWNLOADS

PDF

3D PDF file - G125-2040696L0_3D.pdf

PDF

Catalog page - Gecko (Latching) Female Cable Housings

PDF

Catalog page - Gecko (Latching) Specifications, Pin Numbering

PDF

Catalog page - Gecko (Latching) Mating Profiles

PDF

Catalog page - Gecko Introduction

XLSX

Distributor part numbers for suitable cables for Datamate, Gecko, M300
