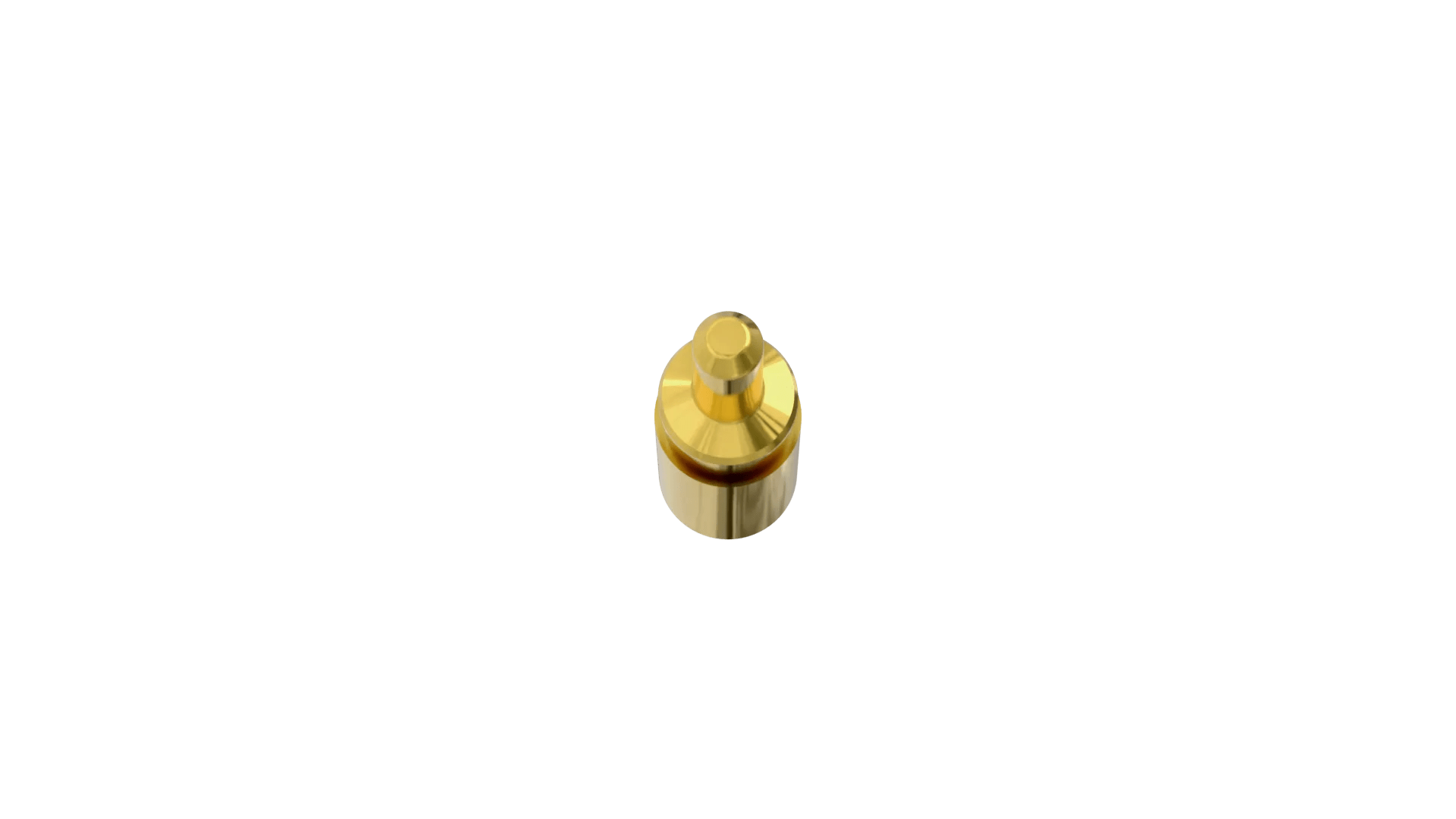

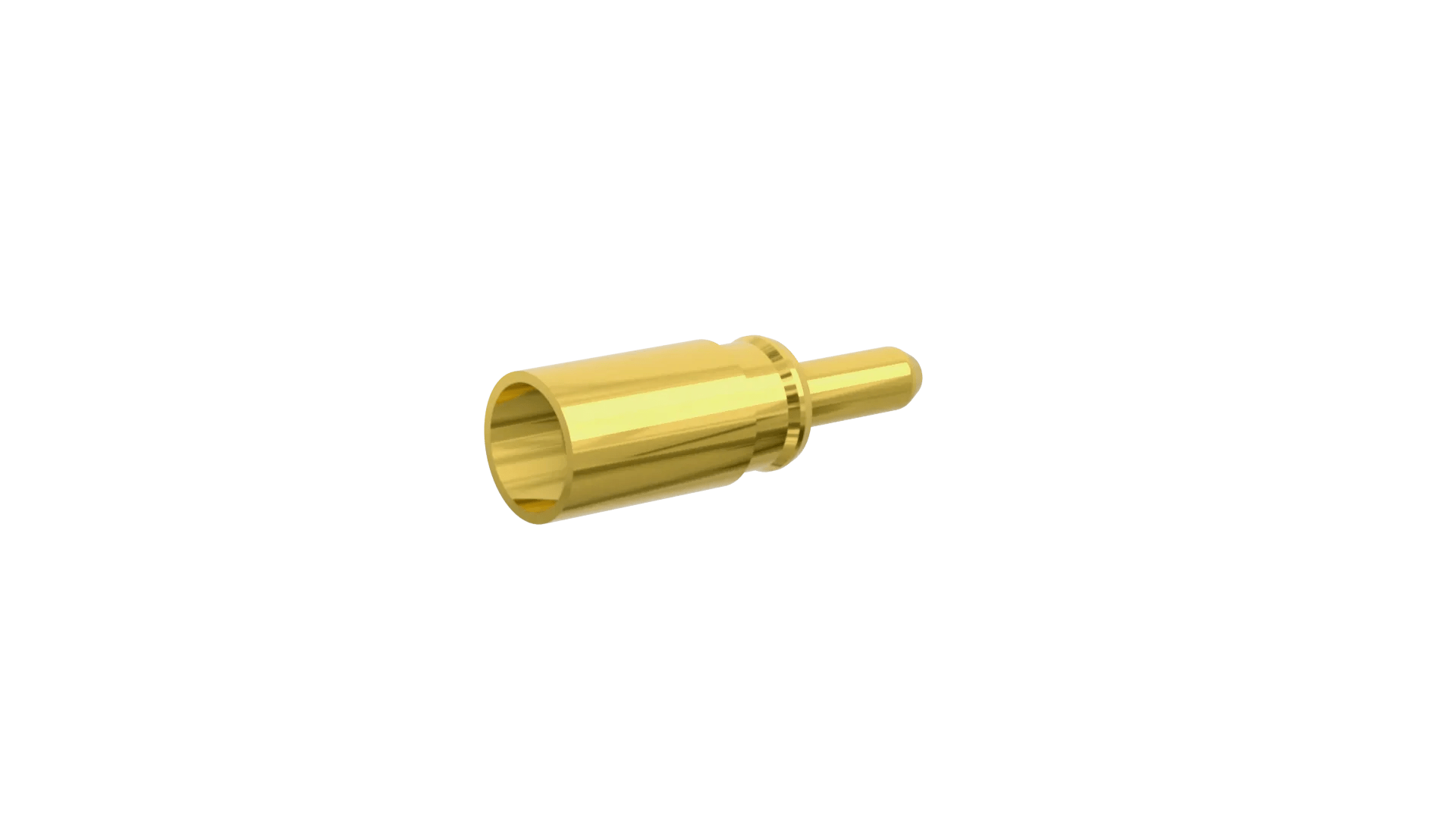

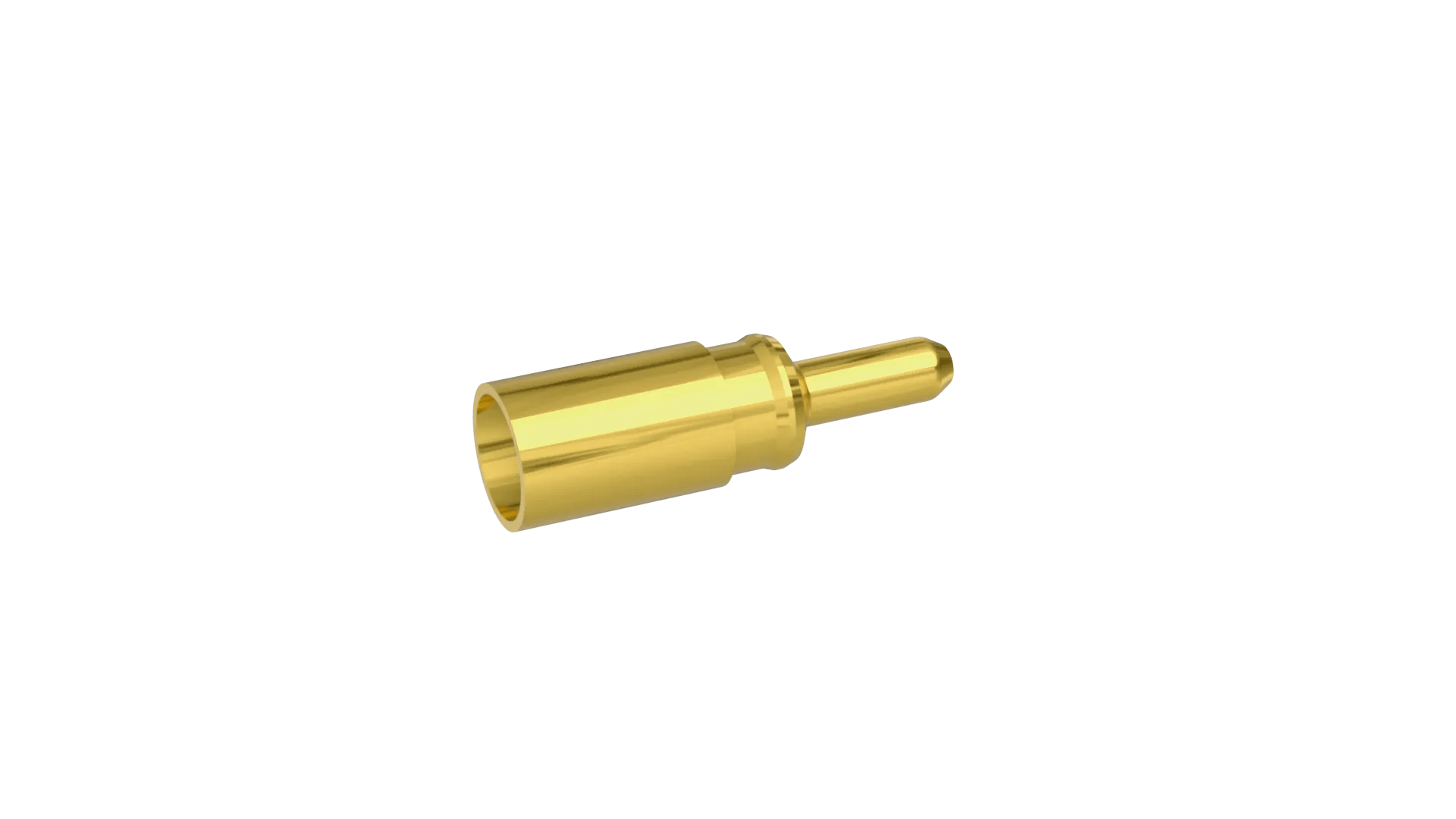

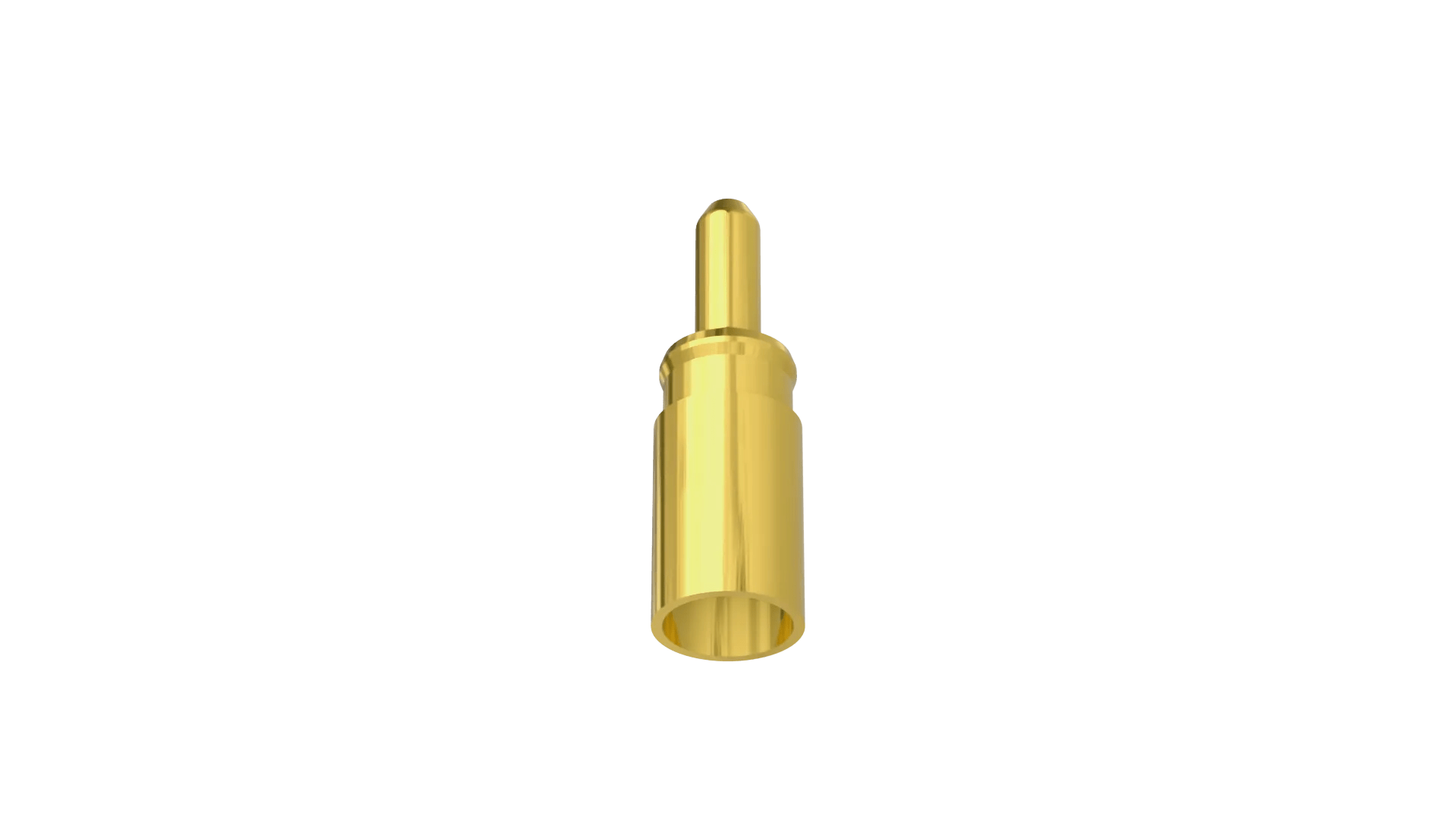

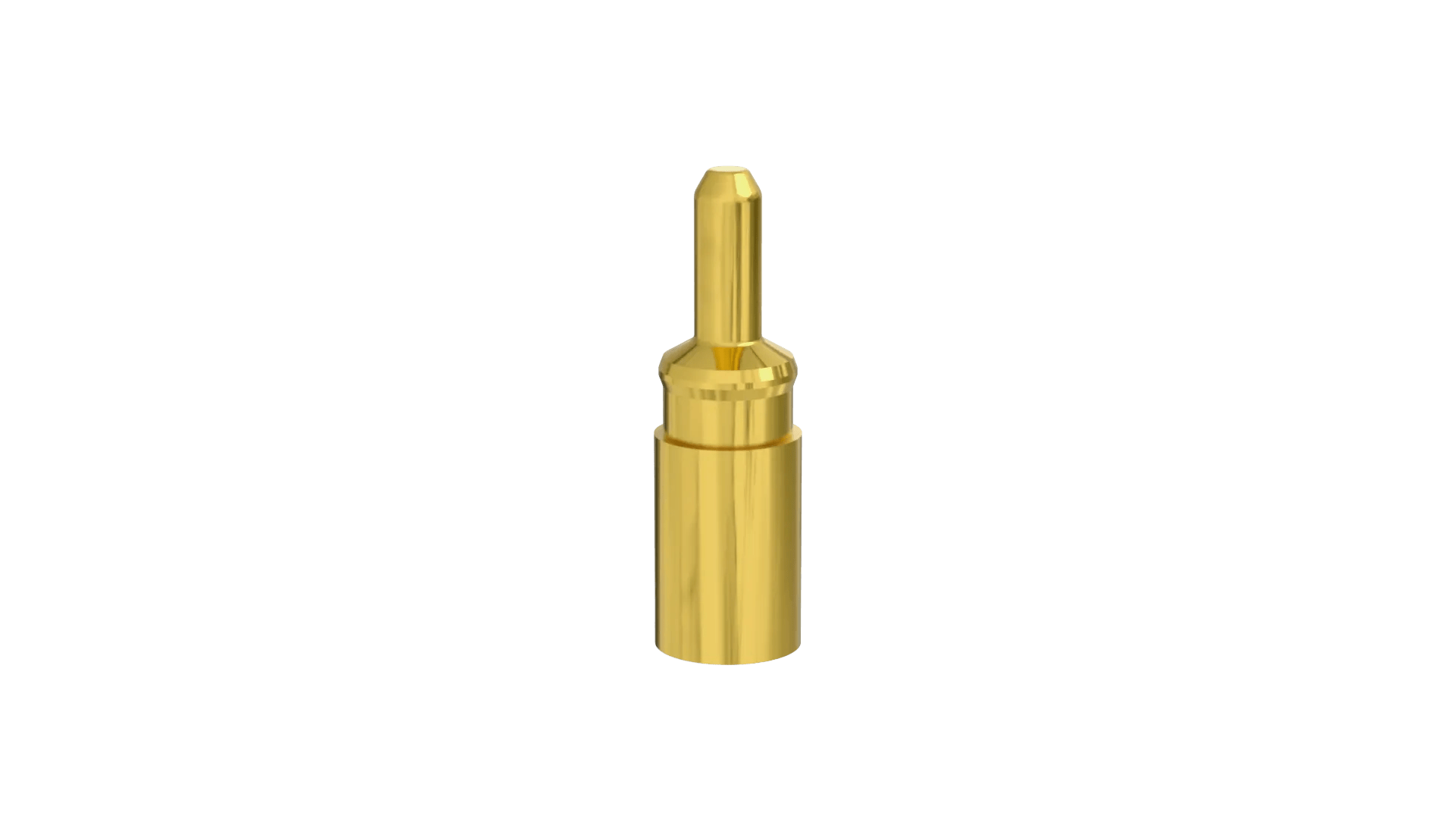

G125-1500005

Male 18AWG Straight Crimp Power Contact

1.25mm Pitch High-Reliability Connector - Gecko-MT

  • Individual male crimp contact, Power – suitable for 18AWG cable.
  • Use with Gecko-MT male crimp housings .
  • Packaged loose, in bulk. Gold finish on contact area and termination.
Add to Favorites

Technical Details

Specification

Contact Pitch:

1.25mm (0.049")

Contact Gender:

Male/Plug

Connector Orientation:

Straight

Connection Type:

Cable (Crimp)

Cable Conductor Size:

18AWG

Mating Pin Size:

Ø1mm

Current Rating:

10A max per contact (25°C)

Operating Temperature:

-65°C to +150°C

Polarising Features:

No

End Stackable:

No

Side Stackable:

No

Can be cut to another size:

No

Materials

Finish / Plating on Termination:

Gold

Finish / Plating on Contact Surface:

Gold

Base Material of Contact:

Beryllium Copper

Packaging Style:

Bulk/Loose

Dimensions

Individual Part Weight:

0.109g

Overall Dimensions (L x W x D) in mm:

7.30 x Ø2.35 max

Availability

18,123 in stock

Info Circle

Popular products are manufactured regularly, typically in stock and are not subject to minimum quantity requirements.

Popular product
Distributor Location Quantity (Updated Daily)
Distributor Iconnexion Asia Pte Ltd
Location Asia
Quantity (Updated Daily) 8400
Distributor Mouser Electronics Inc
Location Global
Quantity (Updated Daily) 684
Distributor Digi-Key
Location Global
Quantity (Updated Daily) 359
Distributor TTI Europe
Location Europe
Quantity (Updated Daily) 100
Distributor Farnell
Location Europe
Quantity (Updated Daily) 70
Distributor Newark
Location USA
Quantity (Updated Daily) 55
Distributor TTI Inc
Location USA
Quantity (Updated Daily) 55

Stock held by Harwin: contact distributor to purchase.

Distributor Harwin
Location Global
Quantity (Updated Daily) 8400

Questions & Answers Ask a Question

No questions have been asked yet. Click here to ask a question.

Downloads

TECHNICAL DOCUMENTS

PDF

Technical Drawing / Datasheet - G125-150.pdf

ZIP

G125-1500005 CAD Model (ZIP file containing STP and IGES)

Download
PDF

C125XX Component Specification - Gecko G125 Series (1.25mm pitch High-Reliability)

TEST REPORTS

PDF

Test Report HT030 - Gecko (G125 Series) - Electrical, Mechanical and Environmental

PDF

Test Report HT067 - Gecko-SL (G125 Series) - Mechanical Screw-Lok test

PDF

Test Report HT072 - Gecko-MT General (Electrical, Mechanical and Environmental)

ENVIRONMENTAL COMPLIANCE

PDF

RoHS Compliant (2015/863/EU) with Exemption 6c

PDF

REACH Harwin statement (12-Feb-2021) including 211 SVHC (19-Jan-2021), Annex XIV & XVII

XLSX

Conflict Minerals Reporting Template (CMRT 6.01) - Company Summary Statement

XLSX

Cobalt Reporting Template (CRT 2.2) - Company Summary Statement

PDF

Environmental Legislation Statement (12-Feb-2021) - includes all material legislations

PDF

Material composition for G125-1500005 product

INSTRUCTION SHEETS

PDF

Product Training Module - Overview Guide to the Gecko-MT range, 1.25mm pitch High-Reliability with Power

PDF

Product Training Module - Cable Connectors and Assemblies from Harwin

PDF

Product Training Module - Cable Products from Harwin

PDF

IS-44 - Z125-903 Hand Crimp Tool Instruction Sheet

PDF

IS-47 - Z125-905 Assembly Tool Instruction Sheet

OTHER DOWNLOADS

PDF

Catalog page - Gecko-MT Male Crimp Contacts

PDF

Catalog page - Gecko-MT Specification

PDF

Catalog page - Gecko Introduction

XLSX

Distributor part numbers for suitable cables for Datamate, Gecko, M300 & Kona

PDF

Product Summary - Gecko-MT High-Reliability Connectors

PDF

Plating thickness on Gecko contacts (signal and power)
