Home > G125-0500005
Active

G125-0500005

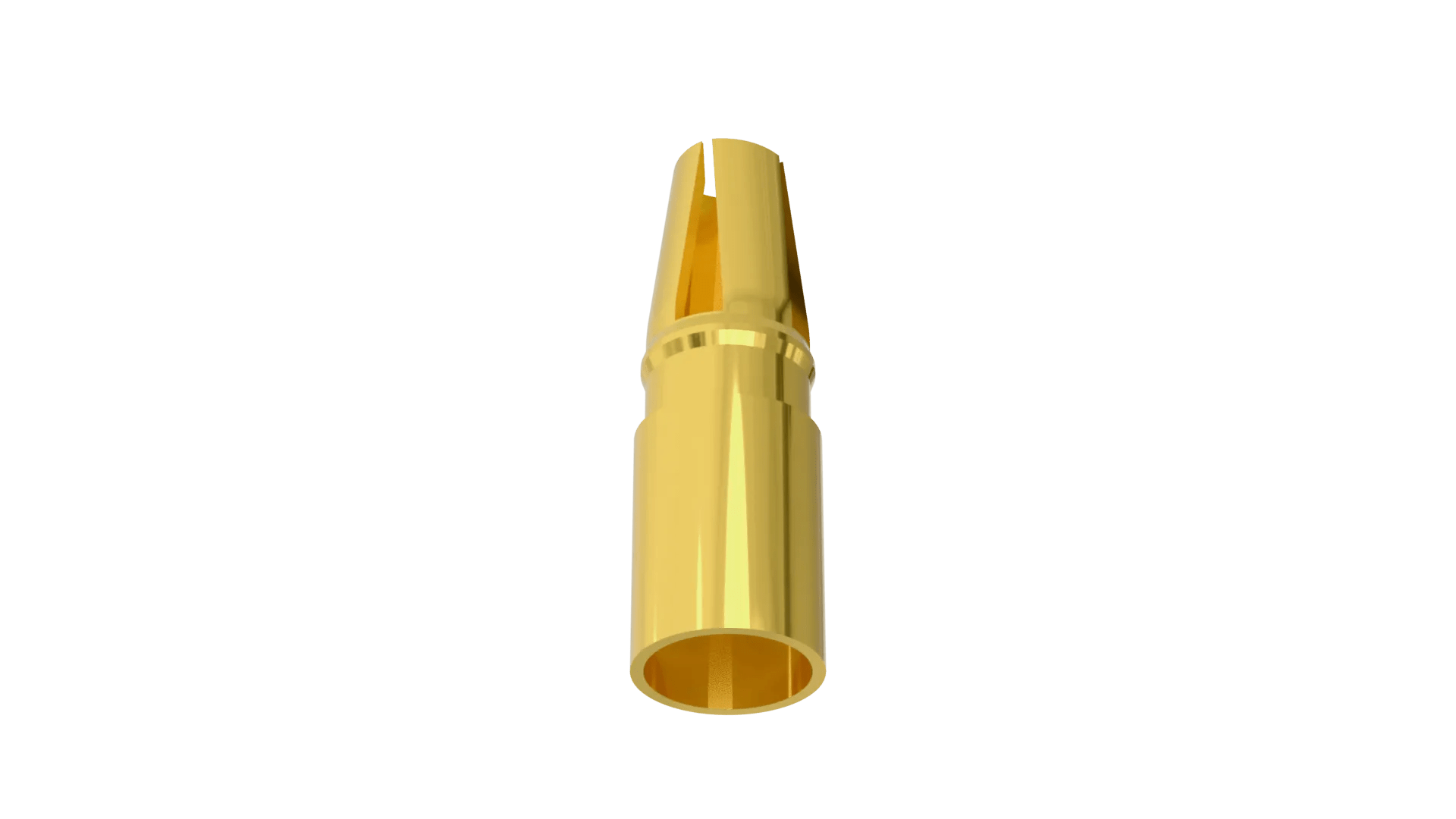

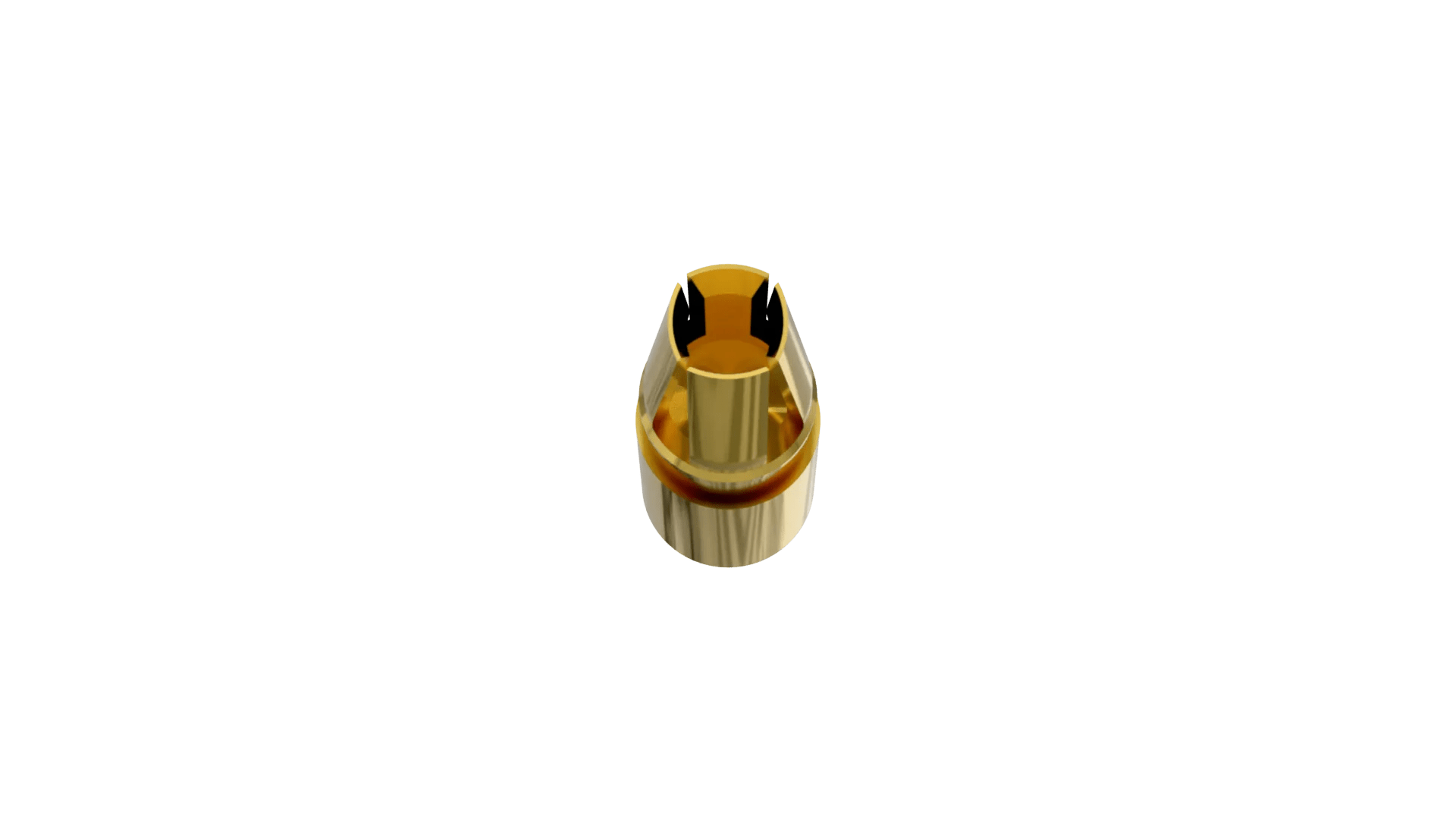

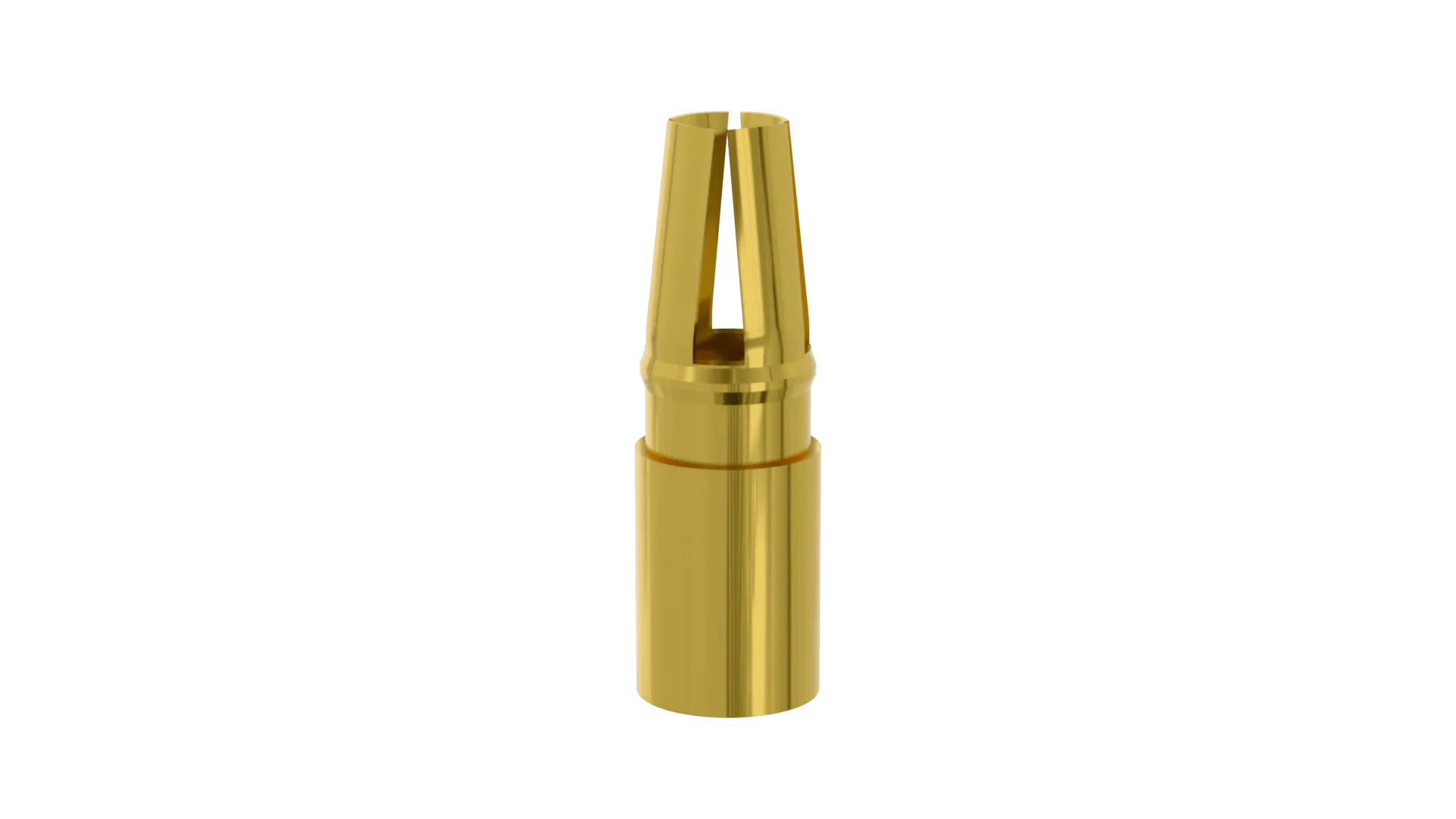

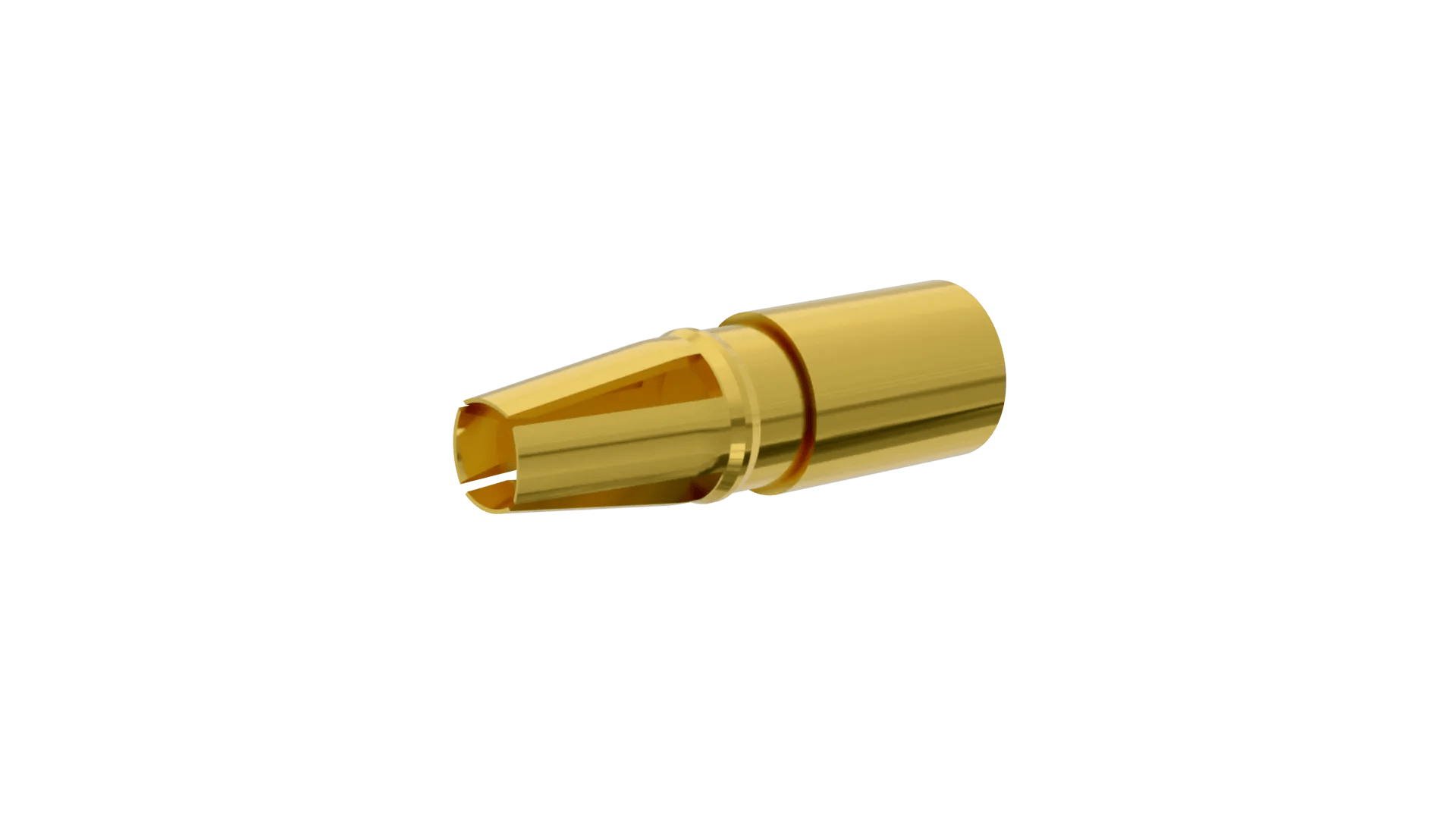

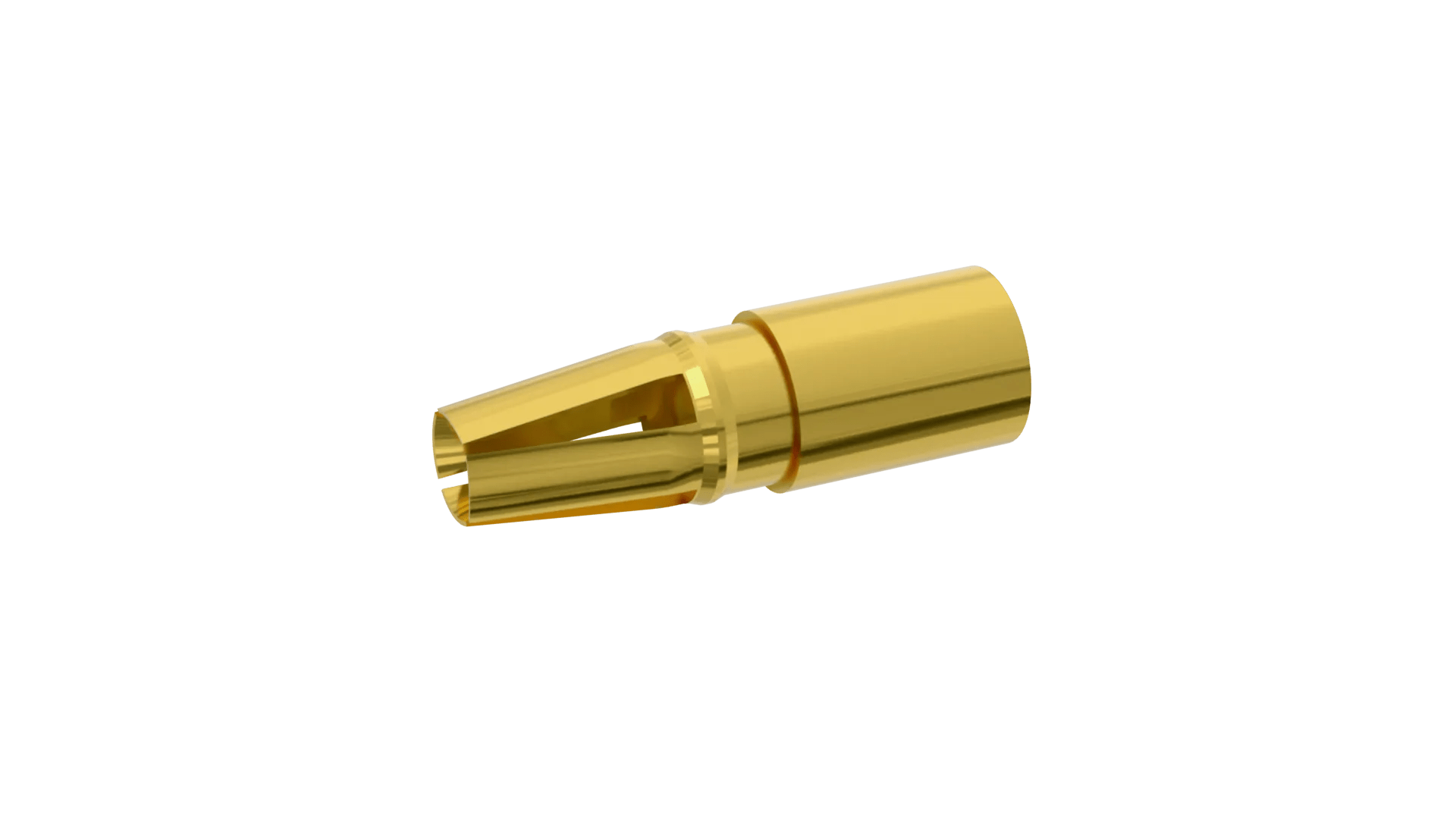

Female 18AWG Straight Crimp Power Contact

1.25mm Pitch High-Reliability Connector - Gecko-MT

  • Individual female crimp contact, Power – suitable for 18AWG cable.
  • Use with Gecko-MT female crimp housings .
  • Packaged loose, in bulk. Gold finish on contact area and termination.
Add to Favorites

Technical Details

Specification

Contact Pitch:

1.25mm (0.049")

Contact Gender:

Female/Socket/Jack

Connector Orientation:

Straight

Connection Type:

Cable (Crimp)

Cable Conductor Size:

18AWG

Mating Pin Size:

Ø1mm

Current Rating:

10A max per contact (25°C)

Operating Temperature:

-65°C to +150°C

Polarising Features:

No

End Stackable:

No

Side Stackable:

No

Can be cut to another size:

No

Materials

Finish / Plating on Termination:

Gold

Finish / Plating on Contact Surface:

Gold

Base Material of Contact:

Beryllium Copper

Packaging Style:

Bulk/Loose

Dimensions

Individual Part Weight:

0.084g

Overall Dimensions (L x W x D) in mm:

6.90 x Ø2.30 max

Availability

14,896 in stock

Info Circle

Popular products are manufactured regularly, typically in stock and are not subject to minimum quantity requirements.

Popular product
Distributor Location Quantity (Updated Daily)
Distributor Mouser Electronics Inc
Location Global
Quantity (Updated Daily) 610
Distributor Digi-Key
Location Global
Quantity (Updated Daily) 526
Distributor TTI Inc
Location USA
Quantity (Updated Daily) 100
Distributor Newark
Location USA
Quantity (Updated Daily) 97
Distributor Farnell
Location Europe
Quantity (Updated Daily) 63

Stock held by Harwin: contact distributor to purchase.

Distributor Harwin
Location Global
Quantity (Updated Daily) 13500
