Active

G125-0200005

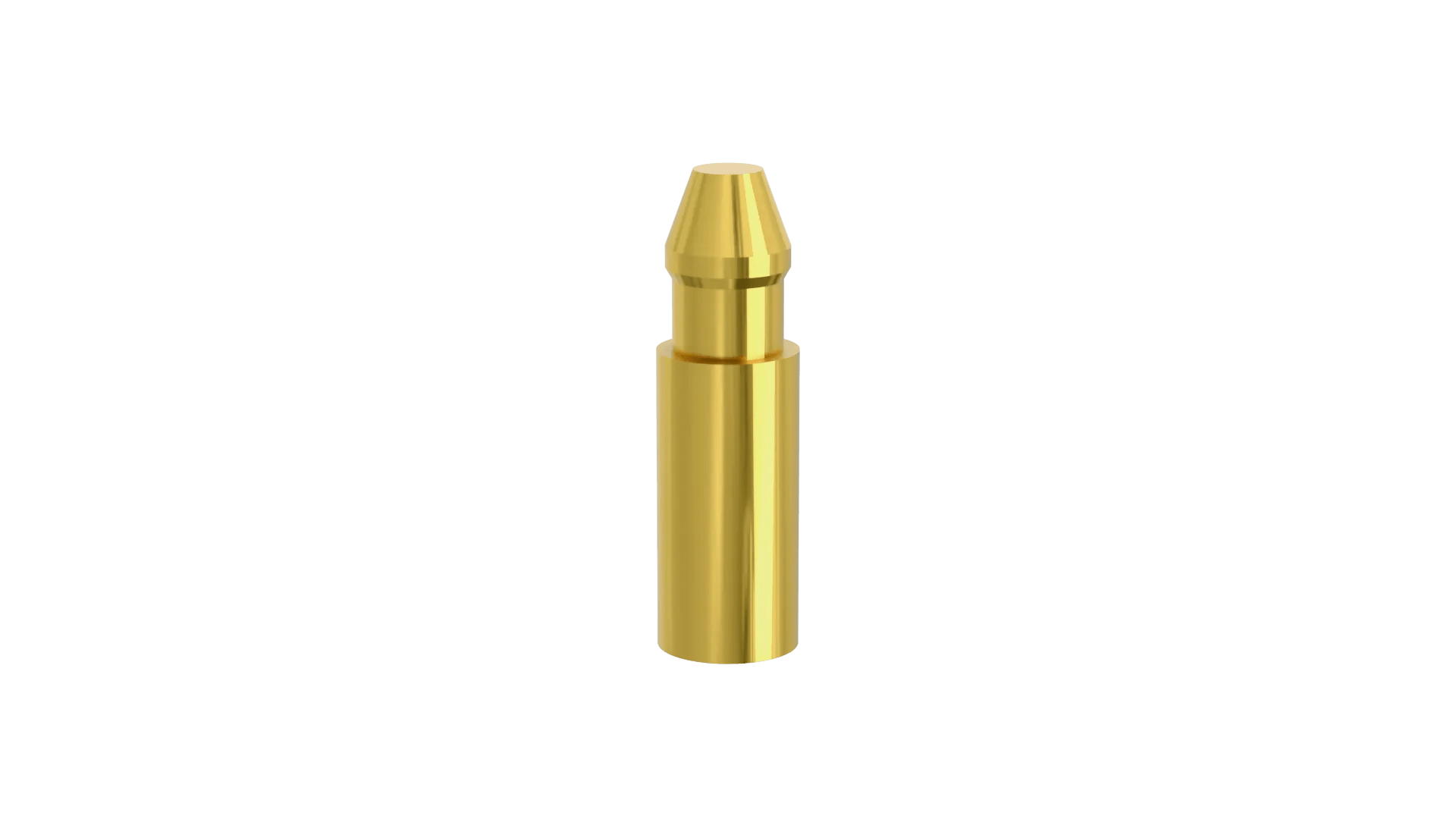

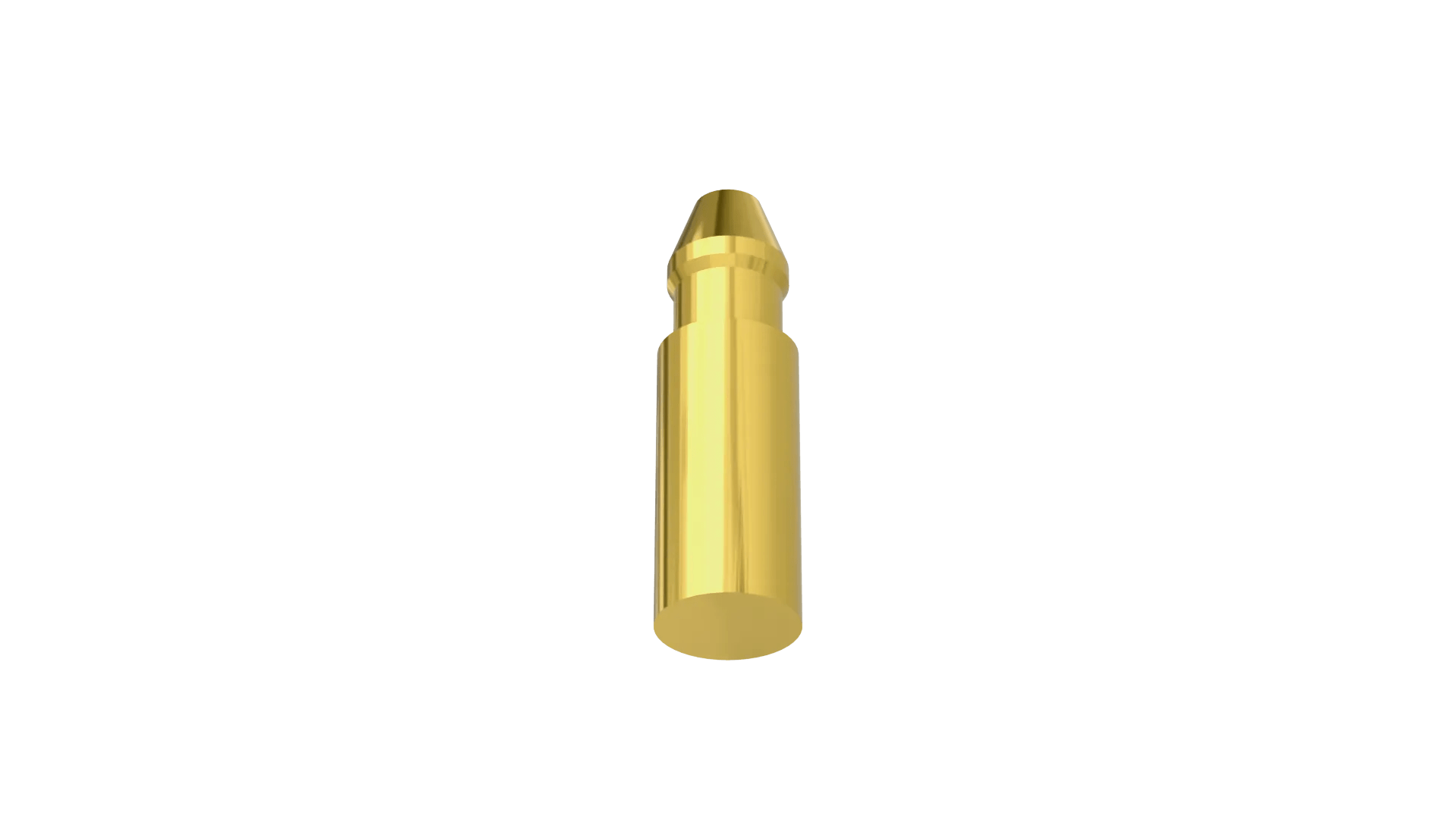

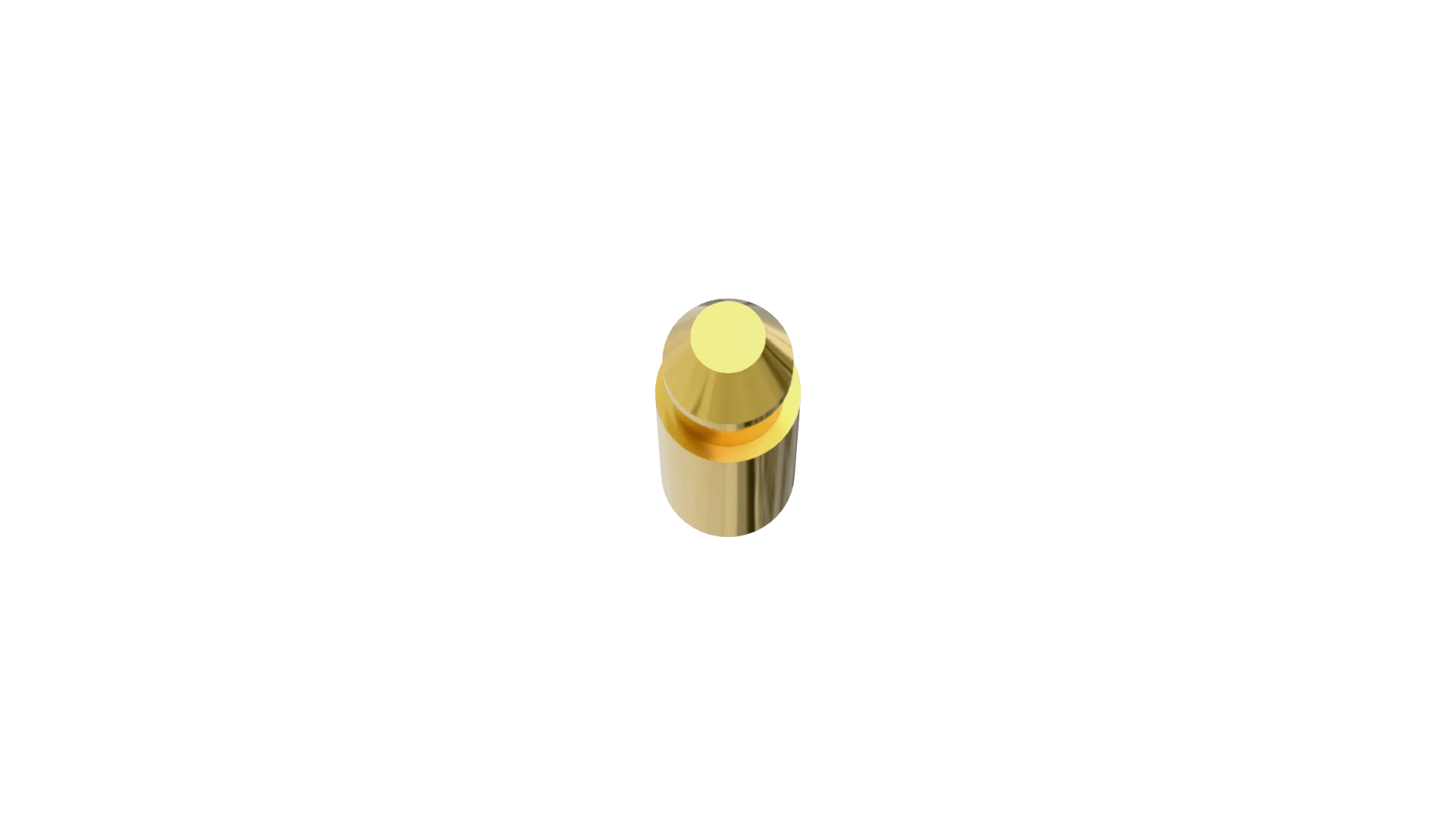

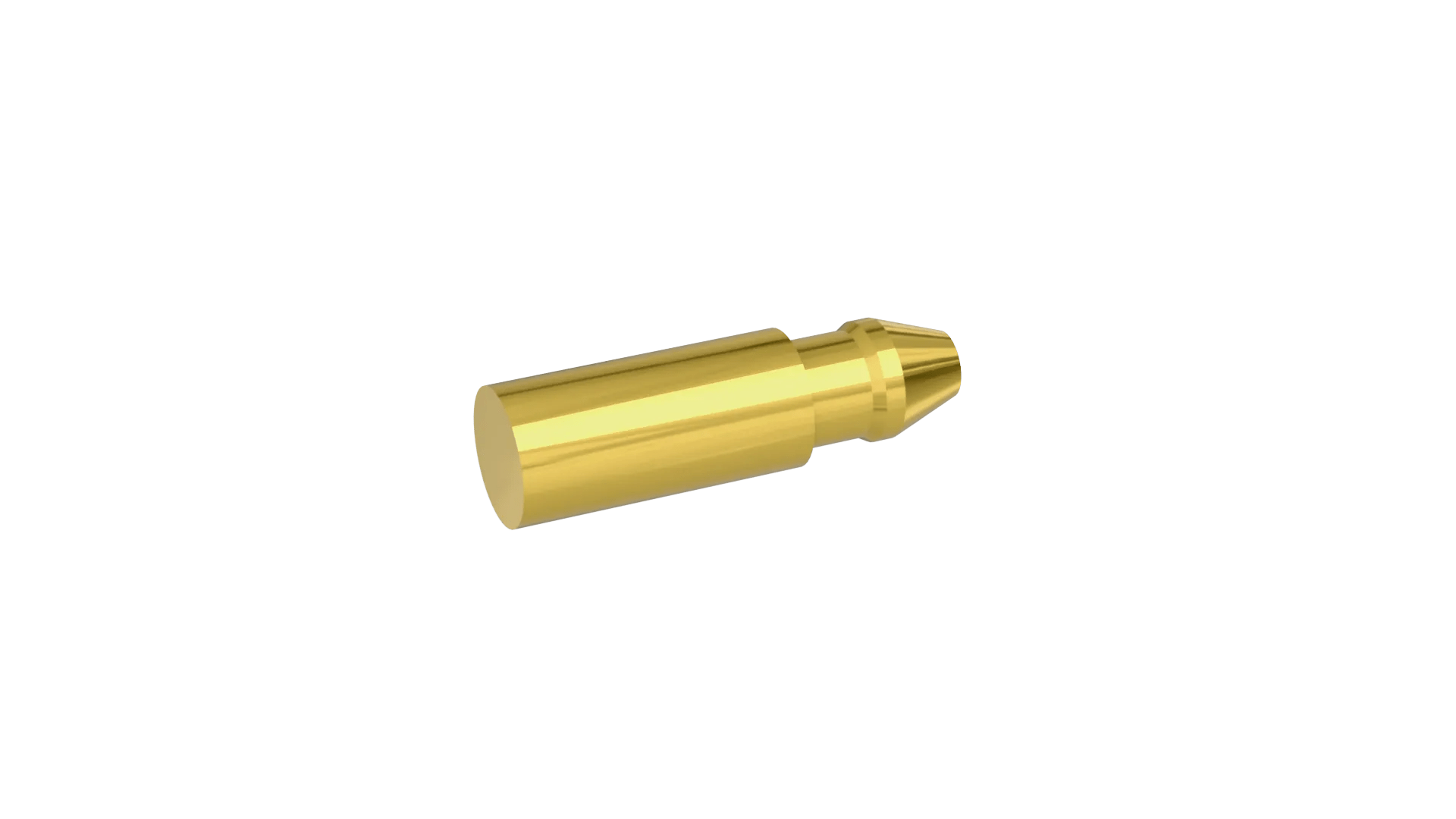

Dummy Contact, Blanking Pin, Polarizing Pin

1.25mm Pitch High-Reliability Connector - Gecko

  • For keying or additional polarization, use in place of a Crimp contact on any female or male Gecko cable housing. Remove the equivalent pin from the mating connector.
  • Gold finish on contact area and termination.
  • Use with either Gecko Screw-Lok crimp housings (G125-224 series) or Gecko with Latches crimp housings (G125-204 series).
Add to Favorites

Technical Details

Specification

Contact Pitch:

1.25mm (0.049")

Contact Gender:

Accessory

Connector Orientation:

Straight

Connection Type:

Cable (Crimp)

Operating Temperature:

-65°C to +150°C

Polarising Features:

No

End Stackable:

No

Side Stackable:

No

Can be cut to another size:

No

Materials

Finish / Plating on Contact Surface:

Gold

Base Material of Contact:

Brass

Packaging Style:

Bulk/Loose

Dimensions

Individual Part Weight:

0.021g

Overall Dimensions (L x W x D) in mm:

3.50 x Ø1.03

Availability

17,740 in stock

Info Circle

Popular products are manufactured regularly, typically in stock and are not subject to minimum quantity requirements.

Popular product
Distributor Location Quantity (Updated Daily)
Distributor Mouser Electronics Inc
Location Global
Quantity (Updated Daily) 1740
Distributor TTI Inc
Location USA
Quantity (Updated Daily) 100

Stock held by Harwin: contact distributor to purchase.

Distributor Harwin
Location Global
Quantity (Updated Daily) 15900
