F30-20108045R

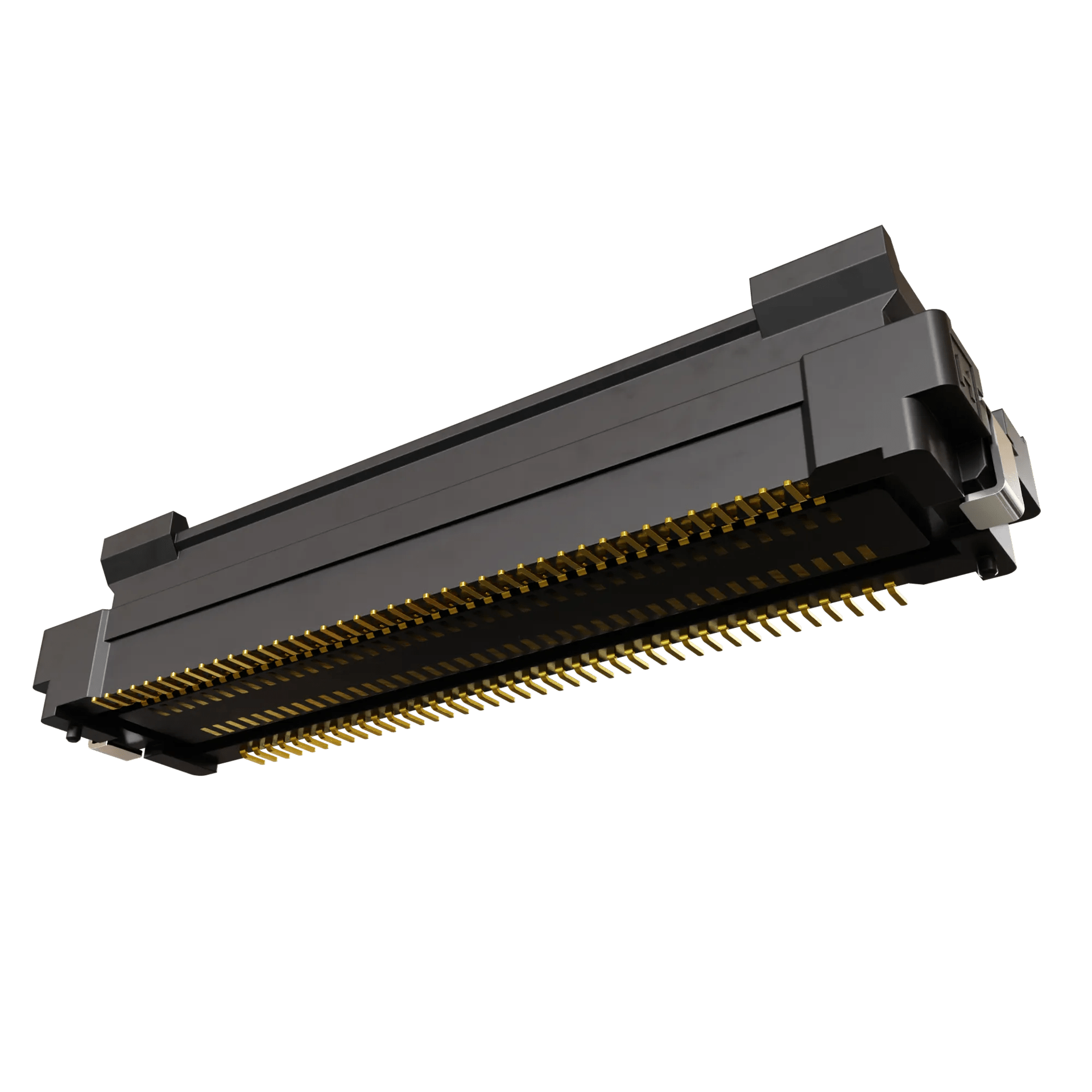

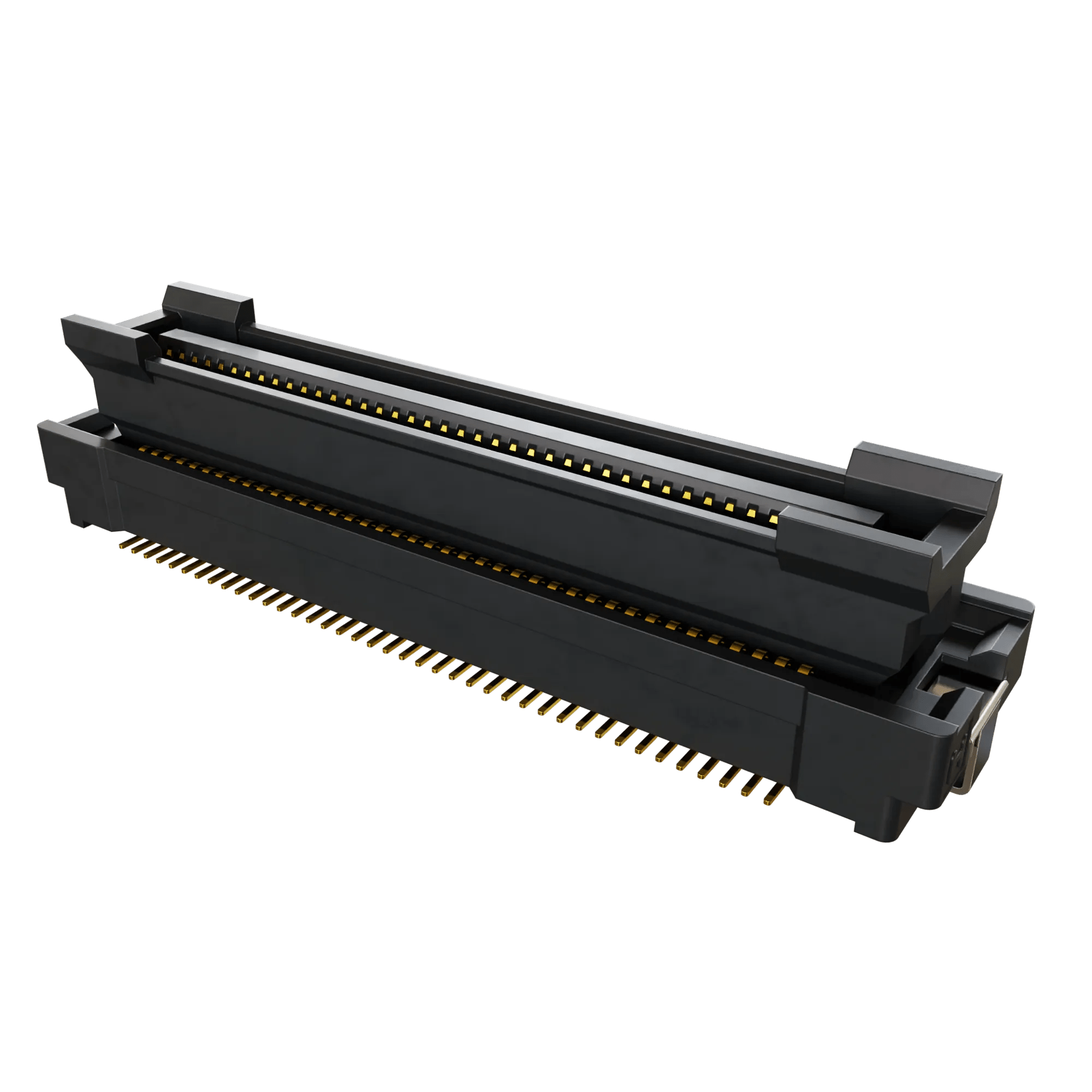

40+40 Pos. Male DIL Vertical SMT Conn. (T+R)
0.80mm (0.031") Pitch PCB Connector - Flecto
Loading… Check availability
4 similar products View products
Traceparts account required
Product Description
- Double Row vertical board-to-board, surface mount plug connector, 9.45mm high – 80 contacts (40+40). Location pegs, surface mount hold-down retaining tabs for additional solder strength.
- High-speed connection with a data rate up to 2.5GHz, 5Gb/s. Flexible connection that accommodates ±0.8mm of movement in X & Y axes, ±0.5mm in Z axis.
- Gold finish on contact area and termination, tin finish on solder hold-down tab. Packaged in Tape & Reel with pick & place tape.
Traceparts account required
Technical Details
Specification
EU RoHS Status:
Contact Pitch:
0.80mm (0.031")
Contact Gender:
Male/Plug
Connector Orientation:
Vertical
Connection Type:
Surface Mount (SMT)
Current Rating:
0.5A max per contact
Operating Temperature:
-40°C to +105°C
Polarising Features:
No
End Stackable:
No
Side Stackable:
No
Can be cut to another size:
No
Number of Rows:
2
Number of Signal Contacts:
80
Materials
Finish / Plating on Termination:
Gold
Finish / Plating on Contact Surface:
Gold
Base Material of Contact:
Phosphor Bronze
Housing Material:
LCP
Housing Colour:
Black
Housing Material UL Rating:
UL94V-0
Packaging Style:
Tape and Reel
Dimensions
Individual Part Weight:
2.621g
Overall Dimensions (L x W x D) in mm:
41.80 x 9.90 x 10.00
Height of Connector above PCB:
9.45mm
