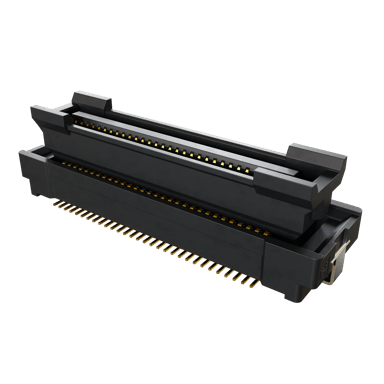

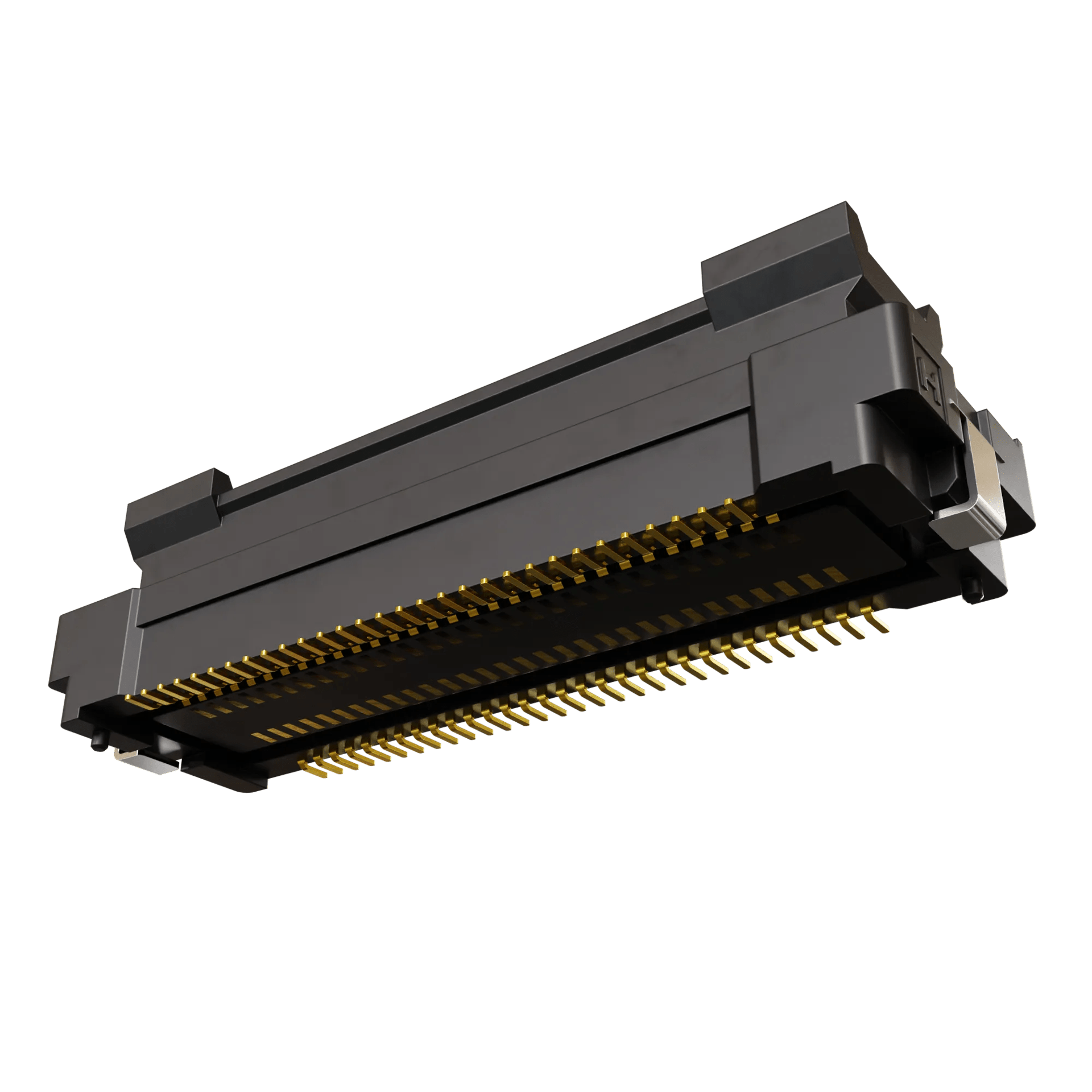

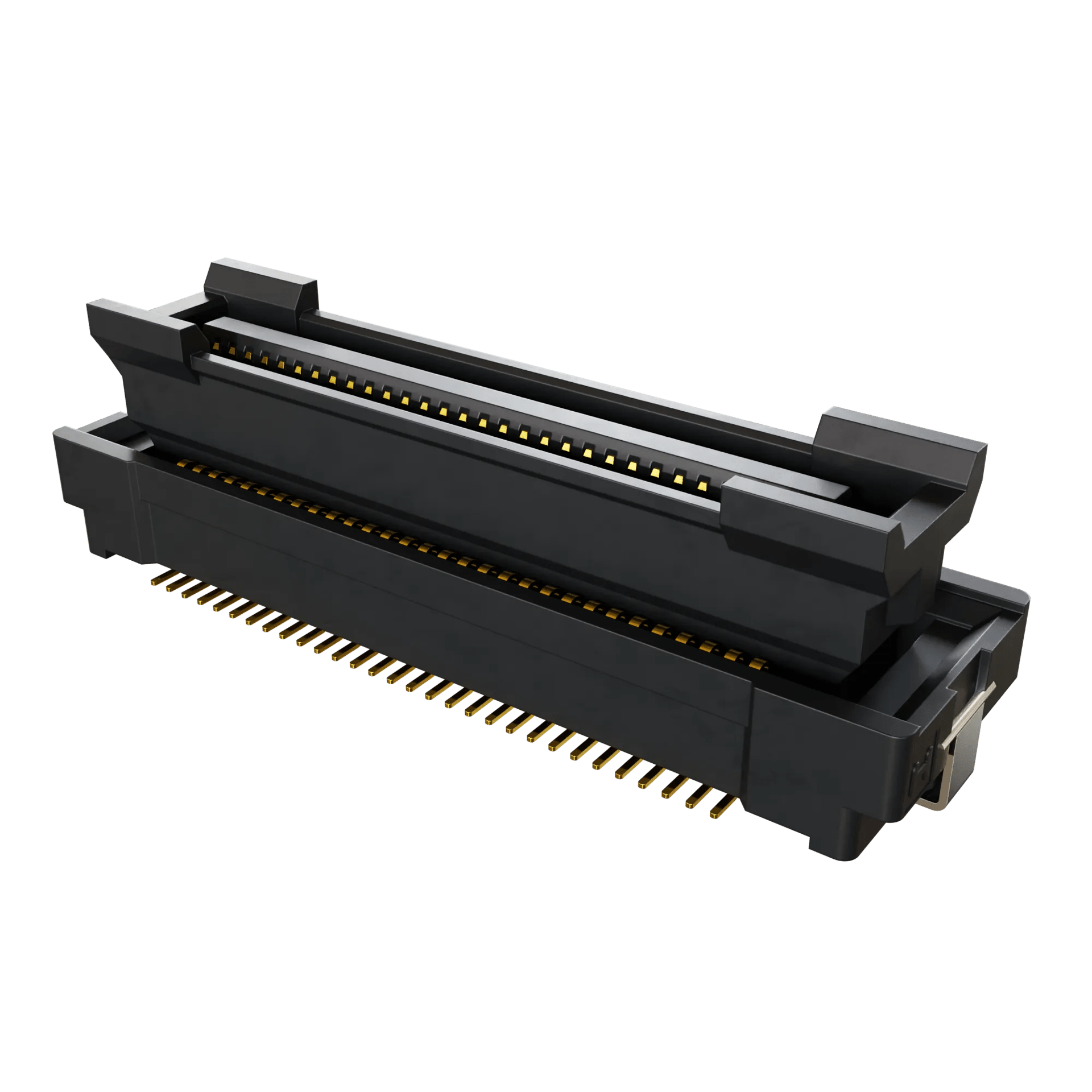

Double Row vertical board-to-board, surface mount plug connector, 9.45mm high - 60 contacts (30+30). Location pegs, surface mount hold-down retaining tabs for additional solder strength.
High-speed connection with a data rate up to 2.5GHz, 5Gb/s. Flexible connection that accommodates ±0.8mm of movement in X & Y axes, ±0.5mm in Z axis.
Gold finish on contact area and termination, tin finish on solder hold-down tab. Packaged in Tape & Reel with pick & place tape.
Checking stock availability...
Technical Drawings & CADs
Jump to technical details
Technical Drawing
View
TraceParts
CAD/ECAD
TraceParts
3D Viewer
SamacSys
3D Model, PCB Symbol & Footprint
Related Products
Further Details
Jump To:
Technical Details
Product Characteristics
Materials
Dimensions
Downloads
Technical Documentation
Product Information
Test Reports
Environmental Compliance
Technical Details
Product Characteristics
End Stackable
No
Number of Rows
2
Connector Orientation
Vertical
Country of Origin
CN
Side Stackable
No
Number of Signal Contacts
60
Operating Temperature
-40°C to +105°C
RoHS Status
RoHS Compliant (2015/863/EU) with no Exemption required
Current Rating
0.5A max per contact
Soldering Data
Max Solder Temperature: 260°C for 10 seconds
Polarised
No
Cuttable
No
Materials
Finish / Plating on Contact Surface
Gold
Housing Material
LCP
Base Material of Contact
Phosphor Bronze
Flammability Rating
UL94V-0
Packaging Style
Tape and Reel
Finish / Plating on Termination
Gold
Housing Colour
Black
Dimensions
Contact Pitch
0.80mm (0.031")
Weight
2.088g
Dimensions
33.80 x 9.90 x 10.00
Height of Connector above PCB
9.45mm
Downloads
Technical Documentation
Technical Drawing / Datasheet - F30-201XXX45R.pdf
C057XX Component Specification - FLECTO Floating Connectors (0.50mm + 0.635mm + 0.80mm pitch)
Outgassing data for Harwin products (plastics)
Product Information
Product Training Module - FLECTO Floating Connectors
Product Datasheet - Flecto (BBi)
Environmental Compliance
Conflict Minerals Reporting Template (CMRT) - Company Summary Statement
Extended Mineral Reporting Template (EMRT) - Company Summary Statement
Environmental Legislation Statement
Material composition for F30-201XXX45R series
REACH - Harwin statement including all current SVHCs & Annex XIV & XVII
RoHS Declaration - F30-20106045R
