F30-10206045R

30+30 Pos. Female DIL Vertical SMT Conn. (T+R)

0.80mm (0.031") Pitch PCB Connector - Flecto

Add to Favorites

Loading…   Check availability

3 similar products View products

Traceparts account required

Product Description

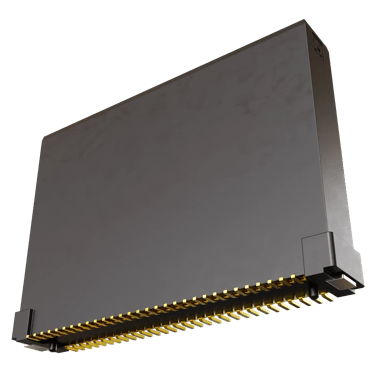

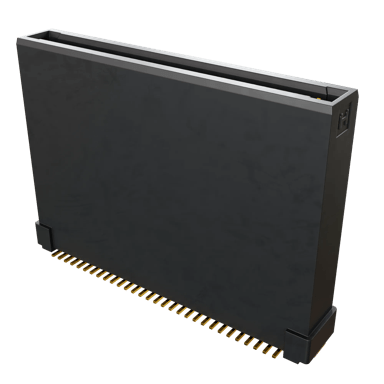

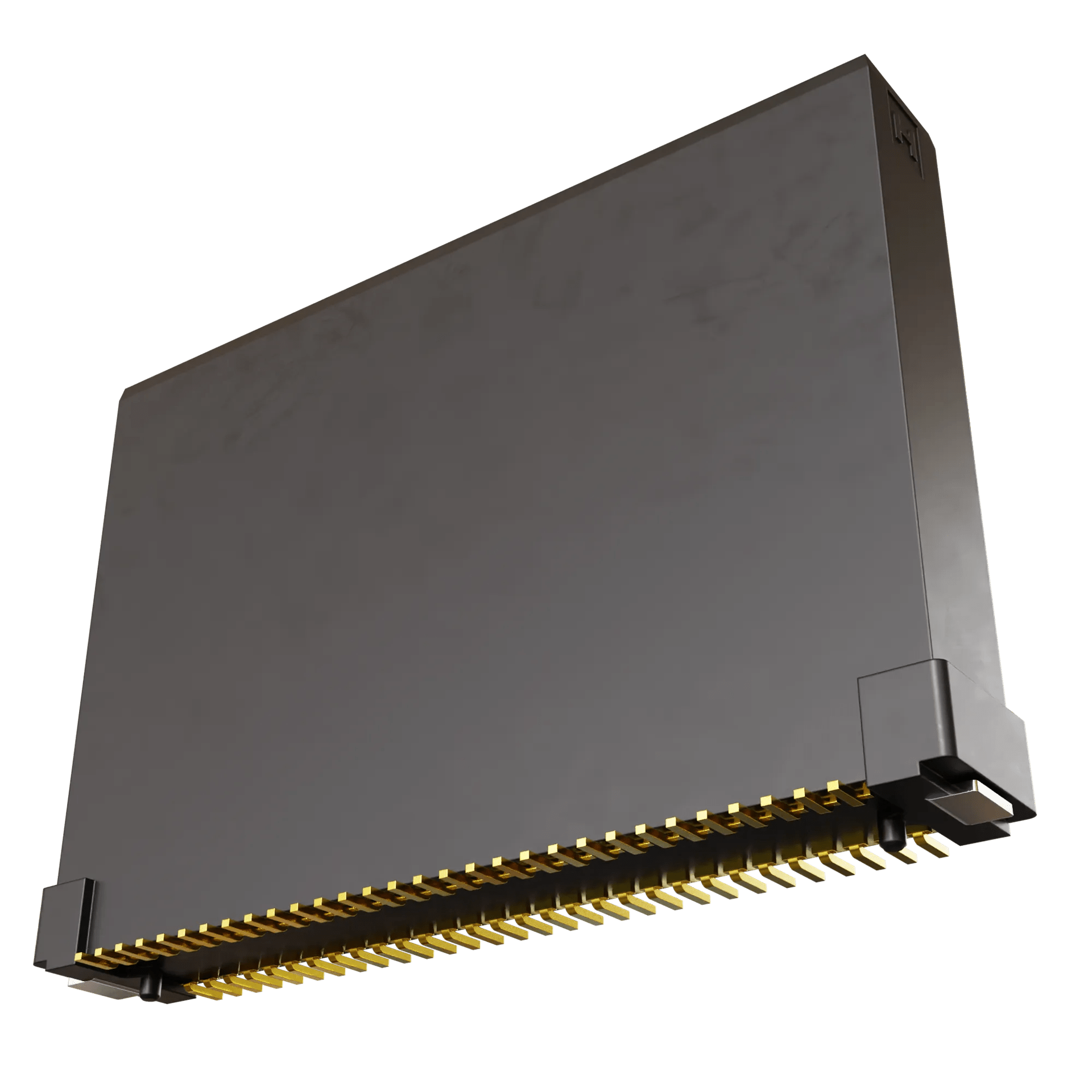

  • Double Row vertical board-to-board, surface mount receptacle connector, 19.80mm high – 60 contacts (30+30). Location pegs, surface mount hold-down retaining tabs for additional solder strength.
  • High-speed connection with a data rate up to 2.5GHz, 5Gb/s. Compatible with flexible male connectors that accommodate either ±0.5mm or ±0.8mm of movementin X & Y axes, ±0.5mm in Z axis.
  • Gold finish on contact area and termination, tin finish on solder hold-down tab. Packaged in Tape & Reel with pick & place tape.

Technical Details

Specification

Contact Pitch:

0.80mm (0.031")

Contact Gender:

Female/Socket/Jack

Connector Orientation:

Vertical

Connection Type:

Surface Mount (SMT)

Current Rating:

0.5A max per contact

Operating Temperature:

-40°C to +105°C

Polarising Features:

No

End Stackable:

No

Side Stackable:

No

Can be cut to another size:

No

Number of Rows:

2

Number of Signal Contacts:

60

Materials

Finish / Plating on Termination:

Gold

Finish / Plating on Contact Surface:

Gold

Base Material of Contact:

Phosphor Bronze

Housing Material:

LCP

Housing Colour:

Black

Housing Material UL Rating:

UL94V-0

Packaging Style:

Tape and Reel

Dimensions

Individual Part Weight:

2.746g

Overall Dimensions (L x W x D) in mm:

28.30 x 5.50 x 20.35

Height of Connector above PCB:

19.80mm
