F20-10008045R

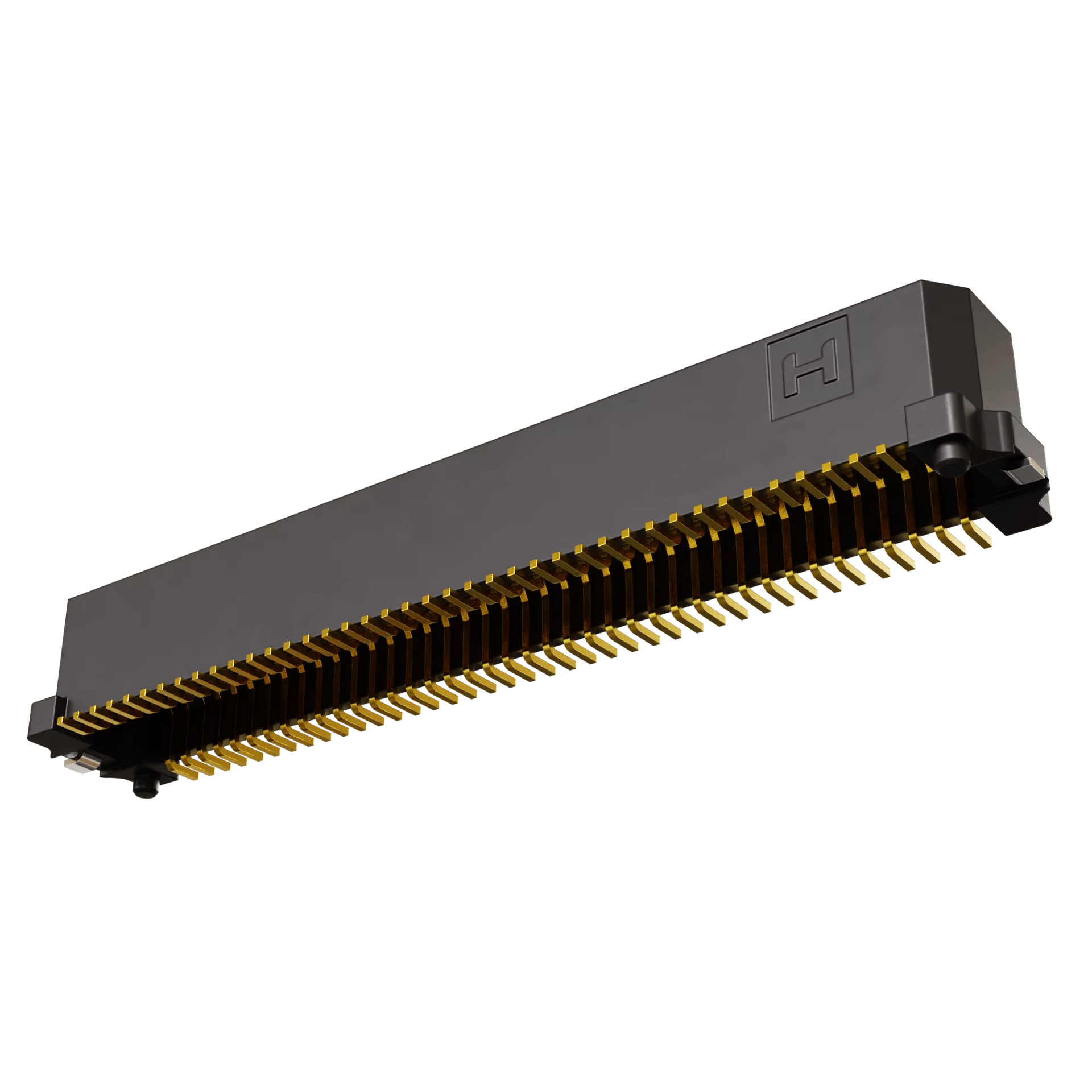

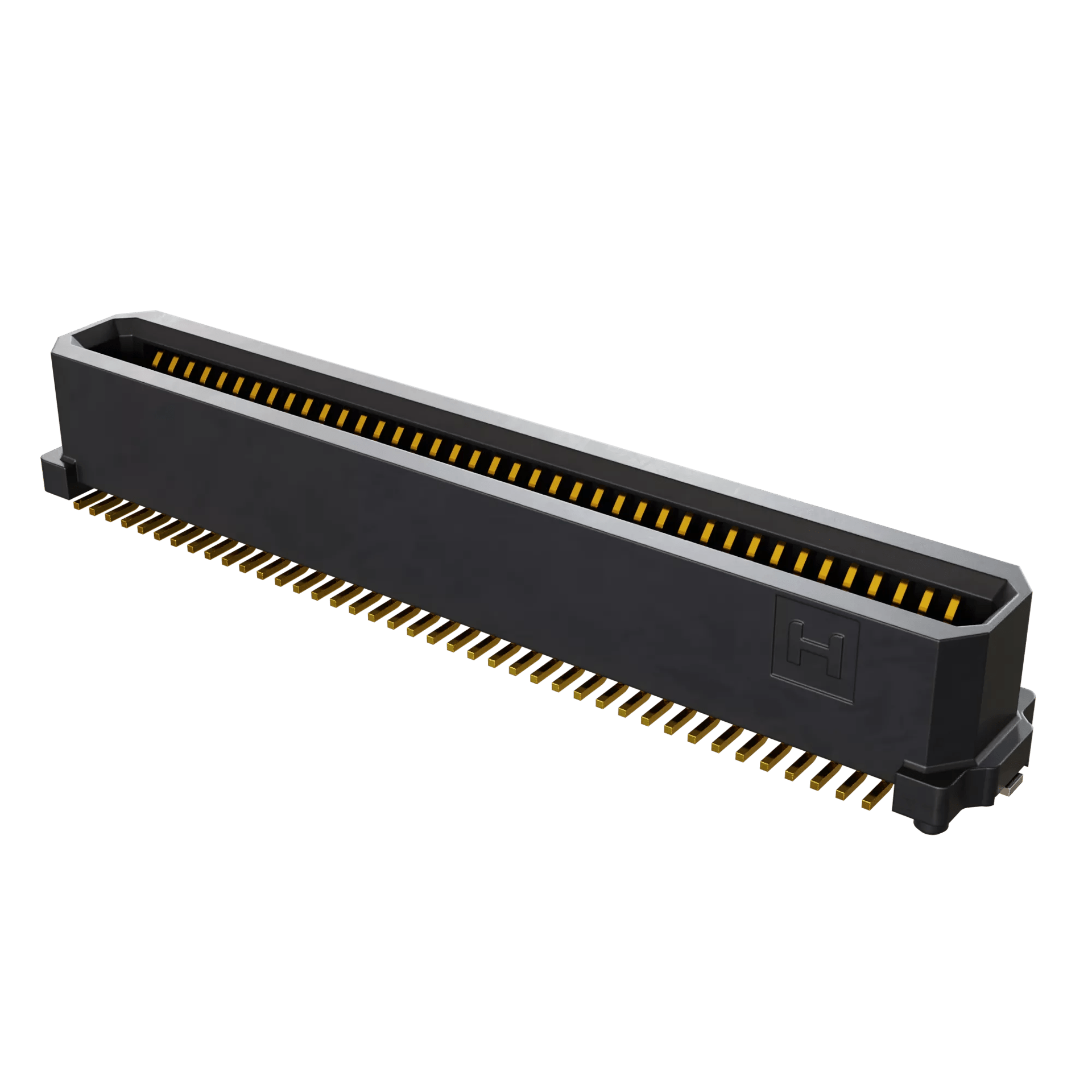

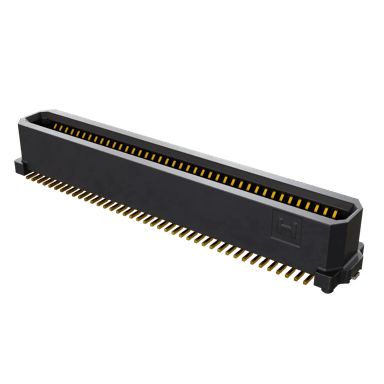

Flecto 0.635mm Pitch Female 80 Way Signal (4.28mm)

0.635mm (0.025") Pitch PCB Connector - Flecto

  • Double Row vertical board-to-board, surface mount receptacle connector, 4.28mm high - 80 contacts (40+40). Location pegs, surface mount hold-down retaining tabs for additional solder strength.

  • High-speed connection with a data rate up to 6GHz, 12Gb/s. Compatible with flexible male connectors that accommodate ±0.7mm of movement in X & Y axes, ±0.5mm in Z axis.

  • Gold finish on contact area and termination, tin finish on solder hold-down tab. Packaged in Tape & Reel with pick & place tape.

View Technical Details & Downloads

Checking stock availability...

Check Availability

Further Details

Jump To:

Technical Details

Product Characteristics

Materials

Dimensions

Downloads

Product Information

Technical Documentation

Environmental Compliance

Test Reports

Technical Details

Product Characteristics

  • End Stackable:

    No

  • Number of Rows:

    2

  • Connector Orientation:

    Vertical

  • Country of Origin:

    TW

  • Side Stackable:

    No

  • Number of Signal Contacts:

    80

  • Operating Temperature:

    -40°C to +105°C

  • RoHS Status:

    RoHS Compliant (2015/863/EU) with no Exemption required

  • Current Rating:

    0.5A max per contact

  • Polarised:

    No

  • Cuttable:

    No

Materials

  • Finish / Plating on Contact Surface:

    Gold

  • Housing Material:

    LCP

  • Base Material of Contact:

    Phosphor Bronze

  • Flammability Rating:

    Black

  • Packaging Style:

    Tape and Reel

  • Finish / Plating on Termination:

    Gold

  • Housing Colour:

    UL94V-0

Dimensions

  • Contact Pitch:

    0.635mm (0.025")

  • Weight:

    0.546g

  • Dimensions:

    29.40 x 5.20 x 4.73

  • Height of Connector above PCB:

    4.28mm

Downloads

    Product Information

  • Product Datasheet - Flecto (BBi)

  • Product Training Module - FLECTO Floating Connectors

    • Technical Documentation

  • Technical Drawing / Datasheet - F20-100XXX45R.pdf

  • C057XX Component Specification - FLECTO Floating Connectors (0.50mm + 0.635mm + 0.80mm pitch)

  • Outgassing data for Harwin products (plastics)

    • Environmental Compliance

  • RoHS - F20-10008045R

  • Material composition for F20-100XXX45R series

  • REACH - Harwin statement including all current SVHCs & Annex XIV & XVII

  • Environmental Legislation Statement - includes all material legislations

  • Extended Mineral Reporting Template (EMRT) - Company Summary Statement

  • Conflict Minerals Reporting Template (CMRT) - Company Summary Statement

    • Test Reports

  • Test Report HT090 - FLECTO Floating Connectors - General Testing
