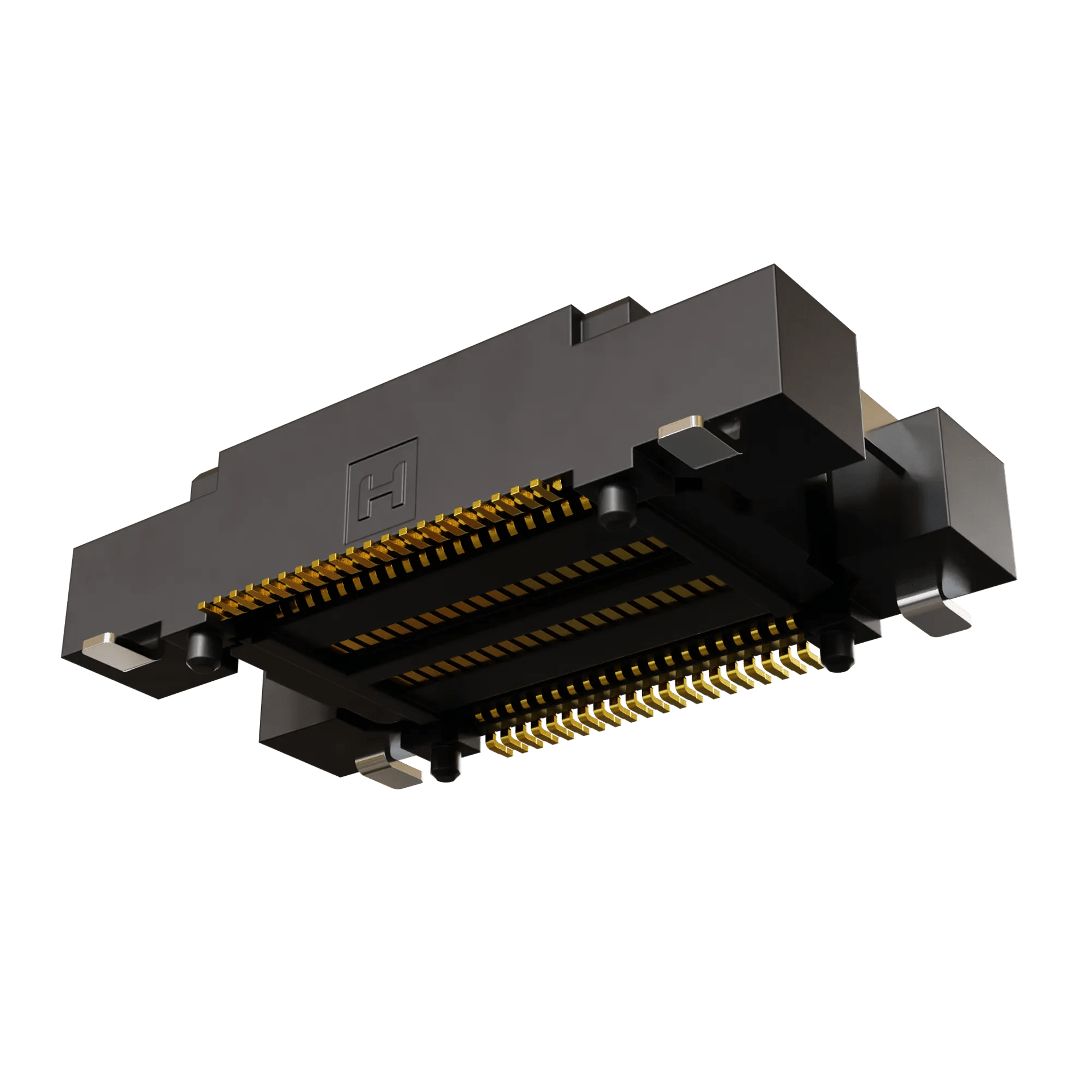

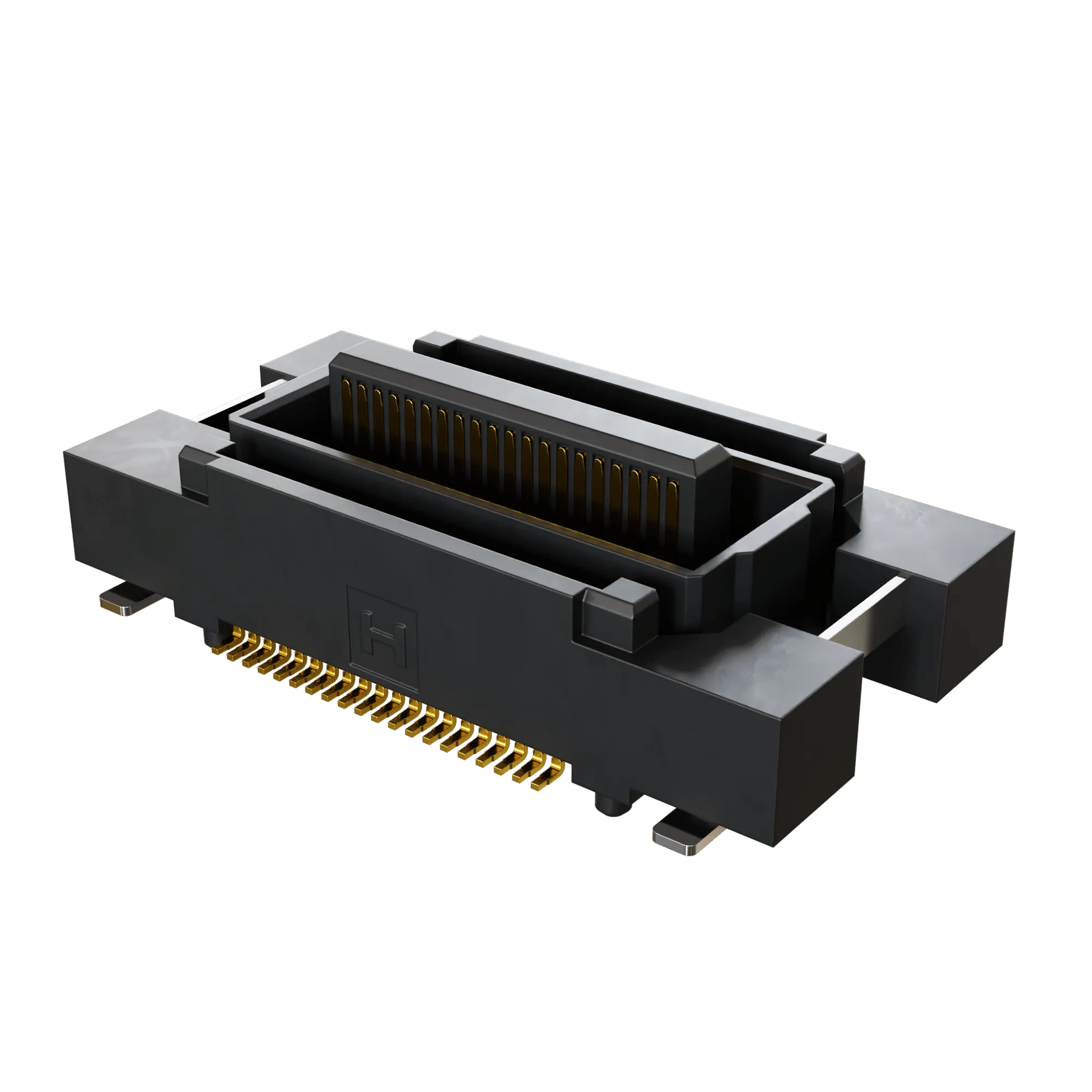

Double Row vertical board-to-board, surface mount plug connector, 4.55mm high - 40 contacts (20+20). Location pegs, surface mount hold-down retaining tabs for additional solder strength.
High-speed connection with a data rate up to 4GHz, 8Gb/s. Flexible connection that accommodates ±0.5mm of movement in X, Y and Z axes.
Gold finish on contact area and termination, tin finish on solder hold-down tab. Packaged in Tape & Reel with pick & place cap.
View Technical Details
Checking stock availability...
Related Products
Further Details
Jump To:
Product Characteristics
Materials
Dimensions
Technical Documentation
Product Information
Test Reports
Environmental Compliance
Technical Details
Product Characteristics
End Stackable:
No
Number of Rows:
2
Connector Orientation:
Vertical
Country of Origin:
GB
Side Stackable:
No
Number of Signal Contacts:
40
Operating Temperature:
-40°C to +105°C
RoHS Status:
RoHS Compliant (2015/863/EU) with no Exemption required
Current Rating:
0.4A max per contact
Soldering Data:
Max Solder Temperature: 260°C for 10 seconds
Polarised:
No
Cuttable:
No
Materials
Finish / Plating on Contact Surface:
Gold
Housing Material:
LCP
Base Material of Contact:
Phosphor Bronze
Flammability Rating:
UL94V-0
Packaging Style:
Tape and Reel
Finish / Plating on Termination:
Gold
Housing Colour:
Black
Dimensions
Contact Pitch:
0.50mm (0.020")
Weight:
2.33g
Dimensions:
20.50 x 11.53 x 6.65
Height of Connector above PCB:
5.90mm
