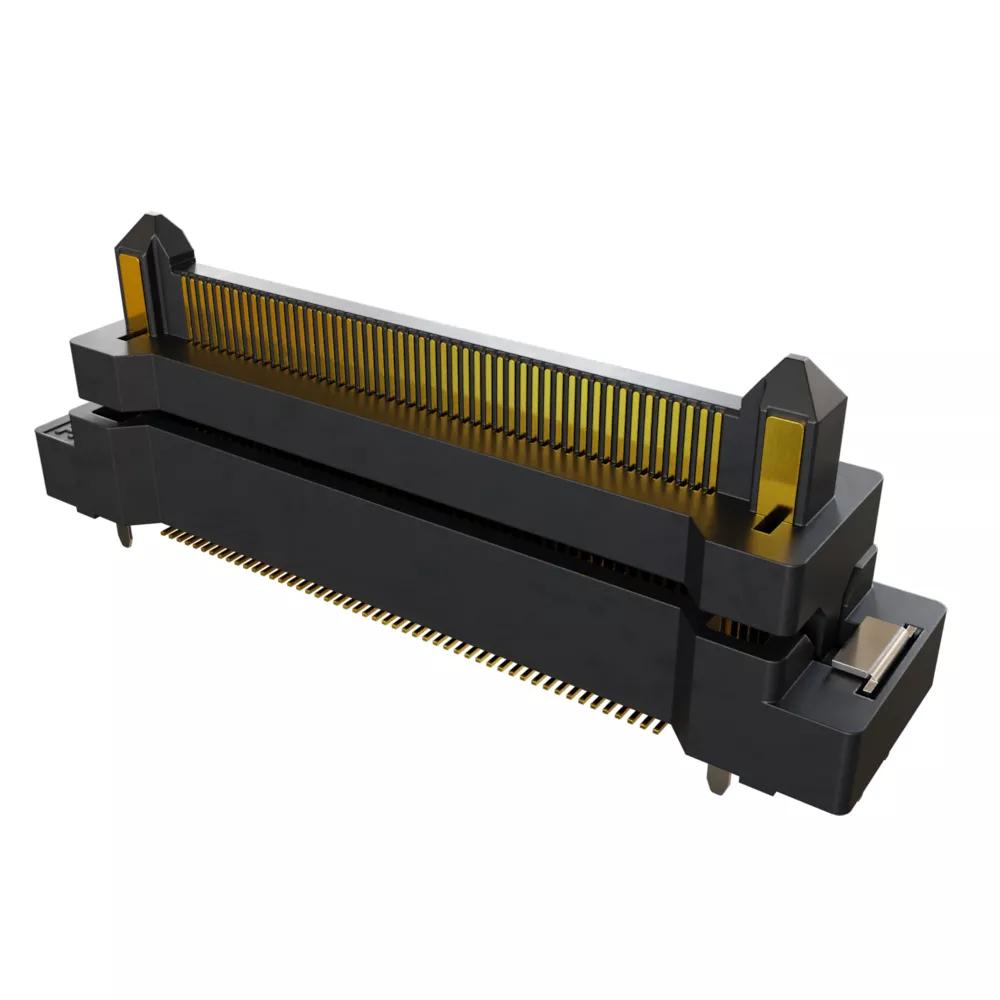

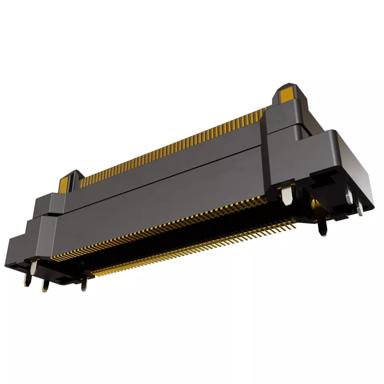

Double Row vertical board-to-board plug connector, 13.20mm high. 100 surface mount signal contacts (50+50) with 4 throughboard power contacts (2+2).
High-speed connection with a data rate up to 4GHz, 8Gb/s. Flexible connection that accommodates ±0.6mm of movement in X & Y axes, ±0.5mm in Z axis.
Gold finish on all contact areas, Gold finish on signal terminations, Tin finish on power terminations. Packaged in Tape & Reel with pick & place tape.
Checking stock availability...
Technical Drawings & CADs
Jump to technical details
Technical Drawing
View
TraceParts
CAD/ECAD
TraceParts
3D Viewer
SamacSys
3D Model, PCB Symbol & Footprint
Related Products
Further Details
Jump To:
Technical Details
Product Characteristics
Materials
Dimensions
Downloads
Technical Documentation
Product Information
Test Reports
Environmental Compliance
Technical Details
Product Characteristics
End Stackable
No
Number of Rows
2
Connector Orientation
Vertical
Country of Origin
CN
Side Stackable
No
Number of Power/Coax Contacts
4
Number of Signal Contacts
100
Operating Temperature
-55°C to +105°C
RoHS Status
RoHS Compliant (2015/863/EU) with no Exemption required
Current Rating
Signal = 0.5A max per contact; Power = 3A max per contact
Soldering Data
Max Solder Temperature: 260°C for 10 seconds
Polarised
No
Cuttable
No
Materials
Finish / Plating on Contact Surface
Gold
Housing Material
LCP
Base Material of Contact
Copper Alloy
Flammability Rating
UL94V-0
Packaging Style
Tape and Reel
Finish / Plating on Termination
Gold (signal), 100% Tin over Nickel (power)
Housing Colour
Black
Dimensions
Contact Pitch
0.50mm (0.020")
Weight
1.906g
Dimensions
38.70 x 8.90 x 14.55
PC Tail Length
1.35mm
Height of Connector above PCB
13.20mm
Downloads
Technical Documentation
Technical Drawing / Datasheet - F11-20XXXX42R.pdf
C057XX Component Specification - FLECTO Floating Connectors (0.50mm + 0.635mm + 0.80mm pitch)
Outgassing data for Harwin products (plastics)
Product Information
Product Training Module - FLECTO Floating Connectors
Product Datasheet - Flecto (BBi)
Environmental Compliance
REACH - Harwin statement including all current SVHCs & Annex XIV & XVII
Conflict Minerals Reporting Template (CMRT) - Company Summary Statement
Extended Mineral Reporting Template (EMRT) - Company Summary Statement
Environmental Legislation Statement
Material composition for F11-200XXX42R series
RoHS Declaration - F11-20010042R
