F11-20004042R

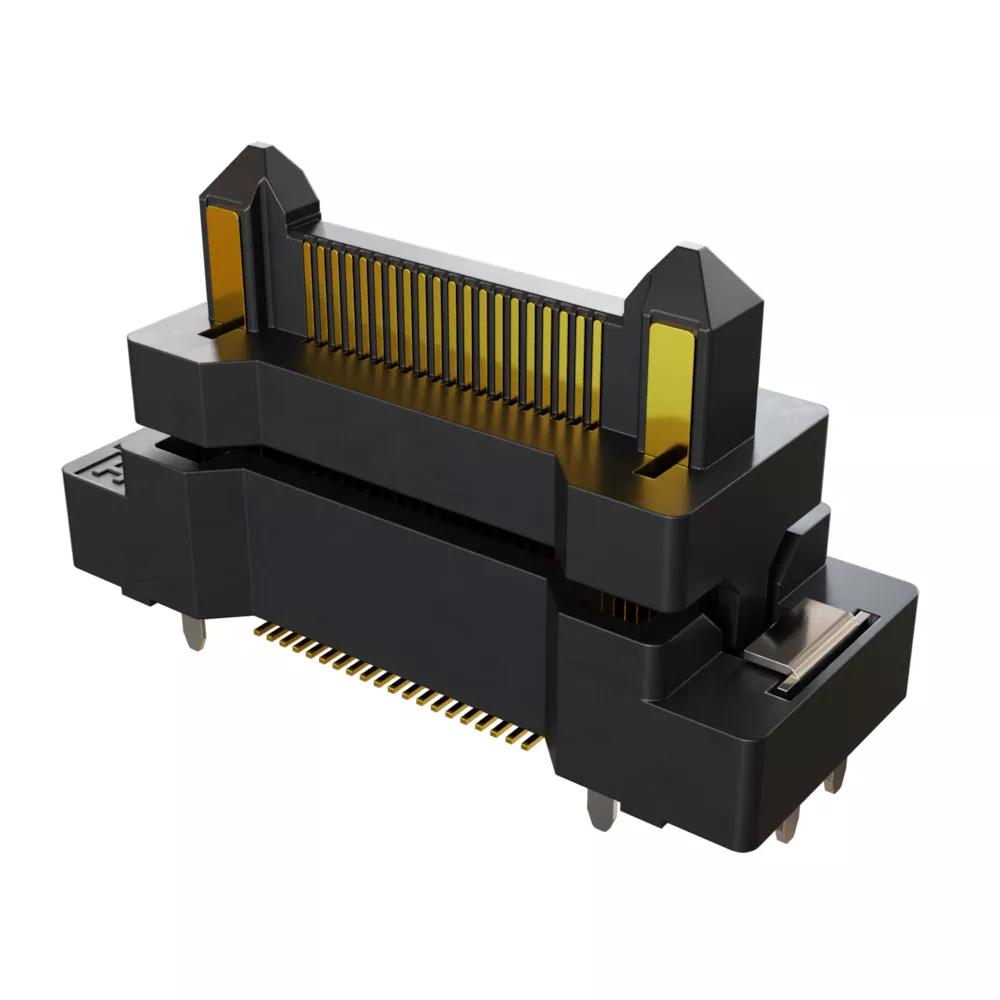

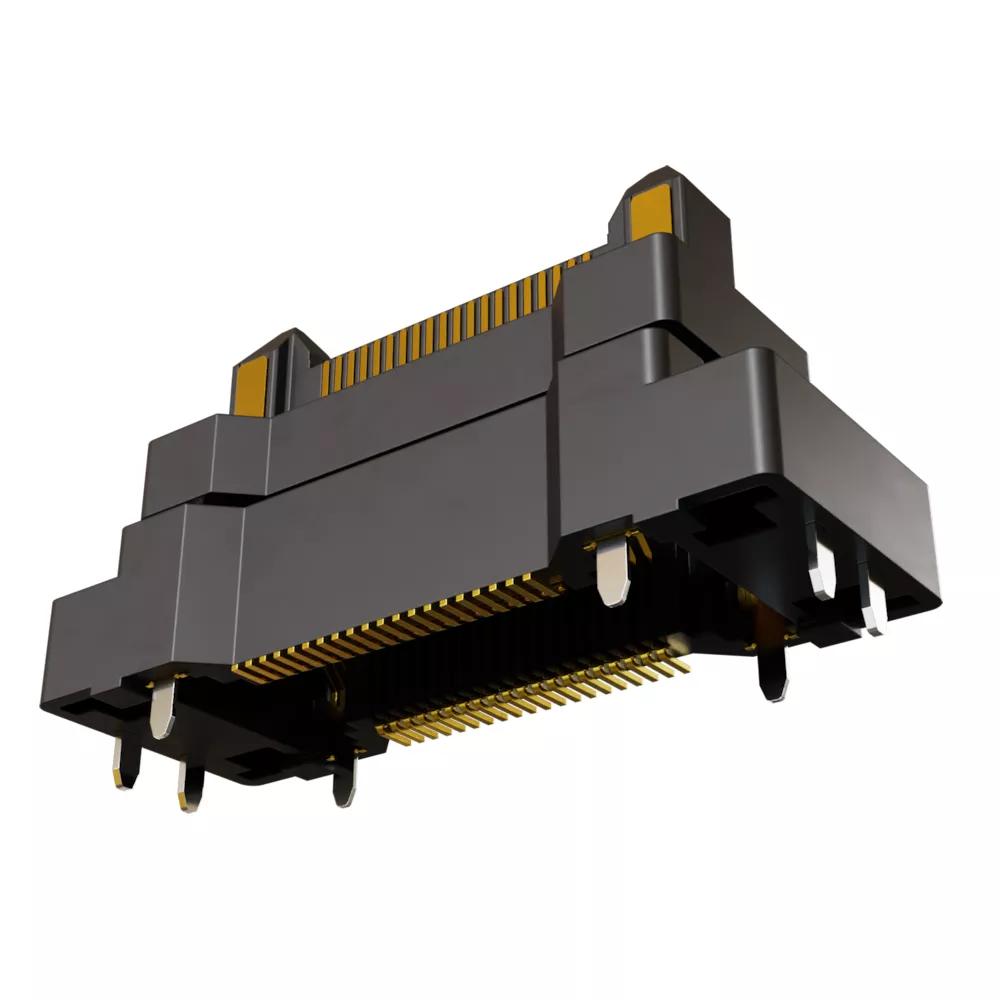

40+4 Pos. Male DIL Vertical SMT Conn. (T+R)

0.50mm (0.0197") Pitch PCB Connector - Flecto

Order Sample

Add to Favorites

Loading… Check availability

4 similar products View products

Traceparts account required

Product Description

Double Row vertical board-to-board plug connector, 13.20mm high. 40 surface mount signal contacts (20+20) with 4 throughboard power contacts (2+2).
High-speed connection with a data rate up to 4GHz, 8Gb/s. Flexible connection that accommodates ±0.6mm of movement in X & Y axes, ±0.5mm in Z axis.
Gold finish on all contact areas, Gold finish on signal terminations, Tin finish on power terminations. Packaged in Tape & Reel with pick & place tape.

F11-20004042R - 40+4 Pos. Male DIL Vertical SMT Conn. (T+R)

Traceparts account required

Technical Details

EU RoHS Status:

RoHS Compliant (2015/863/EU) with no Exemption required

Contact Pitch:

0.50mm (0.020")

Contact Gender:

Male/Plug

Connector Orientation:

Vertical

Connection Type:

Surface Mount (SMT) & PC Tail / Throughboard

Current Rating:

Signal = 0.5A max per contact; Power = 3A max per contact

Operating Temperature:

-55°C to +105°C

Polarising Features:

End Stackable:

Side Stackable:

Can be cut to another size:

Number of Rows:

Number of Signal Contacts:

Number of Special (Power or Coax) Contacts:

Finish / Plating on Termination:

Gold (signal), 100% Tin over Nickel (power)

Finish / Plating on Contact Surface:

Gold

Base Material of Contact:

Copper Alloy

Housing Material:

LCP

Housing Colour:

Black

Housing Material UL Rating:

UL94V-0

Packaging Style:

Tape and Reel

Individual Part Weight:

1.193g

Overall Dimensions (L x W x D) in mm:

23.70 x 8.90 x 14.55

Height of Connector above PCB:

13.20mm

Length of Throughboard Tail:

1.35mm
