F10-20012045R

60+60 Pos. Male DIL Vertical SMT Conn. (T+R)

0.50mm (0.0197") Pitch PCB Connector - Flecto

Order Sample

Add to Favorites

Loading… Check availability

4 similar products View products

Traceparts account required

Product Description

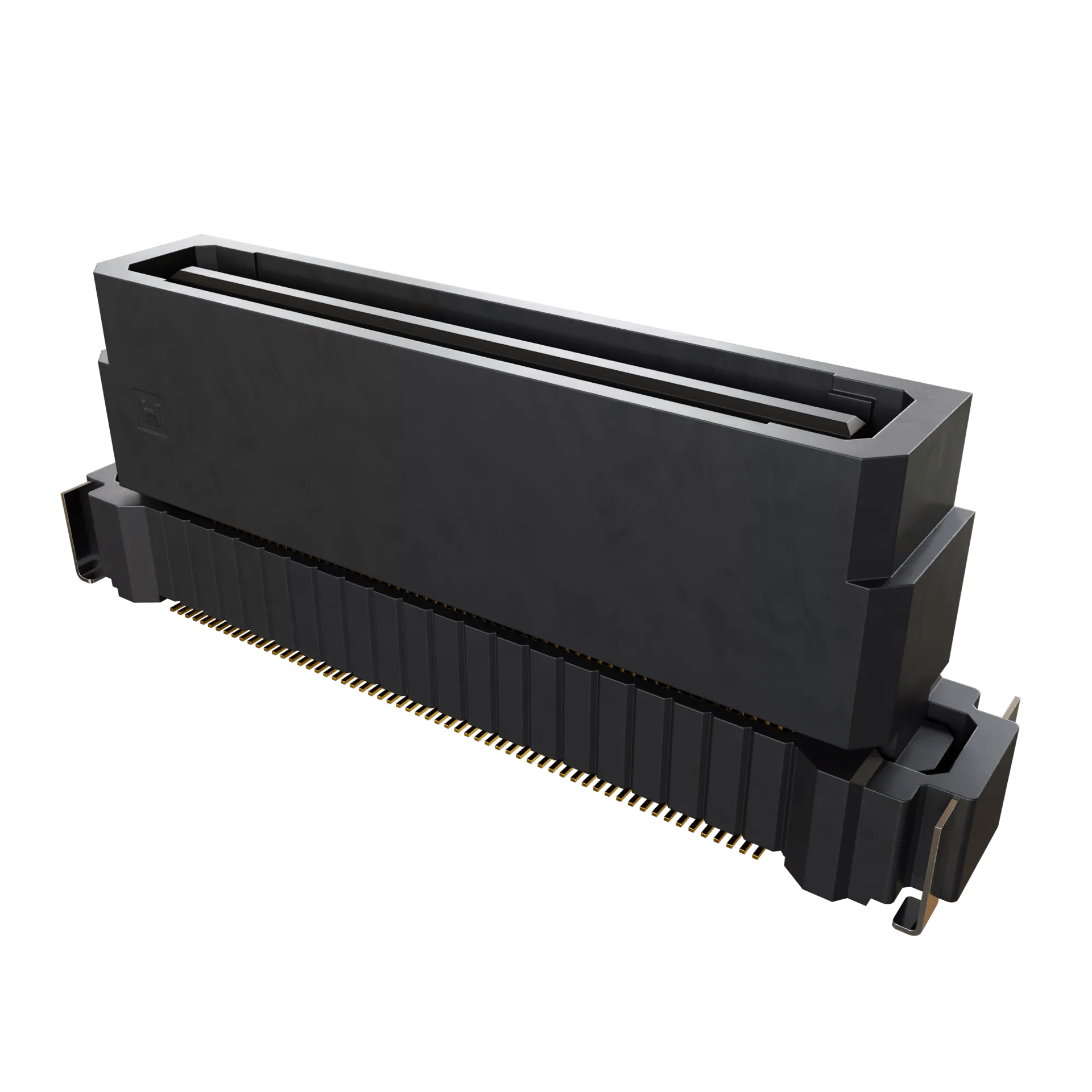

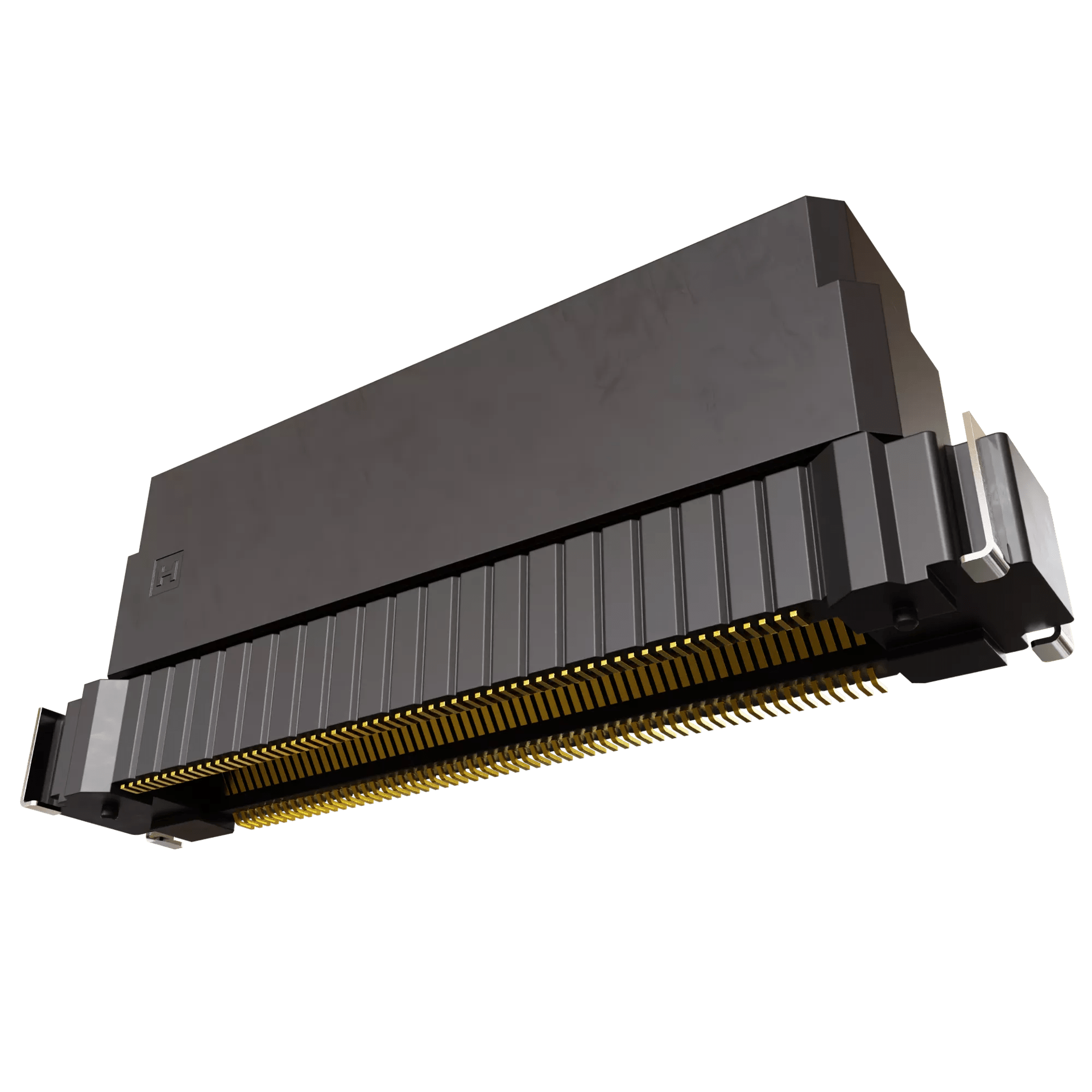

Double Row vertical board-to-board, surface mount plug connector, 15.55mm high – 120 contacts (60+60). Location pegs, surface mount hold-down retaining tabs for additional solder strength.
High-speed connection with a data rate up to 4GHz, 8Gb/s. Flexible connection that accommodates ±0.5mm of movement in X, Y and Z axes.
Gold finish on contact area and termination, tin finish on solder hold-down tab. Packaged in Tape & Reel with pick & place tape.

F10-20012045R - 60+60 Pos. Male DIL Vertical SMT Conn. (T+R)

Traceparts account required

Technical Details

EU RoHS Status:

RoHS Compliant (2015/863/EU) with no Exemption required

Contact Pitch:

0.50mm (0.020")

Contact Gender:

Male/Plug

Connector Orientation:

Vertical

Connection Type:

Surface Mount (SMT)

Current Rating:

0.4A max per contact

Operating Temperature:

-40°C to +105°C

Polarising Features:

Yes

End Stackable:

Side Stackable:

Can be cut to another size:

Number of Rows:

Number of Signal Contacts:

120

Finish / Plating on Termination:

Gold

Finish / Plating on Contact Surface:

Gold

Base Material of Contact:

Copper Alloy

Housing Material:

LCP

Housing Colour:

Black

Housing Material UL Rating:

UL94V-0

Packaging Style:

Tape and Reel

Individual Part Weight:

4.474g

Overall Dimensions (L x W x D) in mm:

42.60 x 8.30 x 15.95

Height of Connector above PCB:

15.50mm
