F10-20003045R
15+15 Pos. Male DIL Vertical SMT Conn. (T+R)
0.50mm (0.0197") Pitch PCB Connector - Flecto
Loading… Check availability
4 similar products View products
Traceparts account required
Product Description

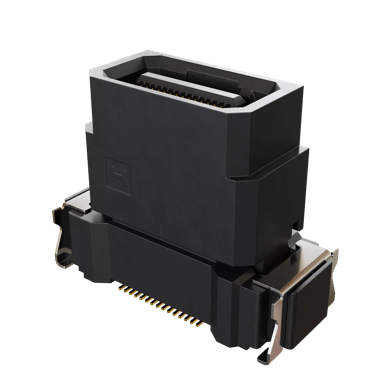

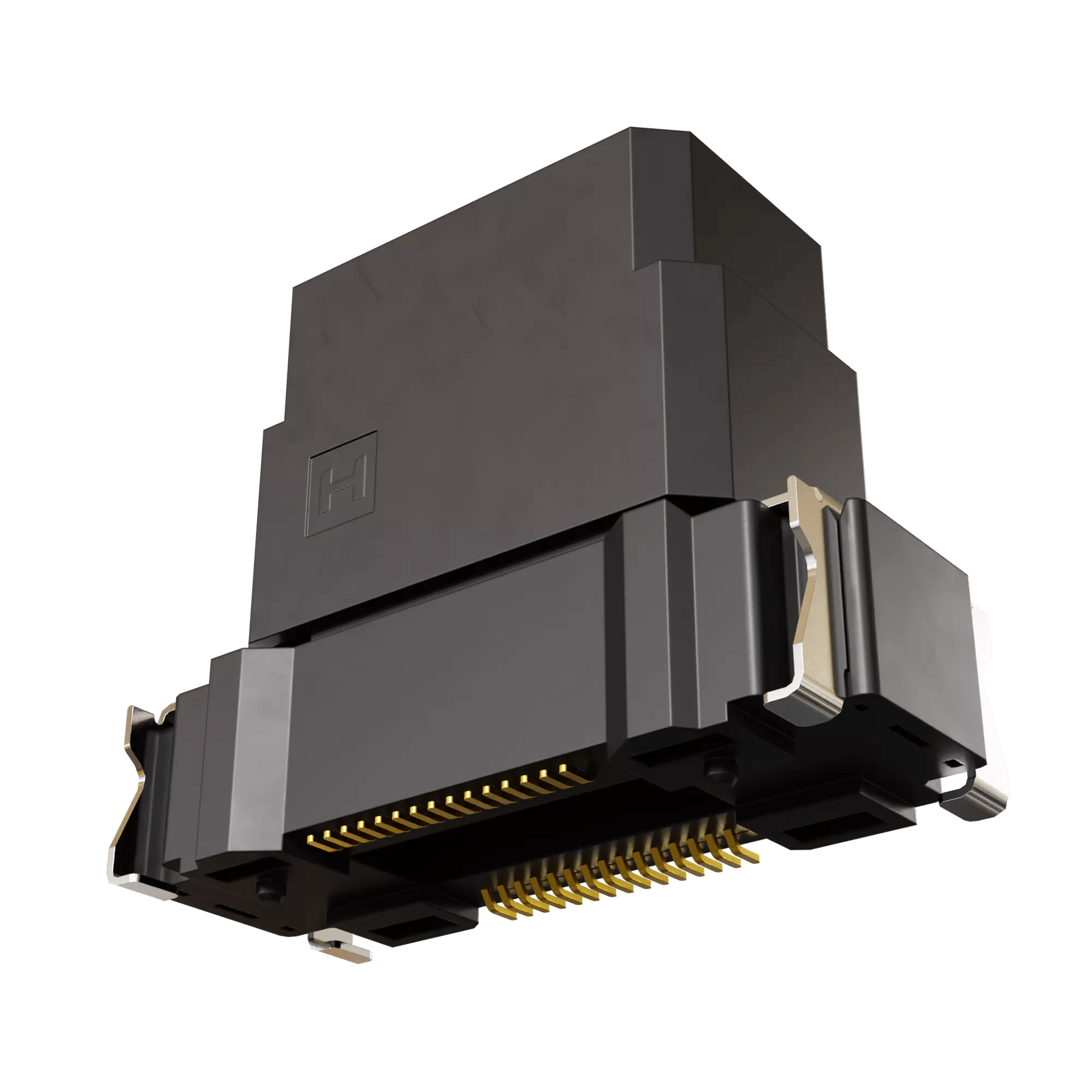

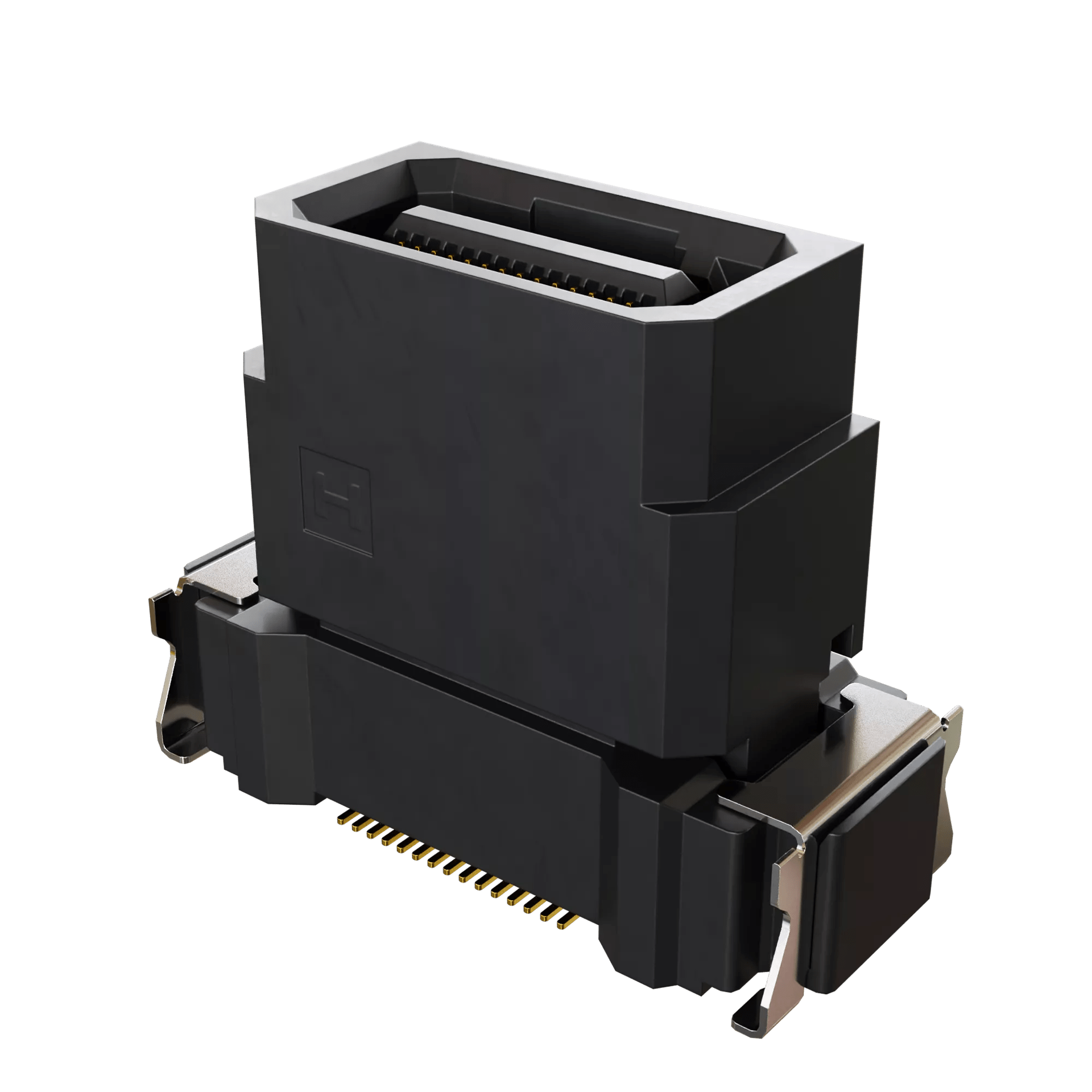

- Double Row vertical board-to-board, surface mount plug connector, 15.55mm high – 30 contacts (15+15). Location pegs, surface mount hold-down retaining tabs for additional solder strength.
- High-speed connection with a data rate up to 4GHz, 8Gb/s. Flexible connection that accommodates ±0.5mm of movement in X, Y and Z axes.
- Gold finish on contact area and termination, tin finish on solder hold-down tab. Packaged in Tape & Reel with pick & place tape.
Traceparts account required
Technical Details
Specification
EU RoHS Status:
Contact Pitch:
0.50mm (0.020")
Contact Gender:
Male/Plug
Connector Orientation:
Vertical
Connection Type:
Surface Mount (SMT)
Current Rating:
0.4A max per contact
Operating Temperature:
-40°C to +105°C
Polarising Features:
Yes
End Stackable:
No
Side Stackable:
No
Can be cut to another size:
No
Number of Rows:
2
Number of Signal Contacts:
30
Materials
Finish / Plating on Termination:
Gold
Finish / Plating on Contact Surface:
Gold
Base Material of Contact:
Copper Alloy
Housing Material:
LCP
Housing Colour:
Black
Housing Material UL Rating:
UL94V-0
Packaging Style:
Tape and Reel
Dimensions
Individual Part Weight:
1.213g
Overall Dimensions (L x W x D) in mm:
20.10 x 8.30 x 15.95
Height of Connector above PCB:
15.50mm
