F10-10214045R

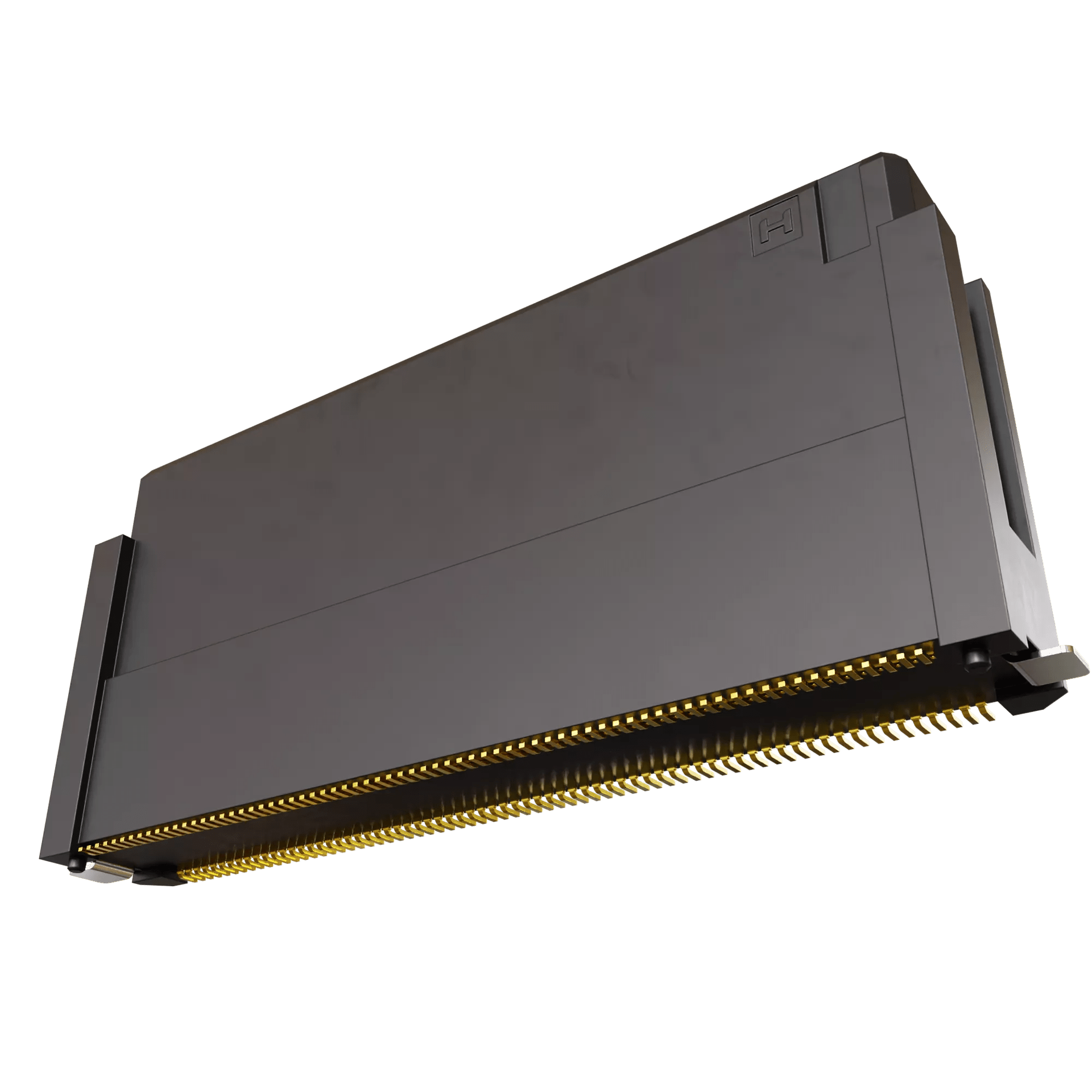

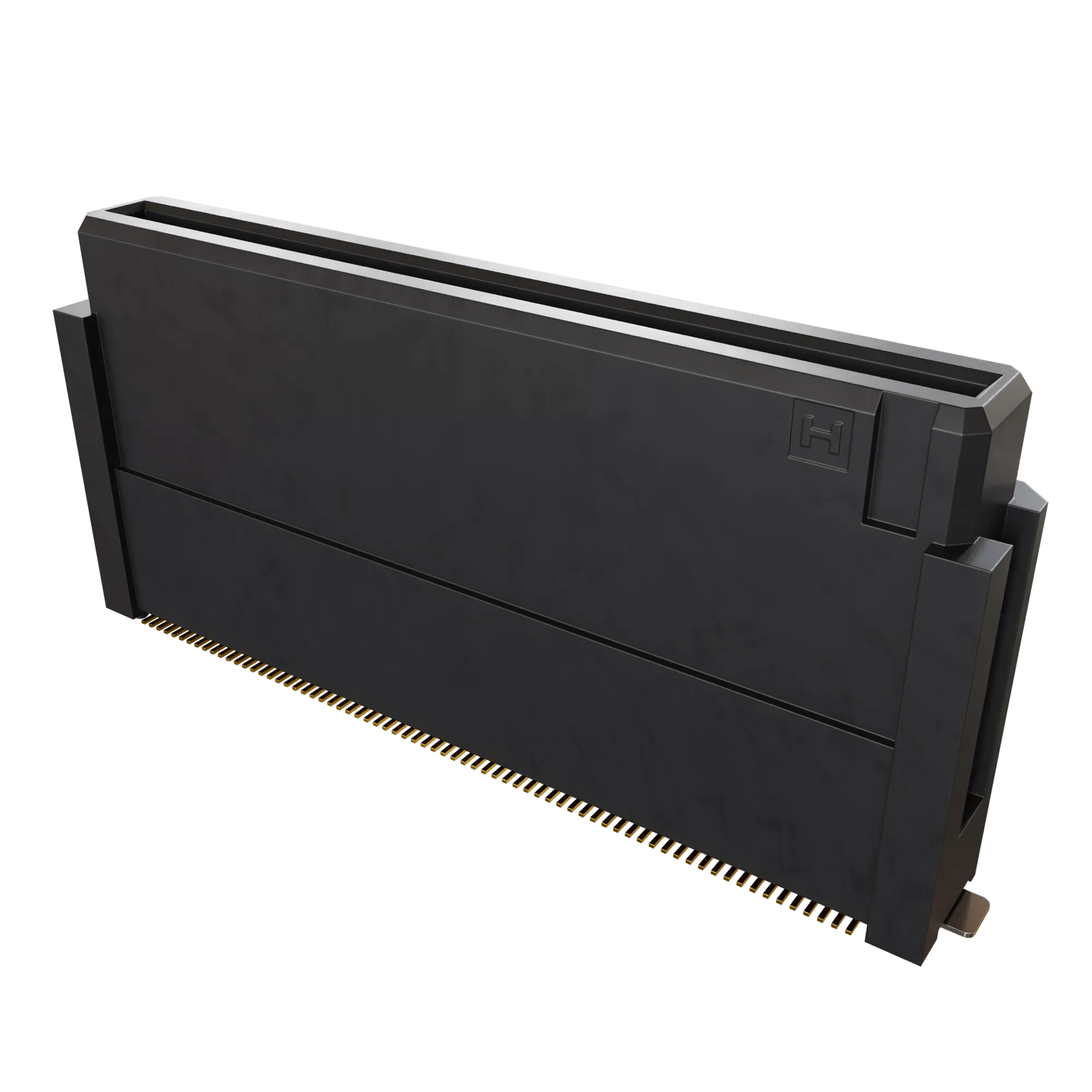

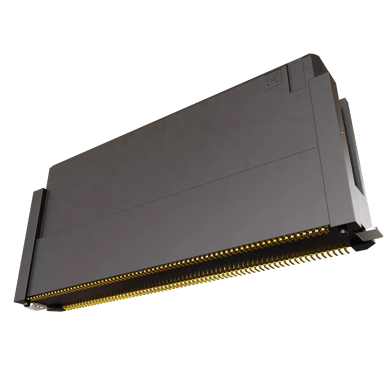

70+70 Pos. Female DIL Vertical SMT Conn. (T+R)


0.50mm (0.0197") Pitch PCB Connector - Flecto

  • Double Row vertical board-to-board, surface mount receptacle connector, 18.45mm high - 140 contacts (70+70). Location pegs, surface mount hold-down retaining tabs for additional solder strength.

  • High-speed connection with a data rate up to 4GHz, 8Gb/s. Compatible with flexible male connectors that accommodate ±0.5mm of movement in X, Y and Z axes.

  • Gold finish on contact area and termination, tin finish on solder hold-down tab. Packaged in Tape & Reel with pick & place tape.

View Technical Details & Downloads


Checking stock availability...

Check Availability

Further Details

Jump To:

Technical Details

Product Characteristics

Materials

Dimensions

Downloads

Technical Documentation

Product Information

Test Reports

Environmental Compliance

Technical Details

Product Characteristics

  • End Stackable:

    No

  • Number of Rows:

    2

  • Connector Orientation:

    Vertical

  • Country of Origin:

    TW

  • Side Stackable:

    No

  • Number of Signal Contacts:

    140

  • Operating Temperature:

    -40°C to +105°C

  • RoHS Status:

    RoHS Compliant (2015/863/EU) with no Exemption required

  • Current Rating:

    0.4A max per contact

  • Soldering Data:

    Max Solder Temperature: 260°C for 10 seconds

  • Polarised:

    Yes

  • Cuttable:

    No

Materials

  • Finish / Plating on Contact Surface:

    Gold

  • Housing Material:

    LCP

  • Base Material of Contact:

    Copper Alloy

  • Flammability Rating:

    UL94V-0

  • Packaging Style:

    Tape and Reel

  • Finish / Plating on Termination:

    Gold

  • Housing Colour:

    Black

Dimensions

  • Contact Pitch:

    0.50mm (0.020")

  • Weight:

    3.9g

  • Dimensions:

    41.40 x 6.20 x 18.85

  • Height of Connector above PCB:

    18.40mm
