Home > F10-10003045R
Active Product

F10-10003045R

15+15 Pos. Female DIL Vertical SMT Conn. (T+R)

0.50mm (0.0197") Pitch PCB Connector - Flecto

Add to Favorites

Loading…   Check availability

6 similar products View products

Traceparts account required

Product Description

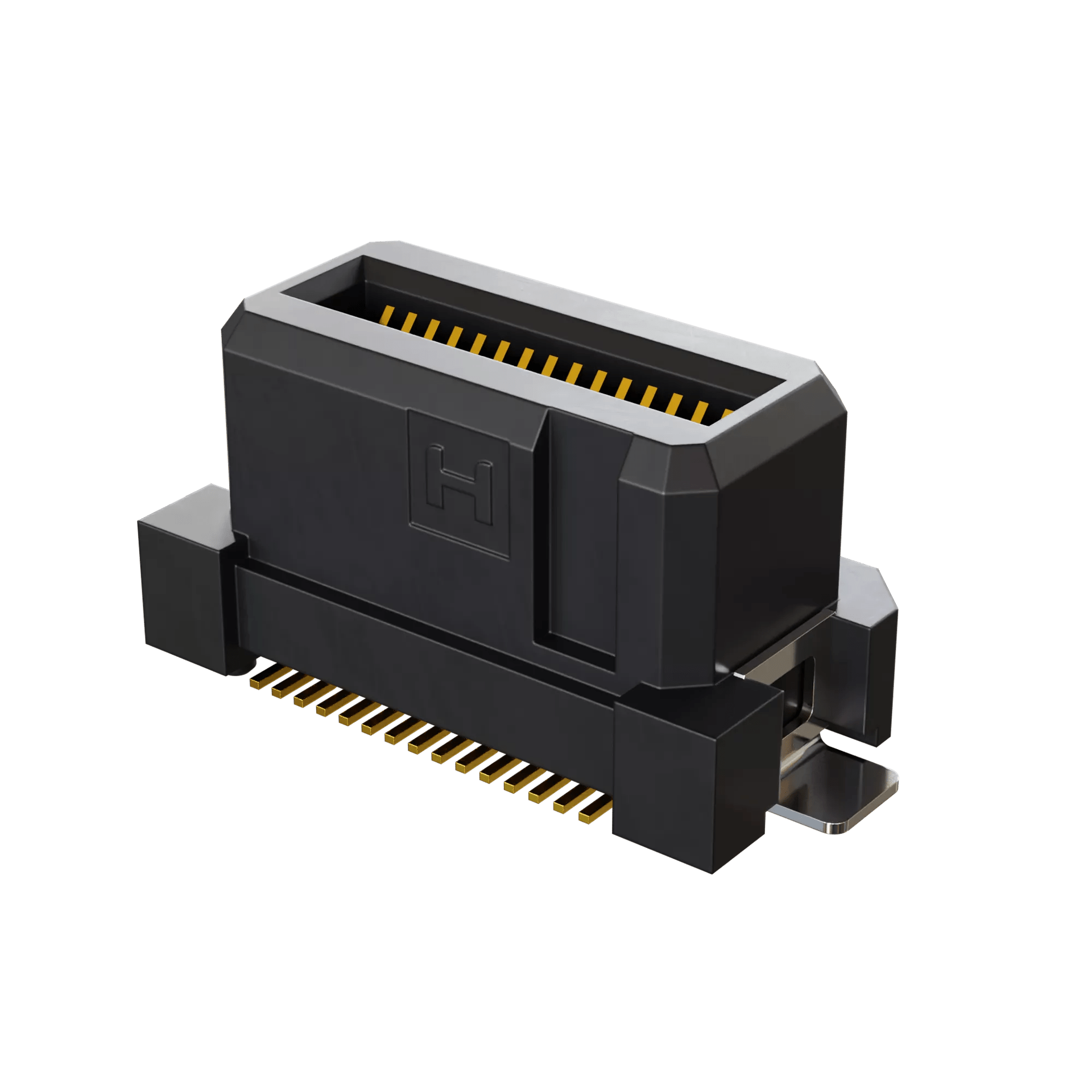

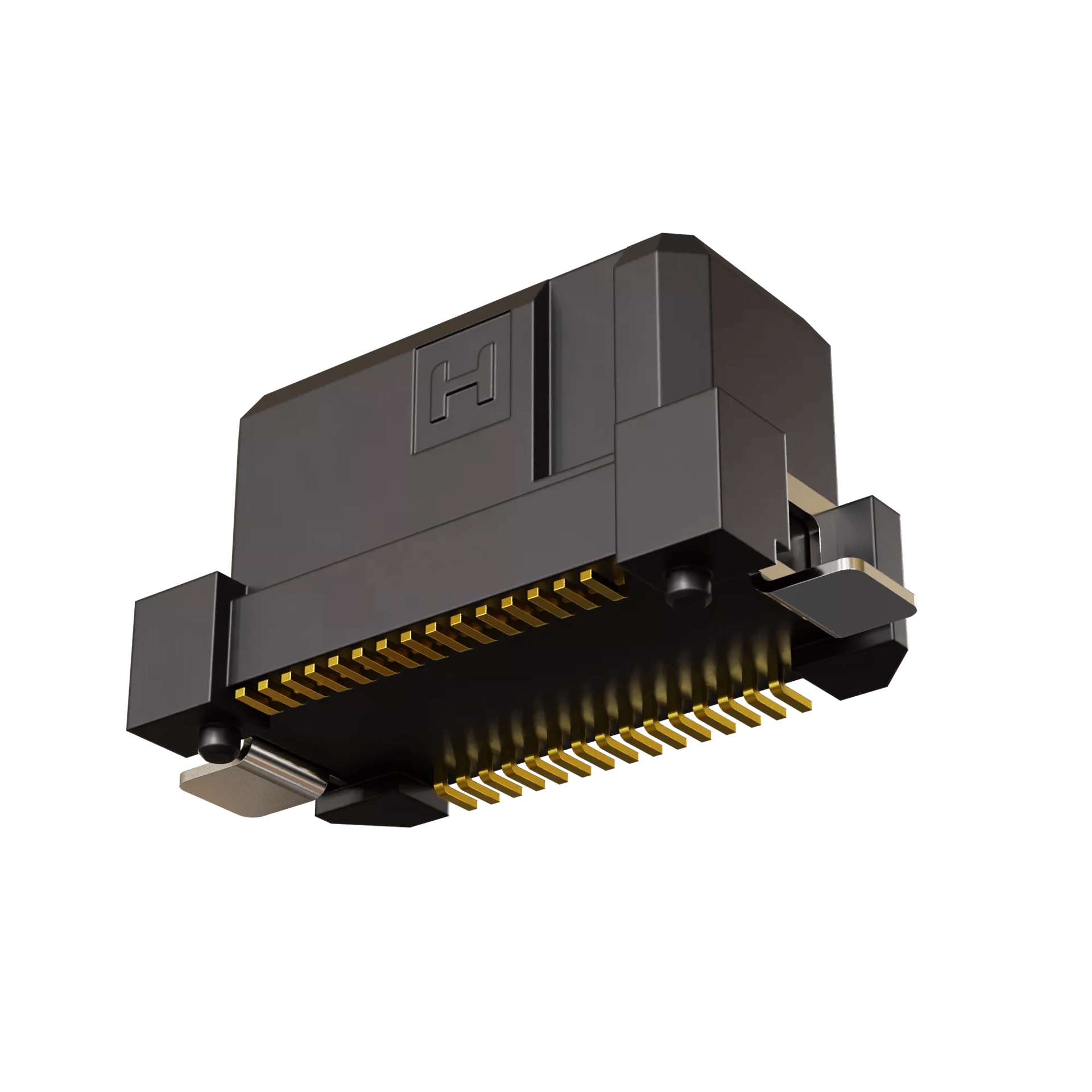

  • Double Row vertical board-to-board, surface mount receptacle connector, 6.45mm high – 30 contacts (15+15). Location pegs, surface mount hold-down retaining tabs for additional solder strength.
  • High-speed connection with a data rate up to 4GHz, 8Gb/s. Compatible with flexible male connectors that accommodate ±0.5mm of movement in X, Y and Z axes.
  • Gold finish on contact area and termination, tin finish on solder hold-down tab. Packaged in Tape & Reel with pick & place tape.

Technical Details

Specification

Contact Pitch:

0.50mm (0.020")

Contact Gender:

Female/Socket/Jack

Connector Orientation:

Vertical

Connection Type:

Surface Mount (SMT)

Current Rating:

0.4A max per contact

Operating Temperature:

-40°C to +105°C

Polarising Features:

Yes

End Stackable:

No

Side Stackable:

No

Can be cut to another size:

No

Number of Rows:

2

Number of Signal Contacts:

30

Materials

Finish / Plating on Termination:

Gold

Finish / Plating on Contact Surface:

Gold

Base Material of Contact:

Copper Alloy

Housing Material:

LCP

Housing Colour:

Black

Housing Material UL Rating:

UL94V-0

Packaging Style:

Tape and Reel

Dimensions

Individual Part Weight:

0.501g

Overall Dimensions (L x W x D) in mm:

13.90 x 6.20 x 6.85

Height of Connector above PCB:

6.40mm
