Active Product

DEV-001

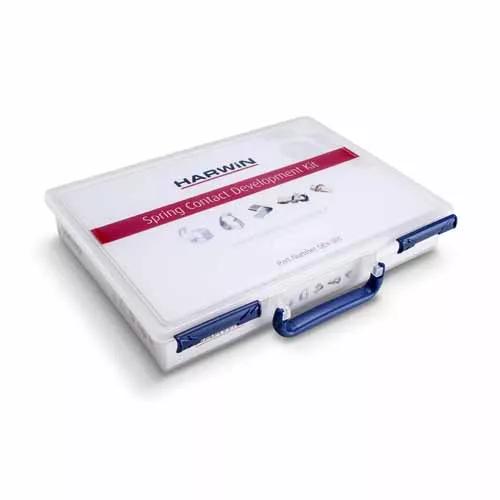

SMT Spring Contact Development Kit

SMT Spring Contact

Add to Favorites

19 in stock Check availability

16 similiar products View products

Samacsys account required

Product Description

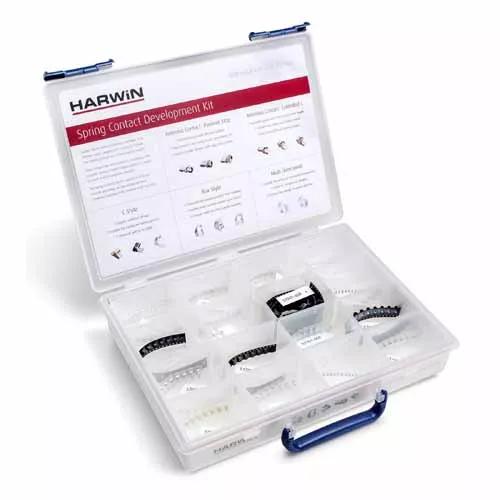

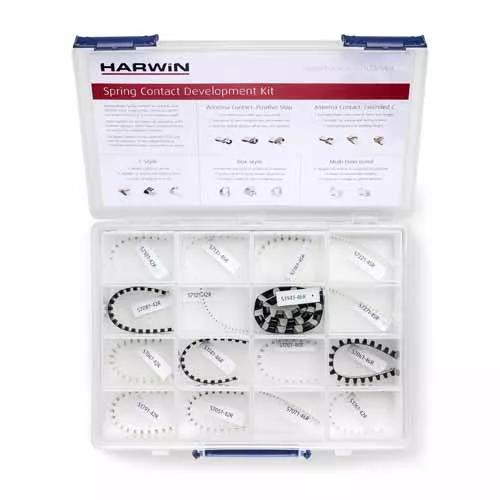

Kit of 16 different Spring Contact designs, supplied in a stackable, durable box (see Technical Drawing for list of contacts supplied).
20 of each contact supplied – free refills available on request.
See the Development Kit page for more information.

DEV-001 - SMT Spring Contact Development Kit

Samacsys account required

Technical Details

EU RoHS Status:

RoHS Compliant (2015/863/EU) with no Exemption required

Contact Gender:

Male/Plug

Connection Type:

Surface Mount (SMT)

Current Rating:

Various

Soldering Data:

Max Solder Temperature: 260°C for 10 seconds

Finish / Plating on Termination:

Various

Finish / Plating on Contact Surface:

Various

Base Material of Contact:

Various

Packaging Style:

Box

Individual Part Weight:

852g

Overall Dimensions (L x W x D) in mm:

338.00 x 261.00 x 57.00

Height of Connector above PCB:

Various - see individual drawings
