D95014-42

7+7 Pos. Female DIL Extended Throughboard IC Socket

Sockets - 2.54mm Pitch IC Dual Row Connector

Order Sample

Add to Favorites

In stock Check availability

2 similar products View products

Traceparts account required

Product Description

Extended IC Socket Assembly – 14 x contacts in a dual row format. Gold finish on contact area, Tin finish on termination.
7.62mm (0.3″) spacing between rows, and 2.54mm (0.1″) contact pitch on each row. 8mm height above PCB.
Suitable for a Ø0.40-0.56mm mating pin.

D95014-42 - 7+7 Pos. Female DIL Extended Throughboard IC Socket

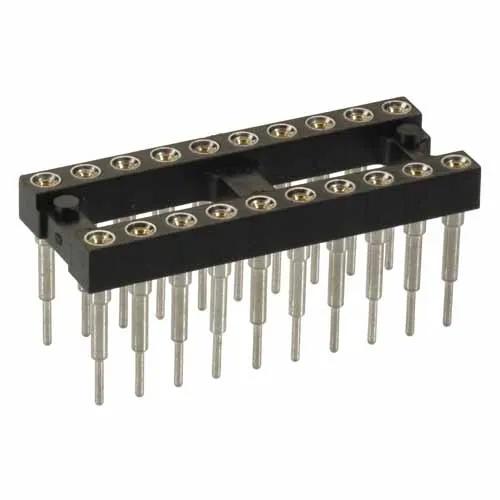

Representative image of product family

Traceparts account required

Technical Details

EU RoHS Status:

RoHS Compliant (2015/863/EU) with Exemption 6c

Contact Pitch:

2.54mm (0.1")

Contact Gender:

Female/Socket/Jack

Connector Orientation:

Vertical

Connection Type:

PC Tail / Throughboard

Mating Pin Size:

Ø0.5mm

Current Rating:

1A per contact

Operating Temperature:

-55°C to +125°C

Soldering Data:

Max Solder Temperature: 260°C for 10 seconds

End Stackable:

Yes

Side Stackable:

Yes

Can be cut to another size:

Number of Rows:

Number of Signal Contacts:

Finish / Plating on Termination:

100% Tin over Nickel

Finish / Plating on Contact Surface:

Gold

Base Material of Contact:

Beryllium Copper contact clip, Brass shell

Housing Material:

PCT

Housing Colour:

Black

Housing Material UL Rating:

UL94V-0

Packaging Style:

Tube

Individual Part Weight:

1.282g

Overall Dimensions (L x W x D) in mm:

17.70 x 10.02 x 11.20

Height of Connector above PCB:

8.00mm

Length of Throughboard Tail:

3.20mm
