D8864-42

D8864-42

32+32 Pos. Female DIL Vertical Throughboard Shrink Dip IC Socket

EZi

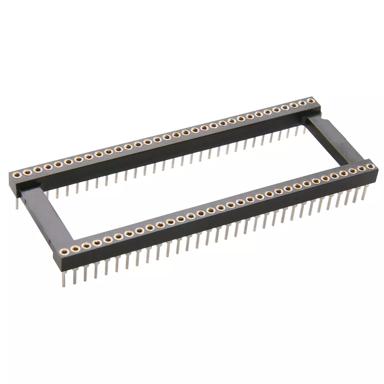

Image may be representative. Refer to the product title for more information.

D8864-42

32+32 Pos. Female DIL Vertical Throughboard Shrink Dip IC Socket

Sockets - 1.778mm Pitch IC Dual Row Connector

  • PC Tail IC Female/Socket Connector, reduced pitch - 64 x contacts in a dual row format. Gold finish on contact area, Tin finish on termination.

  • 19.05mm (0.75") spacing between rows, and 1.78mm (0.07") contact pitch on each row.

  • Suitable for a Ø0.40-0.56mm mating pin.

Checking stock availability...

Technical Drawings & CADs

Jump to technical details

  • Technical Drawing

    View

  • TraceParts

    CAD/ECAD

  • TraceParts

    3D Viewer

  • SamacSys

    3D Model, PCB Symbol & Footprint

Further Details

Jump To:

Technical Details

Product Characteristics

Materials

Dimensions

Downloads

Technical Documentation

Environmental Compliance

Technical Details

Product Characteristics

  • End Stackable

    No

  • Mating Pin Size

    Ø0.5mm

  • Number of Rows

    2

  • Connector Orientation

    Vertical

  • Country of Origin

    CH

  • Number of Signal Contacts

    64

  • Operating Temperature

    -55°C to +125°C

  • RoHS Status

    RoHS Compliant (2015/863/EU) with Exemption 6c

  • Current Rating

    1A per contact

  • Soldering Data

    Max Solder Temperature: 260°C for 10 seconds

  • Cuttable

    No

Materials

  • Finish / Plating on Contact Surface

    Gold

  • Housing Material

    PCT

  • Base Material of Contact

    Beryllium Copper contact clip, Brass shell

  • Flammability Rating

    UL94V-0

  • Packaging Style

    Tube

  • Finish / Plating on Termination

    100% Tin over Nickel

  • Housing Colour

    Black

Dimensions

  • Contact Pitch

    1.778mm (0.07")

  • Weight

    4.111g

  • Dimensions

    57.30 max x 21.50 max x 7.40

  • PC Tail Length

    3.20mm

  • Height of Connector above PCB

    4.20mm

Downloads

Technical Documentation

  • Technical Drawing / Datasheet - D8864.pdf

  • Outgassing data for Harwin products (plastics)

Environmental Compliance

  • REACH - Harwin statement including all current SVHCs & Annex XIV & XVII

  • Conflict Minerals Reporting Template (CMRT) - Company Summary Statement

  • Extended Mineral Reporting Template (EMRT) - Company Summary Statement

  • Environmental Legislation Statement

  • Material composition for D8864-42 product

  • RoHS Declaration - D8864-42
