D3089-98

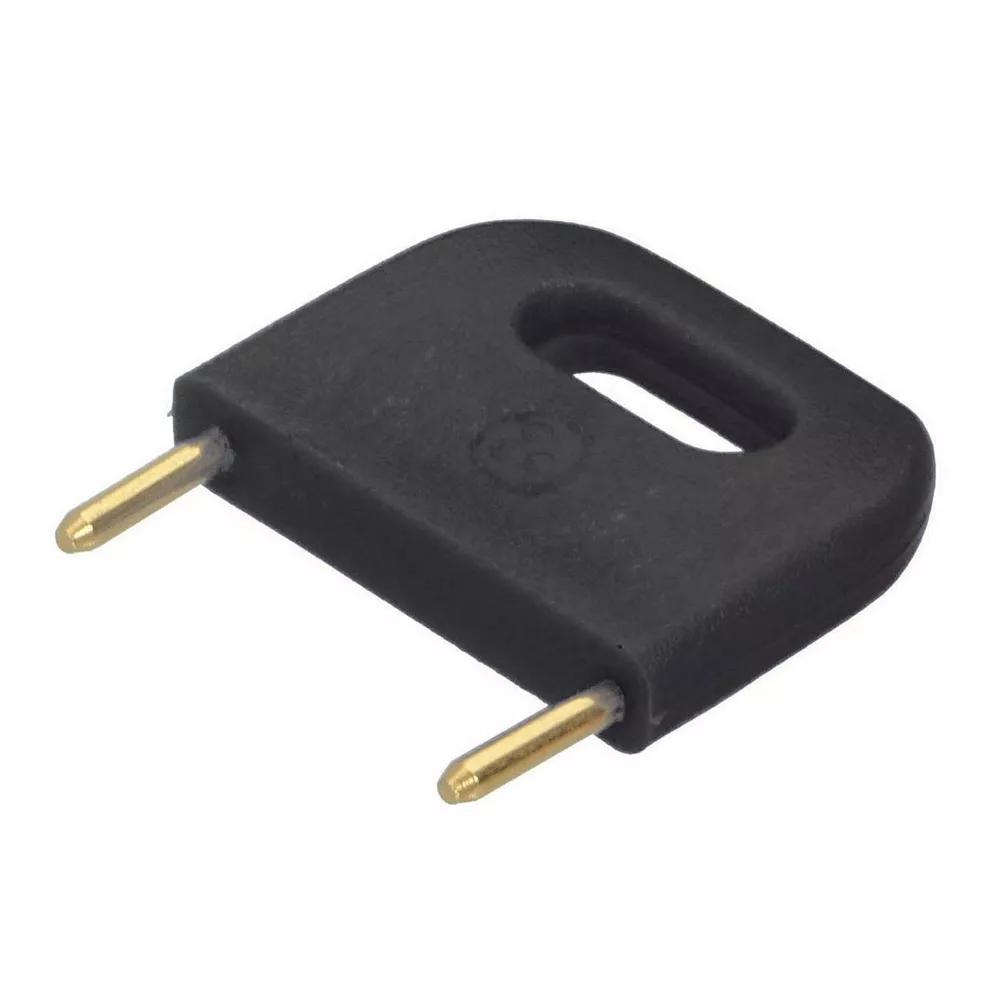

Male Insulated 12.70mm Shorting Link, Black
Hardware - PCB Shorting Link, Removable Jumper Link
In stock Check availability
8 similar products View products
Traceparts account required
Product Description
- Ø1mm Male Insulated shorting plug or link, 12.70mm (0.5″) pitch between legs, Gold finish.
- Black housing for identification / differentiation.
- Not intended for direct soldering to PCB, not recommended for RoHS / Lead-free soldering processes.
Traceparts account required
Technical Details
Specification
EU RoHS Status:
Contact Pitch:
12.70mm (0.5")
Contact Gender:
Male/Plug
Connector Orientation:
Vertical
Connection Type:
PC Tail / Throughboard
Current Rating:
10A
Operating Temperature:
-55°C to +125°C
Soldering Data:
Max Solder Temperature: 235°C for 5 seconds
Number of Signal Contacts:
2
Materials
Finish / Plating on Termination:
Gold
Base Material of Contact:
Brass
Housing Material:
PBT
Housing Colour:
Black
Housing Material UL Rating:
UL94V-0
Packaging Style:
Bulk/Loose
Dimensions
Individual Part Weight:
0.917g
Overall Dimensions (L x W x D) in mm:
15.40 x 3.20 max x 17.10
Height of Connector above PCB:
12.10mm
Length of Throughboard Tail:
5.00mm
Frequently Asked Questions Ask a Question
Why is there no voltage rating for this contact?
Voltage rating is calculated from the flashover voltage – the voltage at which the electricity can break down the air gap and jump between two contacts. With a single contact, the voltage rating you achieve will depend on the space you leave between two contacts, or a contact and any other conducting element. So we are unable to give a voltage rating for single contacts, as it will depend on your usage.
Was this answer useful?
What is the maximum contact resistance of this shorting plug?
We have not specifically tested the contact resistance of this product, but it is one continuous piece of metal so it will be very low. We would recommend that you do testing with it mated to whatever connection you intend to use, so that you can confirm the contact resistance obtained in use. The contact resistance of the connection point will be higher than the contact resistance within the shorting plug.
Was this answer useful?
Could you provide the packing information to me – are they Reel, Tray or others?
These items are packed in bulk – that is, loose in bags. There is no reel or tray option available, sorry. You can find the Packing style on this page in the Technical Details section, under Materials.
Was this answer useful?
Which PCB socket will mate with this shorting link?
We have a choice of sockets suitable for mating with the 1mm diameter pins on the shorting link. Here is the Catalog section for PCB sockets – check for ones that are compatible with 1mm diameter. Please make sure you also check the widest diameter so that the sockets will fit next to each other on the same pitch as the shorting link.
Was this answer useful?
