Male Insulated 6.35mm Shorting Link, Black
Hardware - PCB Shorting Link, Removable Jumper Link

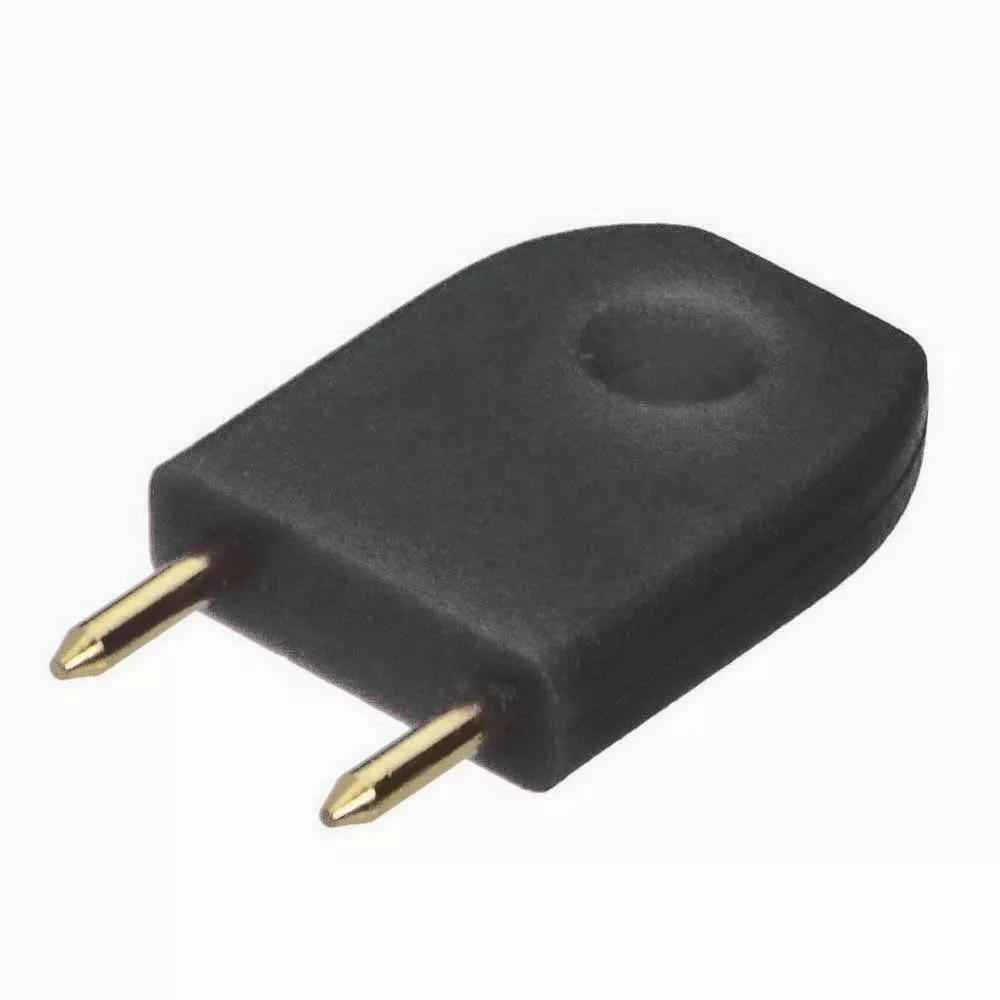

- Ø1mm Male Insulated shorting plug or link, 6.35mm (0.25″) pitch between legs, Gold finish.
- Black housing for identification / differentiation.
- Not intended for direct soldering to PCB, not recommended for RoHS / Lead-free soldering processes.
EU RoHS Status:
PC Tail / Throughboard
-55°C to +125°C
Max Solder Temperature: 235°C for 5 seconds
Number of Signal Contacts:
Finish / Plating on Termination:
Base Material of Contact:
Housing Material UL Rating:
Individual Part Weight:
Overall Dimensions (L x W x D) in mm:
9.50 x 3.20 max x 17.00
Height of Connector above PCB:
Length of Throughboard Tail:
4,747 in stock
Popular products are manufactured regularly, typically in stock and are not subject to minimum quantity requirements.
Questions & Answers Ask a Question
Why is there no voltage rating for this contact?
Voltage rating is calculated from the flashover voltage – the voltage at which the electricity can break down the air gap and jump between two contacts. With a single contact, the voltage rating you achieve will depend on the space you leave between two contacts, or a contact and any other conducting element. So we are unable to give a voltage rating for single contacts, as it will depend on your usage.
What is the maximum contact resistance of this shorting plug?
We have not specifically tested the contact resistance of this product, but it is one continuous piece of metal so it will be very low. We would recommend that you do testing with it mated to whatever connection you intend to use, so that you can confirm the contact resistance obtained in use. The contact resistance of the connection point will be higher than the contact resistance within the shorting plug.
Could you provide the packing information to me – are they Reel, Tray or others?
These items are packed in bulk – that is, loose in bags. There is no reel or tray option available, sorry. You can find the Packing style on this page in the Technical Details section, under Materials.
Which PCB socket will mate with this shorting link?
We have a choice of sockets suitable for mating with the 1mm diameter pins on the shorting link. Here is the Catalog section for PCB sockets – check for ones that are compatible with 1mm diameter. Please make sure you also check the widest diameter so that the sockets will fit next to each other on the same pitch as the shorting link.
