D2924-42

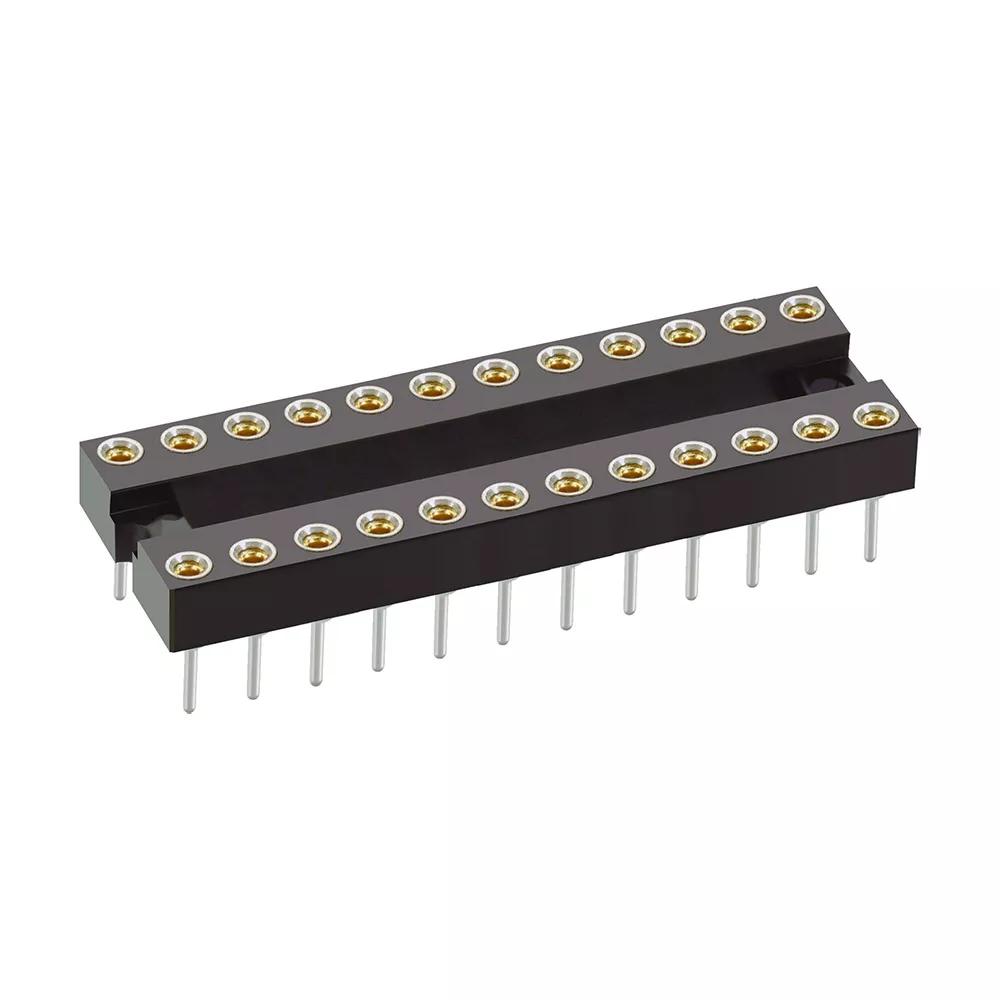

12+12 Pos. Female DIL Vertical Throughboard IC Socket

Sockets - 2.54mm Pitch IC Dual Row Connector

  • PC Tail IC Socket Assembly – 24 x contacts in a dual row format. Gold finish on contact area, Tin finish on termination.
  • 7.62mm (0.3″) spacing between rows, and 2.54mm (0.1″) contact pitch on each row.
  • Suitable for a Ø0.40-0.56mm mating pin.
Add to Favorites

Technical Details

Specification

Contact Pitch:

2.54mm (0.1")

Contact Gender:

Female/Socket/Jack

Connector Orientation:

Vertical

Connection Type:

PC Tail / Throughboard

Mating Pin Size:

Ø0.5mm

Current Rating:

1A max per contact

Operating Temperature:

-55°C to +125°C

Soldering Data:

Max Solder Temperature: 260°C for 10 seconds

Polarising Features:

No

End Stackable:

Yes

Side Stackable:

Yes

Can be cut to another size:

No

Number of Rows:

2

Number of Signal Contacts:

24

Materials

Finish / Plating on Termination:

100% Tin over Nickel

Finish / Plating on Contact Surface:

Gold

Base Material of Contact:

Beryllium Copper contact clip, Brass shell

Housing Material:

PCT

Housing Colour:

Black

Housing Material UL Rating:

UL94V-0

Packaging Style:

Tube

Dimensions

Individual Part Weight:

1.771g

Overall Dimensions (L x W x D) in mm:

30.40 x 10.02 x 7.40

Height of Connector above PCB:

4.20mm

Length of Throughboard Tail:

3.20mm

Availability

219 in stock

Info Circle

Low availability or made to order: This product is typically manufactured to order. When out of stock, minimum order quantities may apply.

Limited availability or made-to-order
Distributor Location Quantity (Updated Daily)
Distributor Genalog
Location Europe
Quantity (Updated Daily) 168
Distributor Digi-Key
Location Global
Quantity (Updated Daily) 32
Distributor Mouser Electronics Inc
Location Global
Quantity (Updated Daily) 19

Questions & Answers Ask a Question

No questions have been asked yet. Click here to ask a question.

Downloads

TECHNICAL DOCUMENTS

PDF

Technical Drawing / Datasheet - D2XXX.pdf

ZIP

D2924-xx CAD Model (ZIP file containing STP)

Download
PDF

C004XX Component Specification - 2.54mm pitch Round Pin IC Sockets and Headers

ENVIRONMENTAL COMPLIANCE

PDF

RoHS Compliant (2015/863/EU) with Exemption 6c

PDF

REACH Harwin statement (12-Feb-2021) including 211 SVHC (19-Jan-2021), Annex XIV & XVII

XLSX

Conflict Minerals Reporting Template (CMRT 6.1) - Company Summary Statement

XLSX

Cobalt Reporting Template (CRT 2.2) - Company Summary Statement

PDF

Environmental Legislation Statement (12-Feb-2021) - includes all material legislations

PDF

Material composition for D27XX, D28XX, D29XX series

OTHER DOWNLOADS

PDF

Catalog page - Dual Row IC Sockets

PDF

Outgassing data for Harwin products (plastics)
