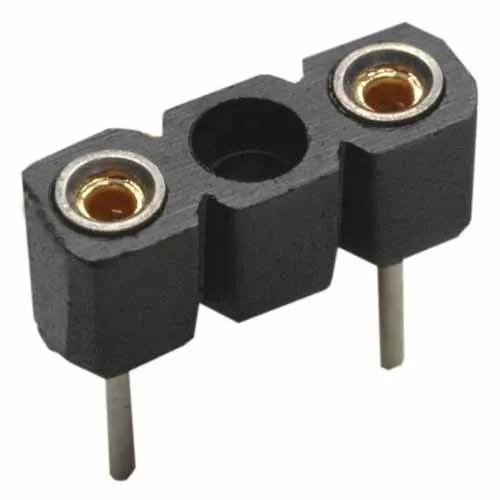

IC Socket Strip, suitable for use as a fuse holder or other 2-tail components. Gold finish on contact area, Tin finish on termination.
2 contacts in a single row, 5.08mm (0.2") pitch between contacts.
Suitable for a Ø0.40-0.56mm mating pin.
Checking stock availability...
Technical Drawings & CADs
Jump to technical details
Technical Drawing
View
TraceParts
CAD/ECAD
TraceParts
3D Viewer
SamacSys
3D Model, PCB Symbol & Footprint
Related Products
Further Details
Jump To:
Technical Details
Product Characteristics
Materials
Dimensions
Downloads
Technical Documentation
Environmental Compliance
Technical Details
Product Characteristics
End Stackable
Yes
Mating Pin Size
Ø0.5mm
Number of Rows
1
Connector Orientation
Vertical
Country of Origin
GB
Side Stackable
Yes
Number of Signal Contacts
2
Operating Temperature
-55°C to +125°C
RoHS Status
RoHS Compliant (2015/863/EU) with Exemption 6c
Current Rating
1.5A max per contact at 25°C, 0.25A max at 85°C
Soldering Data
Max Solder Temperature: 260°C for 10 seconds
Materials
Finish / Plating on Contact Surface
Gold
Housing Material
Polyamide (Nylon) 46
Base Material of Contact
Beryllium Copper contact clip, Brass shell
Flammability Rating
UL94V-0
Packaging Style
Bulk/Loose
Finish / Plating on Termination
100% Tin over Nickel
Housing Colour
Black
Dimensions
Contact Pitch
5.08mm (0.2")
Weight
0.136g
Dimensions
7.62 max x 2.54 x 6.90
PC Tail Length
3.00mm
Height of Connector above PCB
3.90mm
Downloads
Technical Documentation
Technical Drawing / Datasheet - D2899.pdf
C004XX Component Specification - 2.54mm pitch Round Pin IC Sockets and Headers
Outgassing data for Harwin products (plastics)
Environmental Compliance
REACH - Harwin statement including all current SVHCs & Annex XIV & XVII
Conflict Minerals Reporting Template (CMRT) - Company Summary Statement
Extended Mineral Reporting Template (EMRT) - Company Summary Statement
Environmental Legislation Statement
Material composition for D2899 series
RoHS Declaration - D2899-42
