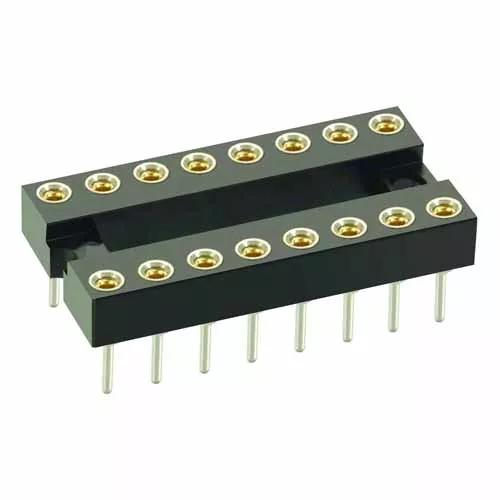

12+12 Pos. Female DIL Vertical Throughboard IC Socket
Sockets - 2.54mm Pitch IC Dual Row Connector
- PC Tail IC Socket Assembly – 24 x contacts in a dual row format. Gold finish on contact area, Tin finish on termination.
- 15.24mm (0.6″) spacing between rows, and 2.54mm (0.1″) contact pitch on each row.
- Suitable for a Ø0.40-0.56mm mating pin.
EU RoHS Status:
PC Tail / Throughboard
Mating Pin Size:
1A max per contact
-55°C to +125°C
Max Solder Temperature: 260°C for 10 seconds
Can be cut to another size:
Number of Rows:
Number of Signal Contacts:
Finish / Plating on Termination:
100% Tin over Nickel
Finish / Plating on Contact Surface:
Base Material of Contact:
Beryllium Copper contact clip, Brass shell
Housing Material UL Rating:
Individual Part Weight:
Overall Dimensions (L x W x D) in mm:
30.40 x 17.64 x 7.40
Height of Connector above PCB:
Length of Throughboard Tail:
309 in stock
Low availability or made to order: This product is typically manufactured to order. When out of stock, minimum order quantities may apply.
D2824-xx CAD Model (ZIP file containing STP)Download
