D2818-42

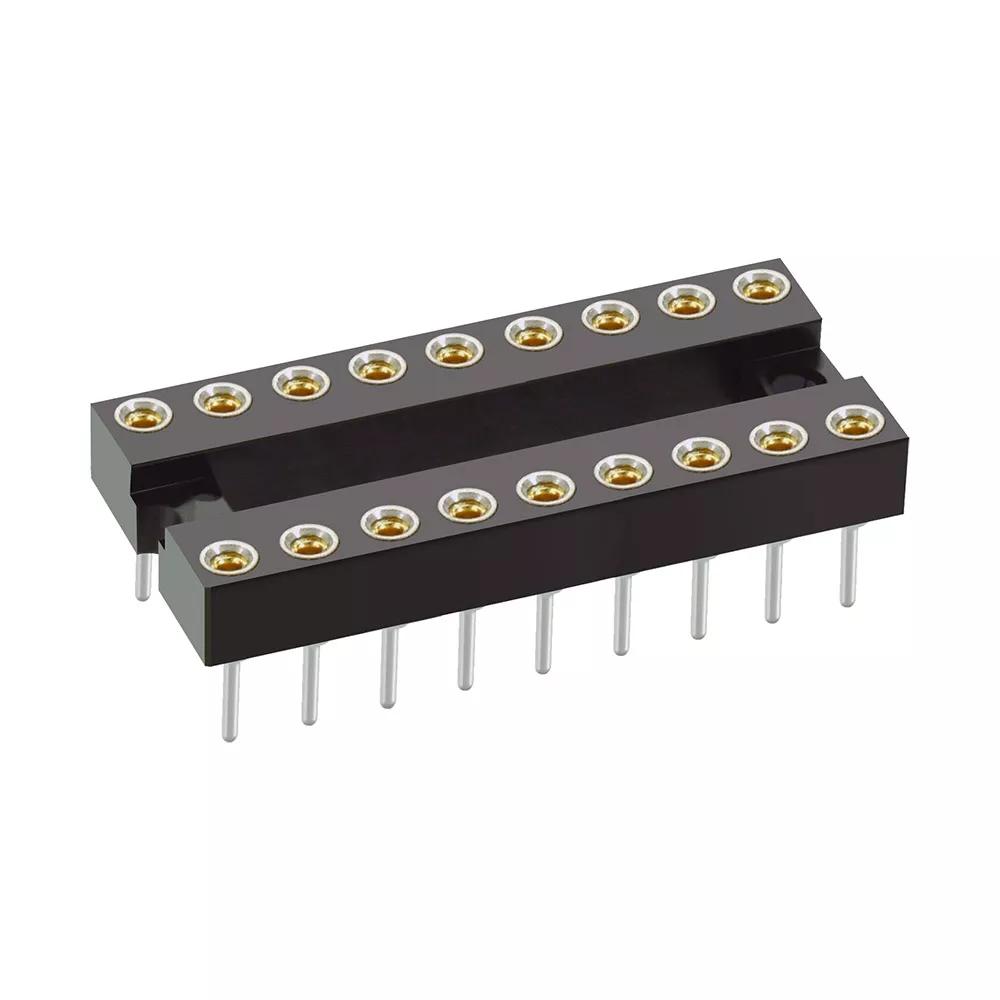

9+9 Pos. Female DIL Vertical Throughboard IC Socket

Sockets - 2.54mm Pitch IC Dual Row Connector

  • PC Tail IC Socket Assembly – 18 x contacts in a dual row format. Gold finish on contact area, Tin finish on termination.
  • 7.62mm (0.3″) spacing between rows, and 2.54mm (0.1″) contact pitch on each row.
  • Suitable for a Ø0.40-0.56mm mating pin.
Add to Favorites

Technical Details

Specification

Contact Pitch:

2.54mm (0.1")

Contact Gender:

Female/Socket/Jack

Connector Orientation:

Vertical

Connection Type:

PC Tail / Throughboard

Mating Pin Size:

Ø0.5mm

Current Rating:

1A max per contact

Operating Temperature:

-55°C to +125°C

Soldering Data:

Max Solder Temperature: 260°C for 10 seconds

Polarising Features:

No

End Stackable:

Yes

Side Stackable:

Yes

Can be cut to another size:

No

Number of Rows:

2

Number of Signal Contacts:

18

Materials

Finish / Plating on Termination:

100% Tin over Nickel

Finish / Plating on Contact Surface:

Gold

Base Material of Contact:

Beryllium Copper contact clip, Brass shell

Housing Material:

PCT

Housing Colour:

Black

Housing Material UL Rating:

UL94V-0

Packaging Style:

Tube

Dimensions

Individual Part Weight:

1.175g

Overall Dimensions (L x W x D) in mm:

22.80 x 10.02 x 7.40

Height of Connector above PCB:

4.20mm

Length of Throughboard Tail:

3.20mm

Availability

2,976 in stock

Info Circle

Low availability or made to order: This product is typically manufactured to order. When out of stock, minimum order quantities may apply.
