D2816-42

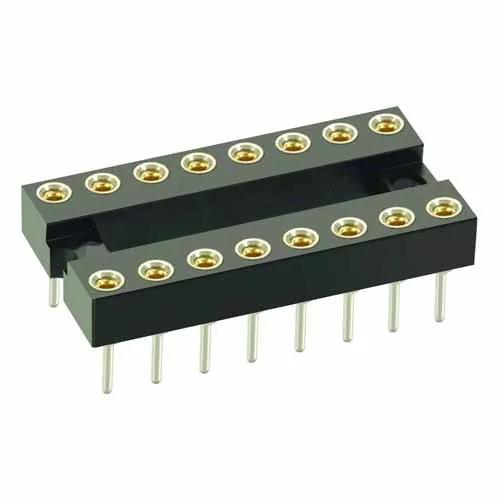

2.54mm (0.1") Pitch Dual Row Throughboard IC Socket Assembly, 7.62 (.3") between rows, gold clip + tin shell, 16 contacts

EZi

Traceparts account required

D2816-42

2.54mm (0.1") Pitch Dual Row Throughboard IC Socket Assembly, 7.62 (.3") between rows, gold clip + tin shell, 16 contacts


Sockets - 2.54mm Pitch IC Dual Row Connector

  • PC Tail IC Female/Socket Connector - 16 x contacts in a dual row format. Gold finish on contact area, Tin finish on termination.

  • 7.62mm (0.3") spacing between rows, and 2.54mm (0.1") contact pitch on each row.

  • Suitable for a Ø0.40-0.56mm mating pin.

View Technical Details & Downloads


Checking stock availability...

Check Availability

Further Details

Jump To:

Technical Details

Product Characteristics

Materials

Dimensions

Downloads

Technical Documentation

Environmental Compliance

Technical Details

Product Characteristics

  • End Stackable:

    Yes

  • Mating Pin Size:

    Ø0.5mm

  • Number of Rows:

    2

  • Connector Orientation:

    Vertical

  • Country of Origin:

    CH

  • Side Stackable:

    Yes

  • Number of Signal Contacts:

    16

  • Operating Temperature:

    -55°C to +125°C

  • RoHS Status:

    RoHS Compliant (2015/863/EU) with Exemption 6c

  • Current Rating:

    1A max per contact

  • Soldering Data:

    Max Solder Temperature: 260°C for 10 seconds

  • Cuttable:

    No

Materials

  • Finish / Plating on Contact Surface:

    Gold

  • Housing Material:

    PCT

  • Base Material of Contact:

    Beryllium Copper contact clip, Brass shell

  • Flammability Rating:

    UL94V-0

  • Packaging Style:

    Tube

  • Finish / Plating on Termination:

    100% Tin over Nickel

  • Housing Colour:

    Black

Dimensions

  • Contact Pitch:

    2.54mm (0.1")

  • Weight:

    1.038g

  • Dimensions:

    20.30 x 10.02 x 7.40

  • PC Tail Length:

    3.20mm

  • Height of Connector above PCB:

    4.20mm

Downloads

    Technical Documentation

  • Technical Drawing / Datasheet - D2XXX.pdf

  • C004XX Component Specification - 2.54mm pitch Round Pin IC Sockets and Headers

  • Outgassing data for Harwin products (plastics)

  • Environmental Compliance

  • RoHS - D2816-42

  • Material composition for D27XX + D28XX + D29XX series

  • REACH - Harwin statement including all current SVHCs & Annex XIV & XVII

  • Environmental Legislation Statement - includes all material legislations

  • Extended Mineral Reporting Template (EMRT) - Company Summary Statement

  • Conflict Minerals Reporting Template (CMRT) - Company Summary Statement
