D0808-42

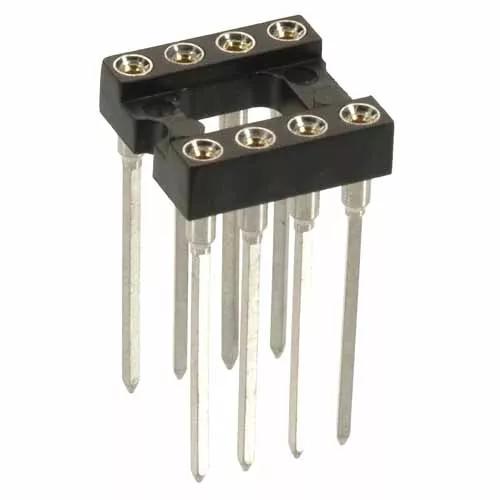

4+4 Pos. Female DIL Vertical Wire Wrap IC Socket

Sockets - 2.54mm Pitch IC Dual Row Connector

  • IC 3-Level Wire Wrap Socket Assembly – 8 x contacts in a dual row format. Gold finish on contact area, Tin finish on termination.
  • 7.62mm (0.3″) spacing between rows, and 2.54mm (0.1″) contact pitch on each row.
  • Suitable for a Ø0.40-0.56mm mating pin.
Add to Favorites

Technical Details

Specification

Contact Pitch:

2.54mm (0.1")

Contact Gender:

Female/Socket/Jack

Connector Orientation:

Vertical

Connection Type:

PC Tail / Throughboard

Mating Pin Size:

Ø0.5mm

Current Rating:

1A per contact

Operating Temperature:

-55°C to +125°C

Soldering Data:

Max Solder Temperature: 260°C for 10 seconds

Polarising Features:

No

End Stackable:

Yes

Side Stackable:

Yes

Can be cut to another size:

No

Number of Rows:

2

Number of Signal Contacts:

8

Materials

Finish / Plating on Termination:

100% Tin over Nickel

Finish / Plating on Contact Surface:

Gold

Base Material of Contact:

Beryllium Copper contact clip, Brass shell

Housing Material:

PCT

Housing Colour:

Black

Housing Material UL Rating:

UL94V-0

Packaging Style:

Tube

Dimensions

Individual Part Weight:

0.94g

Overall Dimensions (L x W x D) in mm:

10.10 x 10.02 x 17.46

Height of Connector above PCB:

4.51mm

Length of Throughboard Tail:

12.95.00mm

Availability

6,824 in stock

Info Circle

Low availability or made to order: This product is typically manufactured to order. When out of stock, minimum order quantities may apply.

Limited availability or made-to-order
Distributor Location Quantity (Updated Daily)
Distributor Farnell
Location Europe
Quantity (Updated Daily) 5632
Distributor Mouser Electronics Inc
Location Global
Quantity (Updated Daily) 550
Distributor Digi-Key
Location Global
Quantity (Updated Daily) 235
Distributor Genalog
Location Europe
Quantity (Updated Daily) 210
Distributor TTI Inc
Location USA
Quantity (Updated Daily) 156
Distributor Newark
Location USA
Quantity (Updated Daily) 41
