D01-9973242

D01-9973242

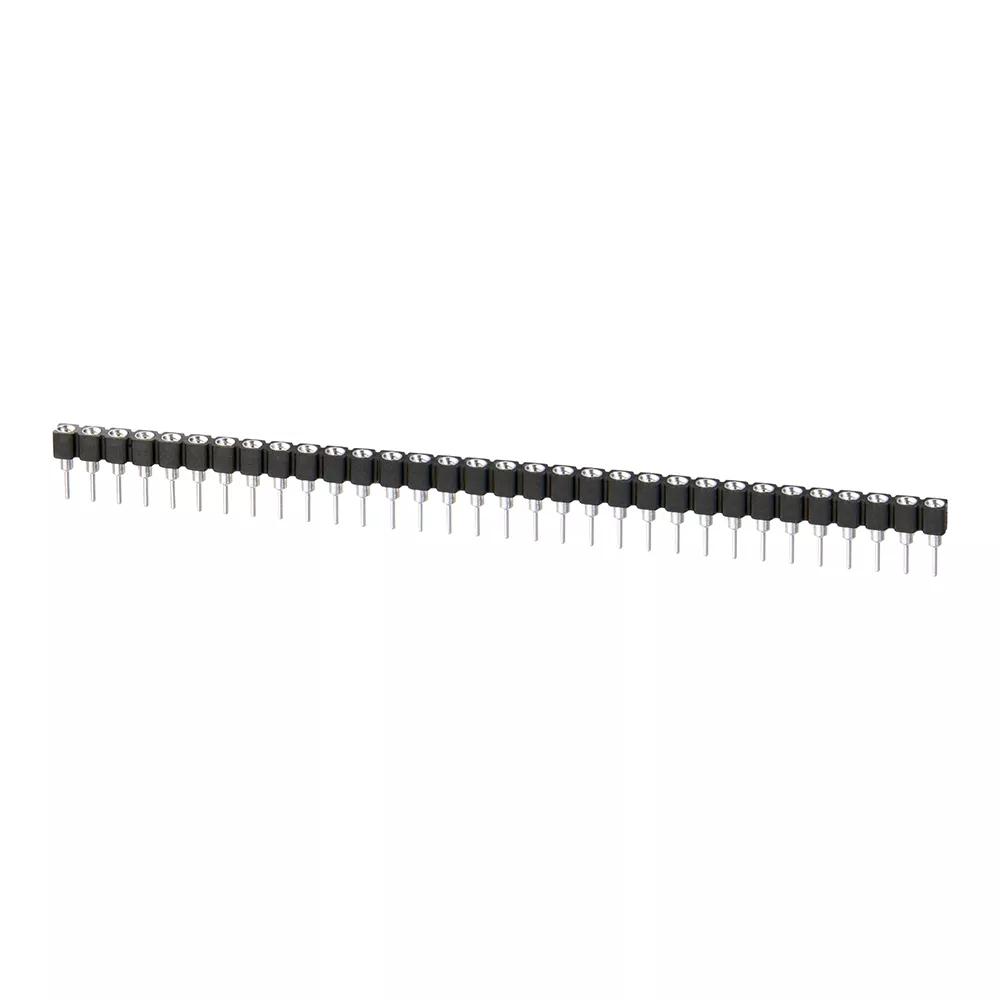

32 Pos. Female SIL Vertical Throughboard IC Strip

EZi

Image may be representative. Refer to the product title for more information.

D01-9973242

32 Pos. Female SIL Vertical Throughboard IC Strip

Sockets - 2.54mm Pitch IC Modular Strip

  • PC Tail IC Socket Strip - 32 x contacts in a single row.

  • Gold finish on contact area, Tin finish on termination. 2.54mm (0.1") pitch on strip.

  • Suitable for a Ø0.40-0.56mm mating pin.

Checking stock availability...

Technical Drawings & CADs

Jump to technical details

  • TraceParts

    CAD/ECAD

  • TraceParts

    3D Viewer

  • SamacSys

    3D Model, PCB Symbol & Footprint

Further Details

Jump To:

Technical Details

Product Characteristics

Materials

Dimensions

Downloads

Technical Documentation

Environmental Compliance

Technical Details

Product Characteristics

  • End Stackable

    No

  • Mating Pin Size

    Ø0.5mm

  • Number of Rows

    1

  • Connector Orientation

    Vertical

  • Country of Origin

    CH

  • Side Stackable

    Yes

  • Number of Signal Contacts

    32

  • Operating Temperature

    -55°C to +125°C

  • RoHS Status

    RoHS Compliant (2015/863/EU) with Exemption 6c

  • Current Rating

    1A per contact

  • Soldering Data

    Max Solder Temperature: 260°C for 10 seconds

  • Cuttable

    Yes

Materials

  • Finish / Plating on Contact Surface

    Gold

  • Housing Material

    PCT

  • Base Material of Contact

    Beryllium Copper contact clip, Brass shell

  • Flammability Rating

    UL94V-0

  • Packaging Style

    Bulk/Loose

  • Finish / Plating on Termination

    100% Tin over Nickel

  • Housing Colour

    Black

Dimensions

  • Contact Pitch

    2.54mm (0.1")

  • Weight

    1.904g

  • Dimensions

    81.28 x 2.54 x 7.37

  • PC Tail Length

    3.17mm

  • Height of Connector above PCB

    4.20mm

Downloads

Technical Documentation

  • Technical Drawing / Datasheet - D01-997.pdf

  • C004XX Component Specification - 2.54mm pitch Round Pin IC Sockets and Headers

  • Outgassing data for Harwin products (plastics)

Environmental Compliance

  • REACH - Harwin statement including all current SVHCs & Annex XIV & XVII

  • Conflict Minerals Reporting Template (CMRT) - Company Summary Statement

  • Extended Mineral Reporting Template (EMRT) - Company Summary Statement

  • Environmental Legislation Statement

  • Material composition for D01-997 series

  • RoHS Declaration - D01-9973242
