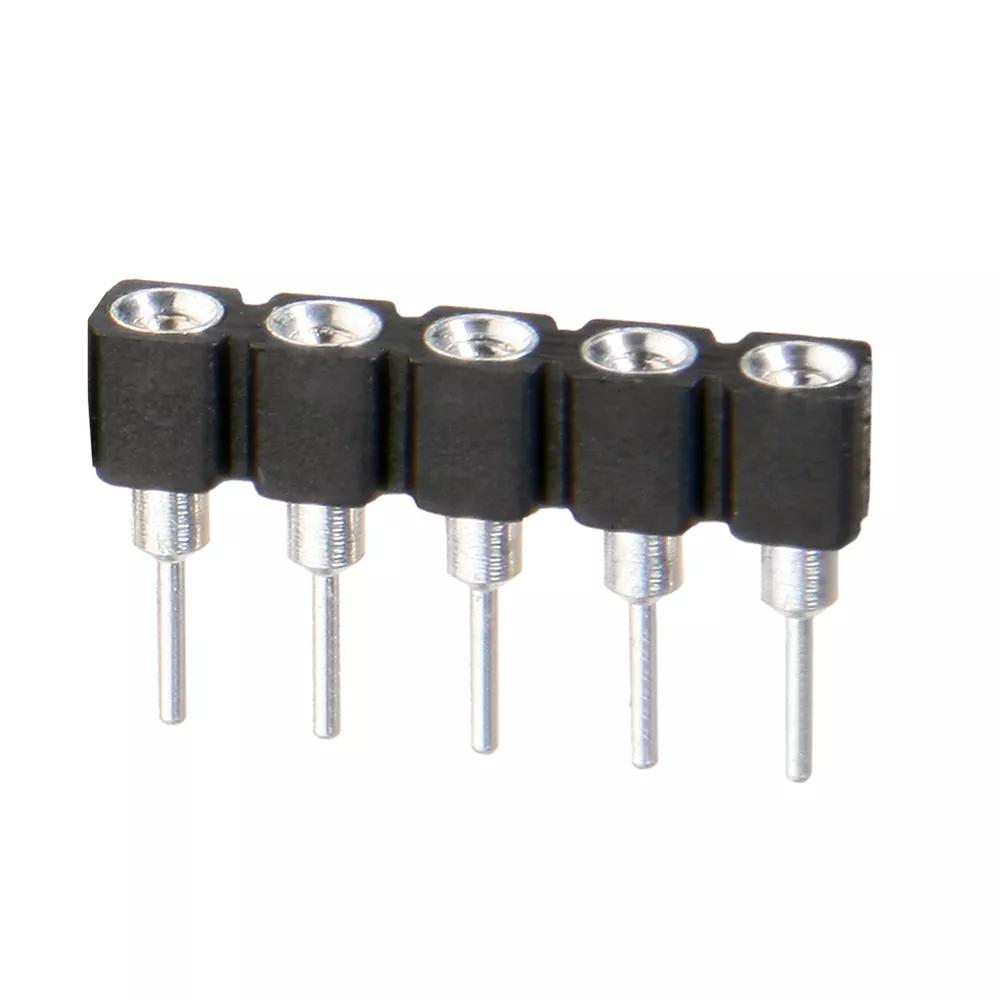

D01-9970542

2.54mm (0.1") Pitch Throughboard IC Socket Strip, gold clip + tin shell, 5 contacts


Sockets - 2.54mm Pitch IC Modular Strip

  • PC Tail IC Socket Strip - 5 x contacts in a single row.

  • Gold finish on contact area, Tin finish on termination. 2.54mm (0.1") pitch on strip.

  • Suitable for a Ø0.40-0.56mm mating pin.


Checking stock availability...

Check Availability

Further Details

Jump To:

Technical Details

Specification

Downloads

Environmental Compliance

Technical Documentation

Technical Details

Specifications

  • Contact Pitch:

    2.54mm (0.1")

  • Contact Gender:

    Female/Socket/Jack

  • Connector Orientation:

    Vertical

  • PCB Mounting:

    PC Tail / Throughboard

  • Mating Pin Size:

    Ø0.5mm

  • End Stackable:

    No

  • Side Stackable:

    Yes

  • Number of Rows:

    1

  • Number of Signal Contacts:

    5

  • Finish / Plating on Termination:

    100% Tin over Nickel

  • Finish / Plating on Contact Surface:

    Gold

  • Base Material of Contact:

    Beryllium Copper contact clip, Brass shell

  • Housing Material:

    PCT

  • Flammability Rating:

    UL94V-0

  • Packaging Style:

    Bulk/Loose

  • Height of Connector above PCB:

    4.20mm

  • PC Tail Length:

    3.17mm

  • RoHS Status:

    RoHS Compliant (2015/863/EU) with Exemption 6c

  • Connection Type:

    PC Tail / Throughboard

  • Current Rating:

    1A per contact

  • Soldering Data:

    Max Solder Temperature: 260°C for 10 seconds

  • Weight:

    0.298g

  • Dimensions:

    12.7 x 2.54 x 7.37

  • Operating Temperature:

    -55°C to +125°C

  • Country of Origin:

    CH

  • Cuttable:

    Yes

  • Housing Colour:

    Black
