D01-9970242

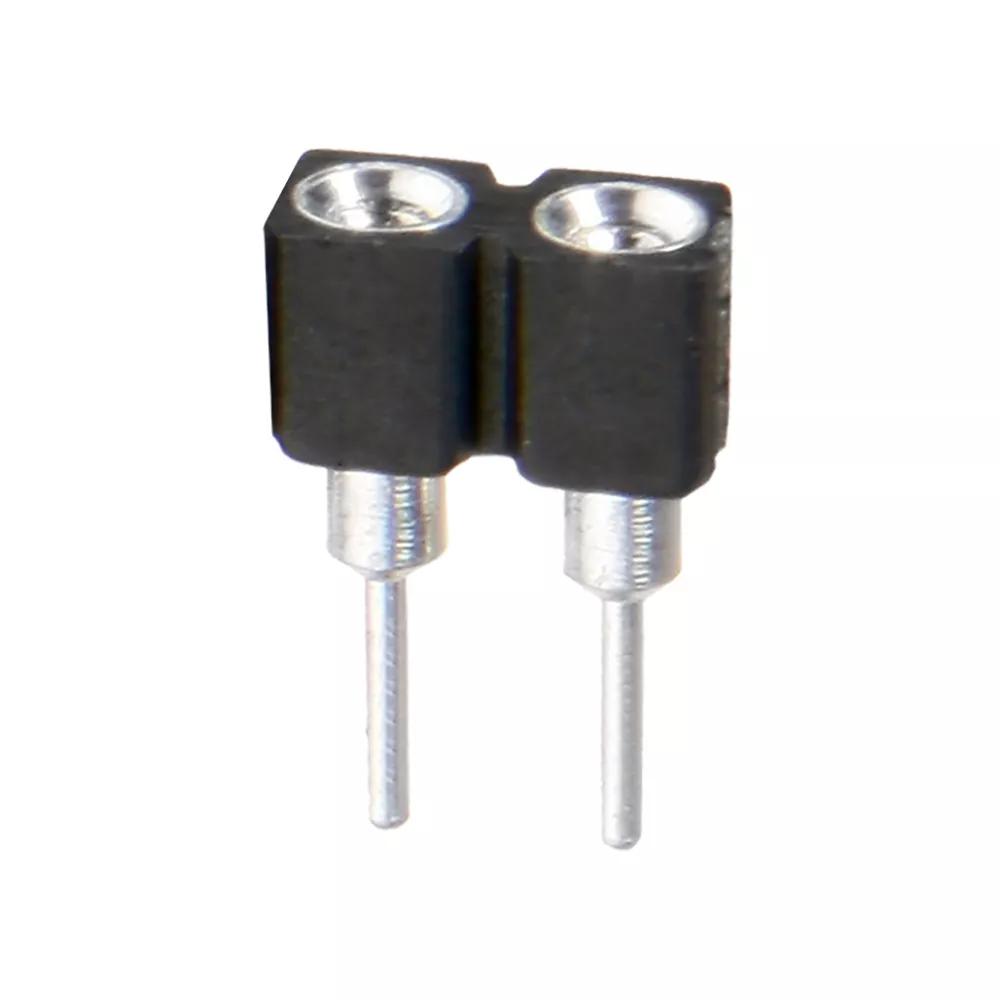

2 Pos. Female SIL Vertical Throughboard IC Strip

Sockets - 2.54mm Pitch IC Modular Strip

  • PC Tail IC Socket Strip – 2 x contacts in a single row.
  • Gold finish on contact area, Tin finish on termination. 2.54mm (0.1″) pitch on strip.
  • Suitable for a Ø0.40-0.56mm mating pin.
Add to Favorites

Technical Details

Specification

Contact Pitch:

2.54mm (0.1")

Contact Gender:

Female/Socket/Jack

Connector Orientation:

Vertical

Connection Type:

PC Tail / Throughboard

Mating Pin Size:

Ø0.5mm

Current Rating:

1A per contact

Operating Temperature:

-55°C to +125°C

Soldering Data:

Max Solder Temperature: 260°C for 10 seconds

End Stackable:

No

Side Stackable:

Yes

Can be cut to another size:

Yes

Number of Rows:

1

Number of Signal Contacts:

2

Materials

Finish / Plating on Termination:

100% Tin over Nickel

Finish / Plating on Contact Surface:

Gold

Base Material of Contact:

Beryllium Copper contact clip, Brass shell

Housing Material:

PCT

Housing Colour:

Black

Housing Material UL Rating:

UL94V-0

Packaging Style:

Bulk/Loose

Dimensions

Individual Part Weight:

0.119g

Overall Dimensions (L x W x D) in mm:

5.08 x 2.54 x 7.37

Height of Connector above PCB:

4.20mm

Length of Throughboard Tail:

3.17mm
