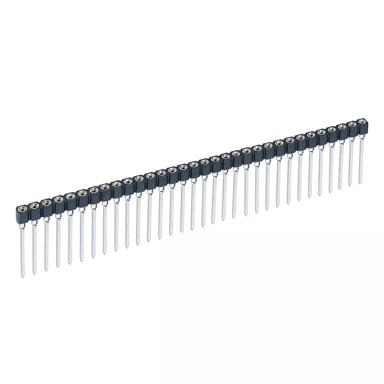

2.54mm (0.1") Pitch IC 3-Level Wire Wrap Socket Strip, gold clip + tin shell, 32 contacts

EZi

Traceparts account required

D01-9953242

2.54mm (0.1") Pitch IC 3-Level Wire Wrap Socket Strip, gold clip + tin shell, 32 contacts


Sockets - 2.54mm Pitch IC Modular Strip

  • IC 3-Level Wire Wrap Socket Strip - 32 x contacts in a single row.

  • Gold finish on contact area, Tin finish on termination. 2.54mm (0.1") pitch on strip.

  • Suitable for a Ø0.40-0.56mm mating pin.

View Technical Details & Downloads


Checking stock availability...

Check Availability

Further Details

Jump To:

Technical Details

Product Characteristics

Materials

Dimensions

Downloads

Technical Documentation

Environmental Compliance

Technical Details

Product Characteristics

  • End Stackable:

    No

  • Mating Pin Size:

    Ø0.5mm

  • Number of Rows:

    1

  • Connector Orientation:

    Vertical

  • Country of Origin:

    CH

  • Side Stackable:

    Yes

  • Number of Signal Contacts:

    32

  • Operating Temperature:

    -55°C to +125°C

  • RoHS Status:

    RoHS Compliant (2015/863/EU) with Exemption 6c

  • Current Rating:

    1A per contact

  • Soldering Data:

    Max Solder Temperature: 260°C for 10 seconds

  • Cuttable:

    Yes

Materials

  • Finish / Plating on Contact Surface:

    Gold

  • Housing Material:

    PCT

  • Base Material of Contact:

    Beryllium Copper contact clip, Brass shell

  • Flammability Rating:

    UL94V-0

  • Packaging Style:

    Bulk/Loose

  • Finish / Plating on Termination:

    100% Tin over Nickel

  • Housing Colour:

    Black

Dimensions

  • Contact Pitch:

    2.54mm (0.1")

  • Weight:

    3.475g

  • Dimensions:

    81.28 x 2.54 x 17.85

  • PC Tail Length:

    12.95mm

  • Height of Connector above PCB:

    4.90mm

Downloads

    Technical Documentation

  • Technical Drawing / Datasheet - D01-995.pdf

  • C004XX Component Specification - 2.54mm pitch Round Pin IC Sockets and Headers

  • Outgassing data for Harwin products (plastics)

  • Environmental Compliance

  • RoHS - D01-9953242

  • Material composition for D01-995 series

  • REACH - Harwin statement including all current SVHCs & Annex XIV & XVII

  • Environmental Legislation Statement - includes all material legislations

  • Extended Mineral Reporting Template (EMRT) - Company Summary Statement

  • Conflict Minerals Reporting Template (CMRT) - Company Summary Statement
