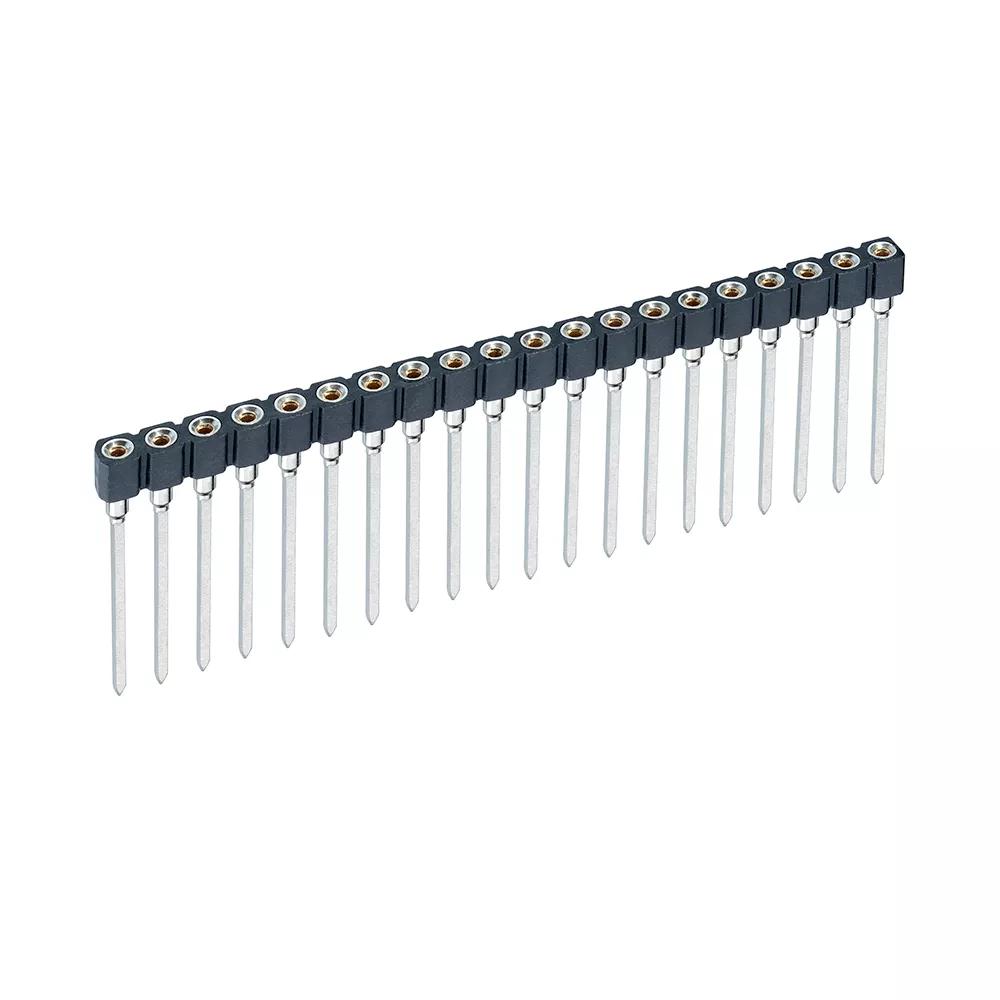

20 Pos. Female SIL Vertical Wire Wrap IC Strip
Sockets - 2.54mm Pitch IC Modular Strip
- IC 3-Level Wire Wrap Socket Strip – 20 x contacts in a single row.
- Gold finish on contact area, Tin finish on termination. 2.54mm (0.1″) pitch on strip.
- Suitable for a Ø0.40-0.56mm mating pin.
EU RoHS Status:
PC Tail / Throughboard
Mating Pin Size:
1A per contact
-55°C to +125°C
Max Solder Temperature: 260°C for 10 seconds
Can be cut to another size:
Number of Rows:
Number of Signal Contacts:
Finish / Plating on Termination:
100% Tin over Nickel
Finish / Plating on Contact Surface:
Base Material of Contact:
Beryllium Copper contact clip, Brass shell
Housing Material UL Rating:
Individual Part Weight:
Overall Dimensions (L x W x D) in mm:
50.80 x 2.54 x 17.85
Height of Connector above PCB:
Length of Throughboard Tail:
Frequently Asked Questions Ask a Question
RoHS Compliant (2015/863/EU) with Exemption 6cPDF Download
