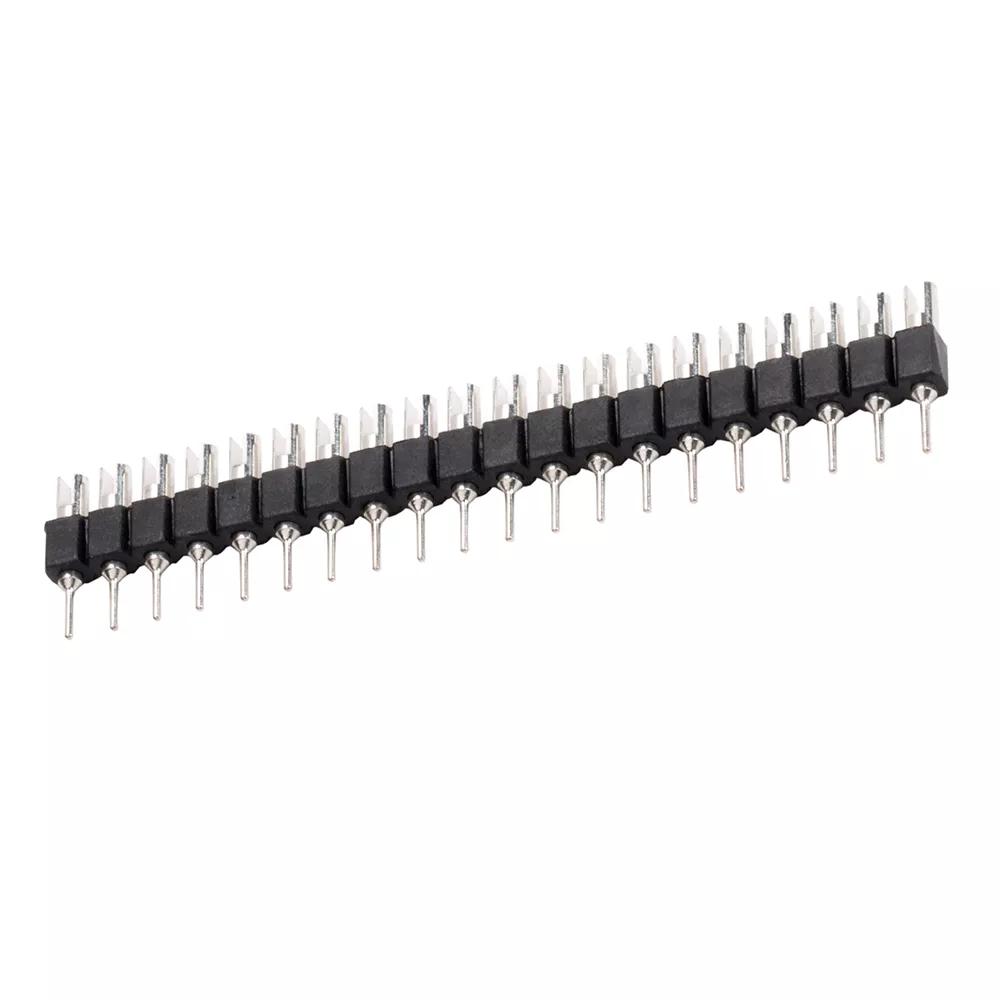

Product Characteristics

• End Stackable:

  No

• Number of Rows:

  1

• Connector Orientation:

  Vertical

• Country of Origin:

  TW

• Side Stackable:

  Yes

• Number of Signal Contacts:

  20

• Operating Temperature:

  -55°C to +125°C

• RoHS Status:

  RoHS Compliant (2015/863/EU) with Exemption 6c

• Current Rating:

  1.5A max per contact at 25°C, 0.25A max at 85°C

• Soldering Data:

  Max Solder Temperature: 260°C for 10 seconds

• Cuttable:

  Yes

Materials

• Finish / Plating on Contact Surface:

  100% Tin over Nickel

• Housing Material:

  Polyamide (Nylon) 46

• Base Material of Contact:

  Brass

• Flammability Rating:

  UL94V-0

• Packaging Style:

  Bulk/Loose

• Finish / Plating on Termination:

  100% Tin over Nickel

• Housing Colour:

  Black

Dimensions

• Contact Pitch:

  2.54mm (0.1")

• Weight:

  2.418g

• Dimensions:

  50.90 x 2.54 x 10.06

• PC Tail Length:

  3.08mm

• Height of Connector above PCB:

  6.98mm
