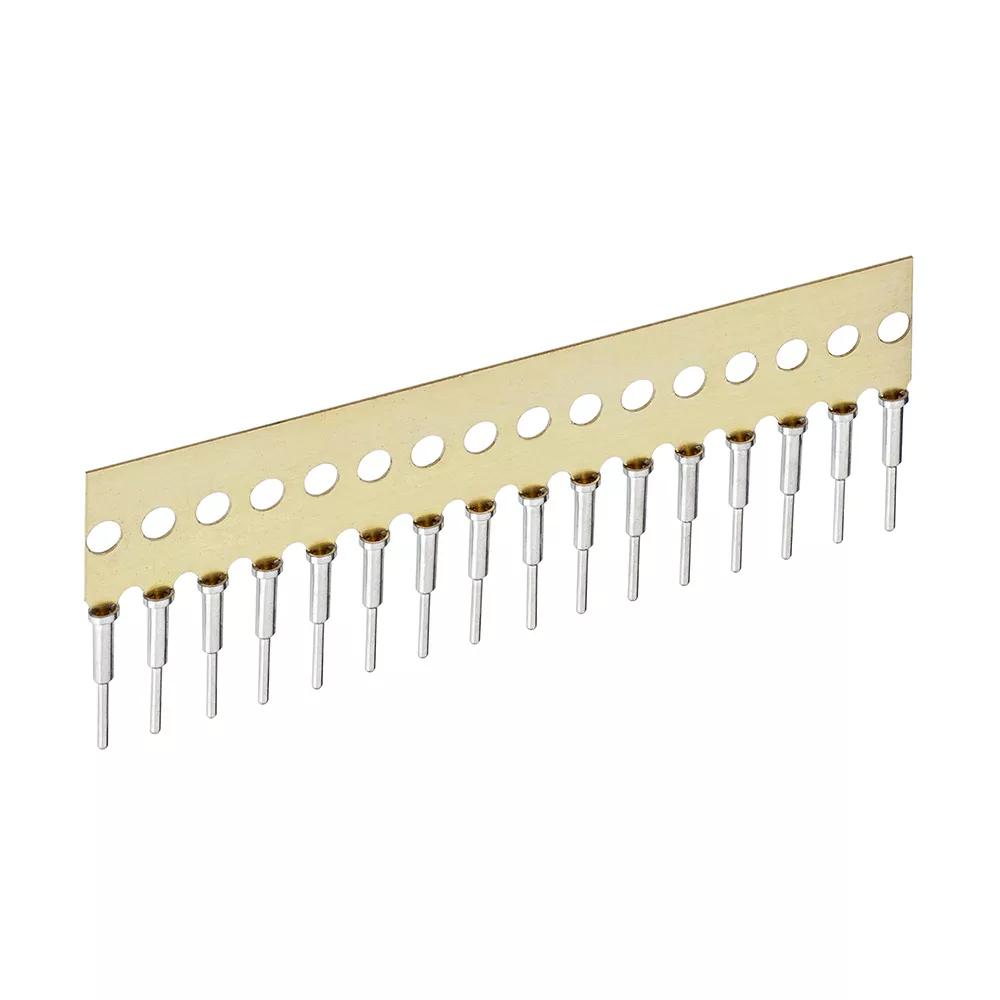

Female Vertical Throughboard Ø0.50mm Contact, 16 per carrier
Sockets - Individual Throughboard PCB Socket
EU RoHS Status:
PC Tail / Throughboard
Mating Pin Size:
2A max at 25°C, 1.75A max at 85°C
-55°C to +125°C
Max Solder Temperature: 260°C for 10 seconds
Can be cut to another size:
Number of Rows:
Number of Signal Contacts:
Finish / Plating on Termination:
100% Tin over Nickel
Finish / Plating on Contact Surface:
Base Material of Contact:
Beryllium Copper contact clip, Brass shell
Individual Part Weight:
Overall Dimensions (L x W x D) in mm:
39.90 max x 1.42 x 14.29
Height of Connector above PCB:
Length of Throughboard Tail:
