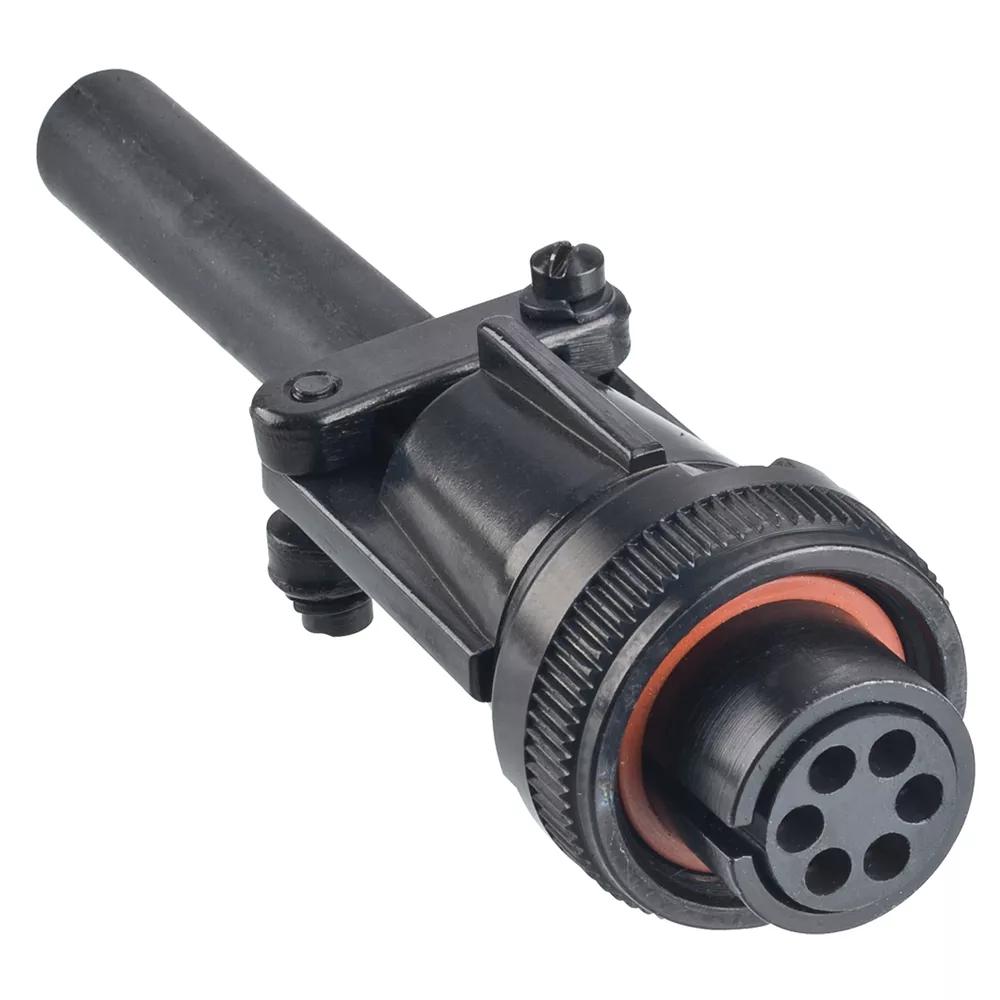

Circular Straight Plug with 14S shell size, Female contacts, 6 x size 16 contacts, silver

BBi

Traceparts account required

C90-3106F14S-6S

Circular Straight Plug with 14S shell size, Female contacts, 6 x size 16 contacts, silver


Circular Connector equivalent to MIL-DTL-5015 (MIL-C-5015)

  • RoHS Compliant version of MIL-DTL-5015 (MIL-C-5015) Circular Connectors, sealed to IP67.

  • Plug shell, 6 x Female contacts for 16-22 AWG cable, supplied with rubber bushing C90-3420-6. Silver finish on contact area and solder termination.

  • For complete pin numbering or pin out information, see Component Specification C045XX.

View Technical Details & Downloads


Checking stock availability...

Check Availability

Further Details

Jump To:

Technical Details

Product Characteristics

Materials

Dimensions

Downloads

Product Information

Technical Documentation

Environmental Compliance

Technical Details

Product Characteristics

  • Mating Pin Size:

    Ø1.6mm

  • Connector Orientation:

    Straight

  • Country of Origin:

    IN

  • Number of Signal Contacts:

    6

  • Operating Temperature:

    -55°C to +125°C

  • RoHS Status:

    RoHS Compliant (2015/863/EU) with Exemption 6c

  • Current Rating:

    13A per contact

  • Polarised:

    Yes

Materials

  • Finish / Plating on Contact Surface:

    Silver

  • Housing Material:

    Aluminium Alloy

  • Base Material of Contact:

    Copper Alloy

  • Packaging Style:

    Single Pack

  • Finish / Plating on Termination:

    Silver

  • Housing Colour:

    Black

Dimensions

  • Weight:

    49.89g

  • Dimensions:

    58.72 x √ò28.30

  • Thread Size:

    7/8-24UNEF

  • Wire Size:

    16-22 AWG

Downloads

    Product Information

  • IS-54 - C90 Circular Connectors Assembly Instruction Sheet

  • Product Training Module - Overview of the C90 RoHS Circular Connector range + designed to MIL-DTL-5015

  • Product Training Module - Cable Products from Harwin

  • Product Training Module - Cable Connectors and Assemblies from Harwin

  • Technical Documentation

  • Technical Drawing / Datasheet - C90-3106F.pdf

  • C045XX Component Specification - C90 Circular Connectors (MIL-DTL-5015 style connectors)

  • Outgassing data for Harwin products (plastics)

  • Environmental Compliance

  • RoHS - C90-3106F14S-6S

  • REACH - Harwin statement including all current SVHCs & Annex XIV & XVII

  • Environmental Legislation Statement - includes all material legislations

  • Extended Mineral Reporting Template (EMRT) - Company Summary Statement

  • Conflict Minerals Reporting Template (CMRT) - Company Summary Statement
