Circular Connector equivalent to MIL-DTL-5015 (MIL-C-5015)
RoHS Compliant version of MIL-DTL-5015 (MIL-C-5015) Circular Connectors, sealed to IP67.

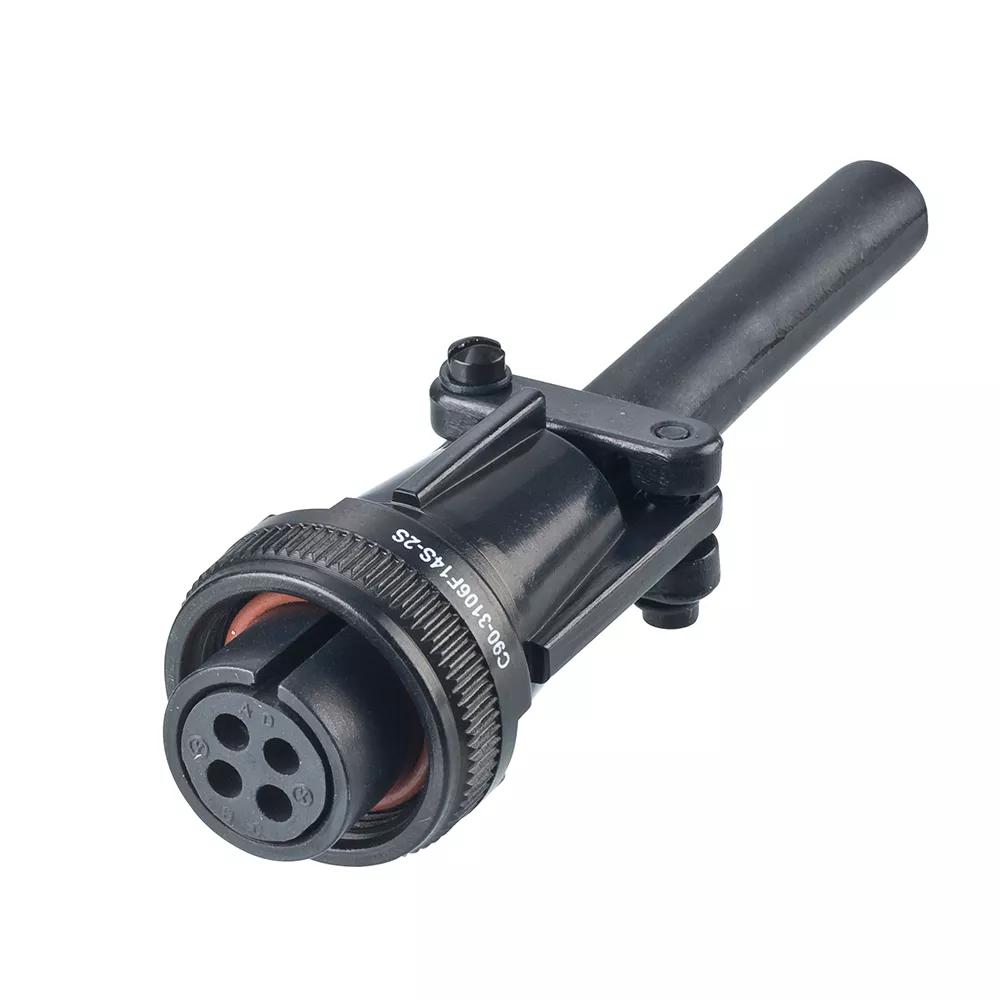

Plug shell, 4 x Female contacts for 16-22 AWG cable, supplied with rubber bushing C90-3420-6. Silver finish on contact area and solder termination.
For complete pin numbering or pin out information, see Component Specification C045XX. See instruction sheet IS-54 for advice on assembly.
View Technical Details & Downloads
Checking stock availability...
Check Availability
Related Products
Further Details
Jump To:
Product Characteristics
Materials
Dimensions
Technical Documentation
Product Information
Environmental Compliance
Technical Details
Product Characteristics
Mating Pin Size:
Ø1.6mm
Connector Orientation:
Straight
Country of Origin:
IN
Number of Power/Coax Contacts:
4
Operating Temperature:
-55°C to +125°C
RoHS Status:
RoHS Compliant (2015/863/EU) with Exemption 6c
Current Rating:
13A per contact
Polarised:
Yes
Materials
Finish / Plating on Contact Surface:
Silver
Housing Material:
Aluminium Alloy
Base Material of Contact:
Copper Alloy
Packaging Style:
Single Pack
Finish / Plating on Termination:
Silver
Housing Colour:
Black
Dimensions
Weight:
49.81g
Dimensions:
58.72 x Ø28.30
Thread Size:
7/8-24UNEF
Wire Size:
16 AWG18 AWG20 AWG22 AWG
Downloads
Technical Drawing / Datasheet - C90-3106F.pdf
C045XX Component Specification - C90 Circular Connectors (MIL-DTL-5015 style connectors)
Product Training Module - Overview of the C90 RoHS Circular Connector range + designed to MIL-DTL-5015
Product Training Module - Cable Connectors and Assemblies from Harwin
Product Training Module - Cable Products from Harwin
IS-54 - C90 Circular Connectors Assembly Instruction Sheet
REACH - Harwin statement including all current SVHCs & Annex XIV & XVII
Conflict Minerals Reporting Template (CMRT) - Company Summary Statement
Extended Mineral Reporting Template (EMRT) - Company Summary Statement
Environmental Legislation Statement - includes all material legislations
Material composition for C90-3106F14S-2S product
RoHS - C90-3106F14S-2S
