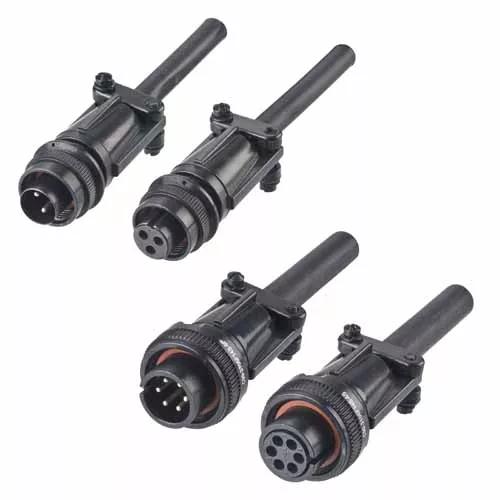

2 Pos. Circular Straight Plug Conn. Plug contact
Circular Connector equivalent to MIL-DTL-5015 (MIL-C-5015)
- RoHS Compliant version of MIL-DTL-5015 (MIL-C-5015) Circular Connectors, sealed to IP67.
- Plug shell, 2 x Male contacts for 16-22AWG cable, with rubber bushing. Silver finish on contact area and solder termination.
- For complete pin numbering or pin out information, see Component Specification C045XX.
EU RoHS Status:
Cable Conductor Size:
Mating Pin Size:
13A per contact
-55°C to +125°C
Number of Signal Contacts:
Finish / Plating on Termination:
Finish / Plating on Contact Surface:
Base Material of Contact:
Individual Part Weight:
Overall Dimensions (L x W x D) in mm:
58.72 x Ø25.40
83 in stock
Low availability or made to order: This product is typically manufactured to order. When out of stock, minimum order quantities may apply.
Questions & Answers Ask a Question
What is the recommended cable type for this connector?
The recommended cable size for connectors in the C90 range is 16-22AWG. We do not have any specific recommendations on cable type – this range is based on the same physical dimensions and specifications as MIL-DTL-5015, so any cable compatible with this standard will work for these connectors.
