Home > C90-3106F10SL-4S
Active

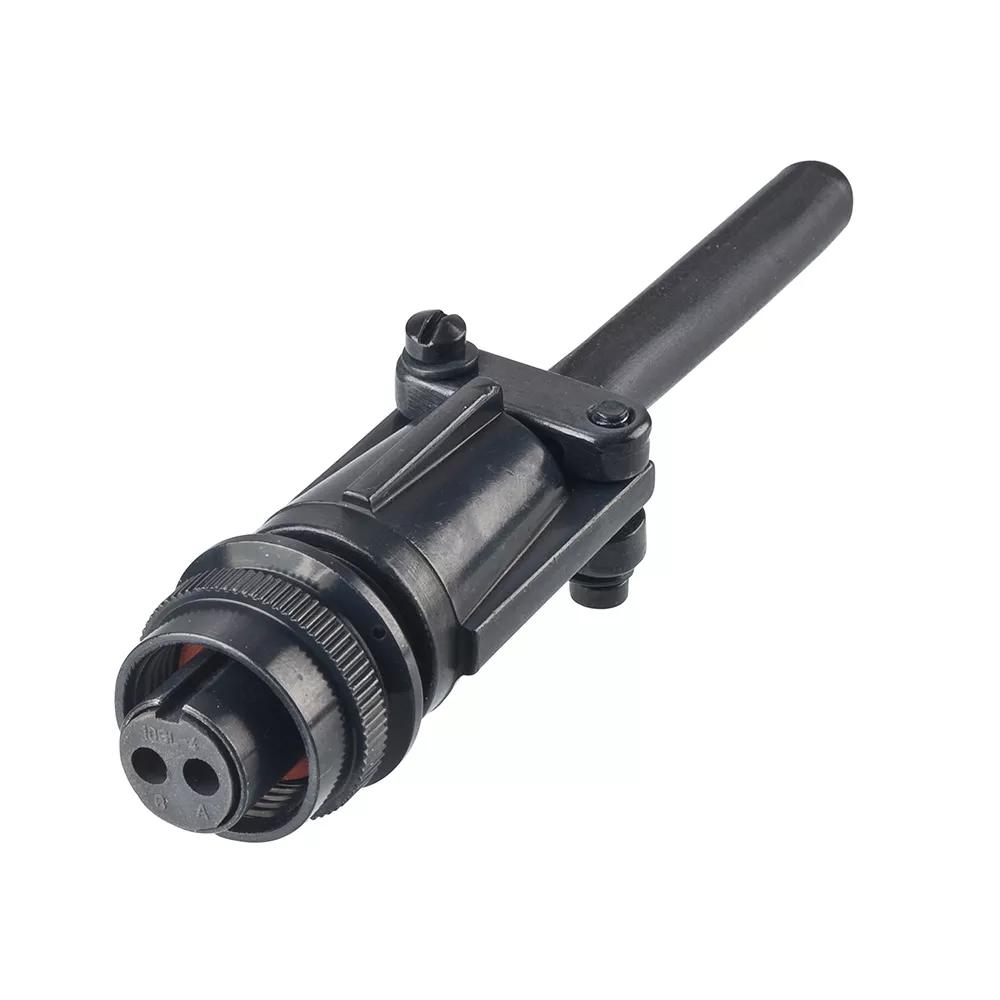

C90-3106F10SL-4S

2 Pos. Circular Straight Plug Conn. Socket contact

Circular Connector equivalent to MIL-DTL-5015 (MIL-C-5015)

  • Plug shell, 2 x Female contacts for 16-22AWG cable, with rubber bushing.
  • RoHS Compliant version of MIL-DTL-5015 (MIL-C-5015) Circular Connectors, sealed to IP67.
Availability Download
Add to Favorites

Technical Details

Specification

Contact Gender:

Female/Socket/Jack

Connector Orientation:

Straight

Connection Type:

Cable (Solder)

Cable Conductor Size:

16-22AWG

Mating Pin Size:

Ø1.6mm

Current Rating:

13A

Operating Temperature:

-55°C to +125°C

Polarising Features:

Yes

End Stackable:

No

Side Stackable:

No

Can be cut to another size:

No

Number of Signal Contacts:

2

Materials

Finish / Plating on Termination:

Silver

Finish / Plating on Contact Surface:

Silver

Base Material of Contact:

Copper Alloy

Housing Material:

Aluminium Alloy

Housing Colour:

Black

Packaging Style:

Single Pack

Dimensions

Individual Part Weight:

31.02g

Overall Dimensions (L x W x D) in mm:

58.72 x Ø22.04

Thread Size:

5/8-24UNEF

Availability

Popular product
Distributor Location Quantity
Farnell
Europe
Status221
Newark
USA
Status42
TTI Inc
USA
Status102

*Stock available: contact distributor to purchase

Questions & Answers Ask a Question

No questions have been asked yet. Click here to ask a question.

Downloads

TECHNICAL DOCUMENTS

PDF

Technical Drawing / Datasheet - C90-3106F.pdf

ZIP

C90-3106F10SL-4S CAD Model (ZIP file containing STP and IGES)

Download
PDF

C045XX Component Specification - C90 Circular Connectors (MIL-DTL-5015 style connectors)

ENVIRONMENTAL COMPLIANCE

PDF

RoHS Compliant (2015/863/EU) with no Exemption required

PDF

REACH Harwin statement (12-Feb-2020) including 205 SVHC (16-Jan-2020), Annex XIV & XVII

XLSX

Conflict Minerals Reporting Template (CMRT 6.01) - Company Summary Statement

INSTRUCTION SHEETS

PDF

Product Training Module - Overview of the C90 RoHS Circular Connector range, designed to MIL-DTL-5015

PDF

Product Training Module - Cable Connectors and Assemblies from Harwin

OTHER DOWNLOADS

PDF

Catalog page - Circular Cable Connector, Straight Plug

PDF

Catalog page - Circular Connectors Specification, Pin Numbering

PDF

Catalog page - Circular Connectors Introduction
